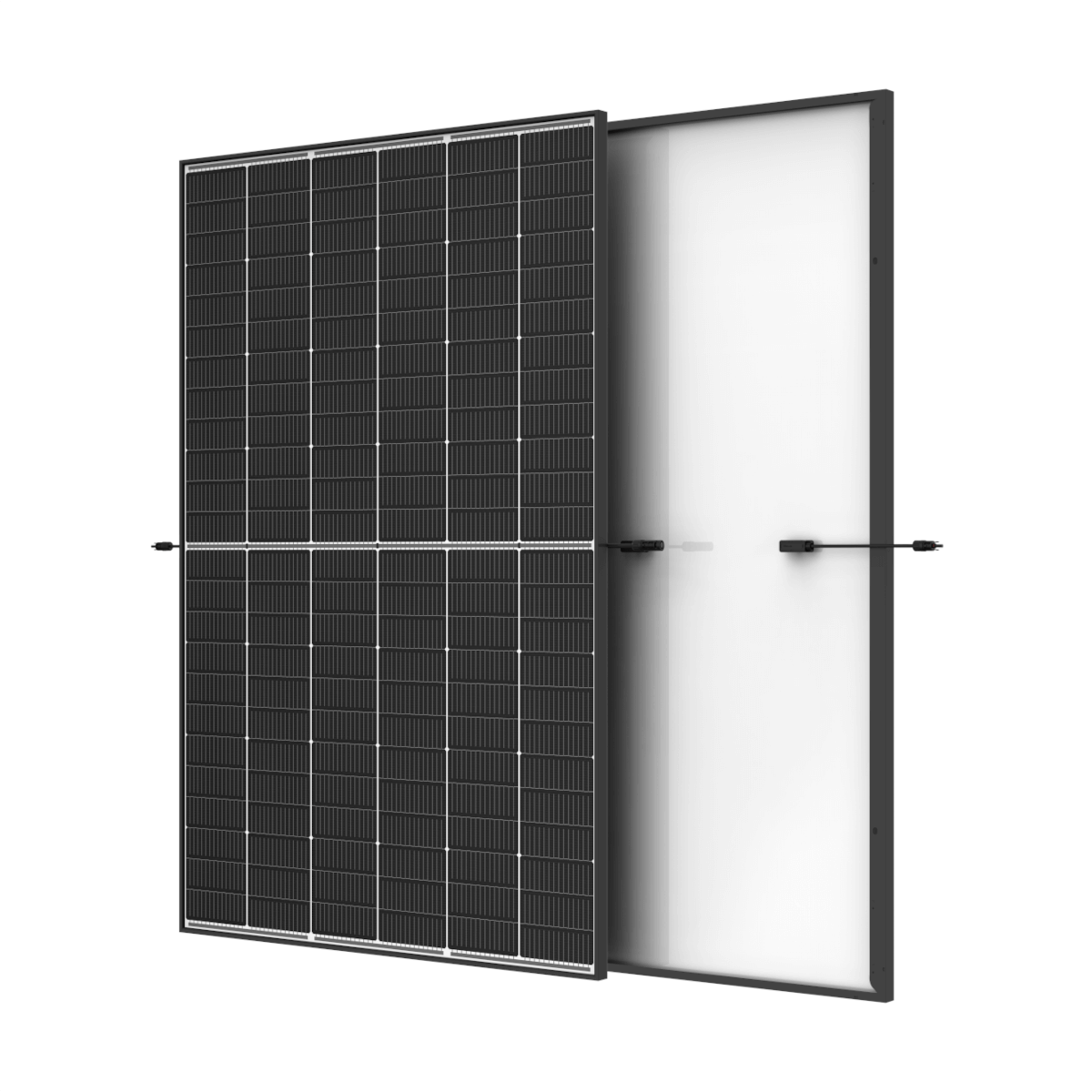

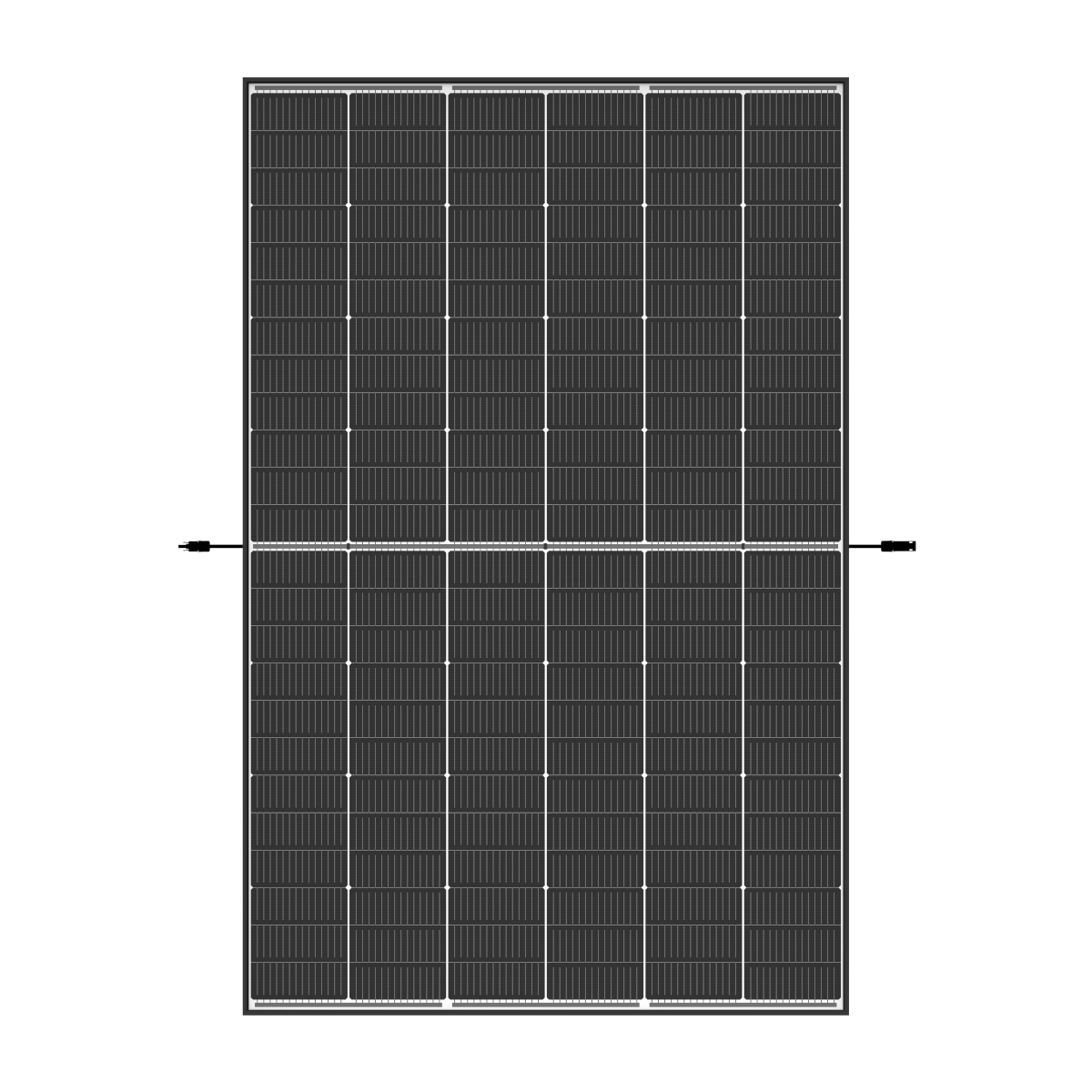

Trina 445 TSM-NEG9R.28 Vertex S+ double glass
Image may differ from the product.
| Manufacturer Art. No.: | TSM-445-NEG9R.28 |
|---|---|
| Art. Nr.: | 11061 |
| Pieces per package unit: |
|
| Backsheet: | White |
| Dimensions: | 1762 x 1134 x 30 mm |
| Frame color: | Black |
| Power: | 445 Watt |
| Solar panel type: | Glass-glass solar panels, Mono solar panels |
| Technology: | TOPCon |
| Warranty: | 25 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- % Sale
Available from stock
Product number:
11061
Description
Vertex S+ 445 watts n-type module, Black Frame
Trina is launching the new Vertex S+ series of PV modules. The Vertex S+ series is Trina's first product to offer a 25-year product warranty at launch. The new high-performance module achieves an output power of up to 445 W with small space requirements. Multi-busbar technology is integrated, which serves to improve the light-catching effect, reduce series resistance and improve current consumption. This double glass module has a performance guarantee of 30 years. The Vertex S+ series is flexible in use and intended for both residential and commercial applications.
Product advantages
- Excellent resistance to fire and in difficult environmental conditions
- N-type technology with 1% degradation in the first year and 0.4% in years 2-30
- Multi busbar technologie
- 30 mm frame height, very stable
- System design and planning is exactly the same as previously known
- 25 years product warranty on manufacturing
- 30 years performance guarantee
Hail resistance class 3
Product features Trina 445 TSM-NEG9.28 Vertex S+ double glass
- 445 Wp
- 144 mono-crystalline cells
- Efficiency: 22.3 %
- Black module frame
- White back sheet
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 21.0 kg
- Connector: MC4 EVO2/TS4
- Cable length at the module: 1100 mm (vertical orientation)
- Snow load up to 6,000 Pa
- Wind load up to 4,000 Pa
- Power temperature coefficient: -0.30%/°C
- Does NOT have A1 fire safety certificate
- New frame version B (see data sheet)
Downloads
Downloads
-
Matching accessories
-
- Remaining quantity

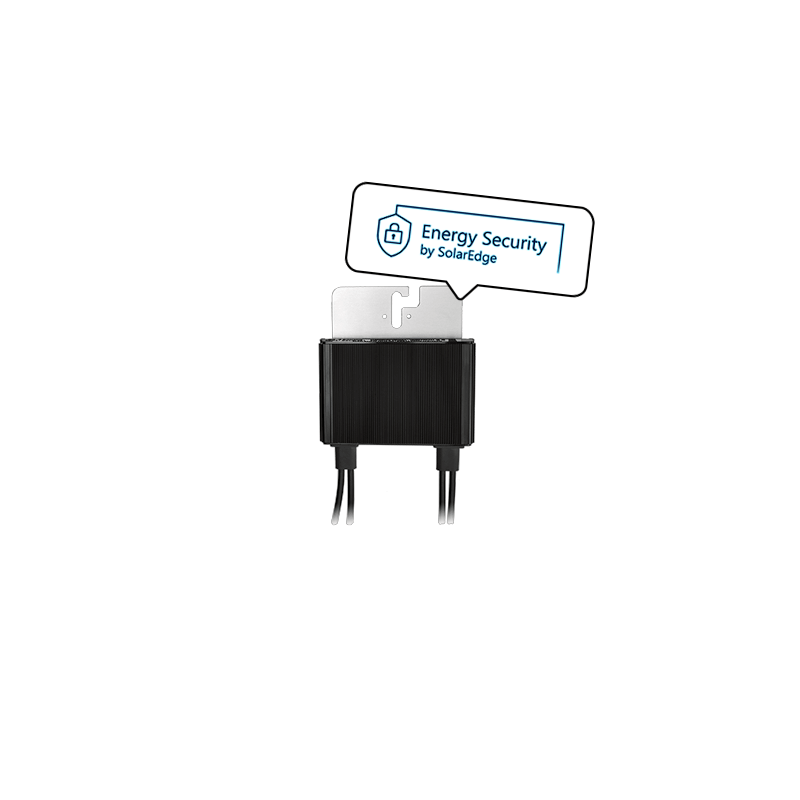

SolarEdge Optimizer P505-5RM4MBM- Type of manufacturer: P505-4RM4MBM
- Art. Nr.: 3315
Available from stock{ "id": "c2c93717535c545faa9306a8ba15b8ac", "item_brand": "", "item_name": "SolarEdge Optimizer P505-5RM4MBM", "item_id": "3315", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c2c93717535c545faa9306a8ba15b8ac" } } -
Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm- Type of manufacturer: PV-KST4/6II-UR
- Art. Nr.: 340
Available from stock{ "id": "47bc20824ea0580f9658753f8da565ab", "item_brand": "", "item_name": "Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm", "item_id": "340", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "47bc20824ea0580f9658753f8da565ab" } } -
Stäubli MC4 socket, 4-6 mm² II, diameter 5.9-8.8 mm- Type of manufacturer: PV-KBT4/6II-UR
- Art. Nr.: 341
Available from stock{ "id": "5f4aa0d423d75f88a51cde234a6f729d", "item_brand": "", "item_name": "Stäubli MC4 socket, 4-6 mm² II, diameter 5.9-8.8 mm", "item_id": "341", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5f4aa0d423d75f88a51cde234a6f729d" } } -
- TIP

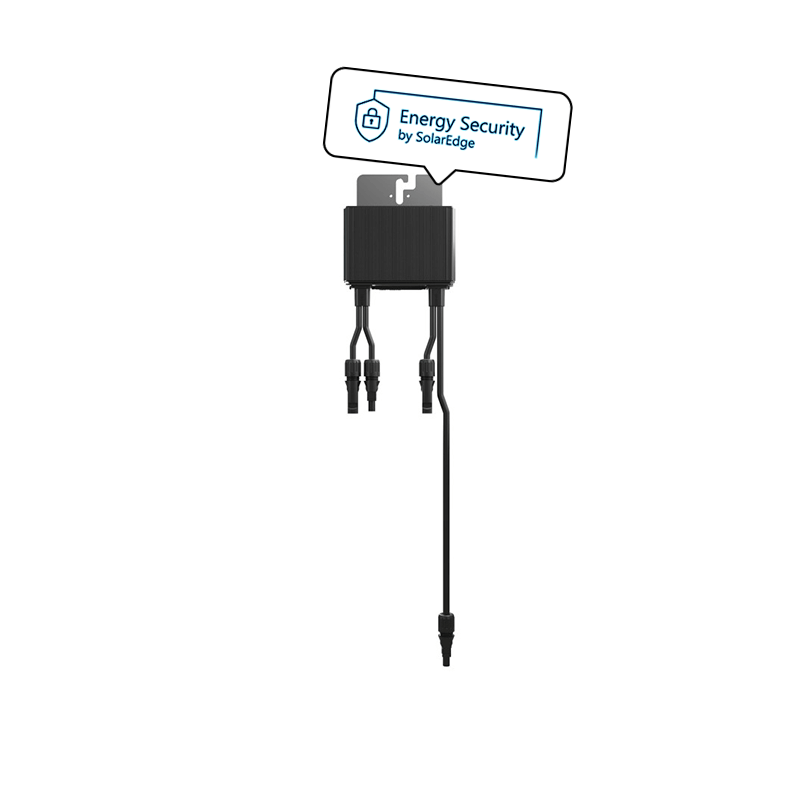

SolarEdge optimizer S440-1GM4MRM- Type of manufacturer: S440-1GM4MRM
