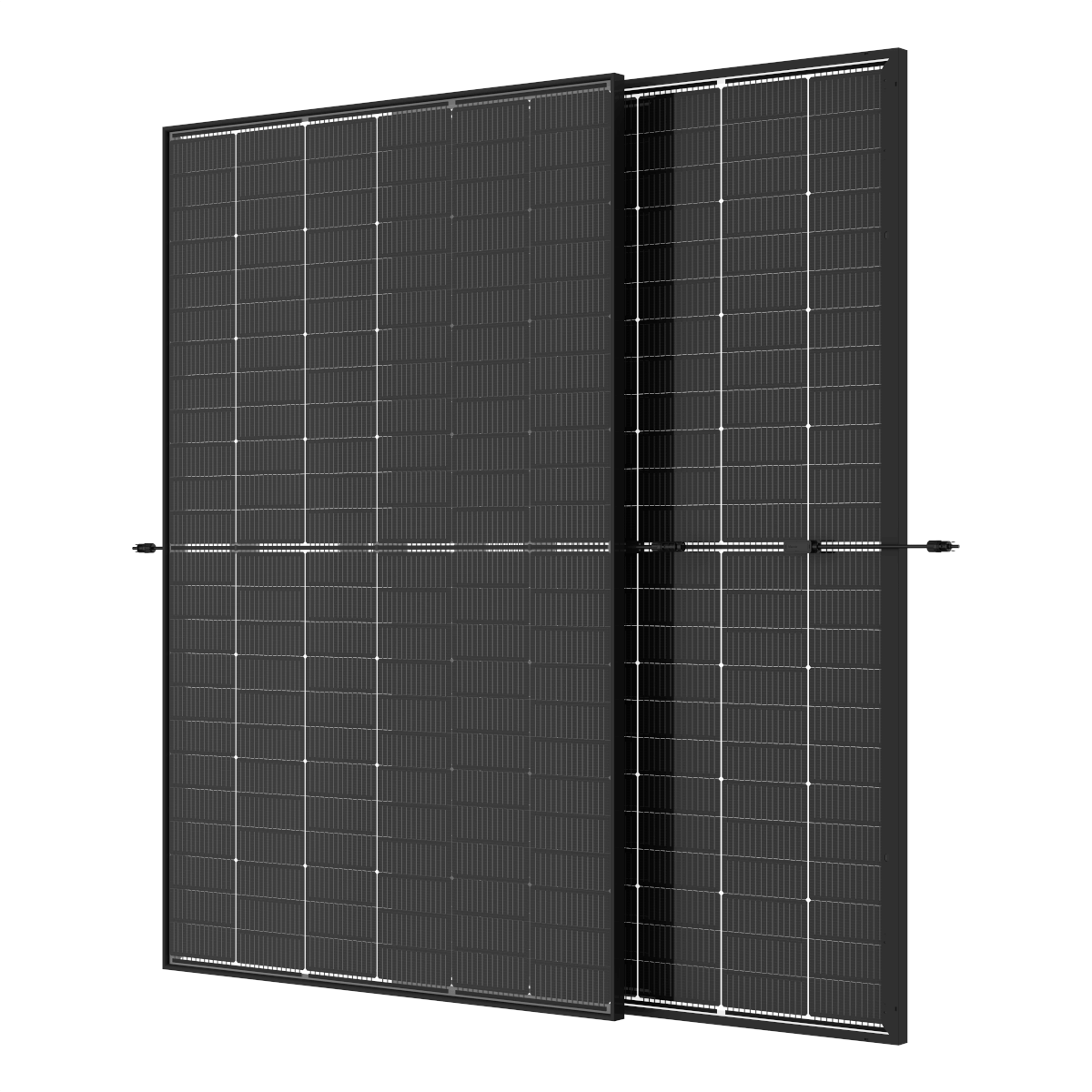

Trina 440 TSM-NEG9RC.27 Vertex S+ Doppelglas
Image may differ from the product.
| Manufacturer Art. No.: | TSM-440-NEG9RC.27 |
|---|---|
| Art. Nr.: | 11466 |
| Pieces per package unit: |
|
| Backsheet: | Transparent |
| Dimensions: | 1762 × 1134 × 30 mm |
| Frame color: | Black |
| Power: | 440 Watt |
| Solar panel type: | BiFacial, Glass-glass solar panels, Mono solar panels |
| Technology: | TOPCon |
| Warranty: | 25 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from 07.01.2025
Product number:
11466
Description
Vertex S+ 440 watts bifacial, n-type module, black frame, clear black
Trina is launching the new Vertex S+ series of PV modules. The Vertex S+ series is Trina's first product to offer a 25-year product warranty at launch. The new high-performance module achieves an output power of up to 440 W with small space requirements. Multi-busbar technology is integrated, which serves to improve the light-catching effect, reduce series resistance and improve current consumption. This double glass module has a performance warranty of 30 years. The Vertex S+ series is flexible in use and intended for both residential and commercial applications.
Product advantages
- Excellent resistance to fire and in difficult environmental conditions
- N-type technology with 1% degradation in the first year and 0.4% in years 2-30
- Multi busbar technologie
- 30 mm frame height, very stable
- System design and planning is exactly the same as previously known
- 25 years product warranty on manufacturing
- 30 years performance guarantee
Hail resistance class 3
Product features Trina 440 TSM-NEG9RC.27 Vertex S+ double glass
- 440 Wp
- 144 mono-crystalline cells
- Efficiency: 21.8 %
- Black module frame
- Transparent back sheet
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 21.0 kg
- Connector: MC4 EVO
- Cable length at the module: 1100 mm (vertical orientation)
- Snow load up to 5,400 Pa
- Wind load up to 4,000 Pa
- Power temperature coefficient: -0.30%/°C
- Does NOT have A1 fire safety certificate
