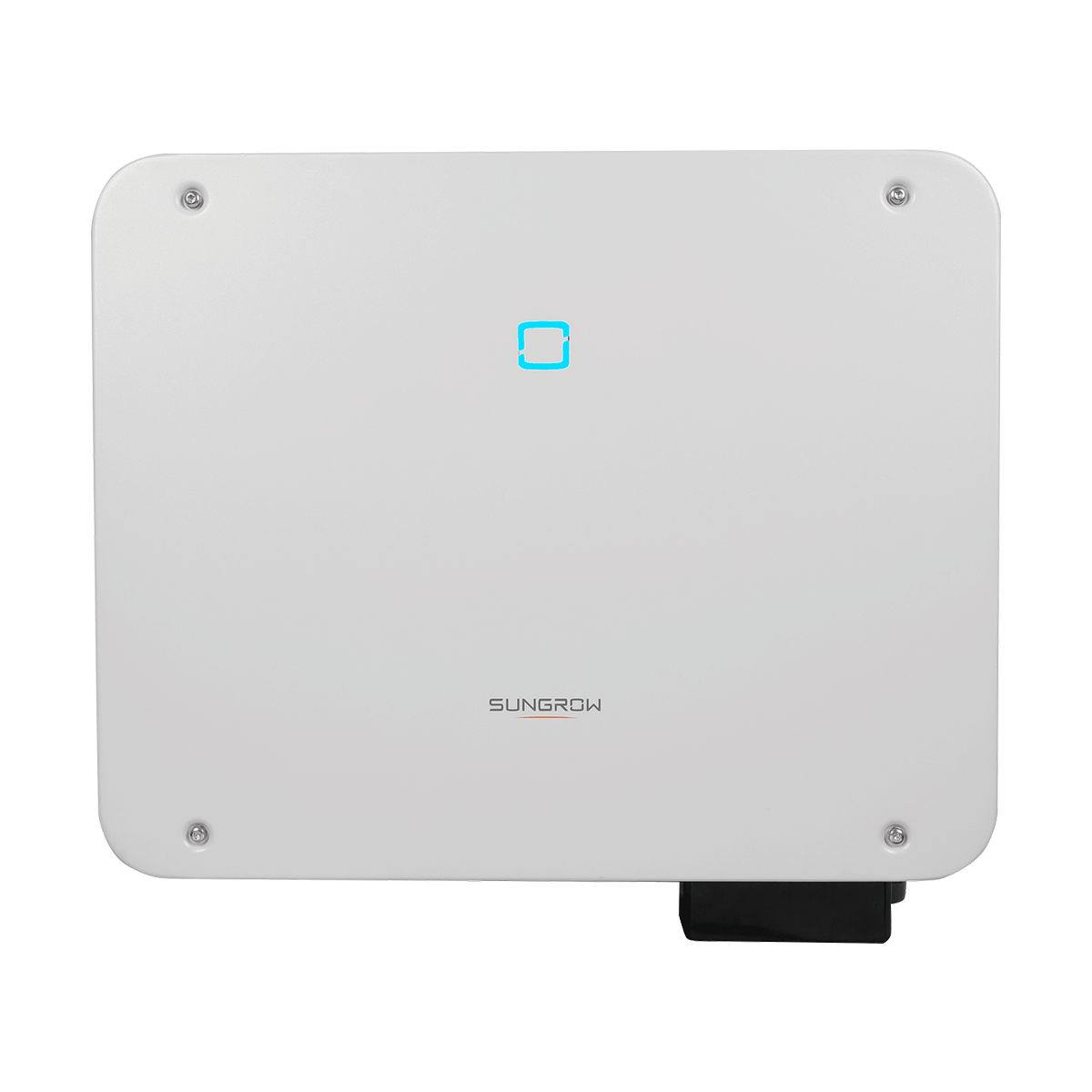

Sungrow SG50CX-P2
| Type of manufacturer: | SG50CX-P2 |
|---|---|
| Manufacturer Art. No.: | ASG01767 |
| Art. Nr.: | 8817 |
| Pieces per package unit: |
|
| AC power: | 50 kW |
| Communication: | RS485, WiFi und Ethernet optional |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 4 |
| MPP voltage range: | 160-1000 Volt |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8817
Description

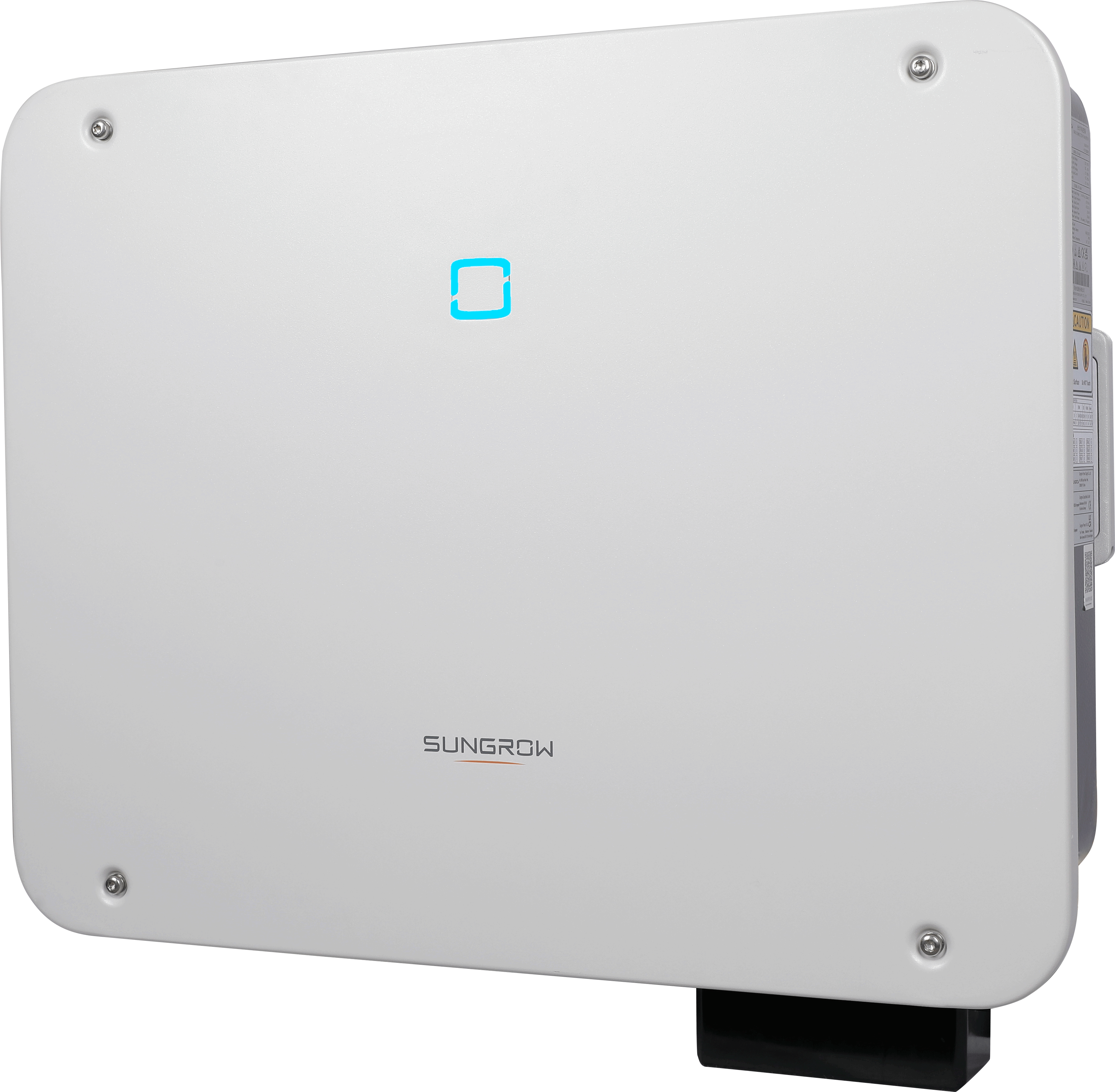

Sungrow SG50CX-P2 – the perfect inverter for your projects
External network and system protection solution with mains voltage sensor according to VDE 4105 possible!
Radio ripple control receiver must be implemented externally via a data logger!
In Austria, please check local regulatory requirements!
The next generation Sungrow commercial inverter is here! The new SG33-50CX P2 series focuses on uniformity while offering a lot of innovation. The SG50CX-P2 size has 4 MPP trackers with EVO2 DC connectors. With Y-cables up to 10 strings (see downloads) can be connected, otherwise 8. Thanks to 30 A DC input per MPPT all power classes can be integrated.
Product advantages
- Status LED
- Input voltage range of 160-1000 V
- High efficiency of up to 98.3%
- Temperature controlled active cooling
- DC surge protection type 1 + 2
- AC surge protection type 2
- External network and system protection solution with mains voltage sensor according to VDE 4105 possible
Product features Sungrow SG50CX Premium
- 50 kVA output 3-phase
- 4 MPP tracker

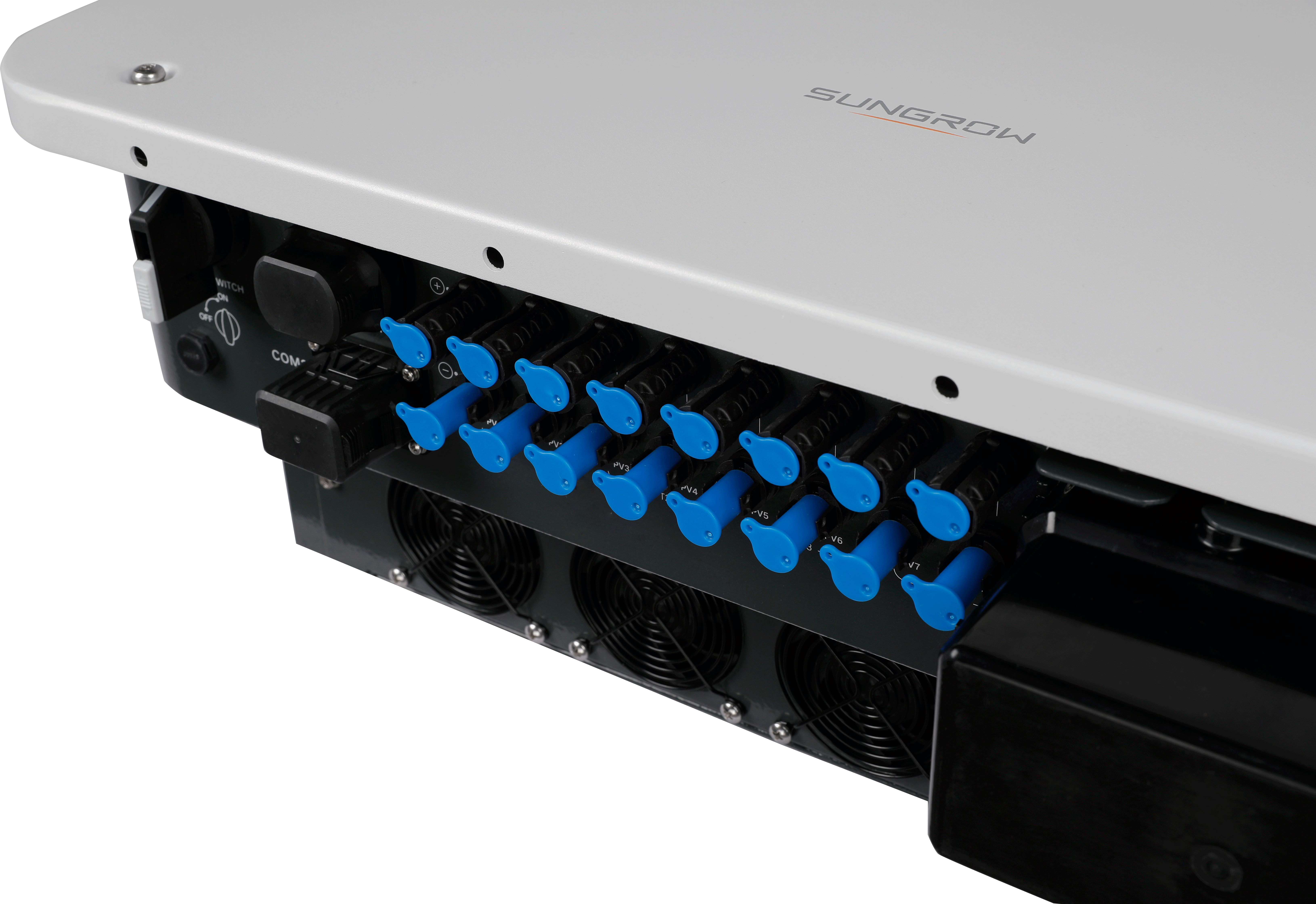

- 2 MC4 inputs per MPPT (with Y-cable up to 10 strings are possible)
- EVO2 DC plugs
- 30 A per MPPT
- 1 x RS485
- Communication & monitoring via optional Sungrow WiNet-S communication dongle
- Dimensions: 645 * 575 * 245 mm
- Protection category: IP66
- Weight: 41 kg
The perfect choice for medium and large systems often used in commercial or agricultural applications.
-
