Sungrow SG125HX
| Type of manufacturer: | SG125HX |
|---|---|
| Manufacturer Art. No.: | ASG01384 |
| Art. Nr.: | 8085 |
| Pieces per package unit: |
|
| AC power: | 125 kW |
| Communication: | RS485 / PLC |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 6 |
| MPP voltage range: | 500-1500 Volt |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8085
Description
Sungrow SG125HX commercial inverter – the perfect inverter for your projects
Since 1997, Sungrow has been developing products for the PV industry and has become the leading inverter manufacturer in the world. To date, Sungrow has installed over 87 GW of inverter power worldwide and is a leading manufacturer of project inverters in Europe.
No approval for VDE-AR-N 4105, only for VDE-AR-N 4110/4120. For 800 V mains connection
Product advantages
- Status LED
- Input voltage range of 500-1500 V
- High efficiency of up to 98.7%
- Temperature controlled active cooling
- DC surge protection type 2
- AC surge protection type 1 + 2
- Arc fault circuit interrupter (AFCI)
Product features Sungrow SG125HX
- 125 kVA 3 phase output
- 6 MPP trackers 860 V – 1300 V
- 2 MC4-Evo2 inputs per MPPT (max. 6 mm², optional 10 mm² )
- RS485 / PLC
- Communication & monitoring via optional Sungrow WiNet-S Communication Dongle, EyeM4 or COM100E
- Dimensions: 916 x 690 x 340 mm
- Protection category: IP66
- Weight: 75 kg
The perfect choice for medium and large systems often used in commercial or agricultural applications.
-
Matching accessories
-
- Remaining quantity

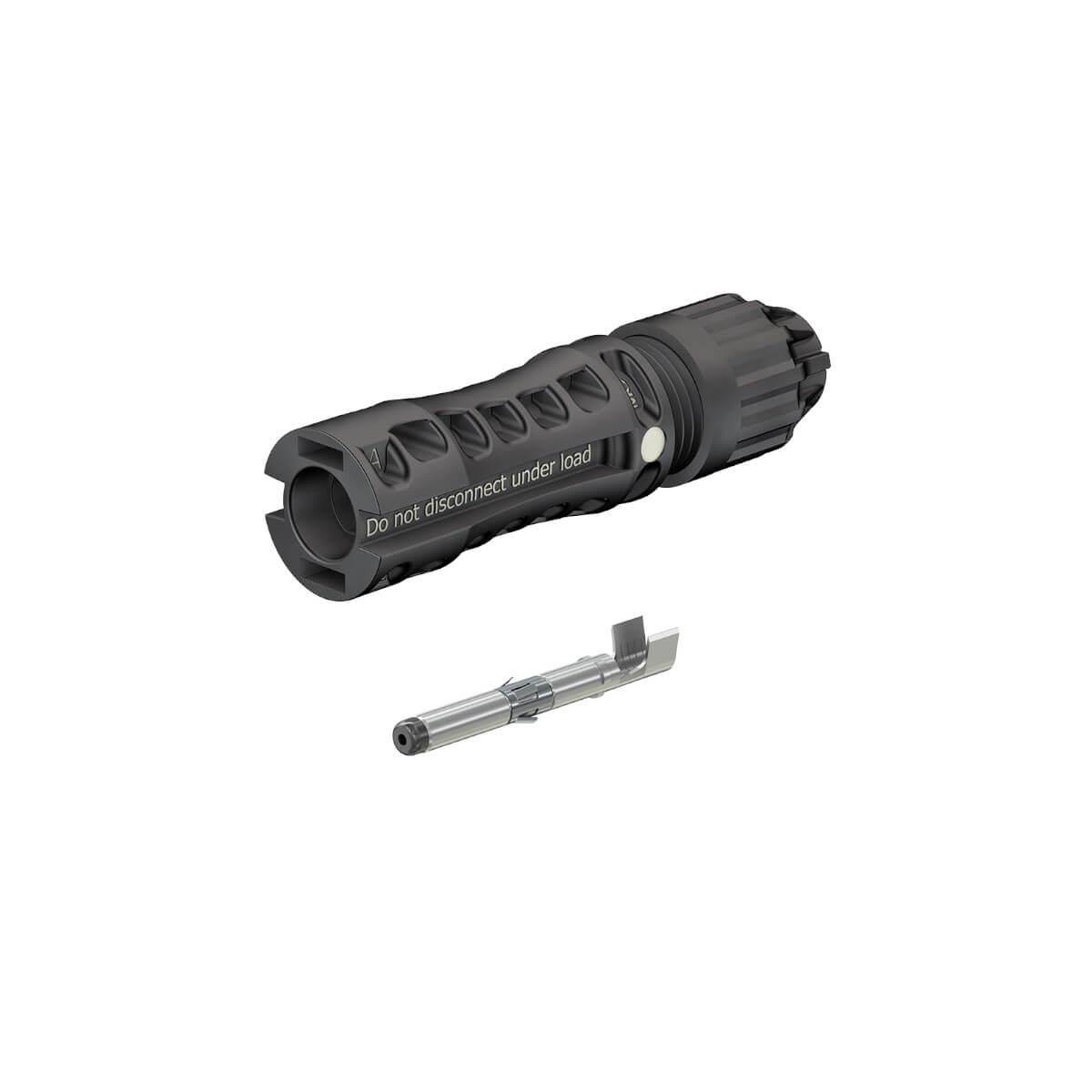

Stäubli MC4-EVO 2 plug, 10 mm², diameter 6.4-8.4 mm- Type of manufacturer: PV-KST4-EVO 2/10II-UR
