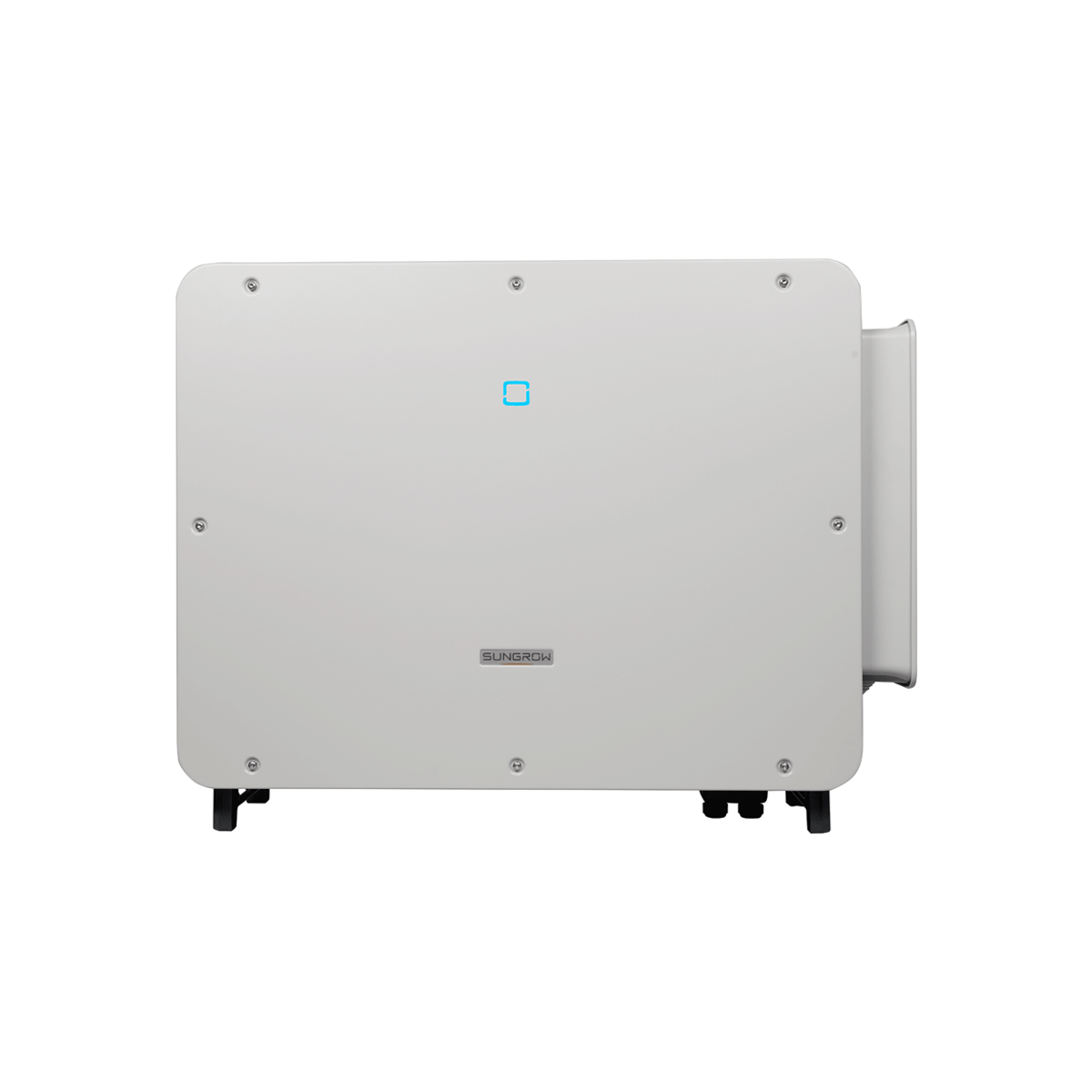

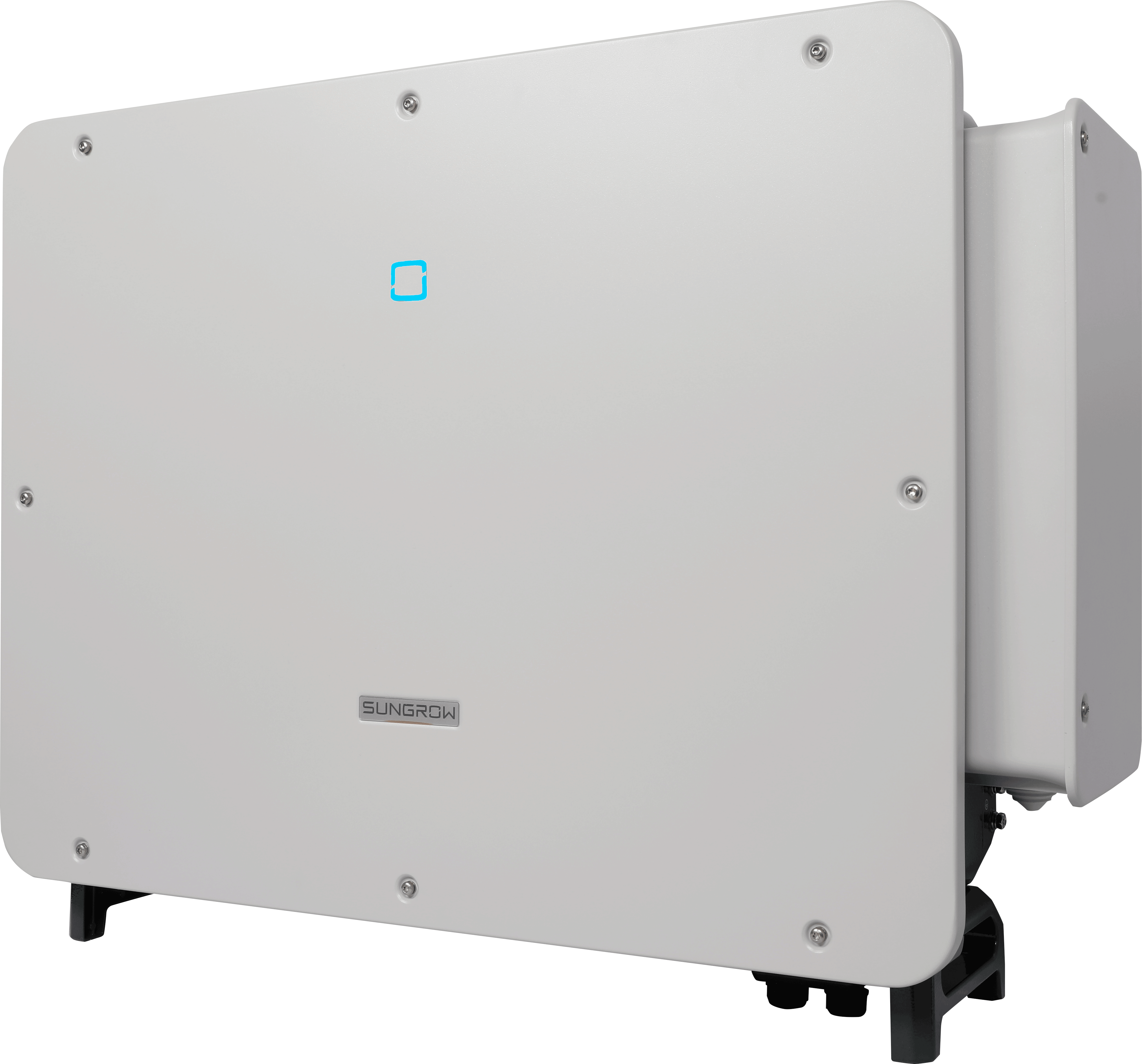

Sungrow SG125CX-P2
| Type of manufacturer: | SG125CX-P2 |
|---|---|
| Manufacturer Art. No.: | ASG01546 |
| Art. Nr.: | 8174 |
| Pieces per package unit: |
|
| AC power: | 125 kW |
| Communication: | RS485, WiFi und Ethernet optional |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 12 |
| MPP voltage range: | 180-1000 Volt |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8174
Description
Sungrow SG125CX – P2 the perfect inverter for your projects
In Austria, please check local regulatory requirements!
Certification to VDE-AR-N 4105 is expected in the course of 2022. The VDE-AR-N 4110/4120 certificate is already available in the download section.
Since 1997, Sungrow has been developing products for the PV industry and has become the leading inverter manufacturer in the world. To date, Sungrow has installed over 224 GW of inverter power worldwide and is a leading manufacturer of project inverters in Europe.
Product advantages
- Status LED
- Input voltage range of 500-1500 V
- High efficiency of up to 98.7%
- Temperature controlled active cooling
- DC surge protection type 1 + 2
- AC surge protection type 2
- Arc Fault Circuit Interrupter (AFCI)
Product features Sungrow SG125CX Premium
- 125 kVA output 3-phase

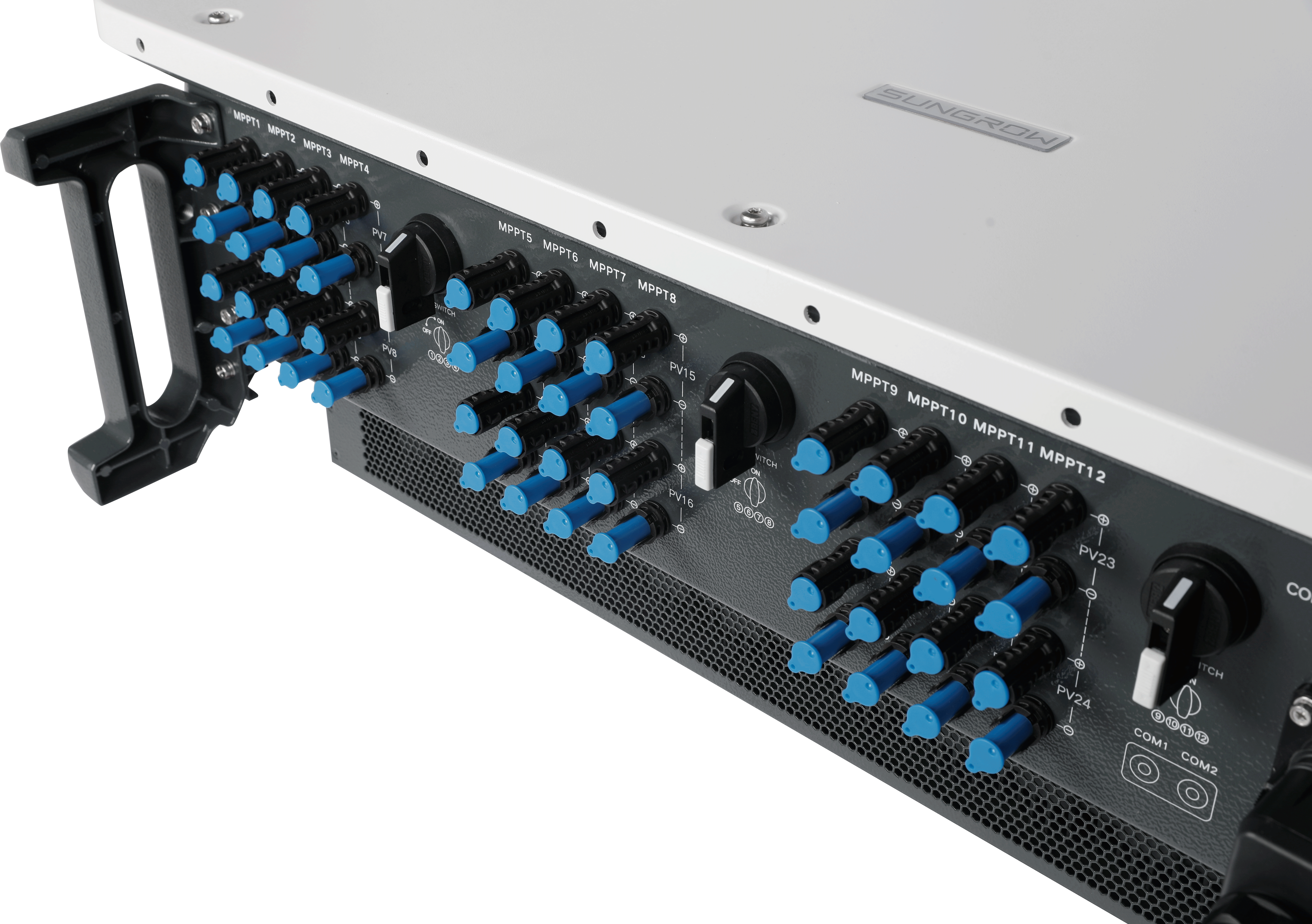

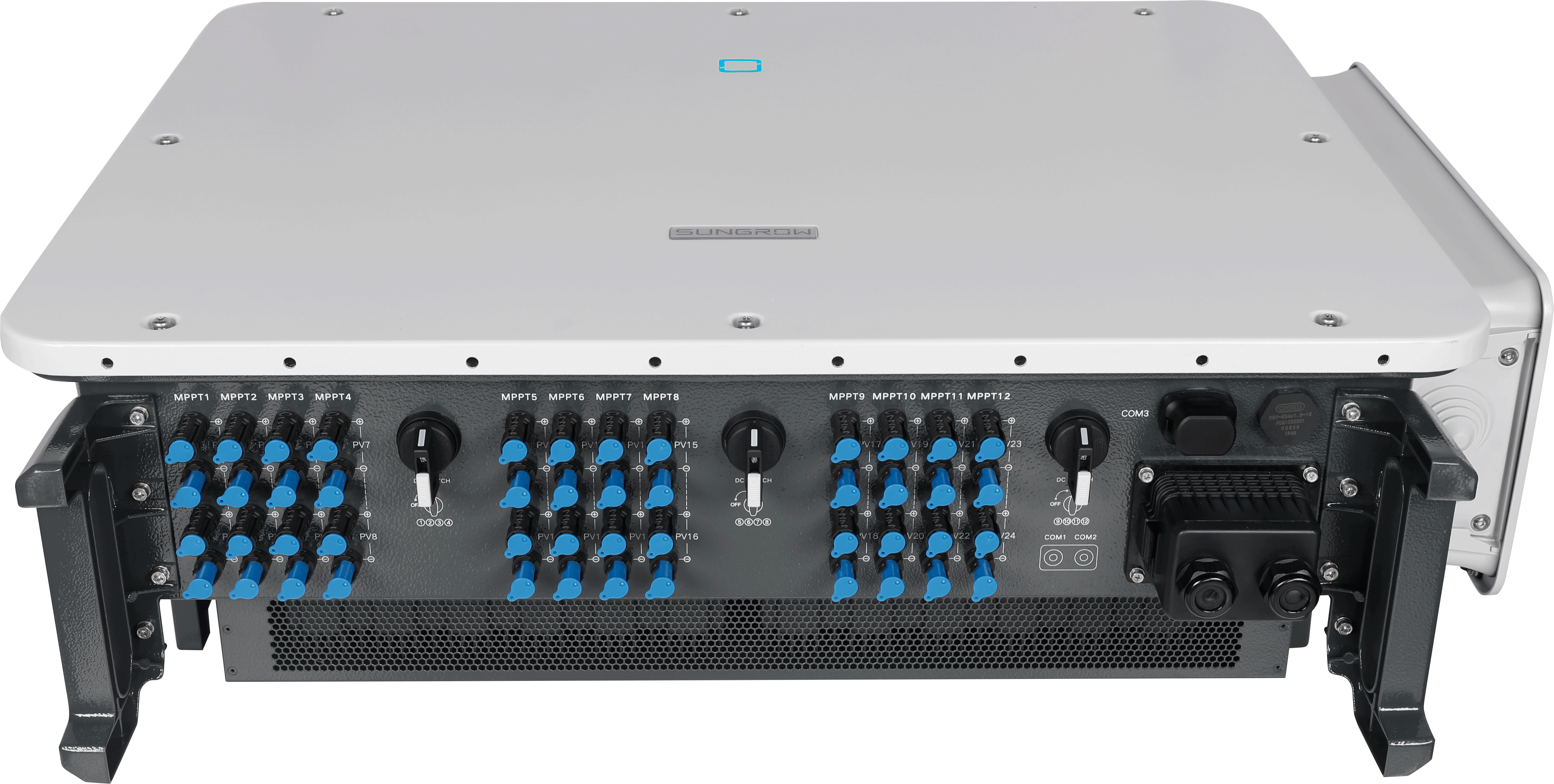

- 12 MPP tracker 180 - 1000 V
- 2 MC4-Evo2 (max. 6mm²) inputs per MPPT
- 1 x RS485
- Communication & monitoring via optional Sungrow WiNet-S communication dongle or COM100E or EyeM4
- Dimensions: 1019 x 793 x 360 mm
- Protection category: IP66
- Weight: 87 kg
The perfect choice for medium and large systems often used in commercial or agricultural applications.
-
