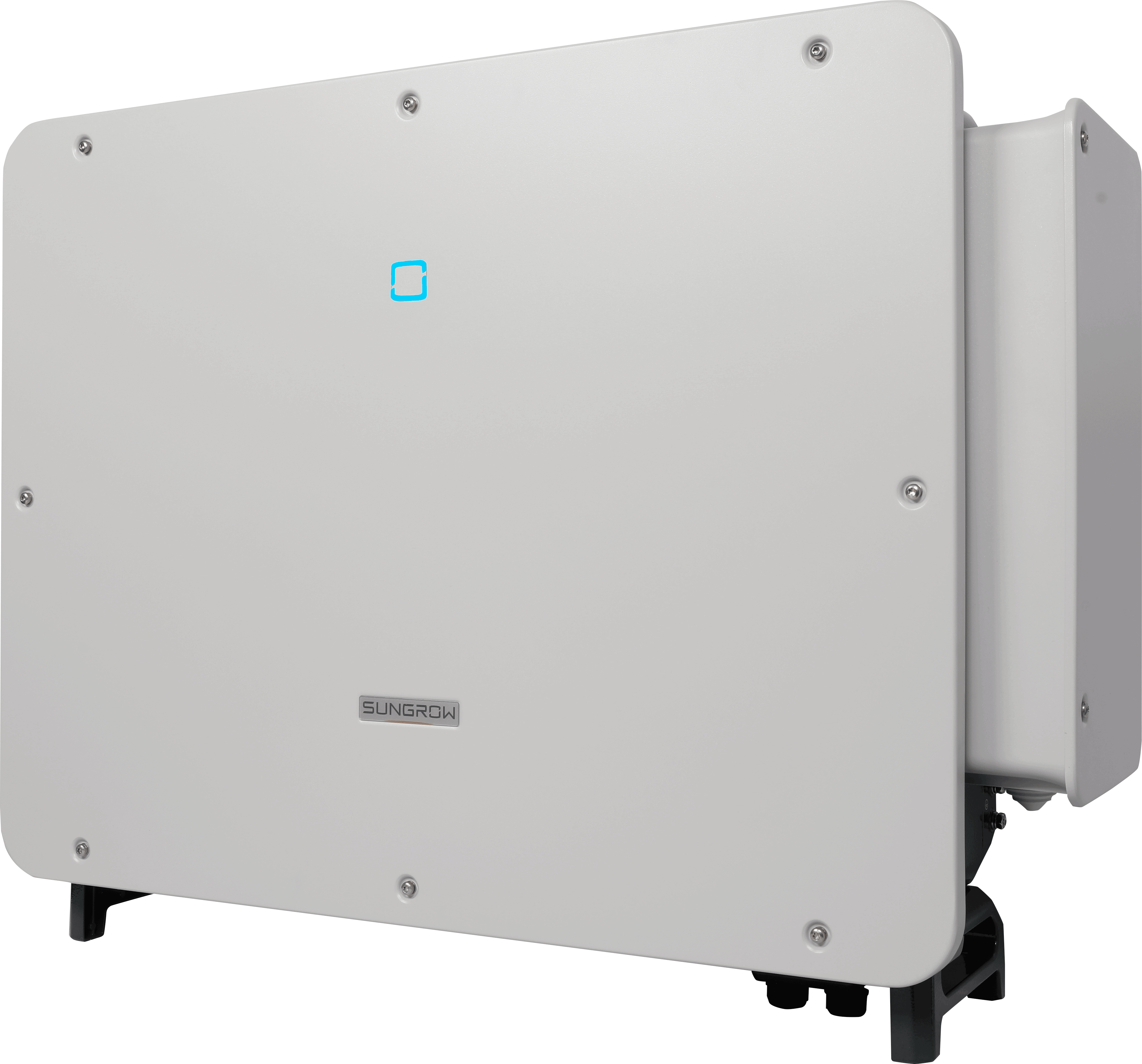

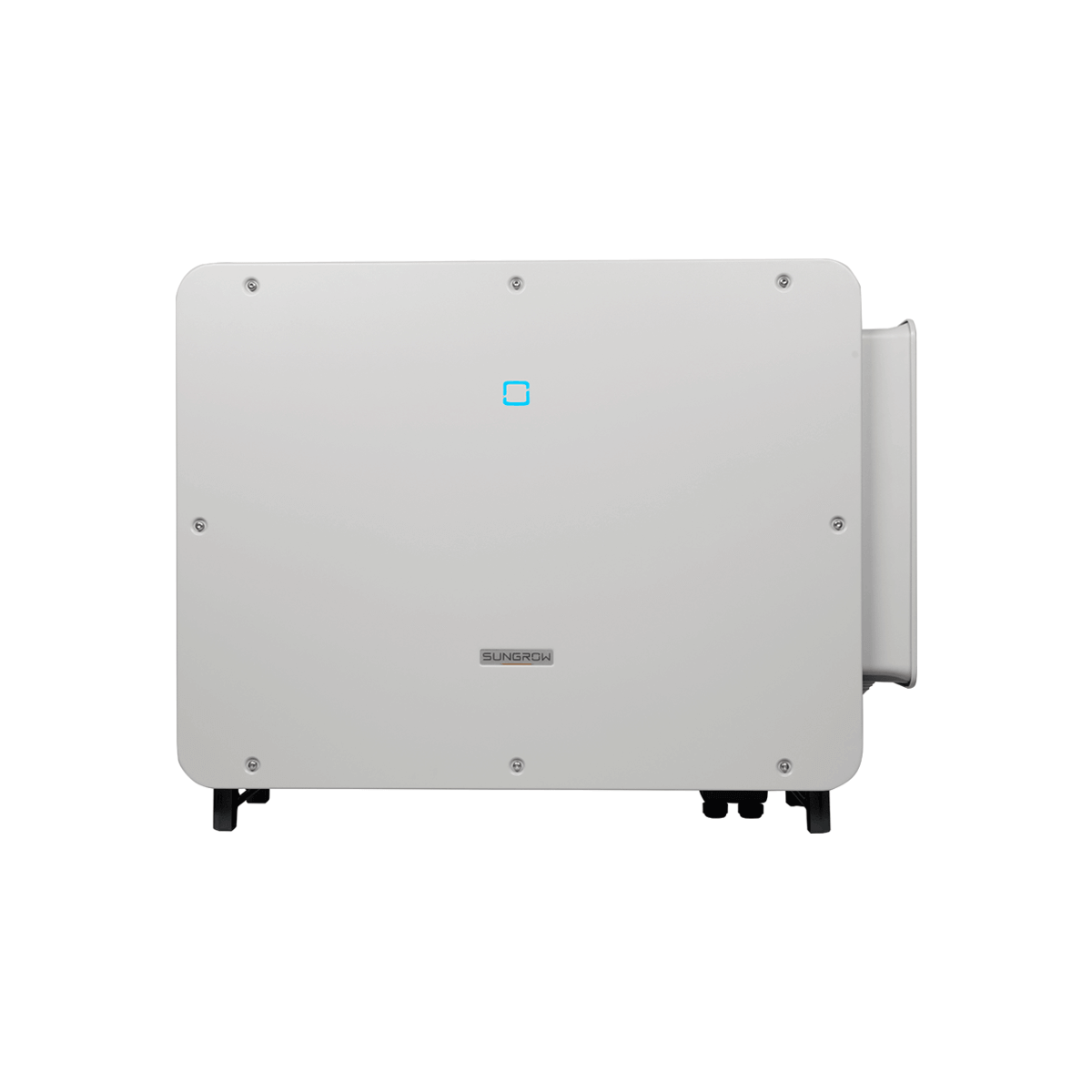

Sungrow SG125CX-P2
| Type of manufacturer: | SG125CX-P2-V113 |
|---|---|
| Manufacturer Art. No.: | ASG01901 |
| Art. Nr.: | 12024 |
| Pieces per package unit: |
|
| AC power: | 125 kW |
| Communication: | RS485, WiFi und Ethernet optional |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 12 |
| MPP voltage range: | 180-1000 Volt |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
12024
Description
Sungrow SG125CX – P2 the perfect inverter for your projects
In Austria, please check local regulations!
The CX-P2 series is not compatible with the EyeM4 dongle.
Warranty extension is possible with the following data:
Company information (address, VAT ID and contact person)
Inverter type
Inverter serial number
Length of the warranty extension
Request directly at servicecommercialdistribution@sungrow-emea.com.
Currently, the COM100E data logger is still requiered for RCR.
Since 1997, Sungrow has been developing products for the PV industry and has become the leading manufacturer of inverters worldwide. To date, Sungrow has installed over 224 GW of inverter capacity worldwide and is a leading manufacturer of project inverters in Europe.
Product advantages
- Both VDE-AR-N 4105 and 4110/4120 certified. (see download area)
- Status LED
- Input voltage range from 180-1000 V
- High efficiency of up to 98.5 %
- Temperature-controlled intelligent convection cooling
- DC overvoltage protection type 1 + 2
- AC overvoltage protection type 2
- Arc fault circuit interrupter (AFCI)
- With integrated coupling switch
Product features Sungrow SG125CX Premium
- 125 kVA output 3-phase

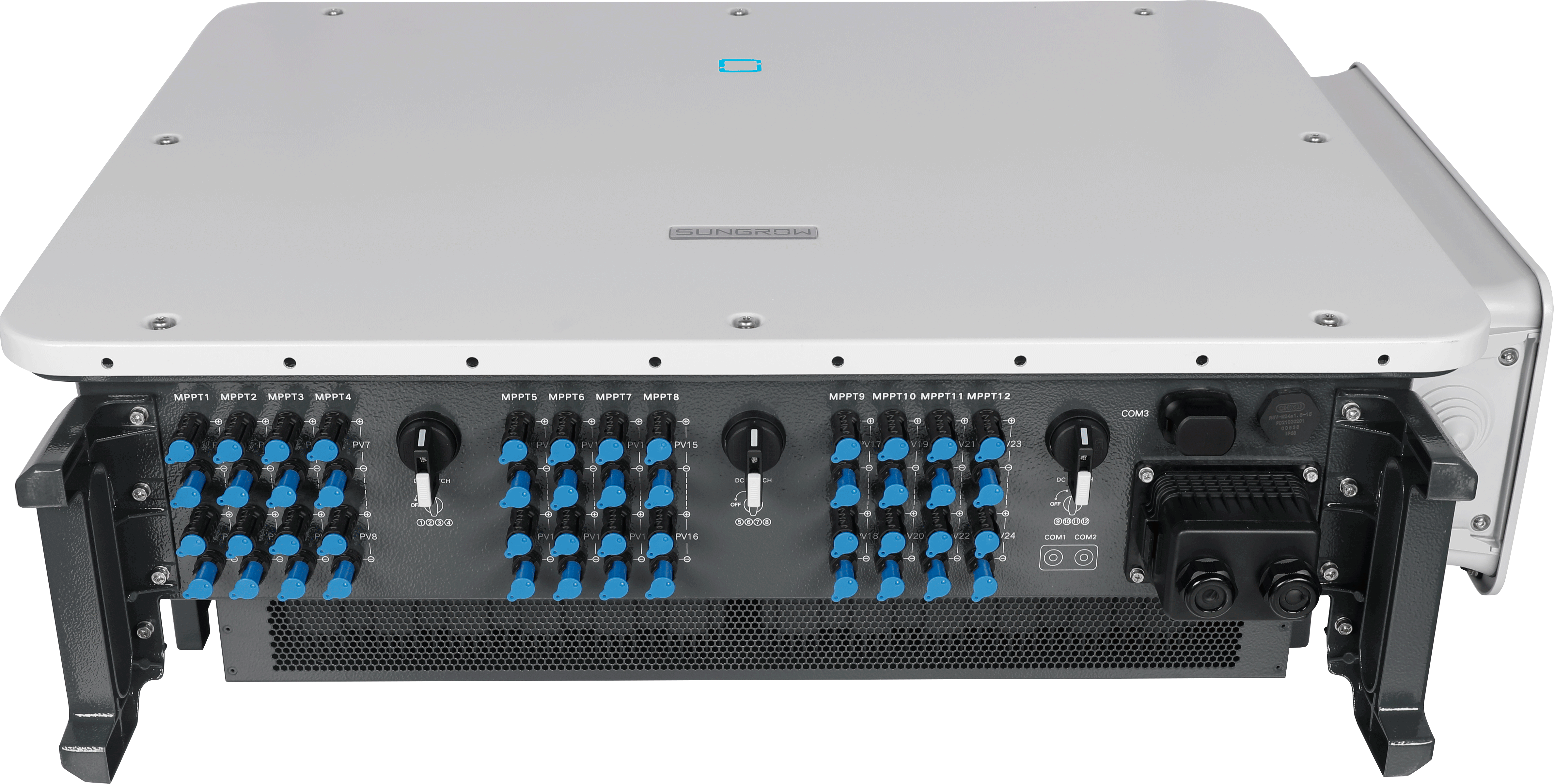

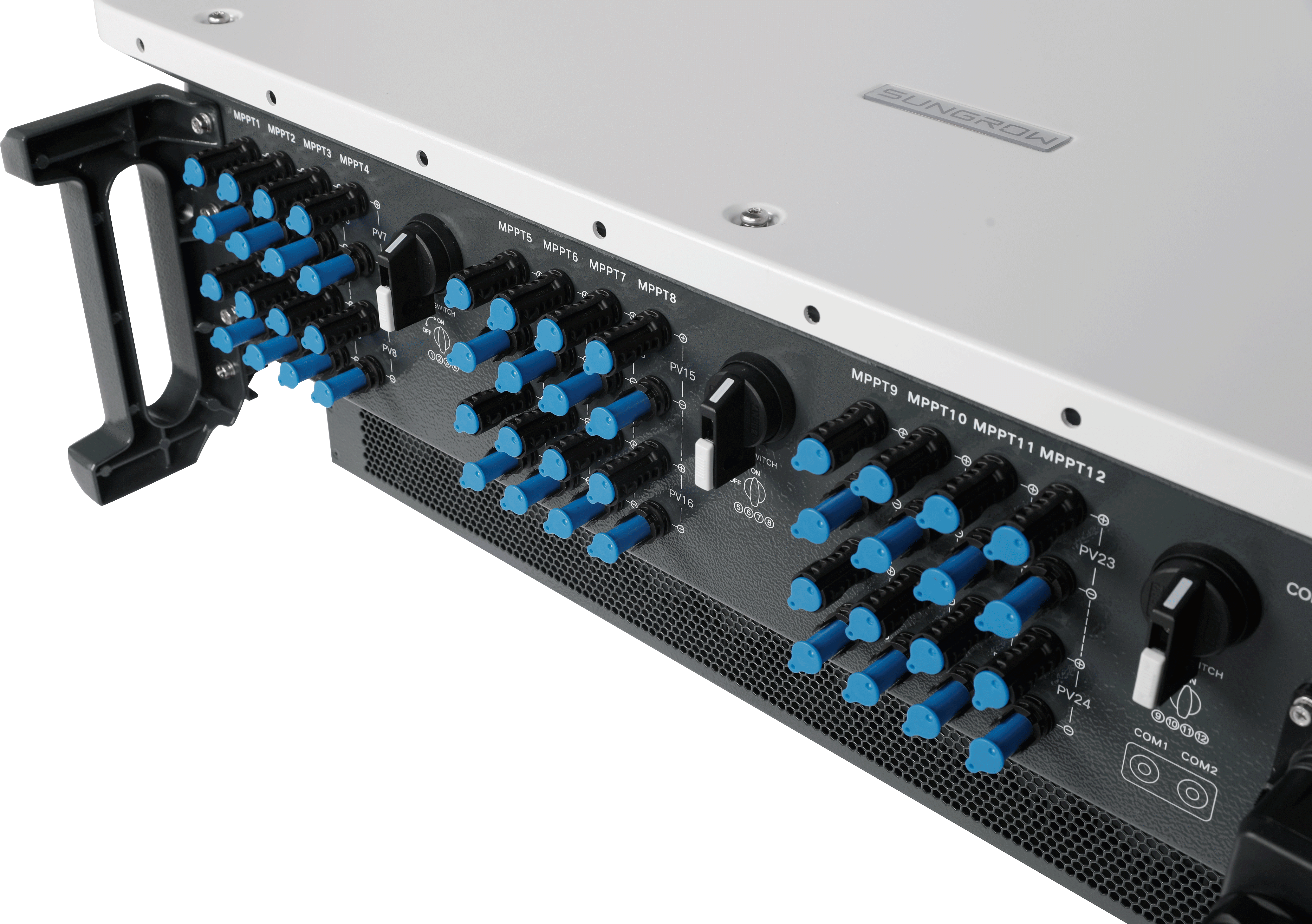

- 12 MPP trackers 180 – 1000 V
- 2 MC4-Evo2 (max. 6mm²) inputs per MPPT
- 1 x RS485
- Communication & monitoring via optional Sungrow WiNet-S Communication Dongle or COM100E
- Dimensions: 1019 x 793 x 360 mm
- Protection category: IP66
- Noise emission: 73db(A)
- Weight: 87 kg
The perfect choice for medium and large systems, such as those often used in the commercial or agricultural sector.
-
Matching accessories
-

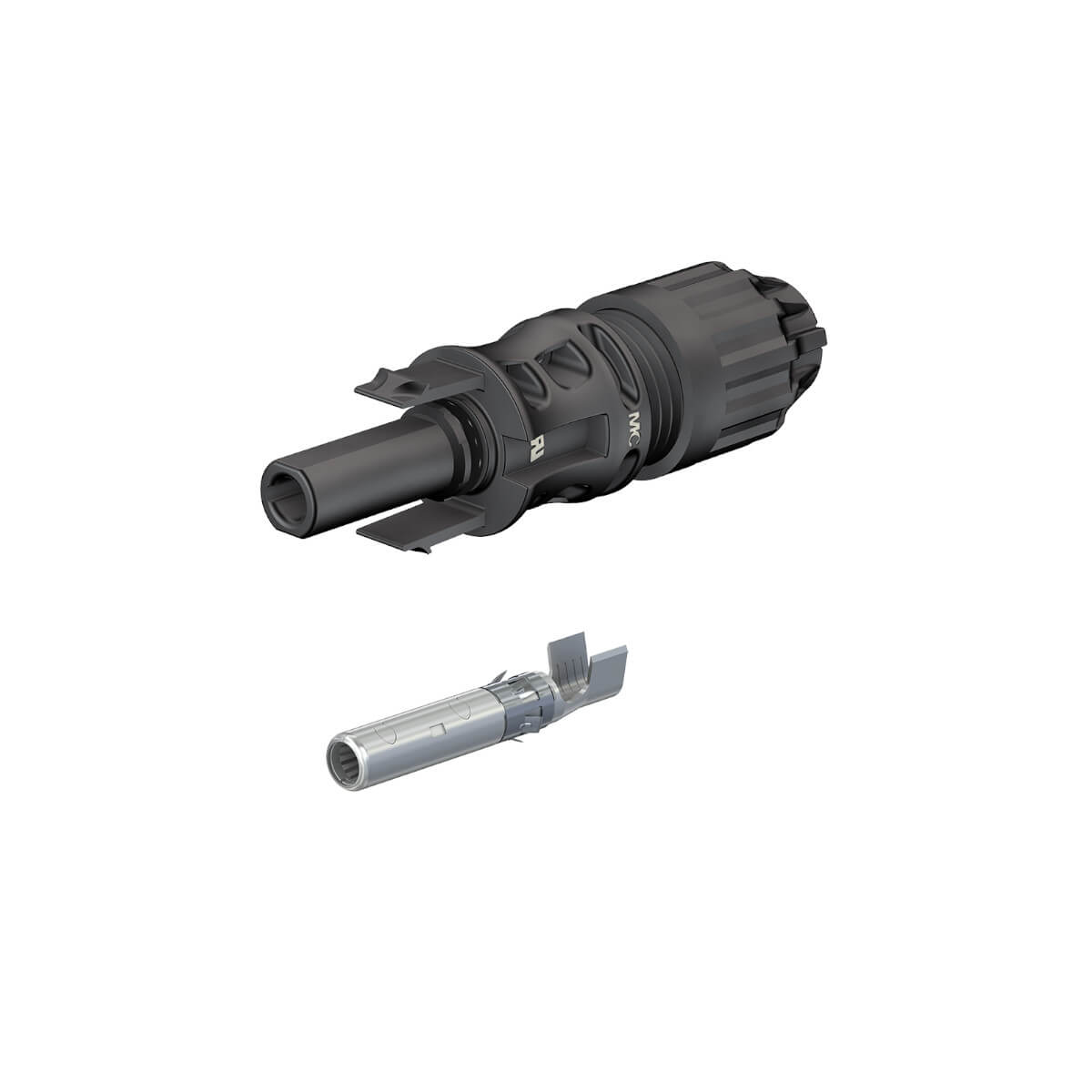

Stäubli MC4-EVO 2 socket, 4-6 mm², diameter 6.4 – 8.4mm- Type of manufacturer: PV-KBT4-EVO 2/6II-UR
- Art. Nr.: 8926
Available from stock{ "id": "5d23eb607d67554ab18a63efaa5cc16c", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 socket, 4-6 mm², diameter 6.4 – 8.4mm", "item_id": "8926", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5d23eb607d67554ab18a63efaa5cc16c", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm- Type of manufacturer: PV-KBT4-EVO 2/6I-UR
- Art. Nr.: 6521
Available from stock{ "id": "fa509b3807ed5f9c84860bf3d494deec", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 socket 4.0 – 6.0 mm², diameter 4.7 – 6.4 mm ", "item_id": "6521", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "fa509b3807ed5f9c84860bf3d494deec", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

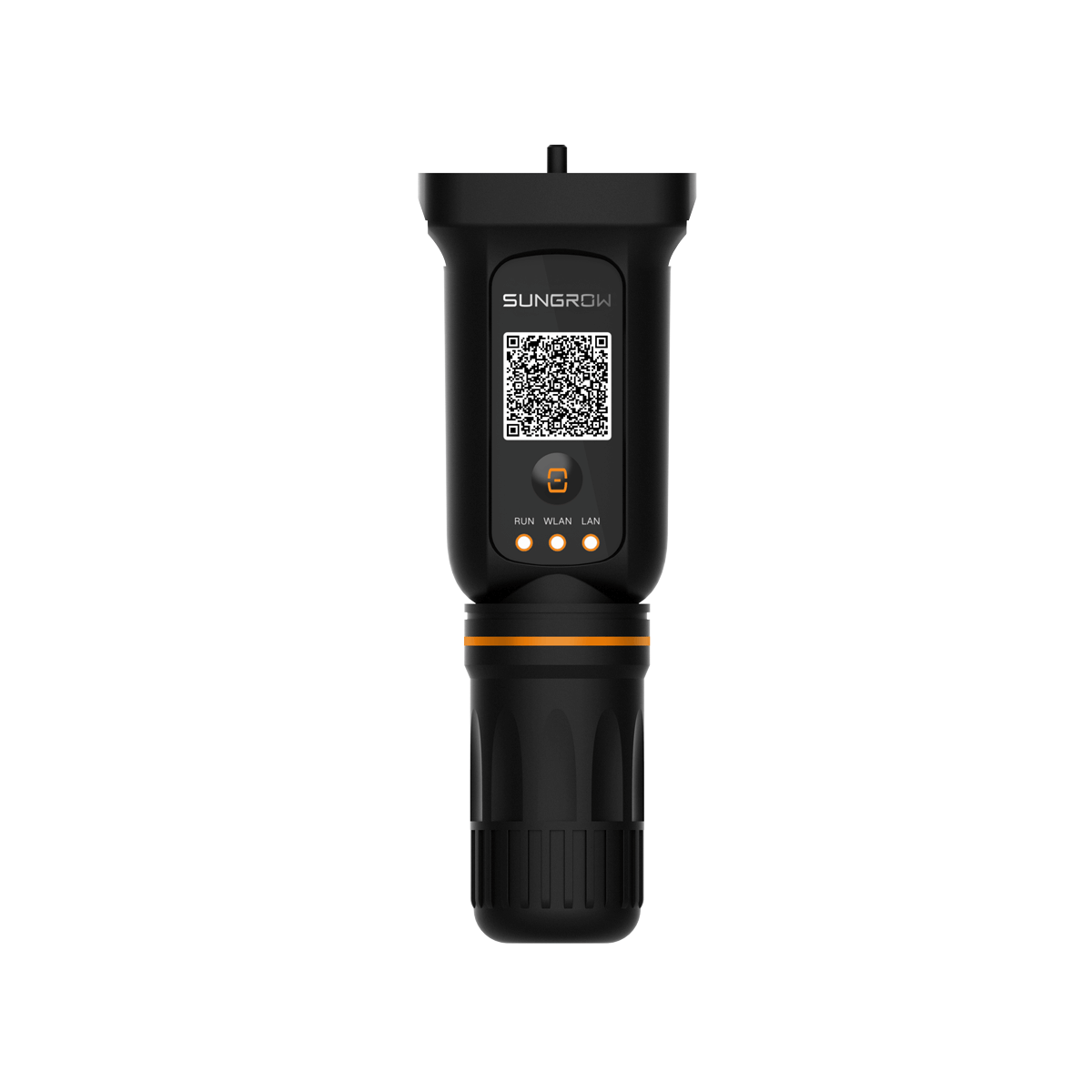

Sungrow WiNet-S2 Communication Module- Type of manufacturer: WiNet-S
- Art. Nr.: 12531
Available from stock{ "id": "3946c417b5765e75b0df8cb850cc99fd", "item_brand": "", "item_name": "Sungrow WiNet-S2 Communication Module", "item_id": "12531", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3946c417b5765e75b0df8cb850cc99fd", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

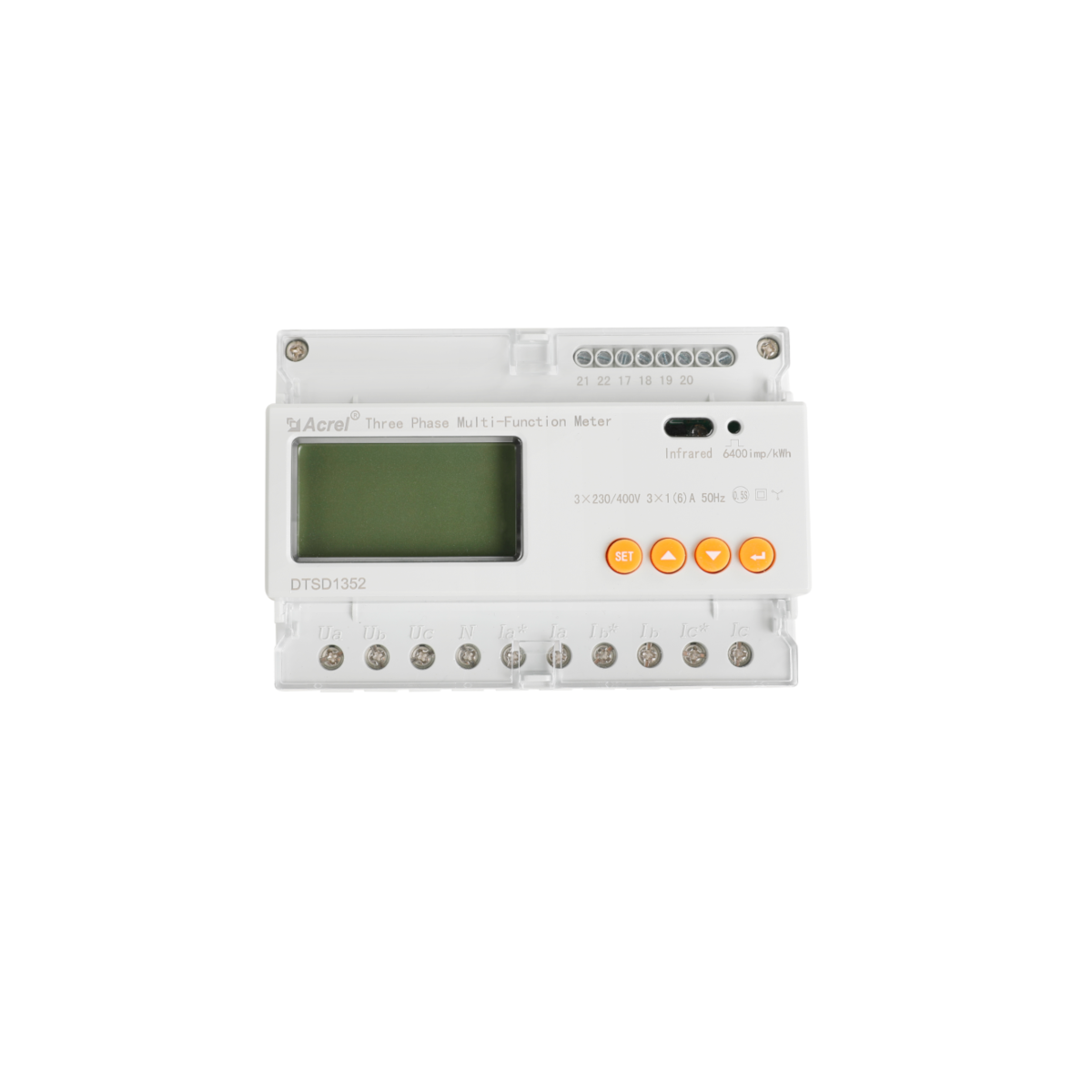

Sungrow 3-phase energy meter 6 A for external measuring transformers- Type of manufacturer: DTSD1352-C/1(6)A
