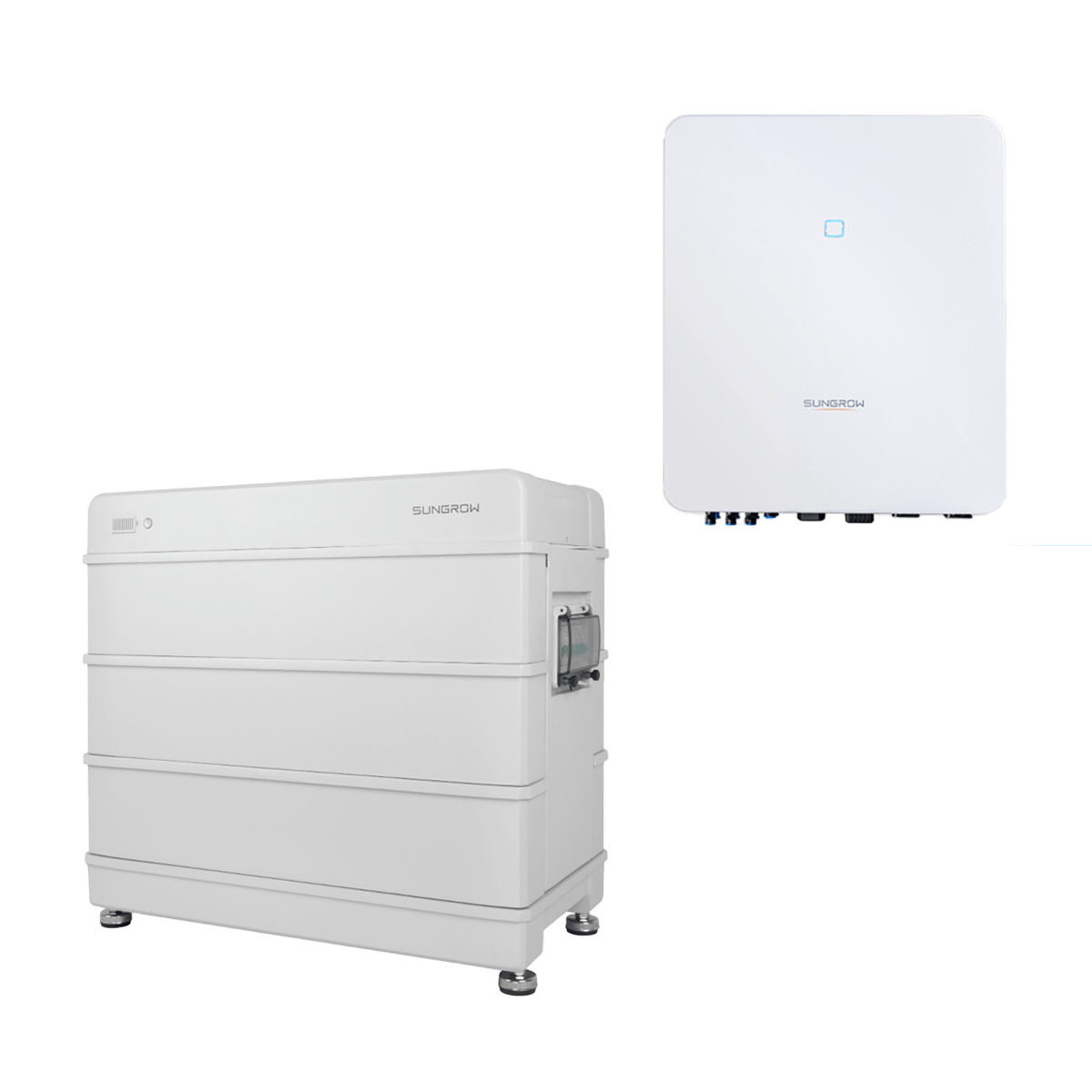

Sungrow SBR096 with Sungrow Hybrid HV SH6.0RT V112

Perfectly harmonized: The Sungrow SBR modular expandable storage with 9.6 kWh – Inverter Sungrow Hybrid HV SH6.0RT V112

Sungrow inverters achieve up to 99% efficiency with up to 2 MPPTs. The MPPTs respond to changes in light intensity by selecting the optimal load for the cells to obtain the highest usable output power.

Combined with the Sungrow SBR storage with 9.6 kWh capacity and the possibility to expand it at any time, no desires are left unfulfilled. The Sungrow 3-phase hybrid inverter recognizes the battery storage after installation and automatically integrates it into the system. The fine-tuned backup power system with state-of-the-art load control and a changeover time of less than 20 ms offers maximum reliability. The entire system is certified according to VDE 2510-50.

Up to date this device is configured via iSolarCloudAssistant and sends its data via the already integrated Wi-Fi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. A 3-phase smart meter is already included.

Version V112 firmware does not currently support the Sungrow EV-Charger and 2CT meter. Hybrid systems from versions V11 & V112 should be avoided. The update for compatibility should be done during Q1 2023!

We don't recommend combining Sungrow inverters with SolarEdge and Tigo optimizers based on our current knowledge.

If PV modules with currents greater than 12.5 A are used, the inverter may regulate down slightly on a few peak days per year!

Package advantages

• Elegant and compact design
• Easy and quick installation
• Plug and play of the storage components and straightforward cabling
• Backup power system
• Visualization via free iSolarCloud portal or iSolarCloud app
• Entire system certified according to VDE 2510-50

Product features Sungrow SBR096

• Battery capacity: 9.6 kWh
• Rated voltage: 192 V
• Max. output current: 30 A
• Peak output current: 42 A for 10s
• Weight: 114 kg
• Protection category: IP55
• Dimensions: 625 x 545 x 330 mm
• 10 years product warranty

Product features Sungrow Hybrid HV SH6.0RT:

• Mains connection: 3-phase
• AC power: 6.0 kVA (6.0 kW nom. / 7.2 kW 5min. / 10 kW 10 sec.) emergency power via separate output
• Reverse polarity protection
• MPP tracker: 2
• 1 MC4 input per MPPT
• Battery connection
• Wi-fi adapter included in the delivery
• Interfaces: Ethernet
• Cable cross section AC connection 6 – 10 mm² possible
• Cable cross section DC connection 4 – 6 mm² possible
• 3-phase Smart Meter Chint DTU 666 80 A included
• Dimensions: 540 x 460 x 170 mm (H x W x D)
• Weight: 27 kg
• Protection category: IP 65
• 10 years product warranty

Scope of delivery

• Sungrow Hybrid HV SH6.0RT
• 3 x Sungrow SBR 3.20 kWh battery module
• 1 x Sungrow SBR base and accessories
