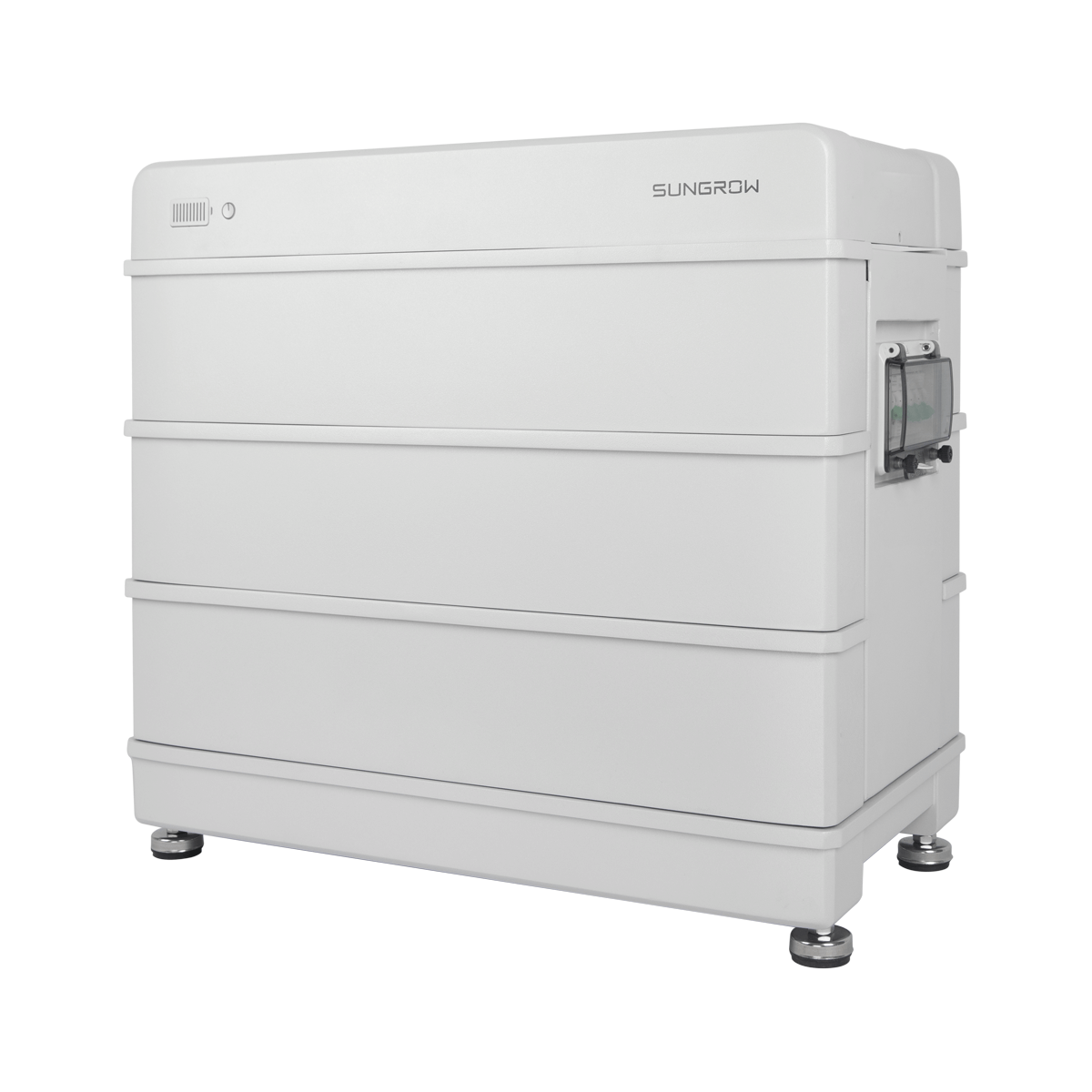

Sungrow SBR064 battery
| Manufacturer Art. No.: | SBR064 |
|---|---|
| Art. Nr.: | 12659 |
| Battery type: | High volt lithium-iron-phosphate |
| Net capacity: | 6.4 kWh |
| Phases: | 3 |
| Solar battery type: | High voltage battery |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from 06.12.2024
Product number:
12659
Description
Sungrow SBR064 High-voltage lithium iron phosphate battery
The Sungrow SBR battery storage system starts with 2 modules (and one empty module), but the storage system can be expanded to up to 8 modules. The capacity can be expanded on a modular basis from 6.4 kWh to up to 25.6 kWh. With this, the system is very flexible. Thanks to the low weight of just 33 kg per module and the slim design, the storage system can be installed by one person using plug and play.
The Sungrow 3-phase hybrid inverter recognizes the battery storage system after installation and automatically integrates it into the system. The perfectly coordinated emergency power system with state-of-the-art load control and a switchover time of less than 20 ms offers maximum reliability.
Product advantages SBR064
- Permanent 20 A charging and discharging current possible
- Can be extended to up to 8 modules per unit over the entire service life
- Certified multi-level protection concept, including VDE 2510-50
- Lightweight and compact design, installation by just 1 person possible
- Plug and play between the individual battery modules
- Powerful emergency/back-up power and off-grid functionality
- 10-year product warranty
Product features Sungrow SBR064 storage with 6.4 kWh
- Battery capacity: 6.4 kWh
- Nominal voltage: 128 V
- Max. output current: 20 A
- Peak output current: 42 A for 10s
- Weight: 89 kg
- Protection category: IP55
- Dimensions: 625 x 545 x 330 mm
Scope of delivery:
- 2 x Sungrow SBR 3.20 kWh battery module
- 1 x Sungrow SBR064 accessories & empty module
-
