Sungrow Hybrid SH8.0RT – V112
| Type of manufacturer: | SH8.0RT |
|---|---|
| Manufacturer Art. No.: | ASH00106 |
| Art. Nr.: | 8015 |
| Pieces per package unit: |
|
| AC power: | 8 kW |
| Communication: | RS485, WiFi, Ethernet |
| Inverter type: | Hybrid inverter |
| MPP-Tracker: | 2 |
| MPP voltage range: | 200 - 950 Volt |
| Phases: | 3 |
| Warranty: | 10 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8015
-
-
{ "id": "342cc0a52ce1568f81f190db9fde99d1", "item_brand": "", "item_name": "Sungrow EV Charger 11 kW", "item_id": "7721", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "342cc0a52ce1568f81f190db9fde99d1", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
Sungrow Hybrid High Voltage Inverter SH8.0RT with Emergency Output
These new three-phase hybrid inverters have a three-phase backup power output with three-phase current with 100% skew load capability. Together with the high voltage battery connection and 2 independent MPP trackers, the Sungrow inverter leaves nothing to be desired. Up to date, this device is configured via iSolarCloudAssistant and sends its data via the already integrated Wi-Fi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. A 3-phase smart meter is already included.
External connections, spacious connection area and an integrated spirit level allow for quick installation.
Sungrow Hybrid SH8.0RT – V112 now replaces Sungrow Hybrid HV SH8.0RT – V11!
Version V112 firmware does not currently support the Sungrow EV-Charger and 2CT meter. You should avoid the use of mixed systems consisting of versions V11 & V112. The update for compatibility should be done during Q1 2023!
On a few peak days per year, if PV modules with currents greater than 12.5 A are used, the inverter may regulate down slightly!
Product advantages
- Input voltage range from 200-950 V
- High efficiency of up to 98.4%
- Natural convection
- AC + DC surge protection 2 integrated
- External connections, no need to open the inverter
- Integrated spirit level
- SG-Ready contact available (for: control e.g. heat pump)
- Noise emission 30dB (A)
Applications:
- Operation without battery as solely inverter
- DC operation with PV and battery
- AC operation without PV and with battery
Product features Sungrow SH8.0RT:
- Mains connection: 3 phase
- AC power: 8.0 kVA (8.0 kW nom. / 12 kW 5min.) emergency power via separate output
- Polarity protection
- MPP tracker: 2
- 1 MC4 input per MPPT
- Battery connection
- Interfaces: Ethernet
- Cable cross section AC connection 6 – 10 mm² possible
- Cable cross section DC connection 4 – 6 mm² possible
- Dimensions: 540 x 460 x 170 mm (H x W x D)
- Weight: 27 kg
- Protection class: IP 65
Scope of delivery
- Inverter
- 3-phase Smart Meter Chint DTSU666 80 A included
- WiNet-S-Modul Wi-Fi adapter
- Wall mount
- Expansion dowel set
- M4 screws and washers
- AC/Backup connector set
- Cable end clamp
- PV connector
- Crimp contact
- SUNCLIX connector set
- LAN connector
- COM connector
- RS485 cable
- OT connector
- Documents
Battery compability
If you are looking for emergency power, this is it! Compact dimensions and light weight with maximum performance – installed as quickly as no other.
-
Matching accessories
-

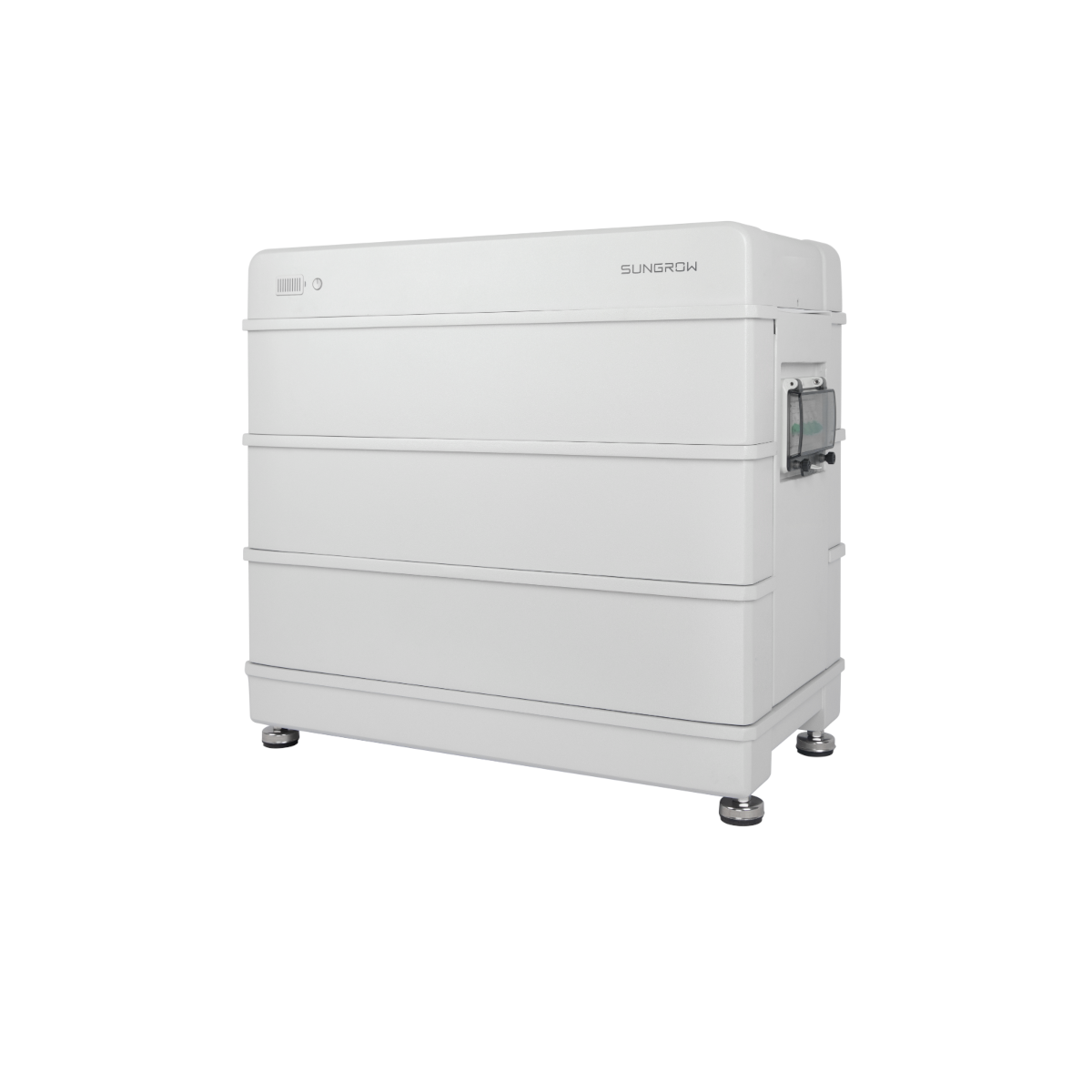

Sungrow SBR096- Type of manufacturer: SBR096
- Art. Nr.: 6765
Available from stock{ "id": "804b4d83119652669acaf2e9f86798d5", "item_brand": "", "item_name": "Sungrow SBR096", "item_id": "6765", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "804b4d83119652669acaf2e9f86798d5", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
Spelsberg Backup-Box STV 904-K- Type of manufacturer: STV 904-K
- Art. Nr.: 9491
Available from stock{ "id": "b5c4ac57ae39560bafc0519bcf32e76d", "item_brand": "", "item_name": "Spelsberg Backup-Box STV 904-K", "item_id": "9491", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b5c4ac57ae39560bafc0519bcf32e76d", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
- Remaining quantity
ABB residual current operated circuit breaker 40A, 4-pole, 30mA, type A- Type of manufacturer: RCD 4TE F204A-40/0,03
- Art. Nr.: 5035
Available from stock{ "id": "9dd331b632c555a79b2c8a88eadc83e0", "item_brand": "", "item_name": "ABB residual current operated circuit breaker 40A, 4-pole, 30mA, type A", "item_id": "5035", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9dd331b632c555a79b2c8a88eadc83e0", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
- Remaining quantity
Hager main branch terminal 5-pole, finger-proof- Art. Nr.: 5038
Available from stock{ "id": "8211c689bf315f46b1e6774f00046461", "item_brand": "", "item_name": "Hager main branch terminal 5-pole, finger-proof", "item_id": "5038", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8211c689bf315f46b1e6774f00046461", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

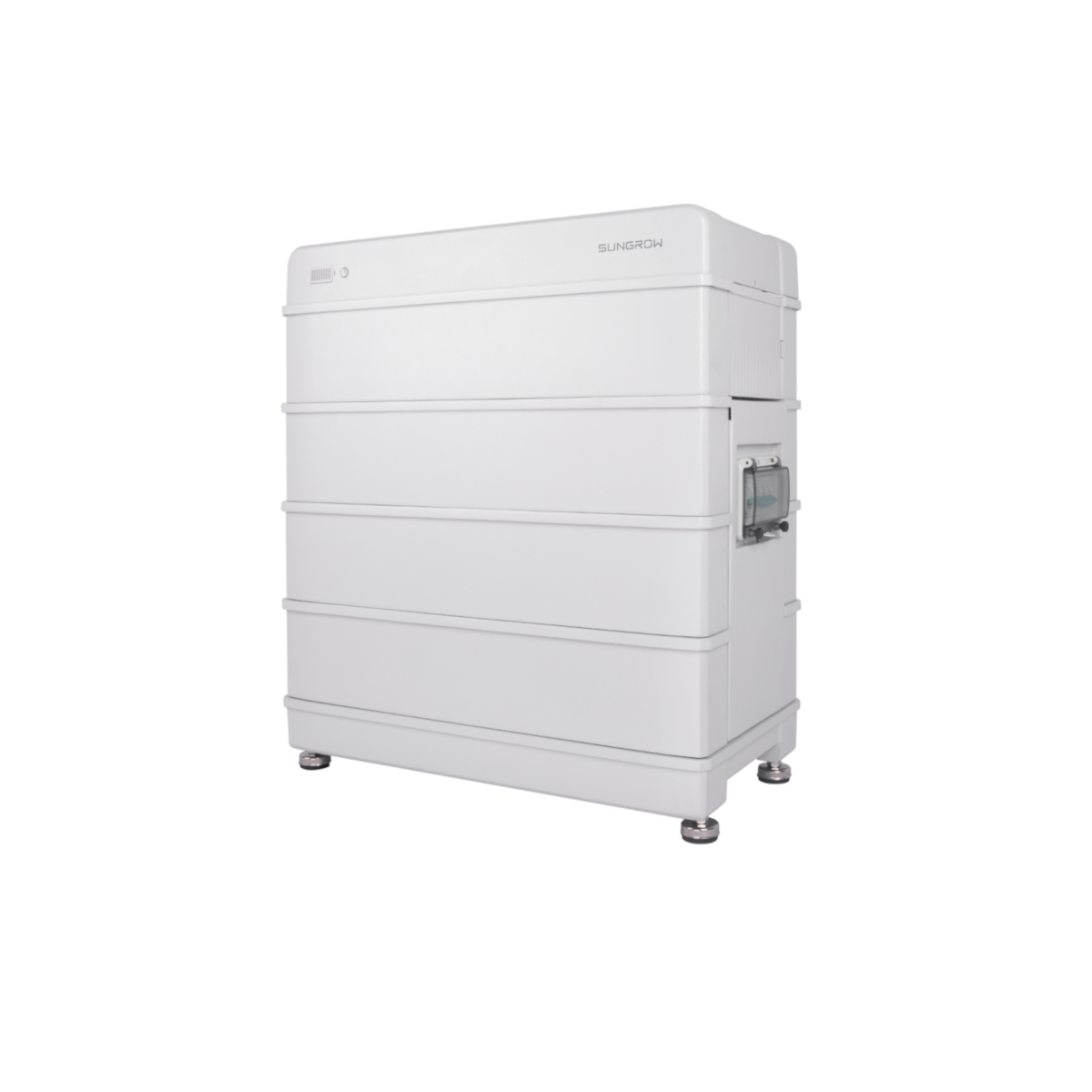

Sungrow SBR128- Type of manufacturer: SBR128
