Sungrow Hybrid SH5.0RT – V112
| Type of manufacturer: | SH5.0RT |
|---|---|
| Manufacturer Art. No.: | ASH00104 |
| Art. Nr.: | 8013 |
| Pieces per package unit: |
|
| AC power: | 5 kW |
| Communication: | RS485, WiFi, Ethernet |
| Inverter type: | Hybrid inverter |
| MPP-Tracker: | 2 |
| MPP voltage range: | 150 - 950 Volt |
| Phases: | 3 |
| Warranty: | 10 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8013
-
-
{ "id": "342cc0a52ce1568f81f190db9fde99d1", "item_brand": "", "item_name": "Sungrow EV Charger 11 kW", "item_id": "7721", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "342cc0a52ce1568f81f190db9fde99d1", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
Sungrow Hybrid High Voltage Inverter SH6.0RT with emergency output
These new three-phase hybrid inverters have a three-phase backup power output with three-phase current with 100% skew load capability. Together with the high voltage battery connection and 2 independent MPP trackers, the Sungrow inverter leaves nothing to be desired. Up to date, this device is configured via iSolarCloudAssistant and sends its data via the already integrated Wi-Fi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available for connecting third-party data loggers. A 3-phase smart meter is already included.
External connections, spacious connection area and an integrated spirit level allow for quick installation.
You can order the inverter at the promotional price until December 31, 2024. The promotion has been extended by Sungrow.
If PV modules with currents greater than 12.5 A are used, the inverter may slightly down-regulate on a few peak days a year!
Product advantages
- Input voltage range from 150-950 V
- High efficiency of up to 98.0%
- Natural convection
- AC + DC surge protection 2 integrated
- External connections, no need to open the inverter
- Integrated spirit level
- SG-Ready contact available (for: control e.g. heat pump)
- Noise emission 30dB (A)
Applications:
- Operation without battery as solely inverter
- DC operation with PV and battery
- AC operation without PV and with battery
Product features Sungrow Hybrid HV SH5.0RT:
- Mains connection: 3 phase
- AC power: 5.0 kVA (5.0 kW nom. / 6.0 kW 5min. / 10kW 10 sec.), emergency power via separate output
- Polarity protection
- MPP tracker: 2
- 1 MC4 input per MPPT
- Battery connection
- Interfaces: Ethernet
- Cable cross section AC connection 6 – 10 mm² possible
- Cable cross section DC connection 4 – 6 mm² possible
- Dimensions: 540 x 460 x 170 mm (H x W x D)
- Weight: 27 kg
- Protection class: IP 65
Scope of delivery
- Inverter
- 3-phase Smart Meter Chint DTSU666 80 A included
- WiNet-S module Wi-Fi adapter
- Wall mount
- Expansion dowel set
- M4 screws and washers
- AC/Backup connector set
- Cable end clamp
- PV connector
- Crimp contact
- SUNCLIX connector set
- LAN connector
- COM connector
- RS485 cable
- OT connector
- Documents
Battery compability
Energy storage systems approval list
If you are looking for emergency power, this is it! Compact dimensions and light weight with maximum performance – installed as quickly as no other.
You can find informative, free online classes and other useful tools by Sungrow here.
-
Matching accessories
-

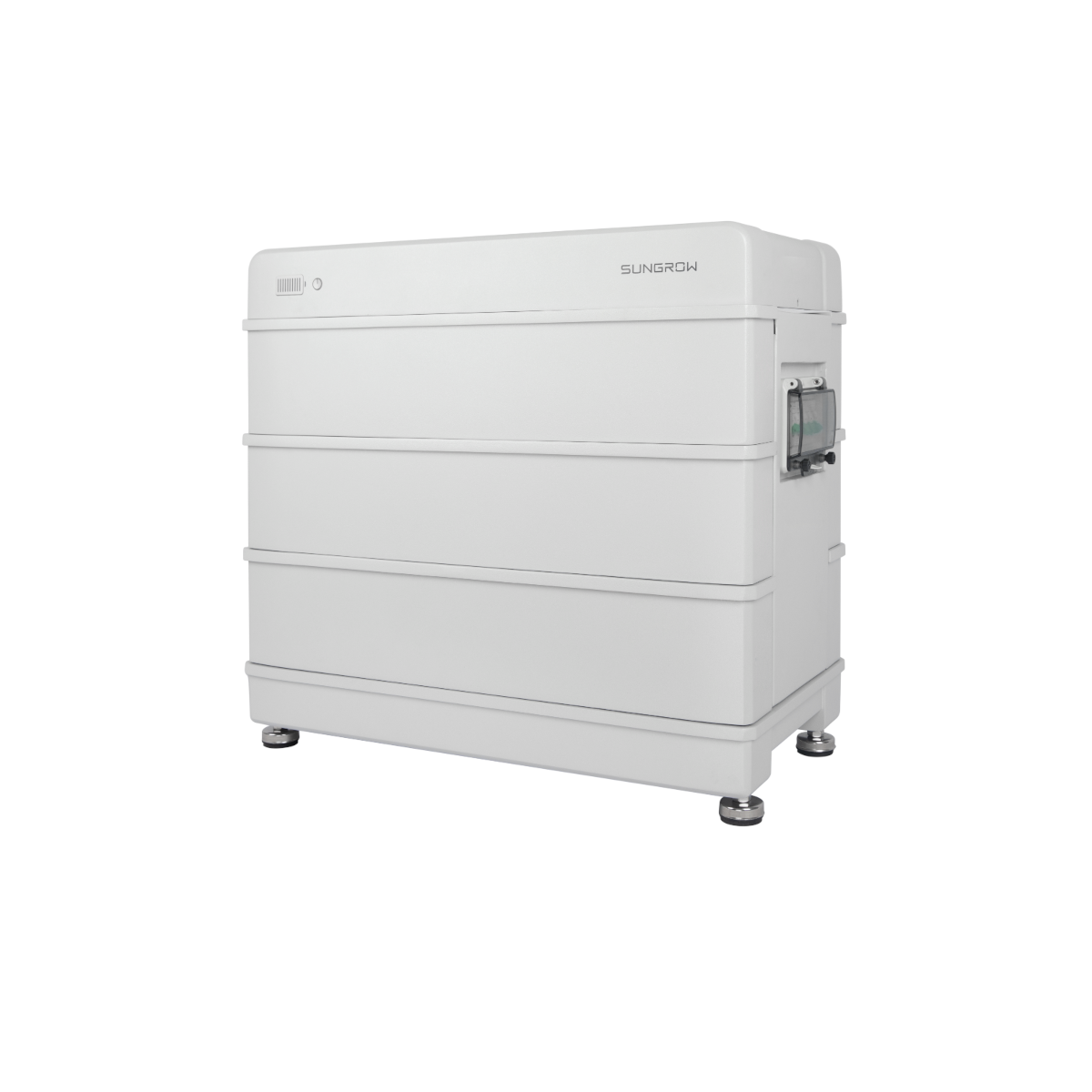

Sungrow SBR096- Type of manufacturer: SBR096
- Art. Nr.: 6765
Available from stock{ "id": "804b4d83119652669acaf2e9f86798d5", "item_brand": "", "item_name": "Sungrow SBR096", "item_id": "6765", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "804b4d83119652669acaf2e9f86798d5", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
- Remaining quantity
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black- Type of manufacturer: 713531
- Art. Nr.: 5752
On request{ "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
Spelsberg Backup-Box STV 904-K- Type of manufacturer: STV 904-K
- Art. Nr.: 9491
Available from stock{ "id": "b5c4ac57ae39560bafc0519bcf32e76d", "item_brand": "", "item_name": "Spelsberg Backup-Box STV 904-K", "item_id": "9491", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b5c4ac57ae39560bafc0519bcf32e76d", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
Sungrow SBR128- Type of manufacturer: SBR128
- Art. Nr.: 6768
Available from stock{ "id": "52b87c8b871450a4b456360b0c9930c9", "item_brand": "", "item_name": "Sungrow SBR128", "item_id": "6768", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "52b87c8b871450a4b456360b0c9930c9", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

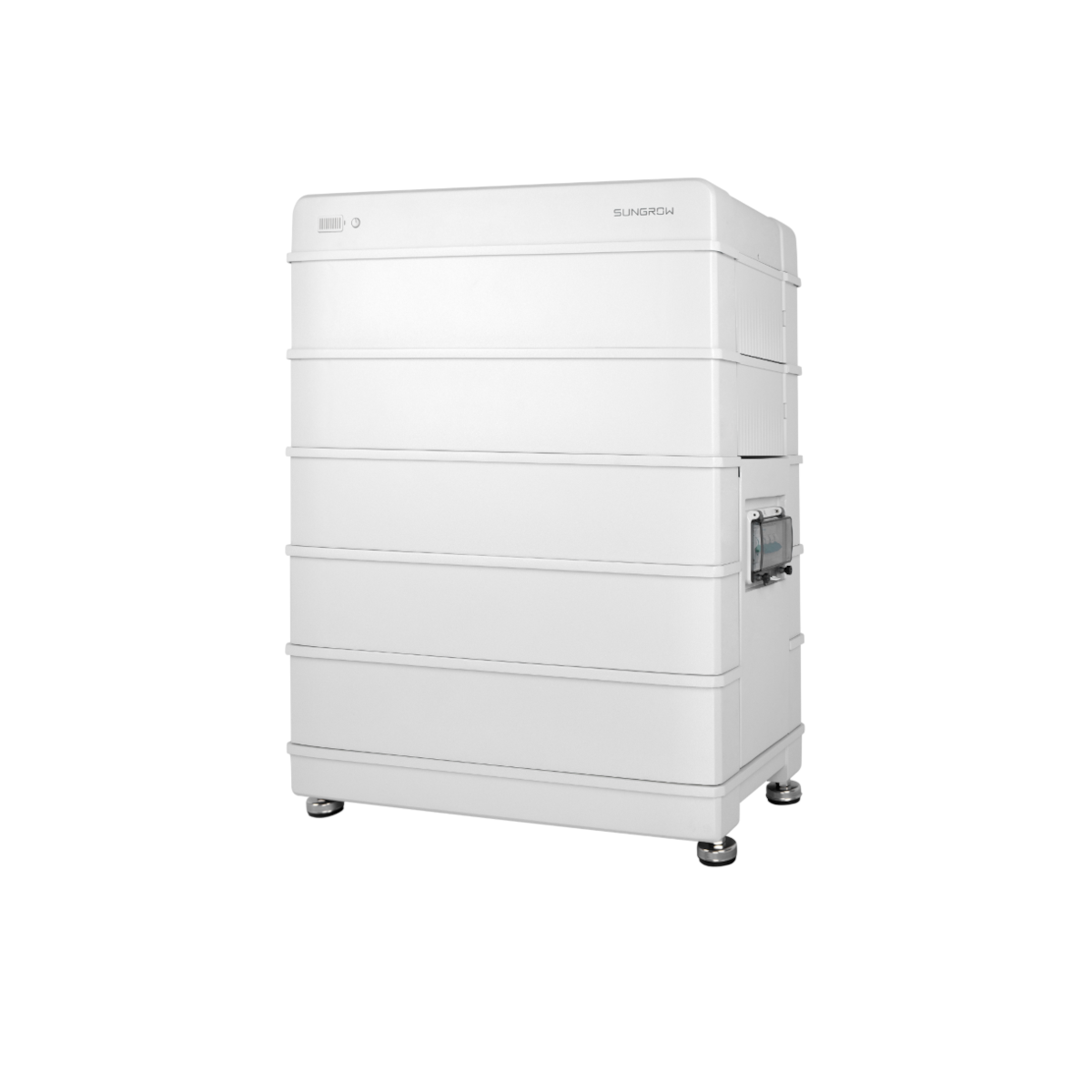

Sungrow SBR160- Type of manufacturer: SBR160
- Art. Nr.: 6769
Available from stock{ "id": "b7aeedca19fc5681965313b7cb010458", "item_brand": "", "item_name": "Sungrow SBR160", "item_id": "6769", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b7aeedca19fc5681965313b7cb010458", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

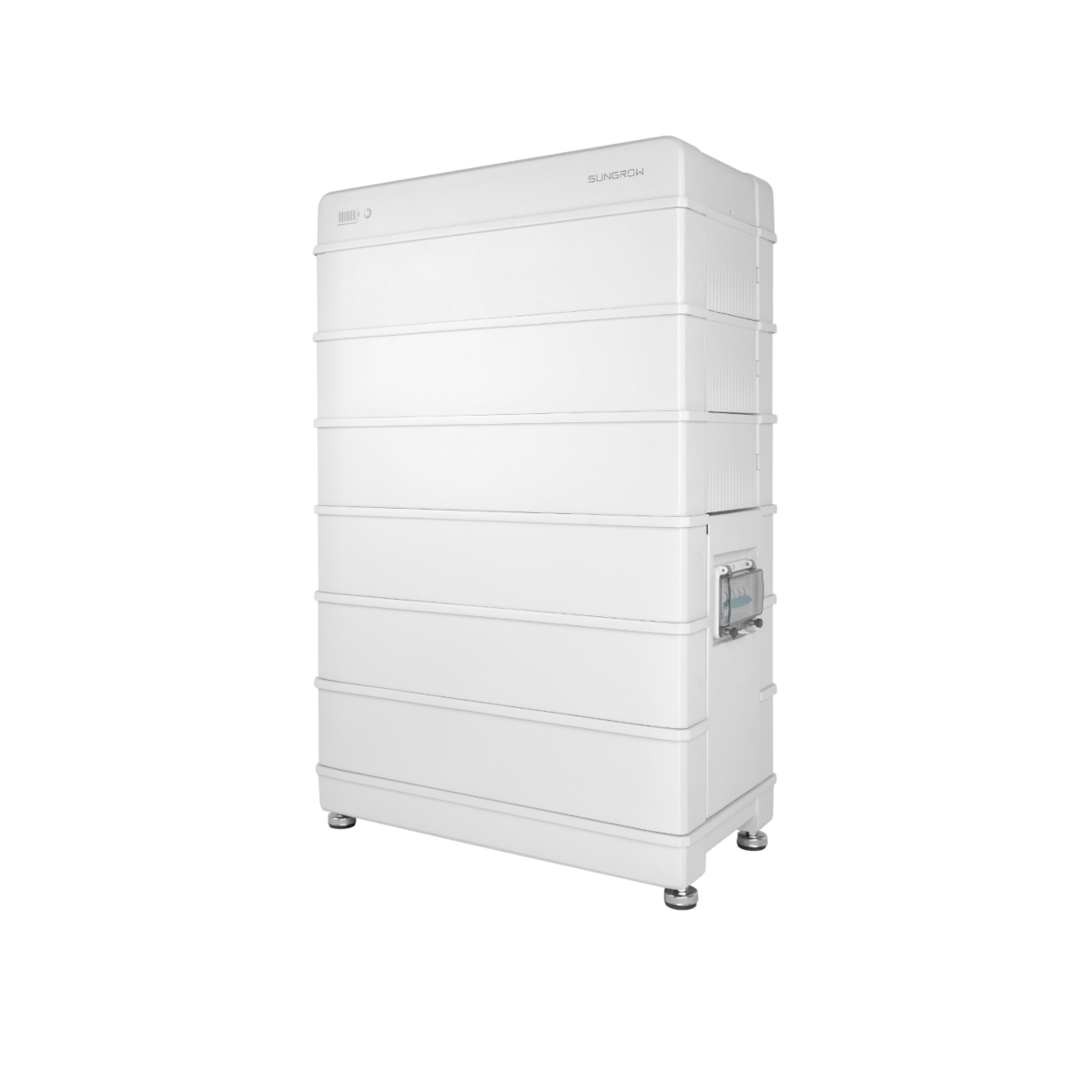

Sungrow SBR192- Type of manufacturer: SBR192
- Art. Nr.: 6770
Available from stock{ "id": "319d8b0190cb50d2ad0c4759c54deb23", "item_brand": "", "item_name": "Sungrow SBR192", "item_id": "6770", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "319d8b0190cb50d2ad0c4759c54deb23", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

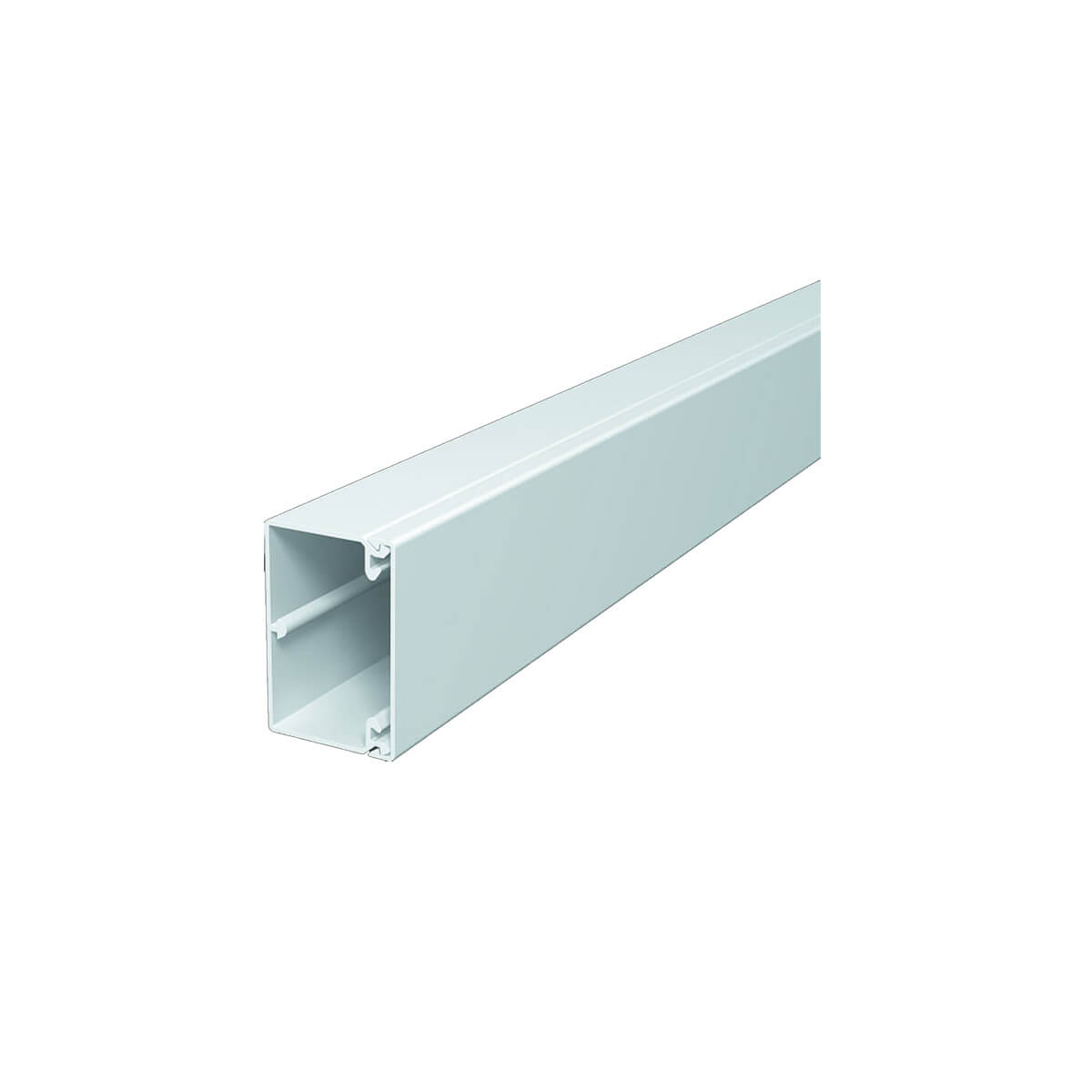

OBO Kabelkanal 40x60 mm, reinweiß, VPE 32,0 m- Type of manufacturer: WDK40060RW
