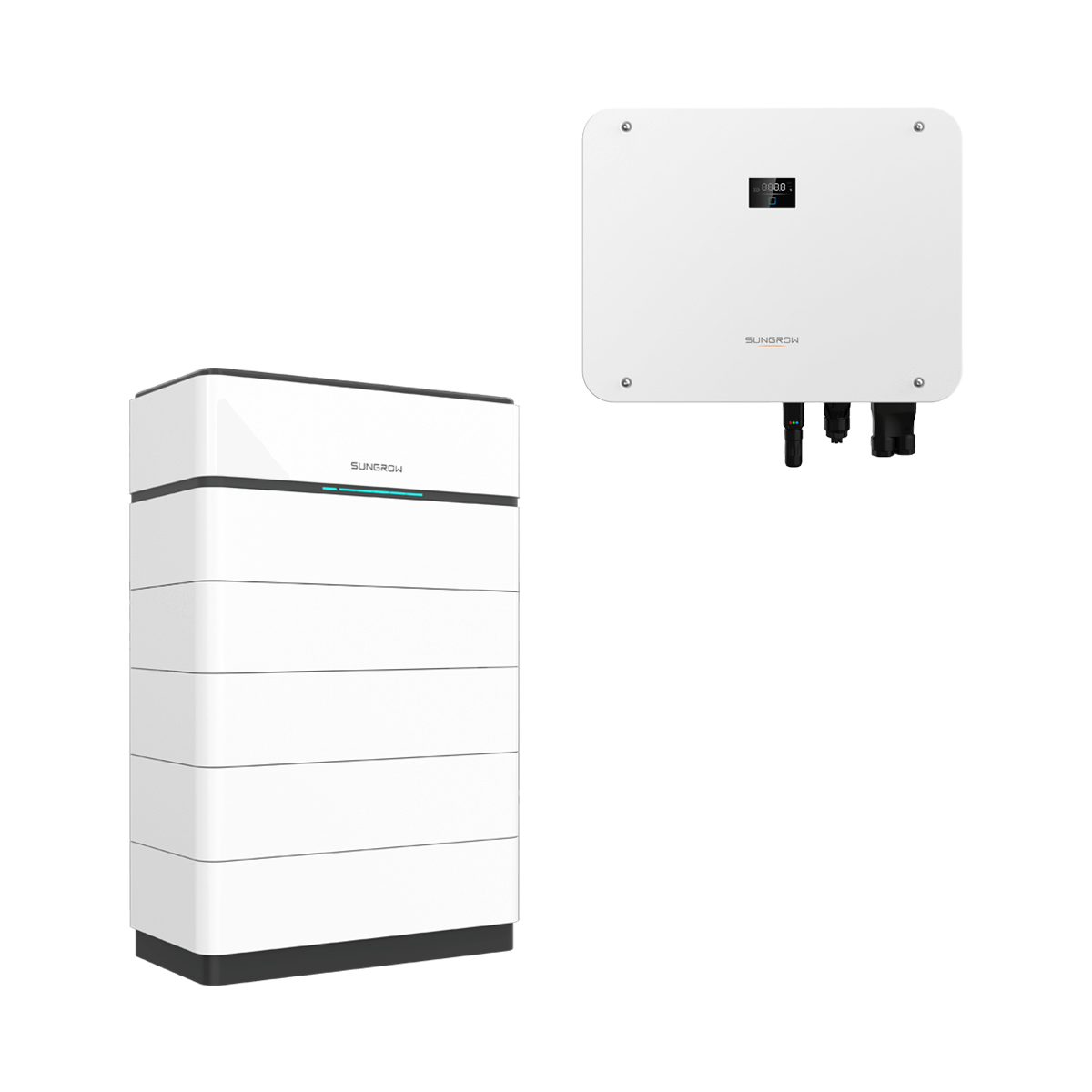

Sungrow Hybrid SH25T with Sungrow SBH250 battery
| Type of manufacturer: | SH25T + SBH250 |
|---|---|
| Manufacturer Art. No.: | ASH00147 + ASA00637 + AST04844 |
| Art. Nr.: | 11959 |
| Accessoires: | Smart Meter, Winet S2 Dongle |
| Battery type: | High volt lithium |
| Inverter: | Sungrow Hybrid SH25T - V11 |
| Net capacity: | 25 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | Sungrow SBH250 Batterie |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- TIP
Available from 30.01.2025
Product number:
11959
-
-
{ "id": "19fce722d10c5a3d90d0db279f903566", "item_brand": "", "item_name": "Sungrow CT 100A/0.333V current transformer set", "item_id": "10337", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "19fce722d10c5a3d90d0db279f903566" } } -
{ "id": "de6922fb79b055ad9d8082f4c1c03dec", "item_brand": "", "item_name": "Sungrow CT 250A/0.333V current transformer set", "item_id": "10338", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "de6922fb79b055ad9d8082f4c1c03dec" } }
-
Description
Sungrow hybrid high-voltage SH25T inverter with emergency power output plus Sungrow SBH250 high-voltage lithium iron phosphate battery
These new three-phase hybrid inverters feature a three-phase backup power output with 100% unbalanced load capability. Along with the high-voltage battery connection and 3 MPP trackers, the Sungrow inverter leaves nothing to be desired. The device is configured via the iSolarCloudAssistant and sends its data through the already integrated WiFi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. For connecting third-party data loggers, RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available. External connections, a spacious terminal area, and an integrated spirit level ensure fast and straightforward installation.
The inverter cannot be installed with Sungrow optimisers. Currently, you cannot connect a Sungrow Wallbox to the SHT. You can only combine the inverter with the Sungrow SBR and SBH storage systems.
Please note local authorisation restrictions in Austria!
Product features Sungrow Hybrid SH25T:
- Input voltage range from 150-950 V
- High efficiency of up to 98.2 %
- Natural convection
- AC + DC overvoltage protection 2 integrated
- External connections, no need to open the inverter
- Integrated spirit level
- Potential-free contact (SG-ready contact) available (for: control e.g. heat pump)
- Noise emission 35dB (A)
Product features Sungrow Hybrid SH25T:
- Mains connection: 3-phase AC power: 25 kVA - Back-up power via separate output
- Reverse polarity protection
- MPP tracker: 3
- MPPT 1: 2 MC4 inputs; MPPT 2: 2 MC4 inputs; MPPT 3: 1 MC4 input
- Maximum input current: 80A ( 32A / 32A / 16A )
- Maximum short-circuit current Isc: 100A ( 40A / 40A / 20A )
- Battery connection Interfaces: Ethernet
- Cable cross-section AC connection 6 - 10 mm² possible
- Cable cross-section DC connection 4 - 6 mm² possible
- Dimensions: 640 x 480 x 245 mm (H x W x D)
- Weight: 40 kg
- Protection class: IP 65
- No other storage units compatible
Scope of Delivery - Inverter
- 3-phase Smart Meter Chint DTSU666-20 with 1x current transformer set CT 100A/0.333V
- WiNet-S2 module (Wi-Fi adapter) included
- Wall mounting bracket with expansion plug set
- M4 screws and washers
- AC/Backup connector set
- Cable end clamps
- PV connectors
- Crimp contacts
- SUNCLIX connector set
- LAN connectors
- COM connectors
- RS485 cable
- OT connection
- Documentation
Product Benefits - SBH250 Battery
- Permanent 50 A charge and discharge current capability
- Expandable up to 8 modules per unit over its entire lifespan
- Certified multi-stage protection concept, including VDE 2510-50
- Lightweight and compact design, allowing installation by a single person
- Plug-and-play connection between individual battery modules
- Powerful back-up and off-grid functionality
- 10-year product warranty
Product Features - SBH250 Battery
- Battery Capacity: 25 kWh
- Nominal Voltage: 352,0 V
- Max. output Current: 50 A
- Weight: 241 kg
- Protection class: IP55
- Dimensions: 675 x 1060 x 350 mm
Scope of Delivery
- 1x Sungrow hybrid SH25T
- 5x Sungrow SBH 5 kWh battery module
- 1x Sungrow SBH accessories
-
Matching accessories
-
- Remaining quantity
Solar cable HELUKABEL Solarflex H1Z2Z2-K 4.0 mm² 100m red- Type of manufacturer: 713545
- Art. Nr.: 5775
Available from stock{ "id": "bdeb6bdef0fb516a98443afd6bdea578", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 4.0 mm² 100m red", "item_id": "5775", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "bdeb6bdef0fb516a98443afd6bdea578" } } -
Test plug MC4- Type of manufacturer: PV-PST
- Art. Nr.: 9083
Available from stock{ "id": "a35d7eacc2985b7aa0b1dcfaef1aae83", "item_brand": "", "item_name": "Test plug MC4", "item_id": "9083", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a35d7eacc2985b7aa0b1dcfaef1aae83" } } -

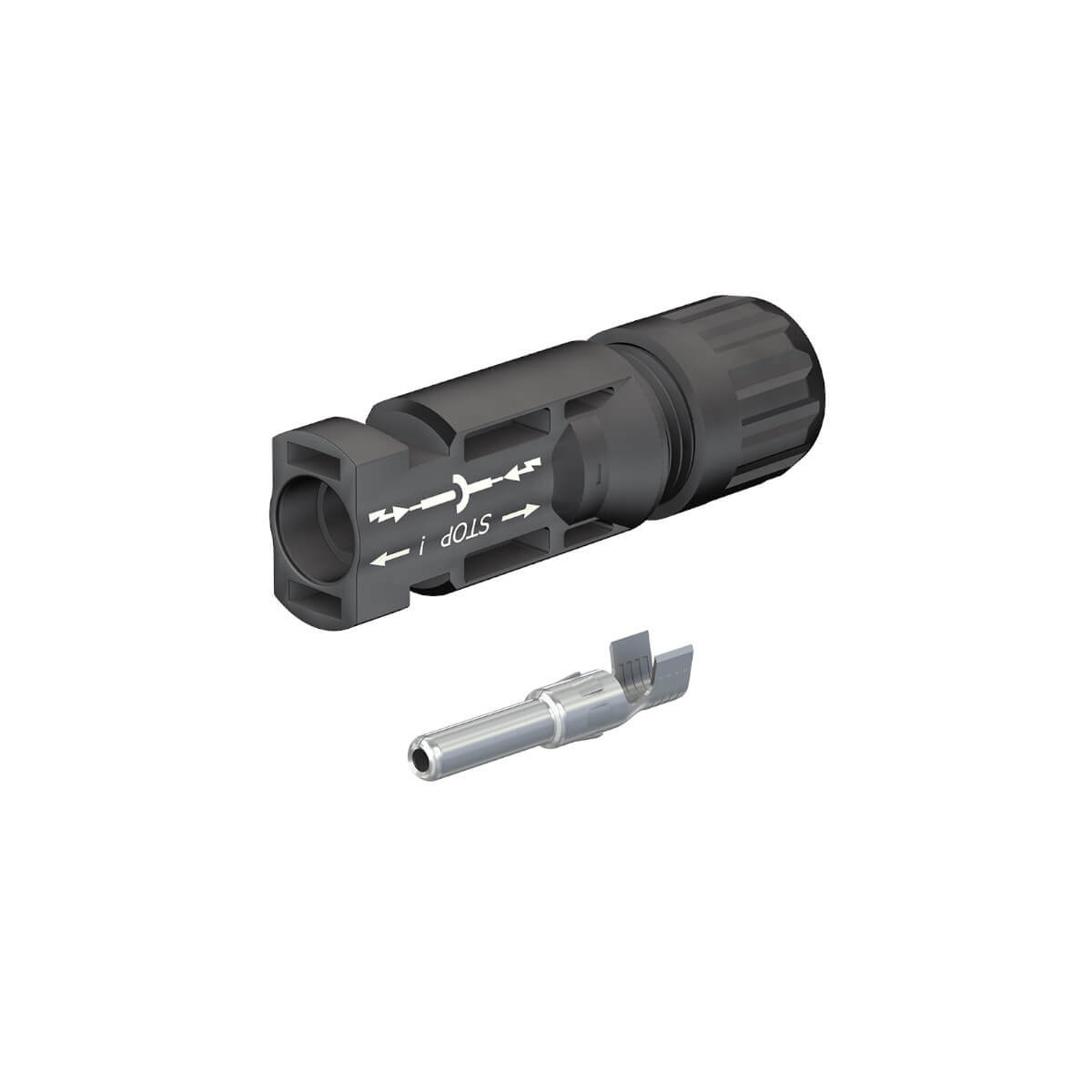

Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm- Type of manufacturer: PV-KST4/6II-UR
- Art. Nr.: 340
Available from stock{ "id": "47bc20824ea0580f9658753f8da565ab", "item_brand": "", "item_name": "Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm", "item_id": "340", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "47bc20824ea0580f9658753f8da565ab" } } -

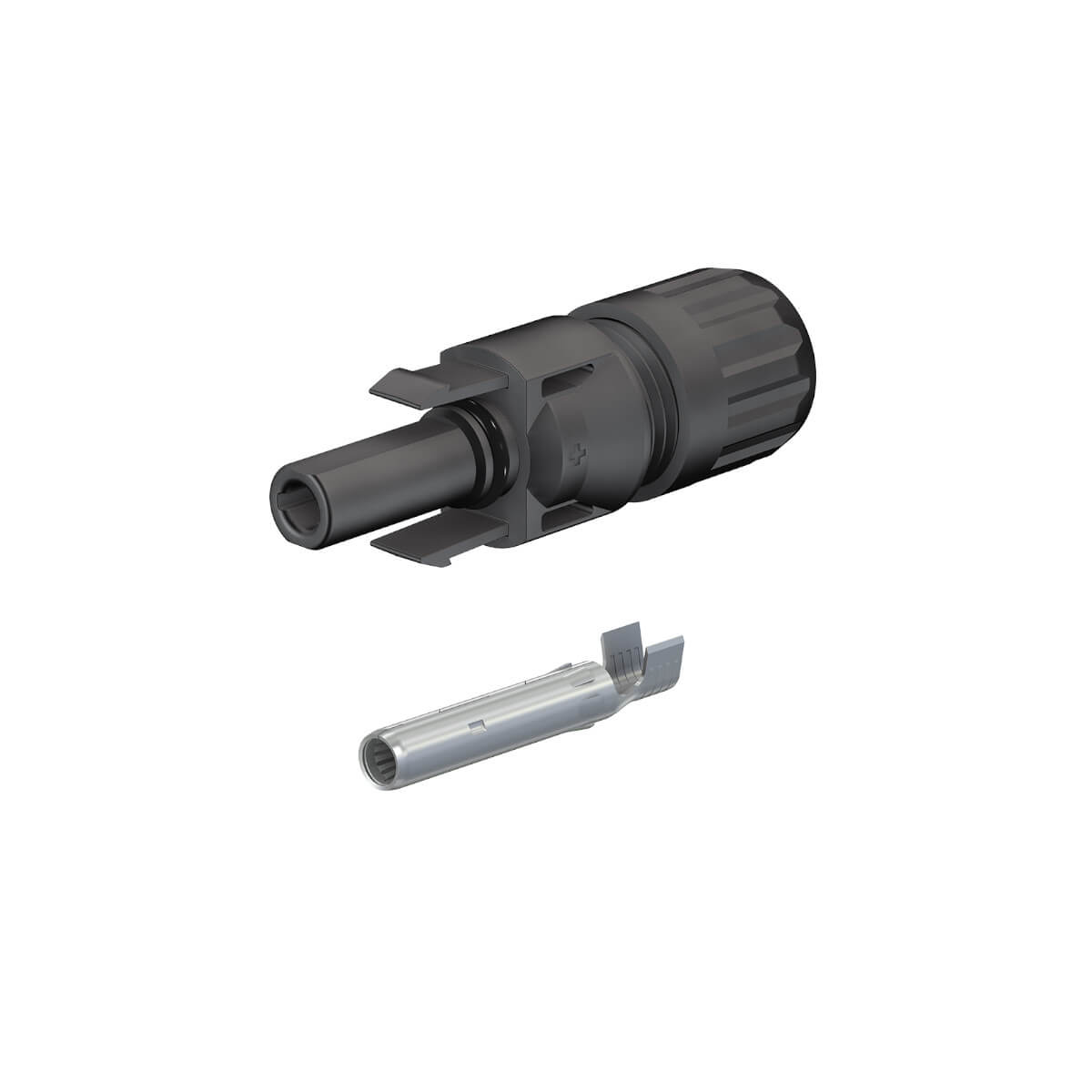

Stäubli MC4 socket, 4-6 mm² II, diameter 5.9-8.8 mm- Type of manufacturer: PV-KBT4/6II-UR
