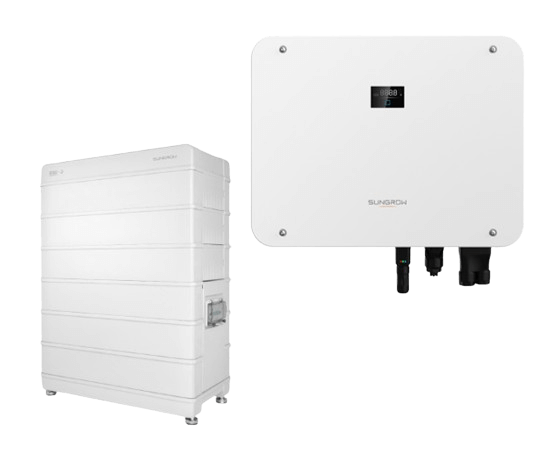

Sungrow Hybrid SH20T with Sungrow SBR192 battery
Art. Nr.: | 11208 |
---|---|
Accessoires: | Smart Meter, Winet S2 Dongle |
Battery type: | High volt lithium |
Inverter: | Sungrow Hybrid SH20T - V11 |
Net capacity: | 19.2 kWh |
Package type: | 3-phase, High voltage battery, Solar battery packages |
Phases: | 3 |
Solar battery: | Sungrow SBR192 Batterie |
WEEE-Number: |
|
- TIP
Sungrow hybrid high-voltage SH20T inverter with emergency power output plus Sungrow SBR192 high-voltage lithium iron phosphate battery
These new three-phase hybrid inverters feature a three-phase backup power output with 100% unbalanced load capability. Along with the high-voltage battery connection and 3 MPP trackers, the Sungrow inverter leaves nothing to be desired. The device is configured via the iSolarCloudAssistant and sends its data through the already integrated WiFi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. For connecting third-party data loggers, RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available. External connections, a spacious terminal area, and an integrated spirit level ensure fast and straightforward installation.
The inverter cannot be installed with Sungrow optimisers. Currently, you cannot connect a Sungrow Wallbox to the SHT. You can only combine the inverter with the Sungrow SBR and SBH storage systems.
Please note local authorisation restrictions in Austria!
Product features Sungrow Hybrid SH20T:
- Input voltage range from 150-950 V
- High efficiency of up to 98.1 %
- Natural convection
- AC + DC overvoltage protection 2 integrated
- External connections, no need to open the inverter
- Integrated spirit level
- Potential-free contact (SG-ready contact) available (for: control e.g. heat pump)
- Noise emission 35dB (A)
Product features Sungrow Hybrid HV SH20T:
- Mains connection: 3-phase AC power: 15.0 kVA - Back-up power via separate output
- Reverse polarity protection
- MPP tracker: 3
- MPPT 1: 2 MC4 inputs; MPPT 2: 2 MC4 inputs; MPPT 3: 1 MC4 input
- Maximum input current: 80A ( 32A / 32A / 16A )
- Maximum short-circuit current Isc: 100A ( 40A / 40A / 20A )
- Battery connection Interfaces: Ethernet
- Cable cross-section AC connection 6 - 10 mm² possible
- Cable cross-section DC connection 4 - 6 mm² possible
- Dimensions: 640 x 480 x 245 mm (H x W x D)
- Weight: 38 kg
- Protection class: IP 65
- No other storage units compatible
Scope of Delivery - Inverter
- 3-phase Smart Meter Chint DTSU666-20 with 1x current transformer set CT 100A/0.333V
- WiNet-S2 module (Wi-Fi adapter) included
- Wall mounting bracket with expansion plug set
- M4 screws and washers
- AC/Backup connector set
- Cable end clamps
- PV connectors
- Crimp contacts
- SUNCLIX connector set
- LAN connectors
- COM connectors
- RS485 cable
- OT connection
- Documentation
Product benefits
- Permanent 30 A charge and discharge current capability
- Expandable up to 8 modules per unit over its entire lifespan
- Certified multi-stage protection concept, including VDE 2510-50
- Lightweight and compact design, allowing installation by a single person
- Plug-and-play connection between individual battery modules
- Powerful back-up and off-grid functionality
- 10-year product warranty
Product Features - SBR 192 battery
- Sungrow SBR192 storage system with 19.2 kWh battery capacity: 19.2 kWh
- Nominal voltage: 384 V
- Max. output current: 30 A
- Peak output current: 42 A for 10s
- Weight: 213 kg
- Protection class: IP55
- Dimensions: 625 x 805 x 330 mm
- Scope of delivery: 6 x Sungrow SBR 3.20 kWh battery module 1 x Sungrow SBR base and accessories
-
