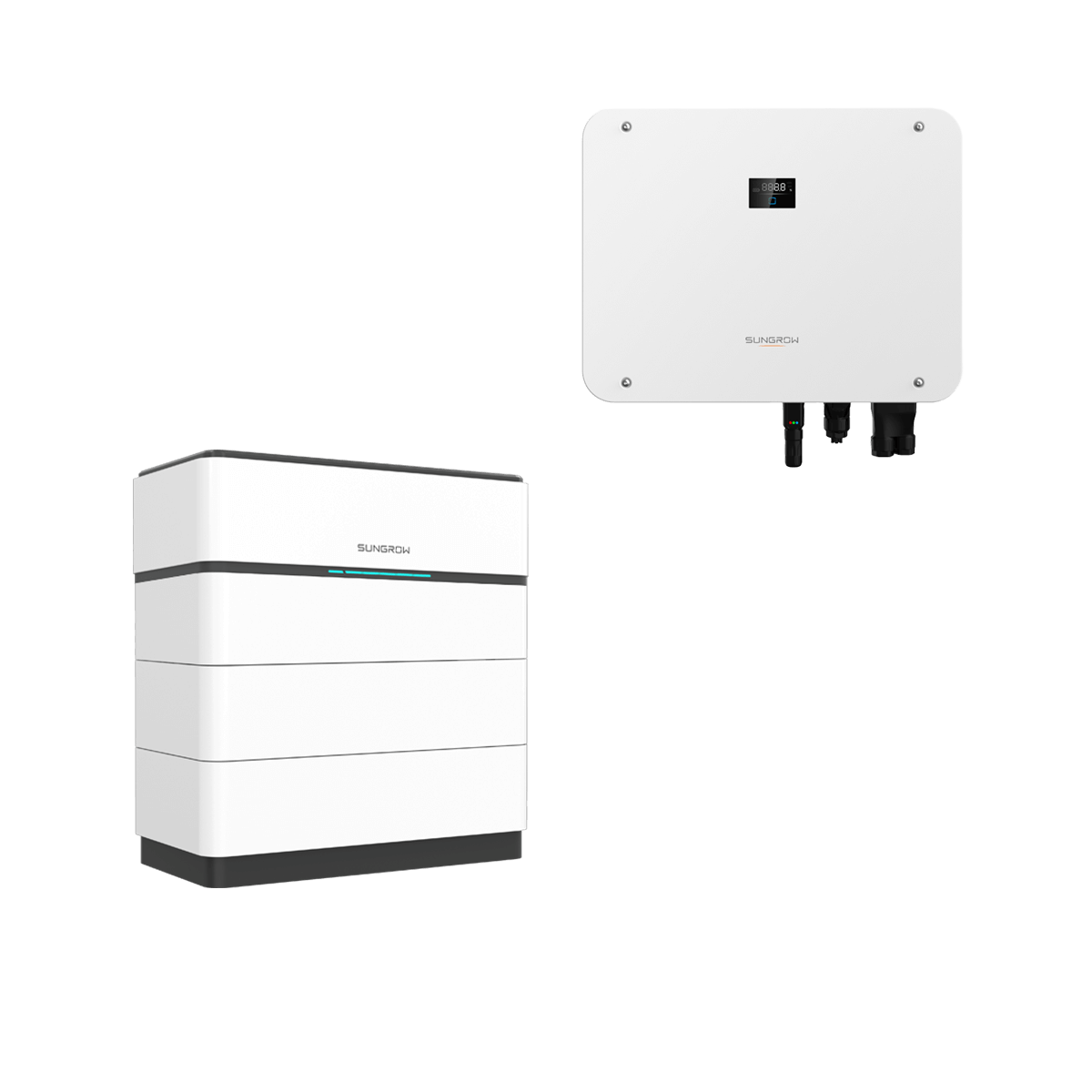

Sungrow Hybrid SH15T with Sungrow SBH150 battery

Sungrow & Sungrow
SH15T + SBH150
Type of manufacturer: SH15T + SBH150
Manufacturer Art. No.: ASH00144 + ASA00637 + AST04844
Art. Nr.: 11508
Accessoires: Smart Meter, Winet S2 Dongle
Battery type: High volt lithium
Inverter: Sungrow Hybrid SH15T - V11
Net capacity: 15 kWh
Package type: 3-phase, High voltage battery, Solar battery packages
Phases: 3
Solar battery: Sungrow SBH150 Batterie
WEEE-Number:
  • DE28316743
Prices are only visible to business customers upon successful registration.
  • TIP
Available from stock
Product number: 11508
Prices are only visible to business customers upon successful registration.
  • TIP
Available from stock
Product number: 11508
  • Recommended accessories
    • Strommesswandler
      Sungrow CT 100A/0.333V current transformer set
      • Art. Nr.: 10337
      • Sungrow
      Available from stock
      { "id": "19fce722d10c5a3d90d0db279f903566", "item_brand": "", "item_name": "Sungrow CT 100A/0.333V current transformer set", "item_id": "10337", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "19fce722d10c5a3d90d0db279f903566" } }
    • Strommesswandler
      Sungrow CT 250A/0.333V current transformer set
      • Art. Nr.: 10338
      • Sungrow
      Available from stock
      { "id": "de6922fb79b055ad9d8082f4c1c03dec", "item_brand": "", "item_name": "Sungrow CT 250A/0.333V current transformer set", "item_id": "10338", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "de6922fb79b055ad9d8082f4c1c03dec" } }
  • Tech tip

    We cannot recommend the combination of Sungrow inverters and optimisers from SolarEdge and Tigo based on our current knowledge

  • Links
Description

Sungrow hybrid high-voltage SH15T inverter with emergency power output plus Sungrow SBH150 high-voltage lithium iron phosphate battery

These new three-phase hybrid inverters feature a three-phase backup power output with 100% unbalanced load capability. Along with the high-voltage battery connection and 3 MPP trackers, the Sungrow inverter leaves nothing to be desired. The device is configured via the iSolarCloudAssistant and sends its data through the already integrated WiFi or Ethernet interfaces to the free iSolarCloud portal or iSolarCloud app. For connecting third-party data loggers, RS485 (Modbus RTU) and Ethernet (Modbus TCP) are available. External connections, a spacious terminal area, and an integrated spirit level ensure fast and straightforward installation.

The inverter cannot be installed with Sungrow optimisers. Currently, you cannot connect a Sungrow Wallbox to the SHT. You can only combine the inverter with the Sungrow SBR and SBH storage systems.

Please note local authorisation restrictions in Austria!

Product features Sungrow Hybrid SH15T:

  • Input voltage range from 150-950 V
  • High efficiency of up to 98.1 %
  • Natural convection
  • AC + DC overvoltage protection 2 integrated
  • External connections, no need to open the inverter
  • Integrated spirit level
  • Potential-free contact (SG-ready contact) available (for: control e.g. heat pump)
  • Noise emission 35dB (A)

Product features Sungrow Hybrid SH15T:

  • Mains connection: 3-phase AC power: 15.0 kVA - Back-up power via separate output
  • Reverse polarity protection
  • MPP tracker: 3
  • MPPT 1: 2 MC4 inputs; MPPT 2: 2 MC4 inputs; MPPT 3: 1 MC4 input
  • Maximum input current: 80A ( 32A / 32A / 16A )
  • Maximum short-circuit current Isc: 100A ( 40A / 40A / 20A )
  • Battery connection Interfaces: Ethernet
  • Cable cross-section AC connection 6 - 10 mm² possible
  • Cable cross-section DC connection 4 - 6 mm² possible
  • Dimensions: 640 x 480 x 245 mm (H x W x D)
  • Weight: 38 kg
  • Protection class: IP 65
  • No other storage units compatible

Scope of Delivery - Inverter

  • 3-phase Smart Meter Chint DTSU666-20 with 1x current transformer set CT 100A/0.333V
  • WiNet-S2 module (Wi-Fi adapter) included
  • Wall mounting bracket with expansion plug set
  • M4 screws and washers
  • AC/Backup connector set
  • Cable end clamps
  • PV connectors
  • Crimp contacts
  • SUNCLIX connector set
  • LAN connectors
  • COM connectors
  • RS485 cable
  • OT connection
  • Documentation

Product Benefits - SBH150 Battery

  • Permanent 50 A charge and discharge current capability
  • Expandable up to 8 modules per unit over its entire lifespan
  • Certified multi-stage protection concept, including VDE 2510-50
  • Lightweight and compact design, allowing installation by a single person
  • Plug-and-play connection between individual battery modules
  • Powerful back-up and off-grid functionality
  • 10-year product warranty

Product Features - SBH150 Battery

  • Battery Capacity: 15 kWh
  • Nominal Voltage: 211.2 V
  • Max. output Current: 50 A
  • Weight: 151 kg
  • Protection class: IP55
  • Dimensions: 675 x 740 x 350 mm

Scope of Delivery

  • 1x Sungrow hybrid SH15T
  • 3x Sungrow SBH 5 kWh battery module
  • 1x Sungrow SBH accessories

  • Matching accessories
