Sungrow Hybrid SH10RT – V20

Sungrow
  • Sungrow Hybrid
  • Sungrow Hybrid
Type of manufacturer: SH10RT-20
Manufacturer Art. No.: ASH00132
Art. Nr.: 11106
Pieces per package unit:
  • per carton
  • per pallet
AC power: 10 kW
Communication: RS485, WiFi, Ethernet
Inverter type: Hybrid inverter
MPP-Tracker: 2
MPP voltage range: 200 - 950 Volt
Phases: 3
Warranty: 10 years
WEEE-Number:
  • DE28316743
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 11106
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 11106
  • datamints-memodo.product-detail.recommended-accessories
    • Sungrow EV Charger
      Sungrow EV Charger 11 kW
      • Art. Nr.: 7721
      • Sungrow
      Available from stock
      { "id": "342cc0a52ce1568f81f190db9fde99d1", "item_brand": "", "item_name": "Sungrow EV Charger 11 kW", "item_id": "7721", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "342cc0a52ce1568f81f190db9fde99d1", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
  • Tech tip

    Based on our current knowledge, we cannot recommend the combination of Sungrow inverters and optimizers from SolarEdge and Tigo

  • Links
Description

Sungrow Hybrid high-voltage inverter with emergency power output SH10RT

These new three-phase hybrid inverters have a three-phase backup power output with 100% unbalanced load capability. Together with the high-voltage battery connection and 2 independent MPP trackers, the Sungrow inverter leaves nothing to be desired. Up to date, this device is configured via iSolarCloudAssistant and sends its data to the free iSolarCloud portal or iSolarCloud app via the already integrated Wi-Fi or Ethernet interfaces. RS485 (Modbus RTU) and Ethernet (Modbus TCP) can be used to connect third-party data loggers. A 3-phase smart meter is already included.

External connections, a generous connection area and an integrated bubble level enable quick installation.

If PV modules with currents greater than 13.5 A are used, the inverter may slightly down-regulate on a few peak days a year!

Product advantages

  • Input voltage range from 200-950 V
  • High efficiency of up to 98.4 %
  • Natural convection
  • AC + DC overvoltage protection 2 integrated
  • Connections are external, no need to open the inverter
  • Integrated bubble level
  • SG-ready contact available (for: control of e.g. heat pump)
  • Noise emission 30dB (A)

Use cases:

  • Operation without battery as an inverter only
  • DC operation with PV and battery
  • AC operation without PV and with battery

Product features Sungrow Hybrid HV SH10RT:

  • Mains connection: 3-phase
  • AC power: 10.0 kVA (10.0 kW nom. / 12 kW 5min.) emergency power via separate output
  • Reverse polarity protection
  • MPP trackers: 2
  • MPPT 1: 1 MC4 input; MPPT 2: 2 MC4 inputs
  • Battery connection
  • Interfaces: Ethernet
  • Cable cross-section AC connection 6 – 10 mm² possible
  • Cable cross-section DC connection 6 – 10 mm² possible
  • Dimensions: 540 x 460 x 170 mm (H x W x D)
  • Weight: 27 kg
  • Protection category: IP 65

Scope of delivery

  • Inverter
  • 3-phase Smart Meter Chint DTSU666 80 A included
  • WiNet-S-Modul Wi-Fi adapter
  • Wall mount
  • Expanding dowel set
  • M4 screws and washers
  • AC/backup connector set
  • Cable end clamp
  • PV connectors
  • Crimp contact
  • SUNCLIX connector set
  • LAN connector
  • COM connector
  • RS485 cable
  • OT connection
  • Documents

Battery compatibility

Memodo energy storage approval list

If you're looking for emergency power, you've come to the right place! Compact dimensions and low weight with powerful performance - installed faster than any other.

  • Matching accessories

    • Spelsberg Notstrombox STV 502-K Bild
      Spelsberg Backup-Box STV 904-K
      • Type of manufacturer: STV 904-K
      • Art. Nr.: 9491
      Available from stock
      { "id": "b5c4ac57ae39560bafc0519bcf32e76d", "item_brand": "", "item_name": "Spelsberg Backup-Box STV 904-K", "item_id": "9491", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b5c4ac57ae39560bafc0519bcf32e76d", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • Sungrow SBR096 Batteriespeicher

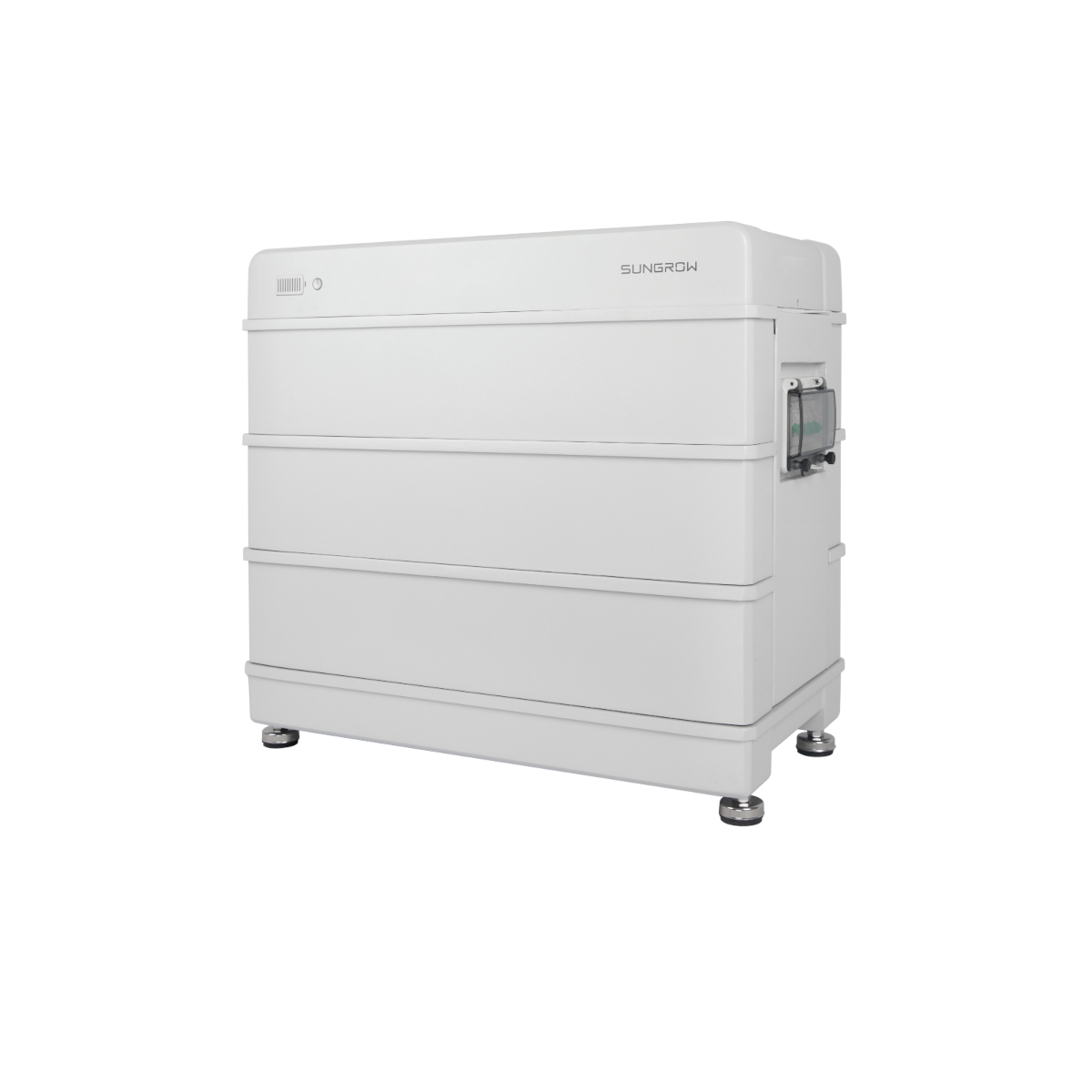

      Sungrow SBR096
      • Type of manufacturer: SBR096
      • Art. Nr.: 6765
      Available from stock
      { "id": "804b4d83119652669acaf2e9f86798d5", "item_brand": "", "item_name": "Sungrow SBR096", "item_id": "6765", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "804b4d83119652669acaf2e9f86798d5", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • Solarkabel Helukabel Solarflex 6mm2 500m schwarz
      • Remaining quantity
      Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black
      • Type of manufacturer: 713531
      • Art. Nr.: 5752
      On request
      Details
      { "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • OBO Kabelkanal 40 x 60 mm
      OBO Kabelkanal 40x60 mm, reinweiß, VPE 32,0 m
      • Type of manufacturer: WDK40060RW
      • Art. Nr.: 7652
      Ab Lager verfügbar
      { "id": "2d7733b56a575607a0d298cec788bc20", "item_brand": "", "item_name": "OBO Kabelkanal 40x60 mm, reinweiß, VPE 32,0 m", "item_id": "7652", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2d7733b56a575607a0d298cec788bc20", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • OBO Generatoranschlusskasten 5088445 Produktbild
      • Remaining quantity
      OBO surge protection box DC type II, 2 MPP, 2 strings, terminals
      • Type of manufacturer: PVG- C1000K 220
      • Art. Nr.: 9832
      Available from stock
      { "id": "2ccd107b9c465222bbdb9189431f1316", "item_brand": "", "item_name": "OBO surge protection box DC type II, 2 MPP, 2 strings, terminals", "item_id": "9832", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2ccd107b9c465222bbdb9189431f1316", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • Staeubli Stecker MC4

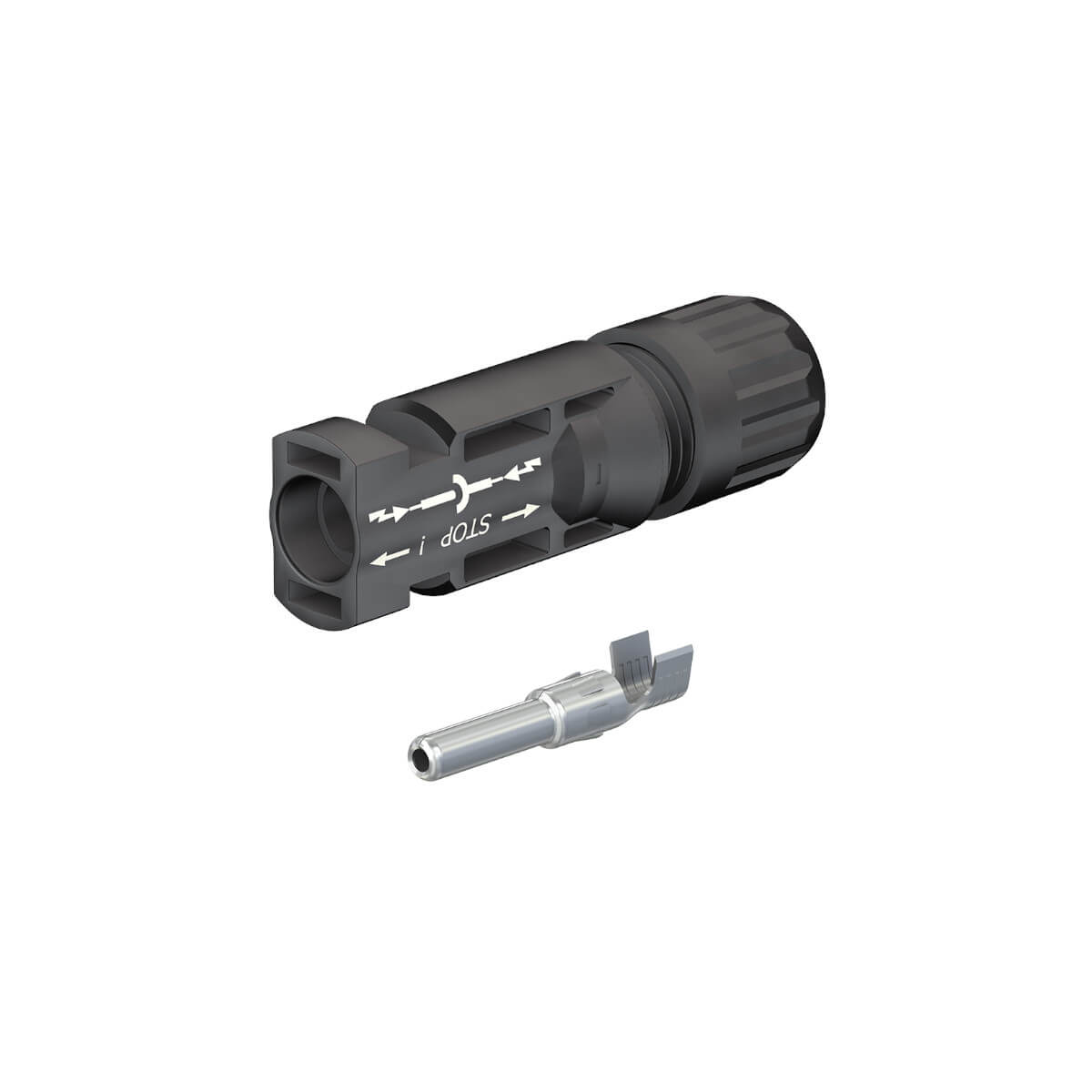

      Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm
      • Type of manufacturer: PV-KST4/6II-UR
      • Art. Nr.: 340
      Available from stock
      { "id": "47bc20824ea0580f9658753f8da565ab", "item_brand": "", "item_name": "Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm", "item_id": "340", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "47bc20824ea0580f9658753f8da565ab", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
    • Staeubli Buchsenkontakt MC4

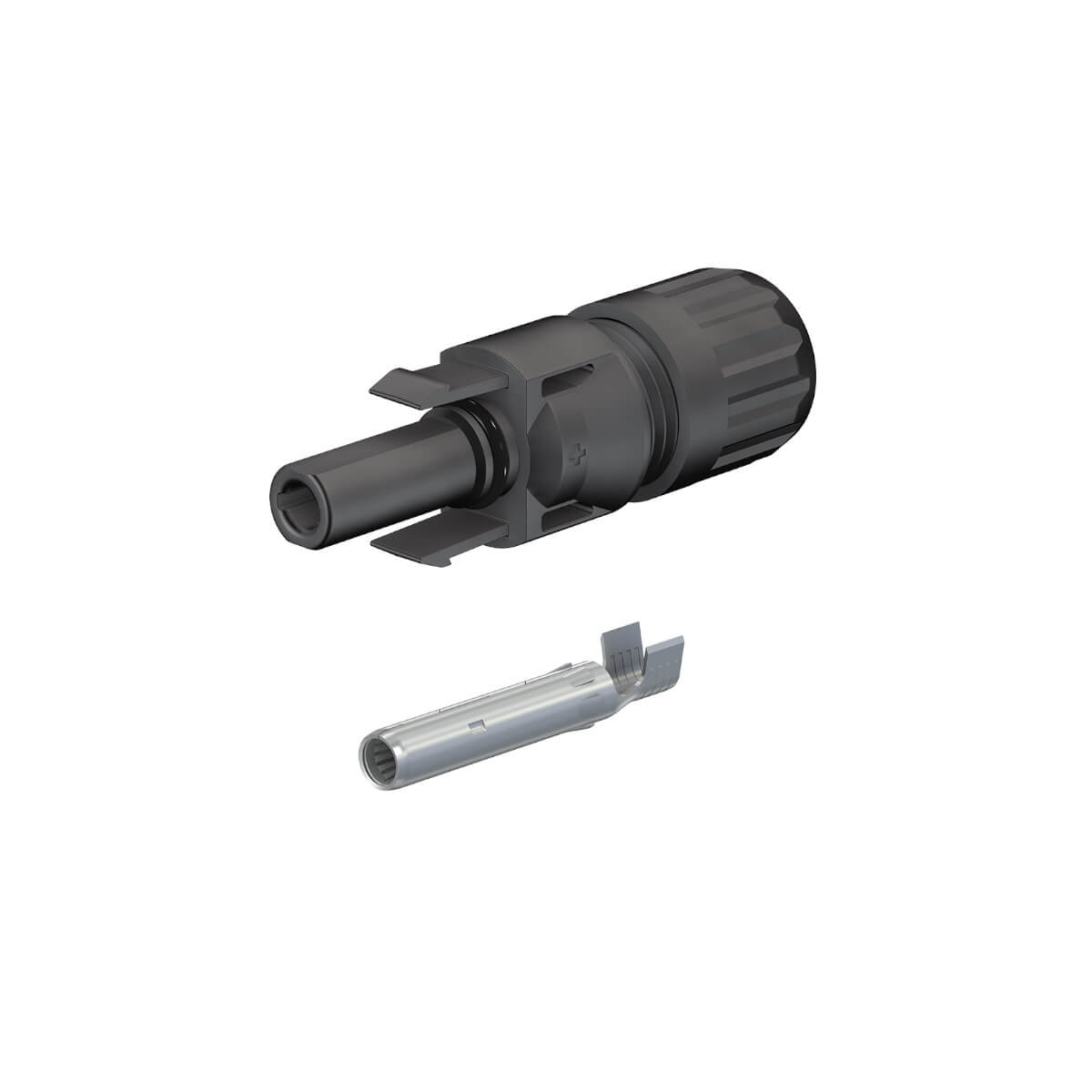

      Stäubli MC4 socket, 4-6 mm² II, diameter 5.9-8.8 mm
