Substructure package for 10 modules from K2, SingleRail, slanted roofs, 1-layer
| Art. Nr.: | 7741 |
|---|---|
| Type of roof: | Package, Pan tile |
Substructure for 10 modules from K2 with SingleRail components for tiled roofs, 1-layer

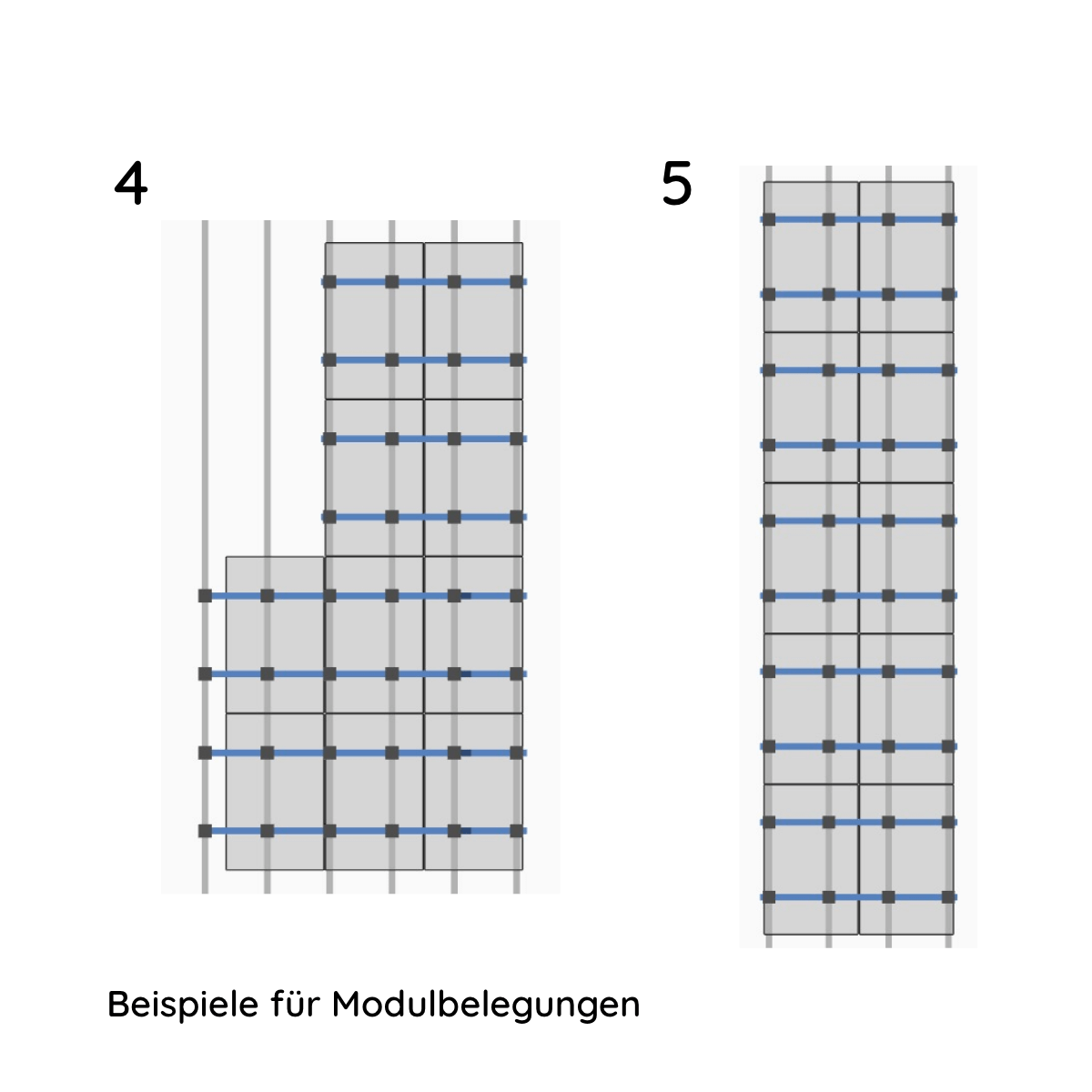

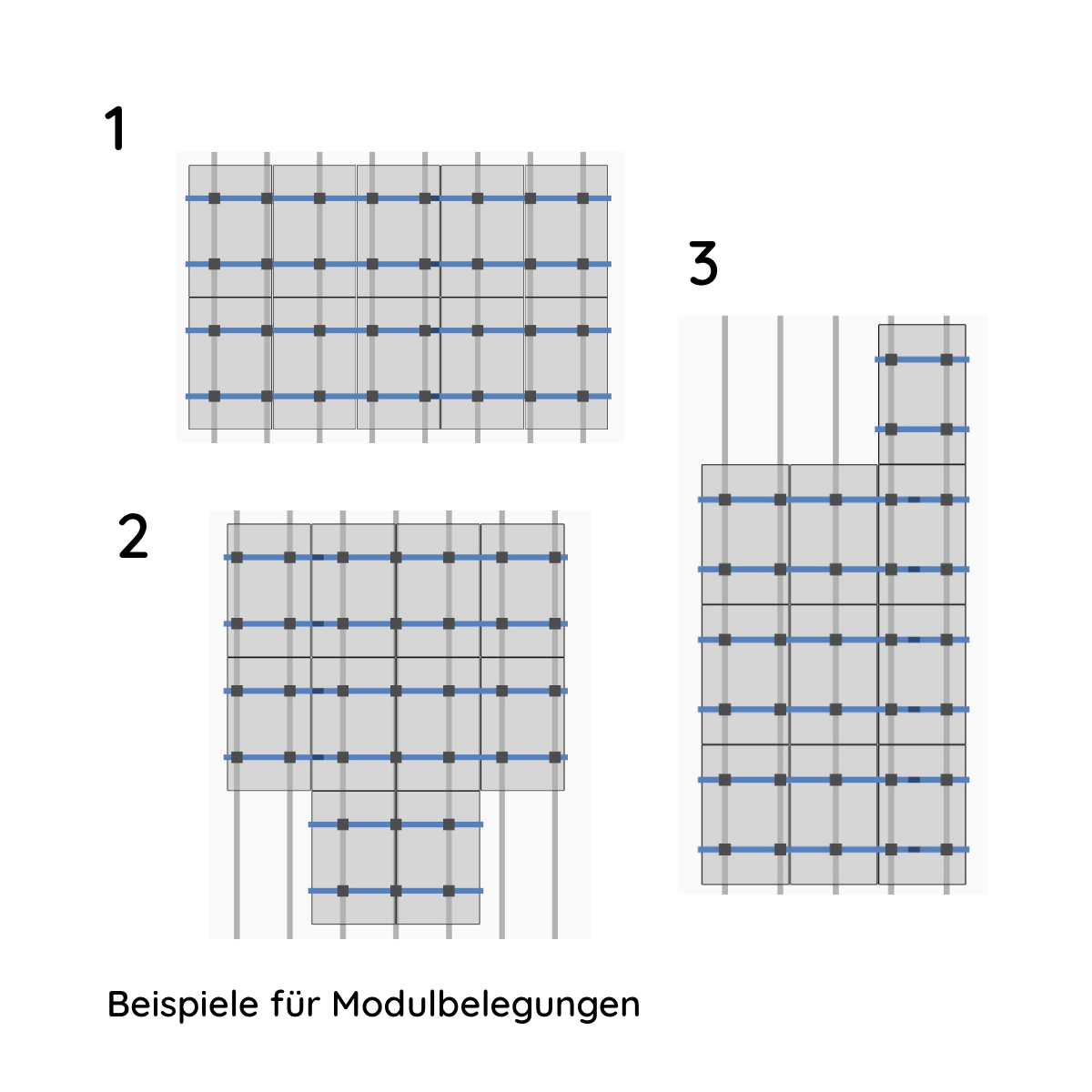

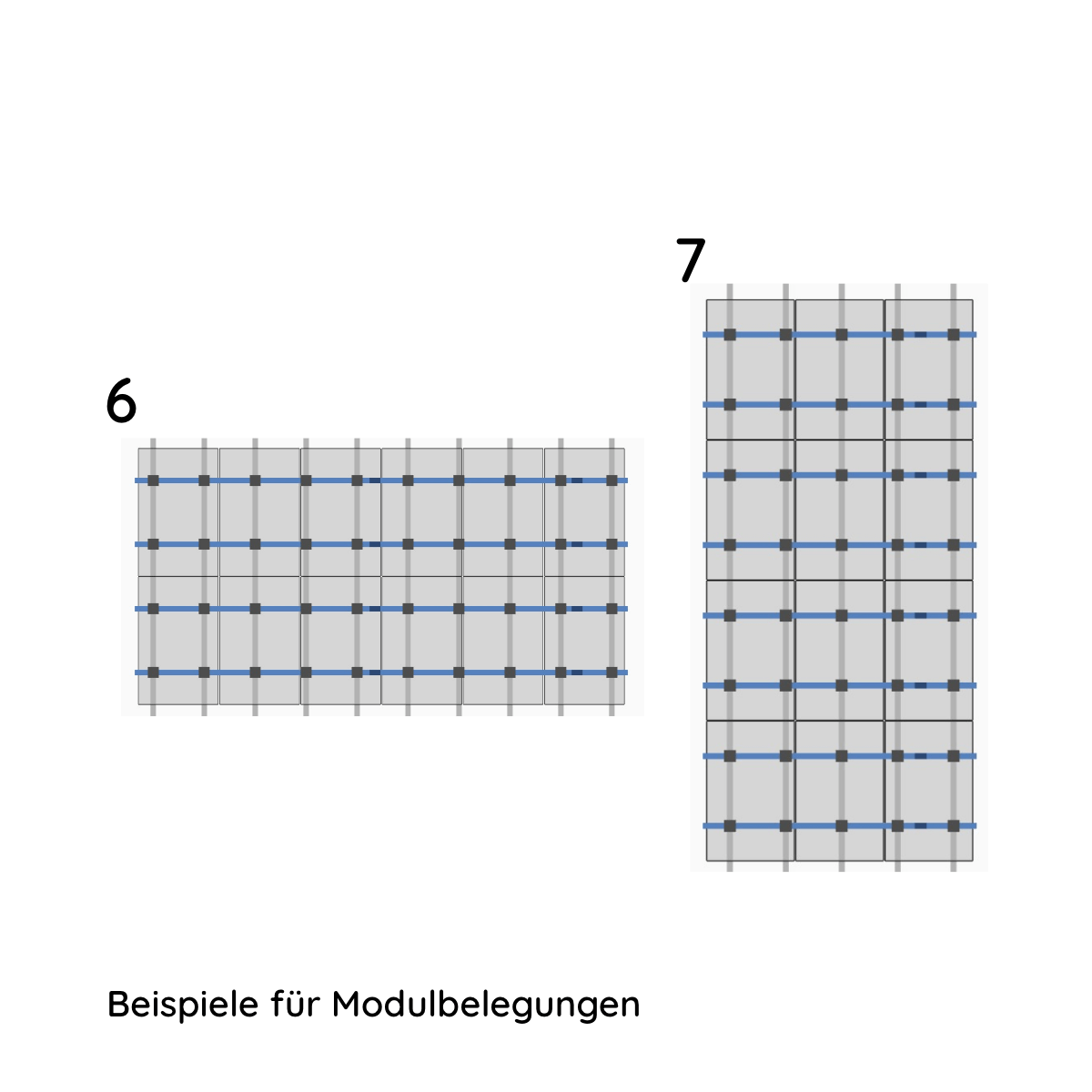

Memodo substructure packages are all-in-one packages for the installation of up to 12 modules on a slanted roof. The number of modules depends on the respective design and the condition of the roof. The substructure package for up to 12 modules from K2 Systems is recommended up to snow load zone 2 and wind load zone 2. The package does not replace the planning process for structural approval. The static release is carried out via the planning process using the free K2 Base tool. All components are made by the German manufacturer K2 Systems.
It is not possible to change the items included in the package.
Advantages
- Easy and quick order thanks to the all-in-one package
- Contains all UK components (without screws)
- Delivery in packaging units
Scope of delivery
- 10 x mounting rail K2 SingleRail with 3.30 m
- 40 x roof hooks: Crosshook 3S
- 10 x rail connectors: K2 Connector Set
- 20 x end clamp: OneEnd
- 20 x middle clamp: OneMid
- 20 x end cap: EndCap
Not included in delivery
- Screws
- Marzari metal roof panels
- Components for lightning protection and equipotential bonding
You need more substructures?
No problem at all! You can easily add individual components to this package. It is not possible to reduce or remove items included in the package.
