Stäubli solar cable extension MC4-Evo 2A, 6 mm², 5 m

Stäubli

Type of manufacturer:	PV-K6APAR/PV-EVO2-BX/PV-EVO2-SX/500
Manufacturer Art. No.:	13002844-500
Art. Nr.:	12226
Pieces per package unit:	per carton
Accessory type:	DC solar cable
WEEE-Number:	DE83512114

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 12226

Prices are only visible to business customers upon successful registration.

Available from stock

Product number: 12226

Stäubli solar cable extension MC4-Evo 2A, 6 mm², 5 m

The Stäubli MC4-Evo 2A cable assembly offers a reliable and efficient solution for connecting PV components. These DC cable extensions are certified according to IEC 62930 and ensure safe power transmission at a rated voltage of up to 1500 V DC. Thanks to the robust design and high-quality materials, including MC4-Evo 2A connectors, these cables are ideal for demanding environments and guarantee a long service life.

Various lengths (2 m, 5 m & 10 m) and cross-sections (4 mm² & 6 mm²) at Memodo!

Product advantages

Certified according to IEC 62930 for maximum safety
Suitable for rated voltages up to 1500 V DC
Robust design for extreme temperatures (-40 °C to +85 °C)
High reliability thanks to original Stäubli connectors
Versatile application options with various lengths (2, 5 & 10 m) and cross-sections (4 & 6 mm²) at Memodo
Ideal for professional PV systems and industrial applications

Specifications

Connector: MC4-Evo 2A
Rated voltage: DC 1500 V
Conductor cross-section: 6 mm²
Ambient temperature range: -40 °C to +85 °C (IEC and UL)
Temperature range for transport/storage: -30 °C to +60 °C
Relative humidity for transport/storage: < 70 %
Certification: IEC 62930, UL6703
Safety note: Do not disconnect under load
Plug-in compatible with the original MC4 connector family.

Downloads

Staeubli cable extension datasheet

Matching accessories

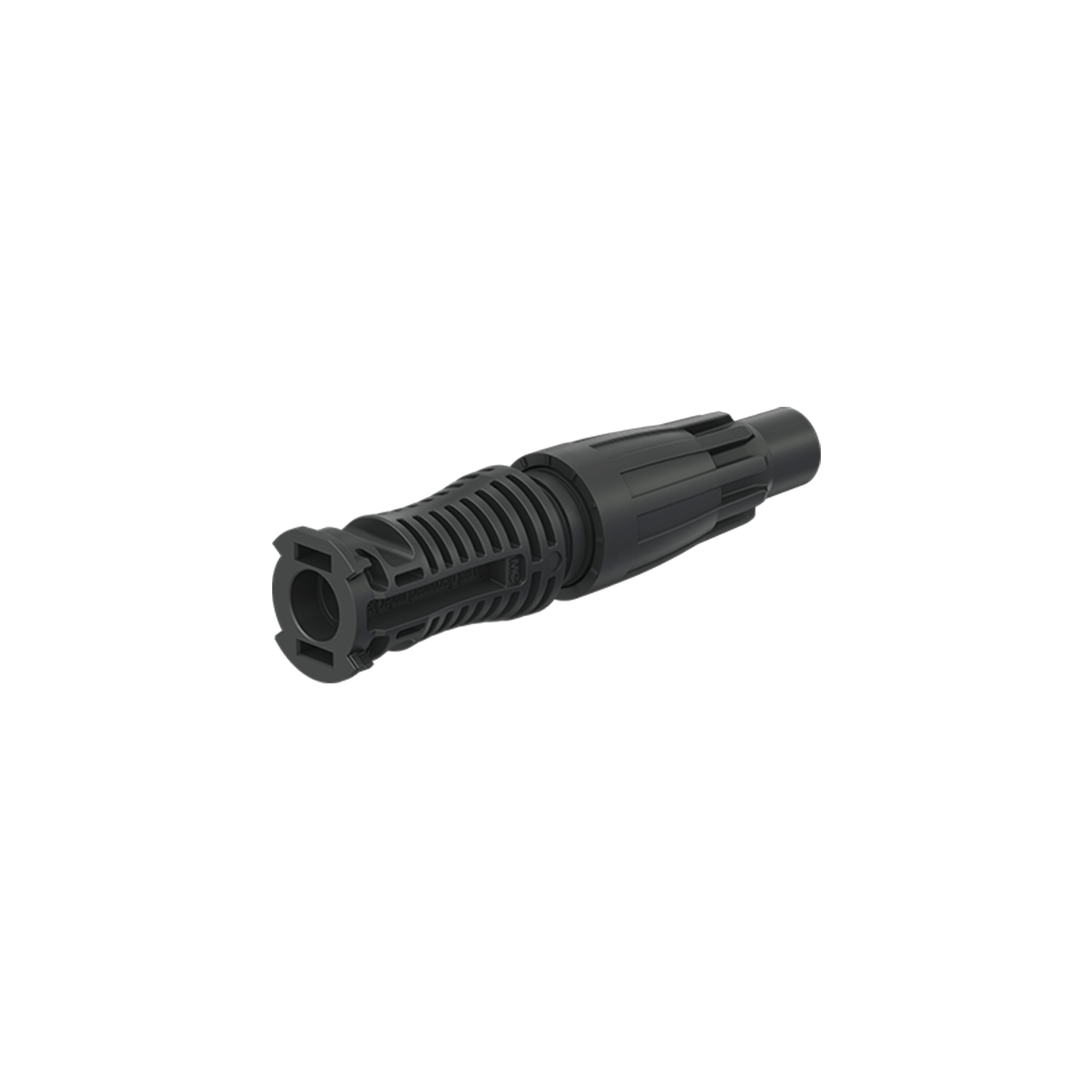

Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm

Type of manufacturer: PV-KST4-EVO READY

Art. Nr.: 11665

Available from stock

Please get in touch with your personal contact person to find out the price of the product. You can find the contact details of your contact person in your customer account.

Sign up to view the prices

{ "id": "0f7f8e594c4f5028adb485c0a7b4ec41", "item_brand": "", "item_name": "Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm", "item_id": "11665", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "10", "shopware_id": "0f7f8e594c4f5028adb485c0a7b4ec41", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

Stäubli MC4-EVO ready socket 4-6 mm², Da 5.5 – 7.5 mm

Type of manufacturer: PV-KBT4-EVO READY

Art. Nr.: 11666

Available from stock

Please get in touch with your personal contact person to find out the price of the product. You can find the contact details of your contact person in your customer account.

Sign up to view the prices

{ "id": "ac218eb566d257998db5928656516c68", "item_brand": "", "item_name": "Stäubli MC4-EVO ready socket 4-6 mm², Da 5.5 – 7.5 mm", "item_id": "11666", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "10", "shopware_id": "ac218eb566d257998db5928656516c68", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

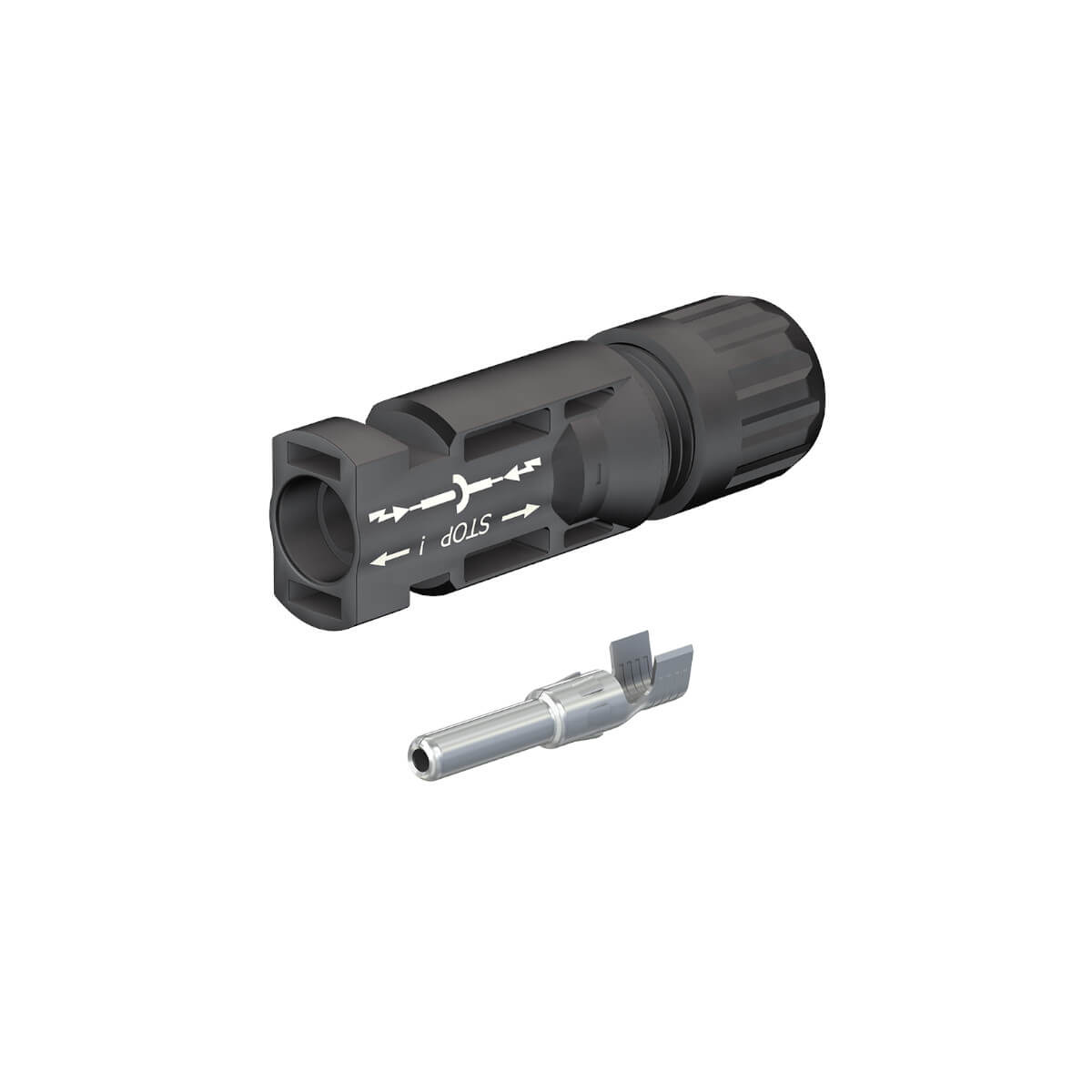

Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm

Type of manufacturer: PV-KST4/6I-UR

Art. Nr.: 338

Available from stock

Please get in touch with your personal contact person to find out the price of the product. You can find the contact details of your contact person in your customer account.

Sign up to view the prices

{ "id": "0dae6ec5fad8591a9f118659ff2184db", "item_brand": "", "item_name": "Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm", "item_id": "338", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0dae6ec5fad8591a9f118659ff2184db", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

Stäubli MC4 socket, 4-6 mm² I, diameter 5-6 mm

Type of manufacturer: PV-KBT4/6I-UR

Art. Nr.: 339

Available from stock

Please get in touch with your personal contact person to find out the price of the product. You can find the contact details of your contact person in your customer account.

Sign up to view the prices

{ "id": "50777318441e5d52b9e4059410de4900", "item_brand": "", "item_name": "Stäubli MC4 socket, 4-6 mm² I, diameter 5-6 mm", "item_id": "339", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "50777318441e5d52b9e4059410de4900", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm

Type of manufacturer: PV-KST4/6II-UR

Art. Nr.: 340

Available from stock

Please get in touch with your personal contact person to find out the price of the product. You can find the contact details of your contact person in your customer account.

Sign up to view the prices

{ "id": "47bc20824ea0580f9658753f8da565ab", "item_brand": "", "item_name": "Stäubli MC4 plug, 4-6 mm² II, diameter 5.9-8.8 mm", "item_id": "340", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "47bc20824ea0580f9658753f8da565ab", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

Stäubli MC4 socket, 4-6 mm² II, diameter 5.9-8.8 mm

Type of manufacturer: PV-KBT4/6II-UR

Art. Nr.: 341

Available from stock

Please get in touch with your personal contact person to find out the price of the product. You can find the contact details of your contact person in your customer account.

Sign up to view the prices

{ "id": "5f4aa0d423d75f88a51cde234a6f729d", "item_brand": "", "item_name": "Stäubli MC4 socket, 4-6 mm² II, diameter 5.9-8.8 mm", "item_id": "341", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "5f4aa0d423d75f88a51cde234a6f729d", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

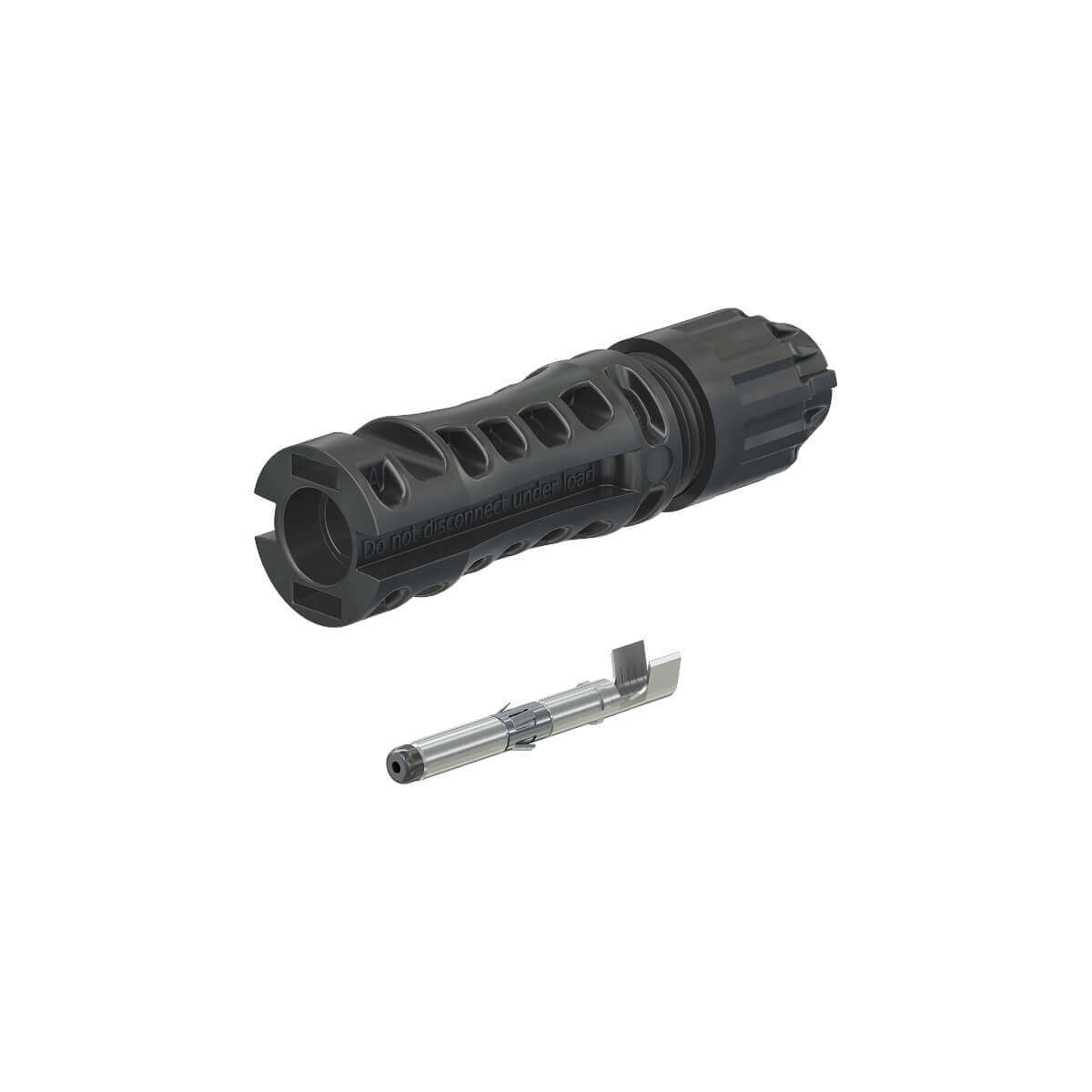

Stäubli MC4-EVO 2 plug 4/6 mm², Da 6.4 – 8.4mm

Type of manufacturer: PV-KST4-EVO 2A/6II

Art. Nr.: 8987

Available from stock

Please get in touch with your personal contact person to find out the price of the product. You can find the contact details of your contact person in your customer account.

Sign up to view the prices

{ "id": "7f94eb44800d5f03b0c699d858d9f850", "item_brand": "", "item_name": "Stäubli MC4-EVO 2 plug 4/6 mm², Da 6.4 – 8.4mm", "item_id": "8987", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f94eb44800d5f03b0c699d858d9f850", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }

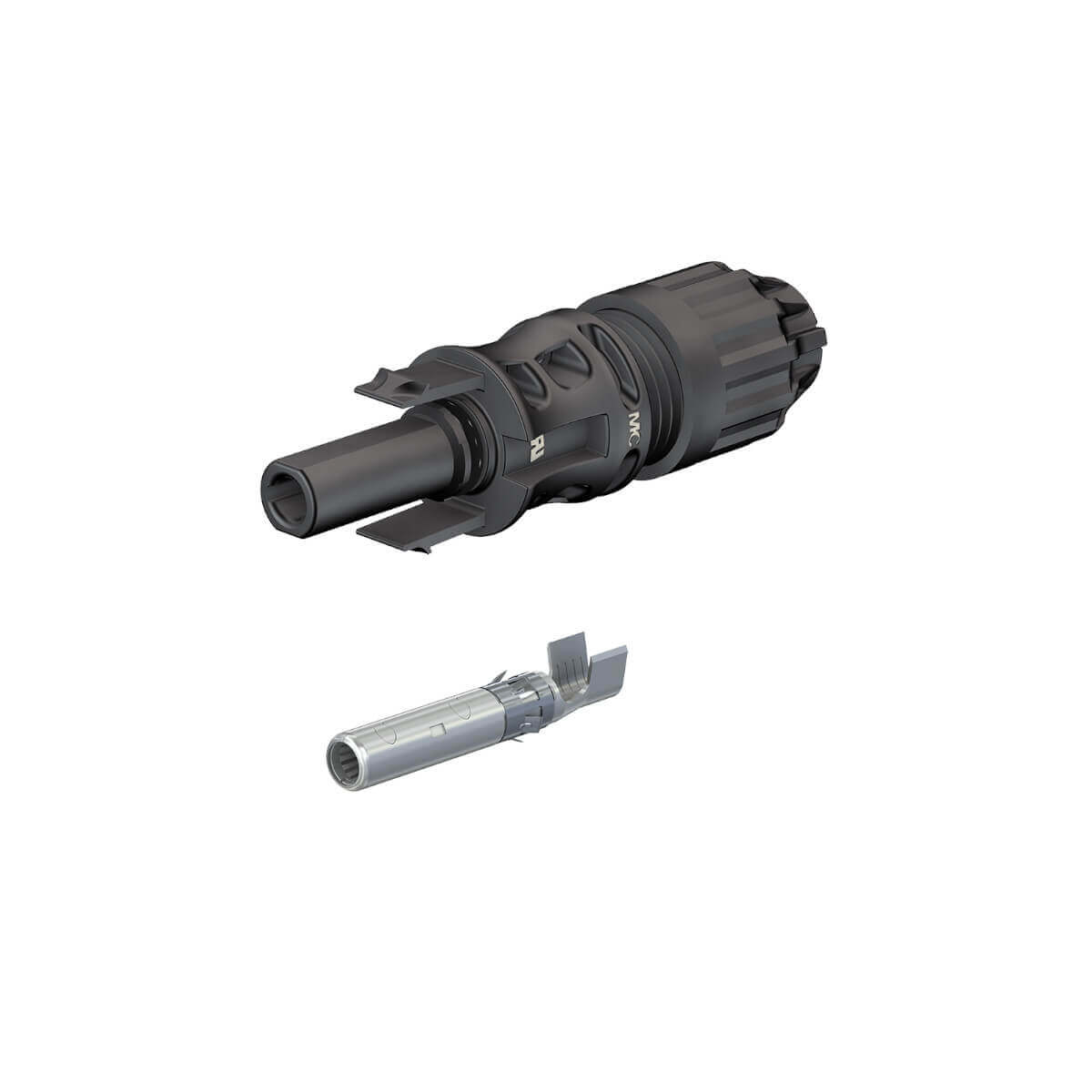

Stäubli MC4-EVO 2 socket 4-6 mm², diameter 6.4 – 8.4 mm
