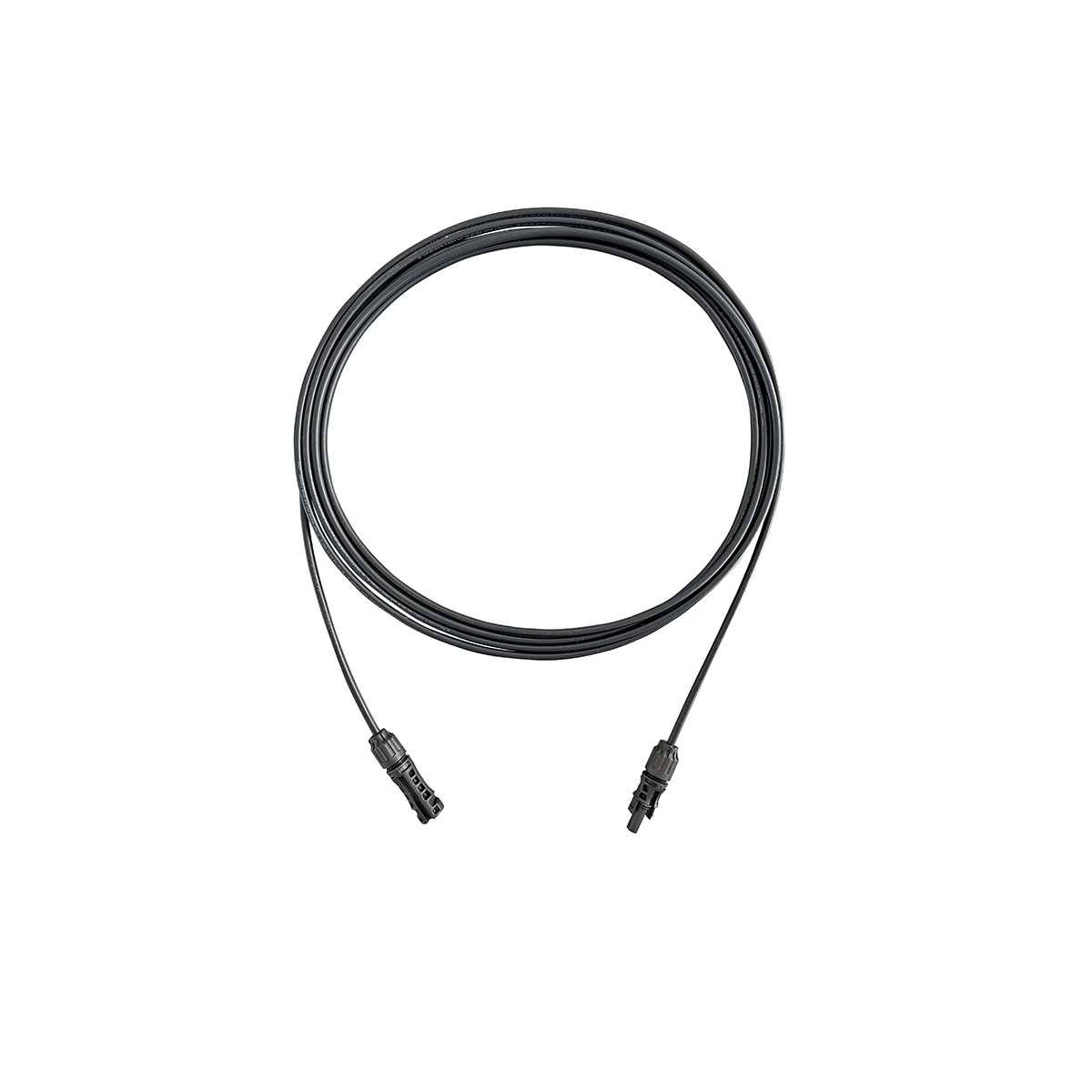

Stäubli solar cable extension MC4-Evo 2A, 6 mm², 2 m

Stäubli

Type of manufacturer:	PV-K6APAR/PV-EVO2-BX/PV-EVO2-SX/200
Manufacturer Art. No.:	13002844-200
Art. Nr.:	12225
Pieces per package unit:	per carton
Accessory type:	DC solar cable
WEEE-Number:	DE83512114

Prices are only visible to business customers upon successful registration.

Available from 02.01.2025

Product number: 12225

Prices are only visible to business customers upon successful registration.

Available from 02.01.2025

Product number: 12225

Stäubli solar cable extension MC4-Evo 2A, 6 mm², 2 m

The Stäubli MC4-Evo 2A cable assembly offers a reliable and efficient solution for connecting PV components. These DC cable extensions are certified according to IEC 62930 and ensure safe power transmission at a rated voltage of up to 1500 V DC. Thanks to the robust design and high-quality materials, including MC4-Evo 2A connectors, these cables are ideal for demanding environments and guarantee a long service life.

Various lengths (2 m, 5 m & 10 m) and cross-sections (4 mm² & 6 mm²) at Memodo!

Product advantages

Certified according to IEC 62930 for maximum safety
Suitable for rated voltages up to 1500 V DC
Robust design for extreme temperatures (-40 °C to +85 °C)
High reliability thanks to original Stäubli connectors
Versatile application options with various lengths (2, 5 & 10 m) and cross-sections (4 & 6 mm²) at Memodo
Ideal for professional PV systems and industrial applications

Specifications

Connector: MC4-Evo 2A
Rated voltage: DC 1500 V
Conductor cross-section: 6 mm²
Ambient temperature range: -40 °C to +85 °C (IEC and UL)
Temperature range for transport/storage: -30 °C to +60 °C
Relative humidity for transport/storage: < 70 %
Certification: IEC 62930, UL6703
Safety note: Do not disconnect under load
Plug-in compatible with the original MC4 connector family.

Downloads

Staeubli cable extension datasheet
