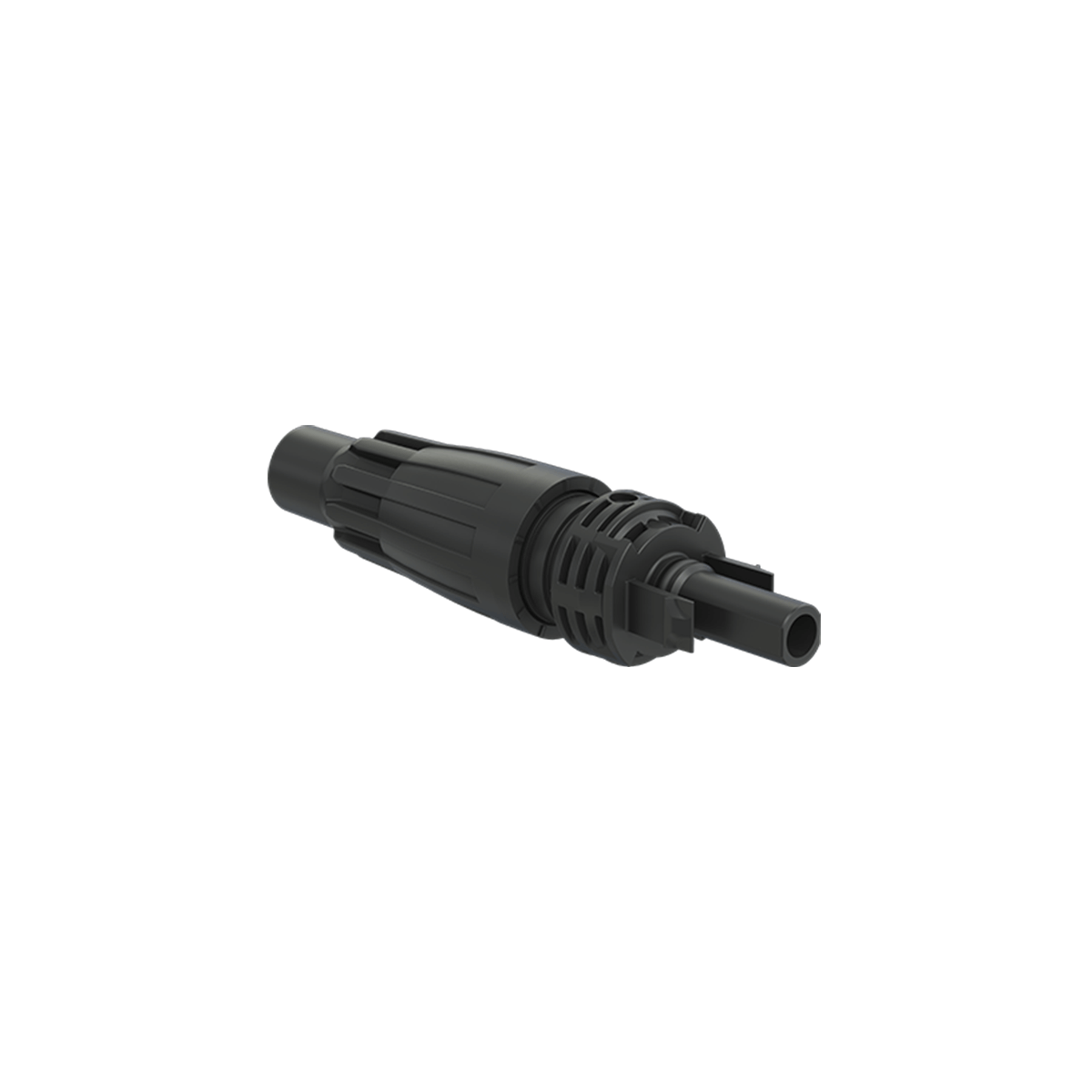

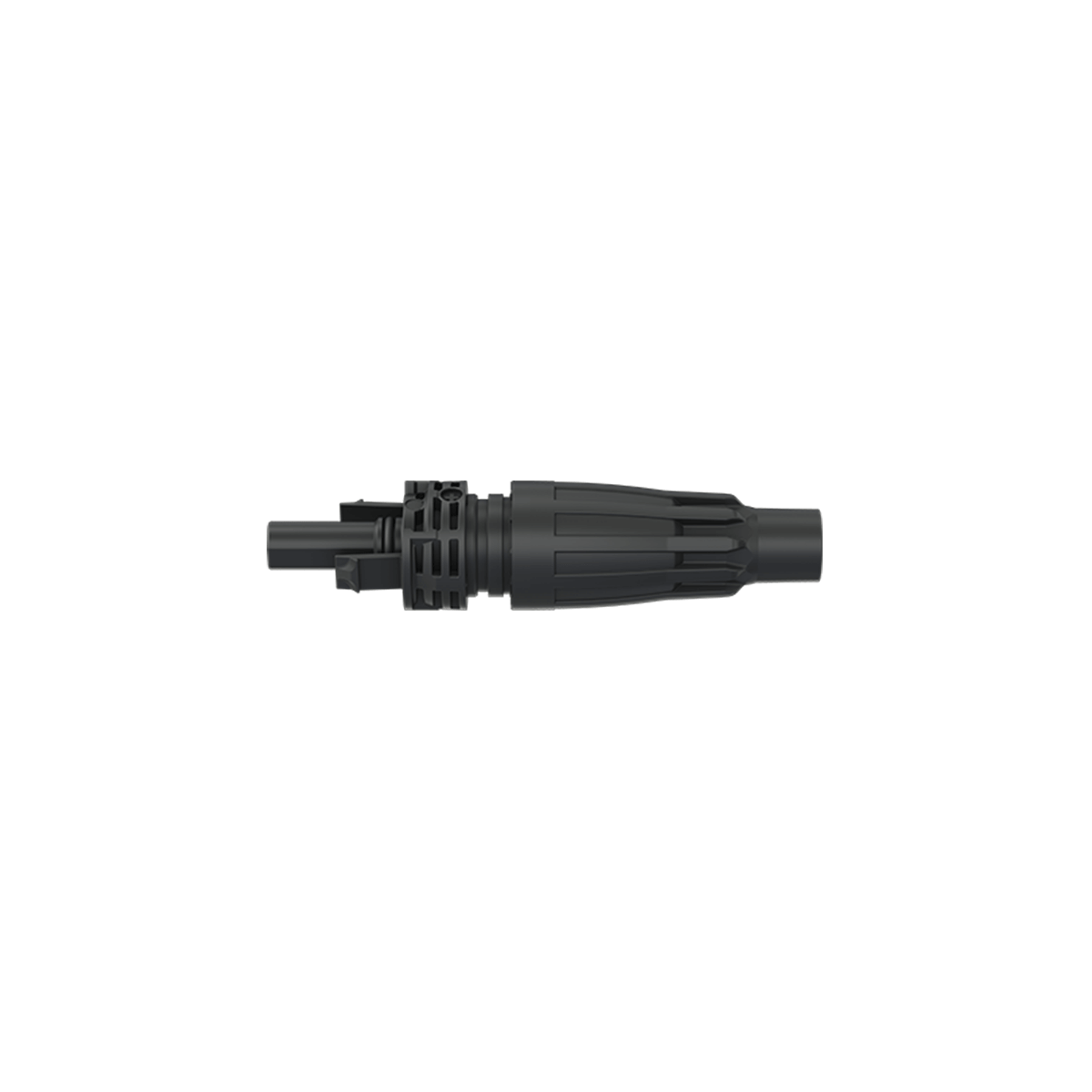

Stäubli MC4-EVO ready socket 4-6 mm², Da 5.5 – 7.5 mm
| Type of manufacturer: | PV-KBT4-EVO READY |
|---|---|
| Manufacturer Art. No.: | 32.0030 |
| Art. Nr.: | 11666 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11666
-
-
Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm- Art. Nr.: 11665
- Stäubli
Available from stock{ "id": "0f7f8e594c4f5028adb485c0a7b4ec41", "item_brand": "", "item_name": "Stäubli MC4-EVO ready connector 4-6 mm², Da 5.5 – 7.5 mm", "item_id": "11665", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "10", "shopware_id": "0f7f8e594c4f5028adb485c0a7b4ec41", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "d3a62c977eeb56de9f7da563a059ff77", "item_brand": "", "item_name": "Stäubli MC4 EVO ready assembly tool / wrench set", "item_id": "11667", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d3a62c977eeb56de9f7da563a059ff77", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
Stäubli MC4-Evo ready socket for system voltages up to 1,500 V DC and cables with 4/6 mm²
The original connectors of the MC4 family from Stäubli are a key element for modern photovoltaic systems. The MC4 Evo ready technology is now new and enables crimp-free installation.
These connectors provide a reliable connection for solar panels, generator junction boxes and more, that is both efficient and user-friendly. They are specially designed for high electrical loads and enable safe and durable installation in various environments. Easy to use and compatible with existing MC4 systems, these connectors offer an optimal solution for quick and easy installation work.
Crimp-free installation! – Instructions can be found in the downloads section
Product advantages
- Crimp-free installation enables quick and efficient assembly
- TÜV certification according to IEC 62852:2014+Amd.1:2020
- Spring terminal technology ensures a secure electrical connection
- Can also be used in systems other than photovoltaic systems
Product features Stäubli MC4-EVO ready socket for system voltages up to 1,500 V DC and cables with 4/6 mm²
- Cable cross-section (conductor): 4/6 mm²
- Rated current: 30 A
- Rated voltage: 1,500 V DC
- Surrounding temperature: -40 °C to +85 °C
- Protection class plugged in: IP 65
- Outer diameter of the cable: 5.5 – 7.5 mm
Compatible with the original MC4 connector family.
Cables connected to the connectors must be suitable for use in photovoltaic systems and meet the requirements of IEC 62930. The conductor structure must be class 5 or class 6 in accordance with IEC 60228.
