Stäubli MC4-EVO 2A plug 10 mm², Da 6.4-8.4 mm
| Type of manufacturer: | PV-KST4-EVO 2A/10II |
|---|---|
| Manufacturer Art. No.: | 32.0325P0001 |
| Art. Nr.: | 12211 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
12211
Description

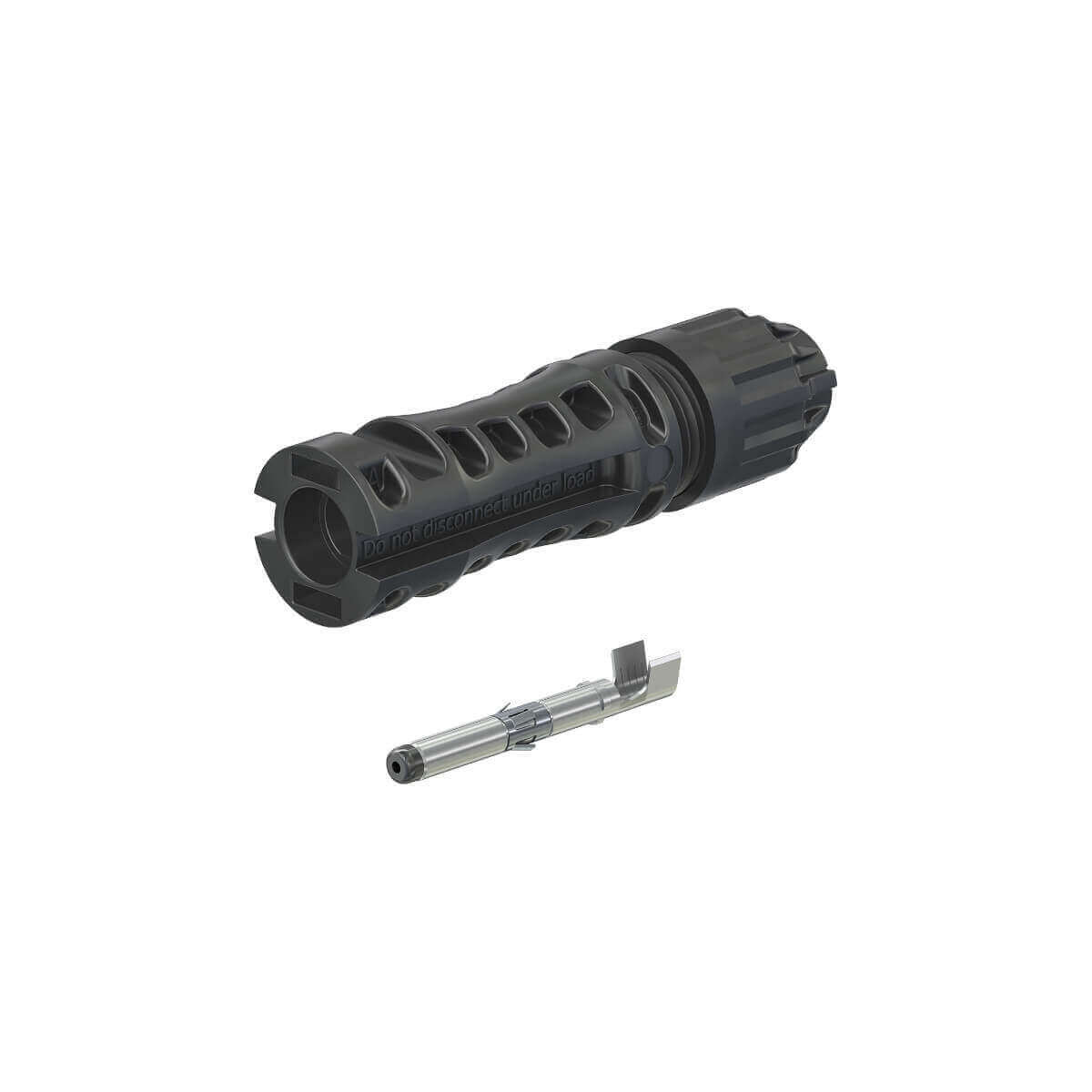

Stäubli MC4-EVO 2A plug 10 mm², Da 6.4-8.4 mm
The MC4-EVO 2A connectors from Stäubli are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1,500 V and 69 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 62852.
The scope of delivery includes the housing and the inner part.
Product advantages
- Meets the requirements of IEC 62852
- TÜV certification according to IEC 62852 in combination with corresponding PV cables
- UL certification according to UL 6703 in combination with corresponding PV cables
- Can also be used in systems outside the photovoltaic sector
Product features Stäubli MC4-EVO 2 plug 10.0 mm², Da 6.4 – 8.4 mm
- Cable cross-section (conductor): 10 mm²
- Outer cable diameter: 6.4 – 8.4 mm
- Rated voltage: 1,500 V DC
- Rated current with 10 mm² cable cross-section: 69 A
- Ambient temperature: -40 °C to +85 °C
- Protection category when plugged in: IP 65
-
