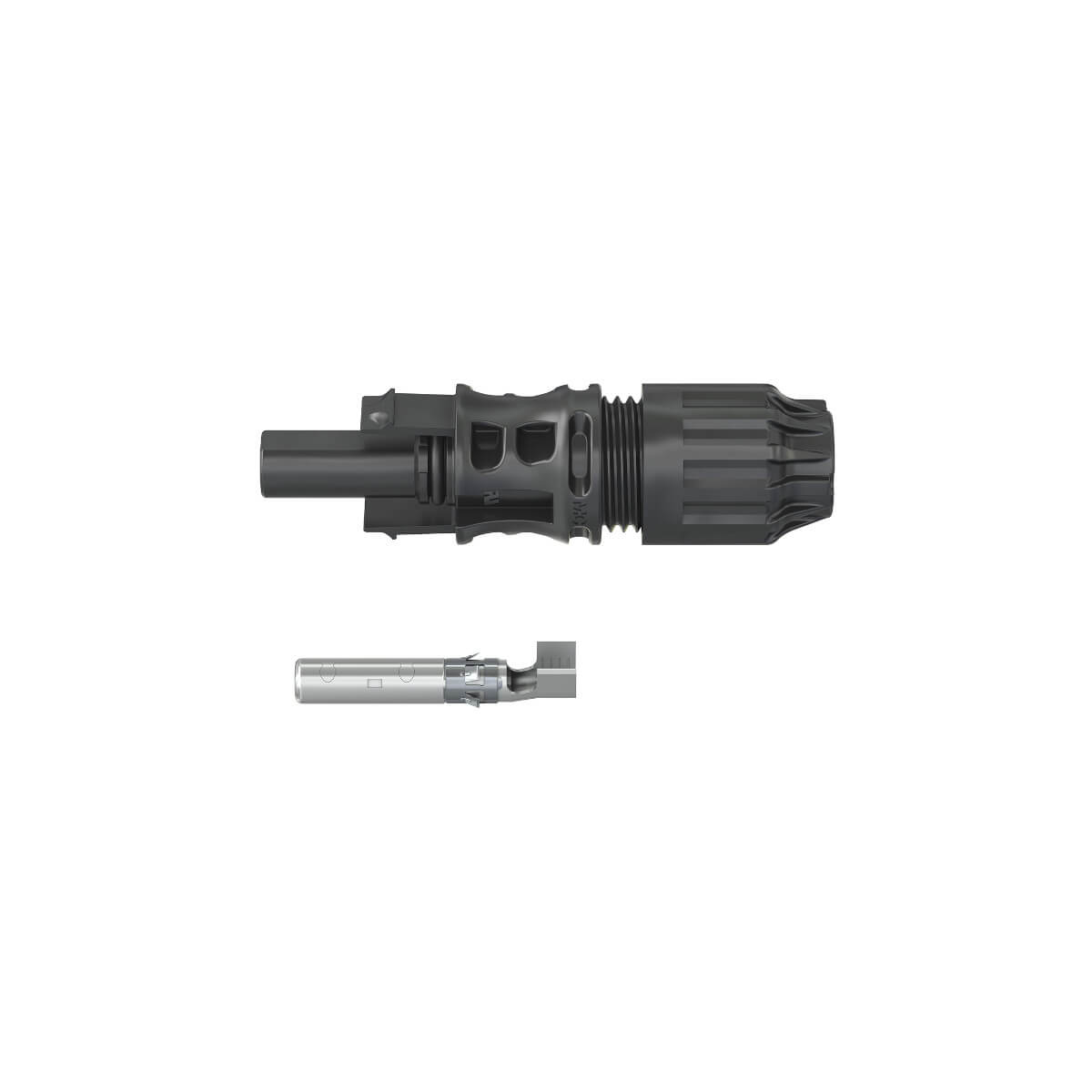

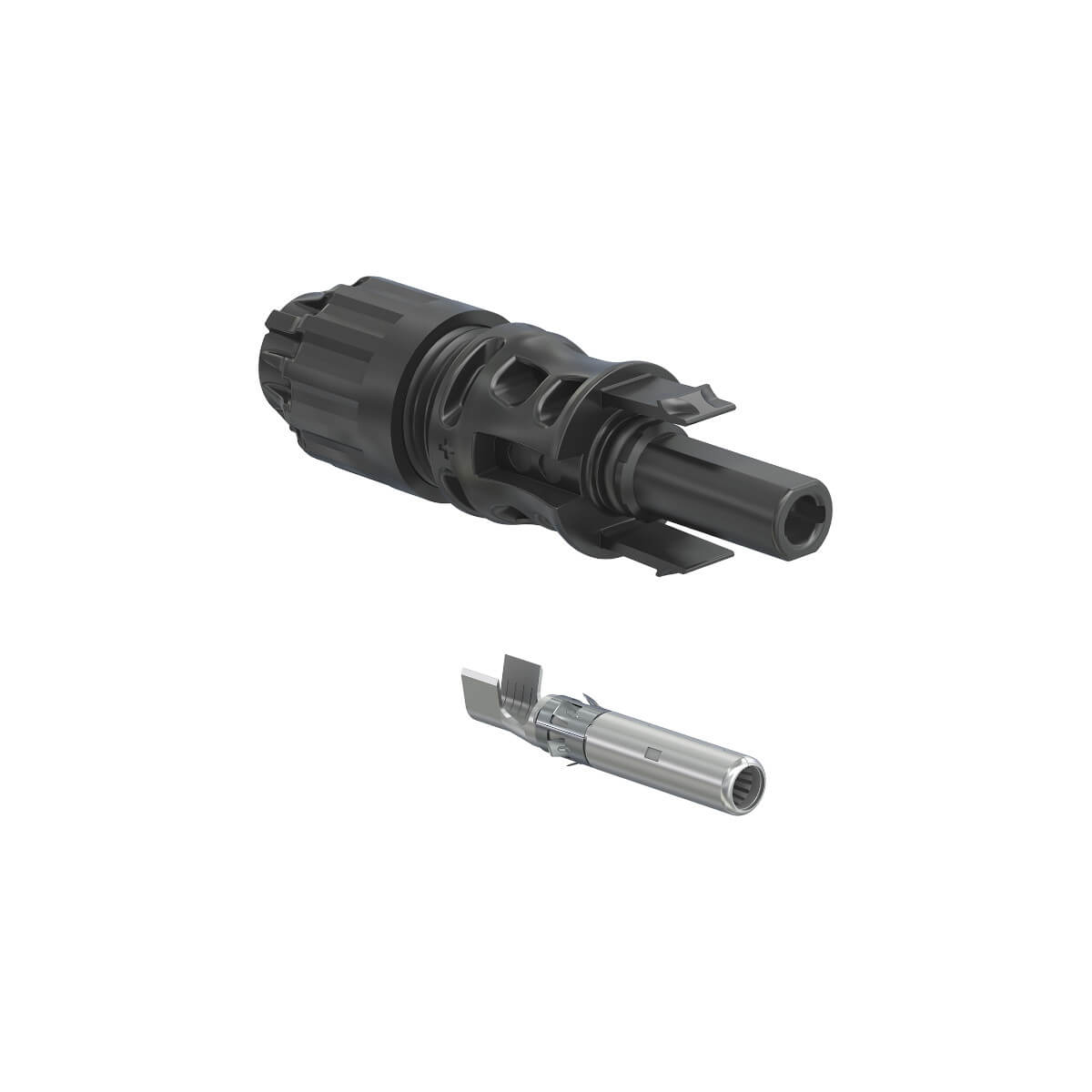

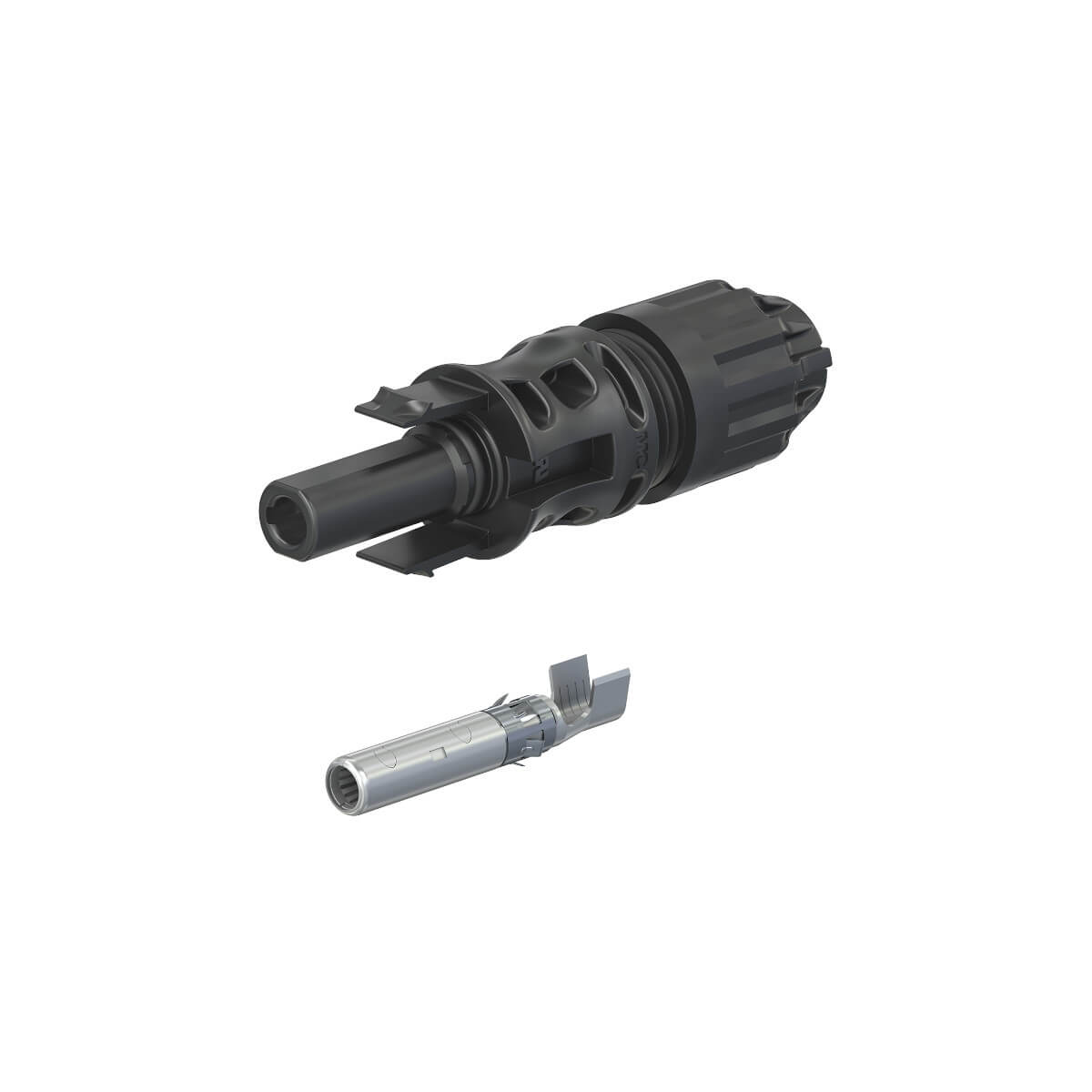

Stäubli MC4-EVO 2 socket, 10 mm², diameter 4.7 - 6.4 mm
| Type of manufacturer: | PV-KBT4-EVO 2A/6I |
|---|---|
| Manufacturer Art. No.: | 32.0316P0001 |
| Art. Nr.: | 8939 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
| WEEE-Number: |
|
Stäubli Multi Contact MC4-EVO 2 socket for system voltages up to 1,500 V DC and cable with 10 mm².
Stäubli's MC4 and MC4-EVO 2 connectors are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (connectors – safety requirements and tests) for general low-voltage DC applications.
The scope of delivery includes the socket as well as the inner part.
Product advantages
- Meets the requirements of IEC 61984:2008
- TÜV certification in accordance with IEC 62852:2014 in combination with appropriate PV cables
- UL certification according to 6703:2014 in combination with appropriate PV cables
- Can also be used in systems beyond the photovoltaic sector
Product features Stäubli MC4-EVO 2 socket 10,0 mm², diameter 4.7 – 6.4 mm
- Cable cross section (conductor): 10 mm²
- Outer cable diameter: 4.7 – 6.4 mm
- Rated voltage: 1,500 V DC
- Ambient temperature: -40 °C to +85 °C
- Protection category: IP 65
Internationally certified according to IEC, UL, JET and cTÜVus. Approved for DC 1500 V (IEC, JET), DC 1500 V (UL). The quality and durability of MULTILAM technology has been proven many hundreds of millions of times since 2004. Suitable for all climates thanks to UV and ammonia resistance and high IP protection category (IP68). Field assembly or pre-assembled connector, use of standard crimping tool possible. Plug compatible with the original MC4 connector family.
