Stäubli MC4-EVO 2 plug, 10 mm², diameter 6.4-8.4 mm
| Type of manufacturer: | PV-KST4-EVO 2/10II-UR |
|---|---|
| Manufacturer Art. No.: | 32.0093P0001-UR |
| Art. Nr.: | 6524 |
| Pieces per package unit: |
|
| Accessory type: | Plugs |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Remaining quantity
Available from stock
Product number:
6524
Description
Stäubli Multi Contact MC4-EVO 2 plug for system voltages up to 1,500 V DC and cable with 10 mm².
Stäubli's MC4 and MC4-EVO 2 connectors are a price-efficient and high-quality solution for photovoltaic systems with DC voltages of up to 1,500 V and 100 A. The connectors are available for cable cross-sections of up to 10 mm²/ 8 AWG. The connectors meet the requirements of IEC 61984:2008 (connectors – safety requirements and tests) for general low-voltage DC applications.

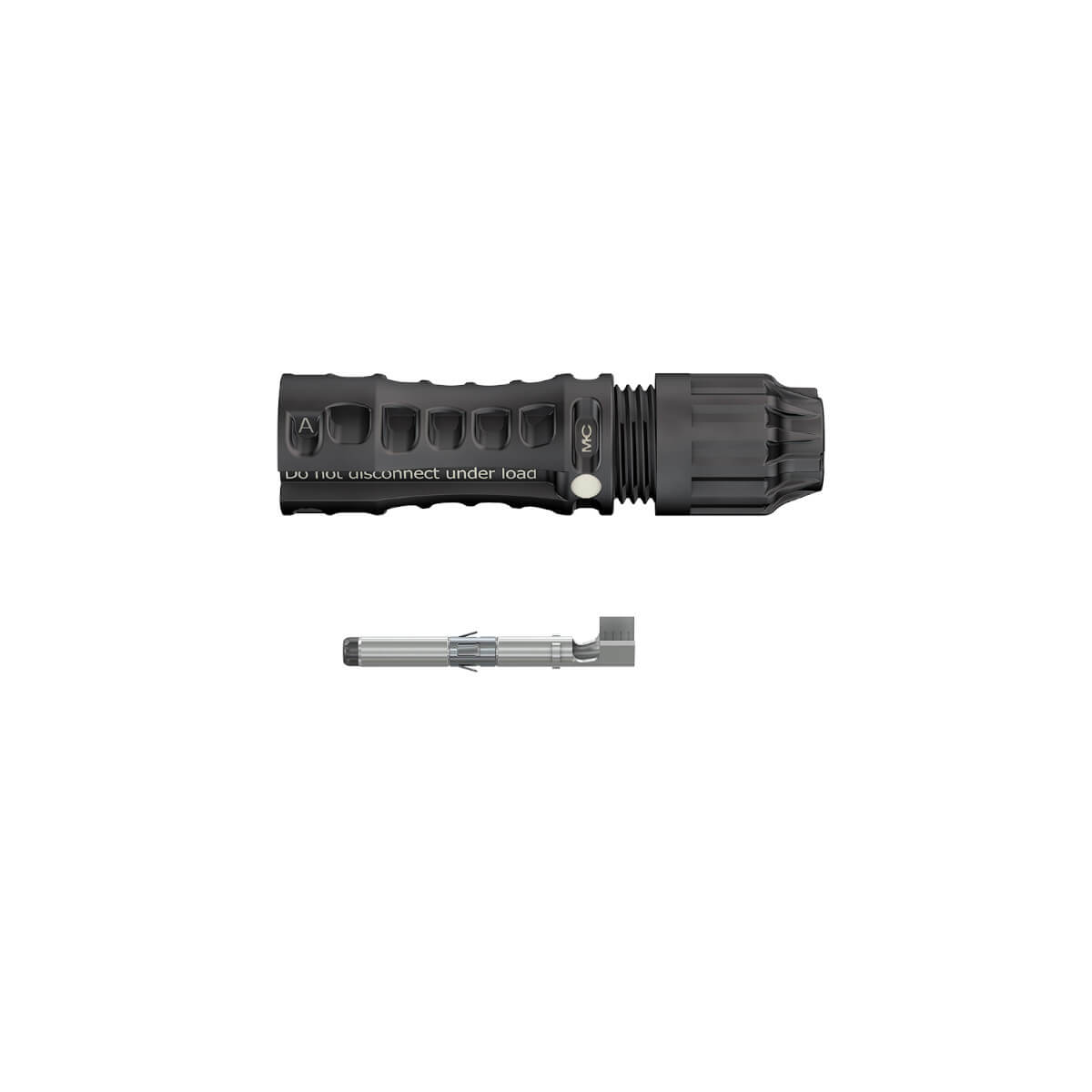

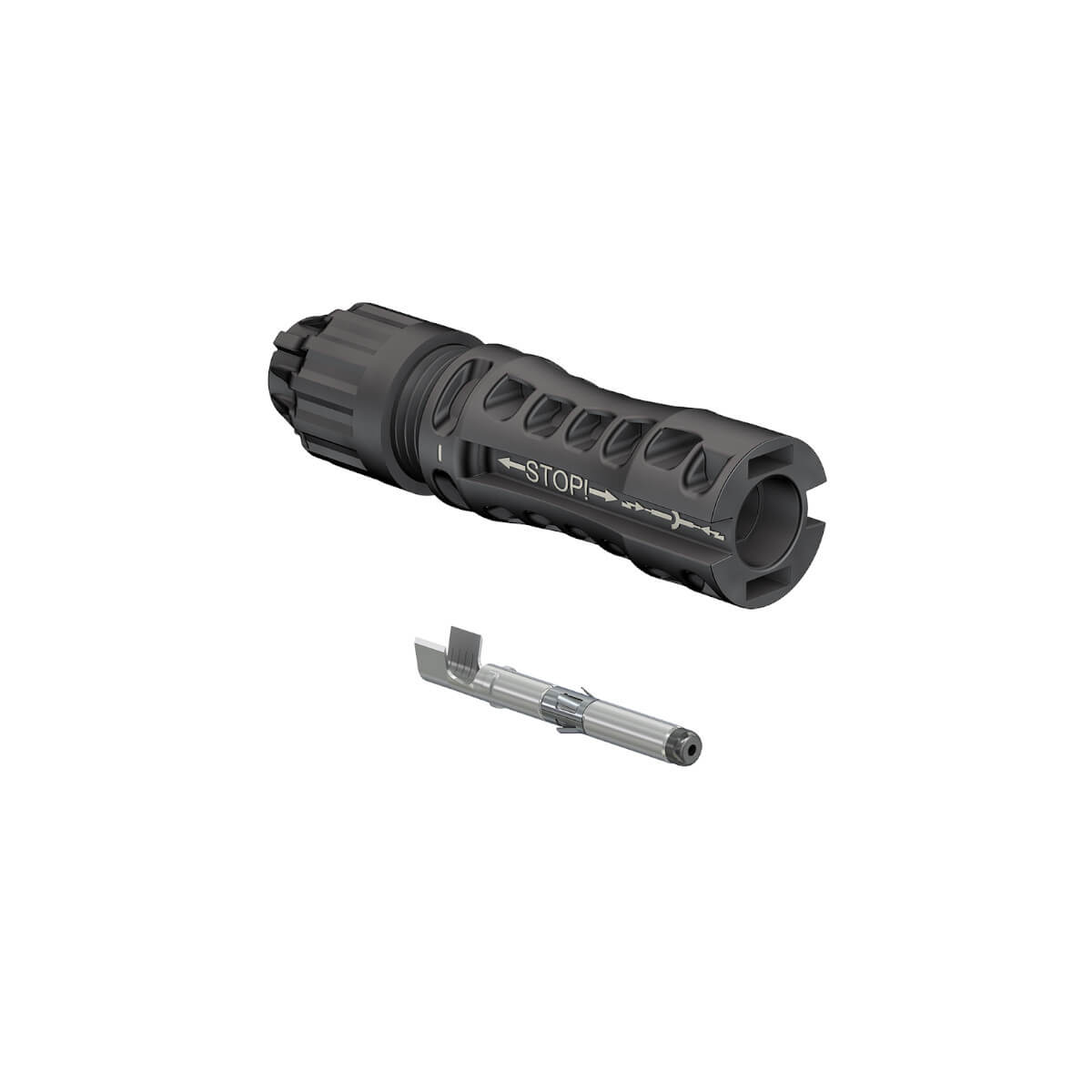

The scope of delivery includes the socket as well as the inner part.
Product advantages
- Meets the requirements of IEC 61984:2008
- TÜV certification in accordance with IEC 62852:2014 in combination with appropriate PV cables
- UL certification according to 6703:2014 in combination with appropriate PV cables
- Can also be used in systems beyond the photovoltaic sector
Product features Stäubli MC4-EVO 2 plug 10,0 mm², diameter 6.4 – 8.4 mm
- Cable cross section (conductor): 10 mm²
- Outer cable diameter: 6.4 – 8.4 mm
- Rated voltage: 1,500 V DC
- Rated current (30°C) at 10 mm² cable cross-section: 104 A
- Ambient temperature: -40 °C to +85 °C
- Protection category: IP 65
