SolaX Triple Power T3.0 6 kWh
| Type of manufacturer: | T-BAT-SYS-HV-3.0(T30) V2 |
|---|---|
| Art. Nr.: | 10602 |
| Battery type: | High volt lithium |
| Cycles: | 6000 |
| Net capacity: | 5.49 kWh |
| Phases: | 1 |
| Solar battery type: | High voltage battery |
| Warranty: | 10 |
Prices are only visible to business customers upon successful registration.
- New
Available from 30.05.2025
Product number:
10602
Description

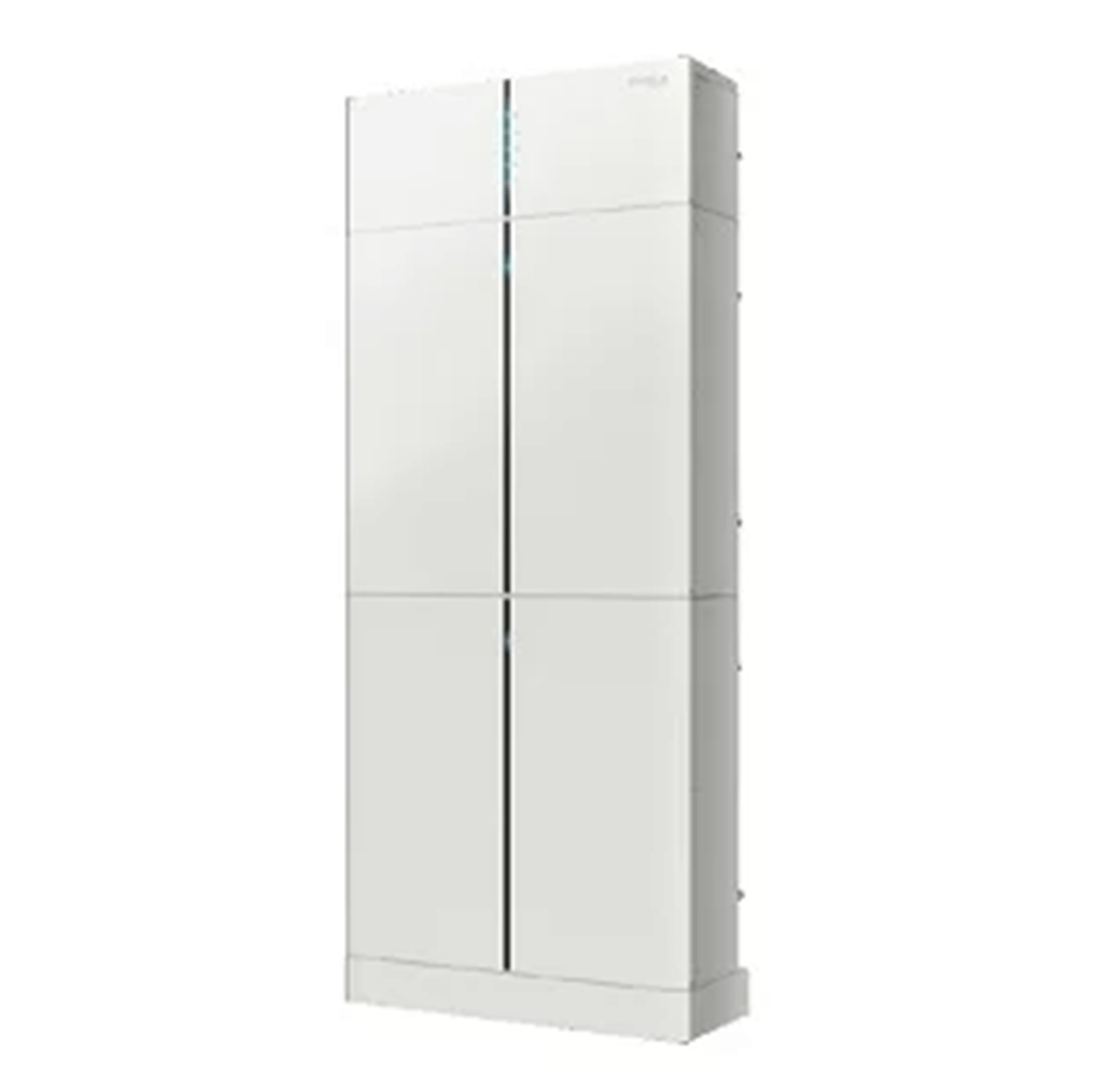

Stackable battery SolaX Triple Power 3.0
The SolaX Triple Power 3.0 high voltage batteries are a unique stackable battery design that can be connected together with inverters to form a tower. The narrow profile of the batteries allows installation in small technical rooms on the floor and on the wall. The unique heating system of the batteries allows operation in low temperatures. The battery also has features such as battery capacity monitoring and automatic recharging, remote diagnostics and firmware update.
Product advantages
- IP65
- Permissible installation altitude <3000 m
- Battery heating
- 10 years warranty
- Stackable design
Features:
- Battery capacity: 6,1 kWh
- Usable battery capacity: 5,5 kWh
- LiFePO4
- Rated voltage: 204,8 V
- Charging/discharging current: 25 A
- Max. charging/discharging current (15 s): 30 A
- Weight: 76,5 kg
- Degree of protection: IP65
- Dimensions: 482,5×1116,5×153 mm
Contents of delivery:
- 1×MC0600 (BMS)
- 2×HV10230 (battery module)
Compatibility:
- SolaX
Register the battery with the manufacturer at: https://www.solaxcloud.com/#/warranty
