SolarEdge StorEdge RWS inverter SE7K with LG RESU 12
| Art. Nr.: | 7458 |
|---|---|
| Accessoires: | SolarEdge Inline-Energiezähler |
| Battery type: | 48 volt lithium NMC |
| Inverter: | SolarEdge StorEdge SE7K Dreiphasen-Wechselrichter |
| Net capacity: | 11.7 kWh |
| Package type: | 3-phase, 48 V battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | LG RESU 12 |
| WEEE-Number: |
|
LG RESU 12 with SolarEdge StorEdge SE7K three-phase inverter
SolarEdge inverters have no MPP tracker and two inputs for the SolarEdge module optimizers. With fixed voltage technology, the SolarEdge inverter always operates in the optimal input voltage range regardless of the module and string count. Performance data from each PV module optimizer is transmitted to the SolarEdge inverter via the string line and can be visualized via the Internet in the SolarEdge Monitoring Portal.
The new inverters do not have a display. Commissioning the inverter is quick and easy with the SolarEdge app on your smartphone.
The integrated 48 V battery connection leaves nothing to be desired! BYD LV or LG batteries are compatible with this system.
Product advantages SolarEdge StorEdge SE7K
- Hybrid inverter for SolarEdge optimizers and 48 V batteries
- DC nominal voltage 750 Vdc
- Very high efficiency of up to 98%
- Fast installation time thanks to integrated StorEdge interface
- Larger battery selection due to 48 V battery voltage
- Lower overall costs thanks to 48 V battery technology
Product features SolarEdge StroEdge SE7K
- 7 kVA power 3-phase
- 5 kW Battery connection 48 V
- DC or AC system with SolarEdge inverter
- 2 pairs of MC4 inputs
- Ethernet RJ45
- Protection category: IP65
- Standard warranty: 12 years
- Dimensions: 853 x 316 x 193 mm (H x W x D)
- Weight: 37 kg
Product advantages LG RESU 12
- Small dimensions
- Lightest battery in its performance class
- Firmware update via SD card
- Aluminium housing IP55
Product features LG RESU 12
- Usable capacity: 11.7 kWh
- Max. output: 5.0 kW
- Battery warranty: 10 years
- Dimensions: 452 x 654 x 227 mm
- Weight: 97 kg

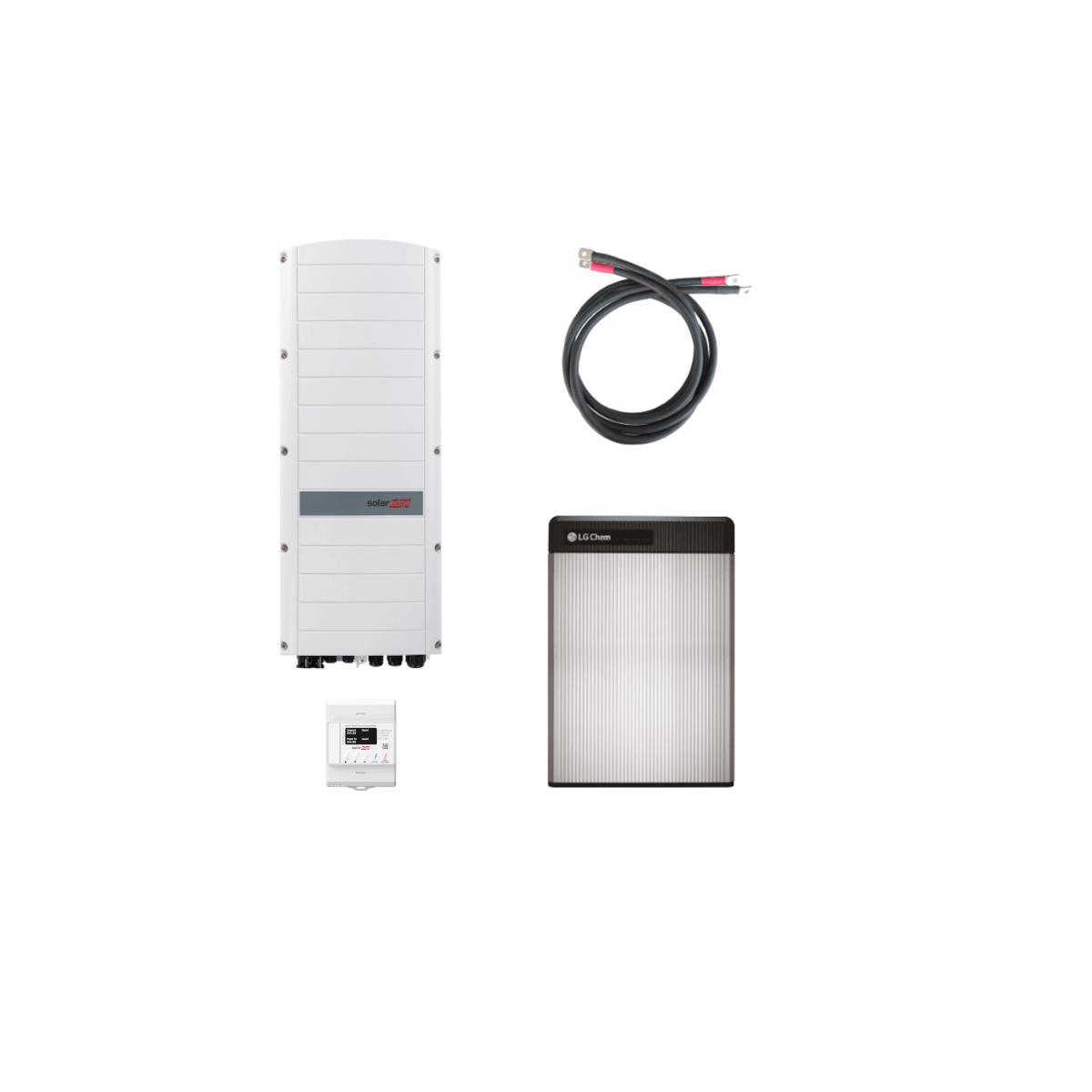

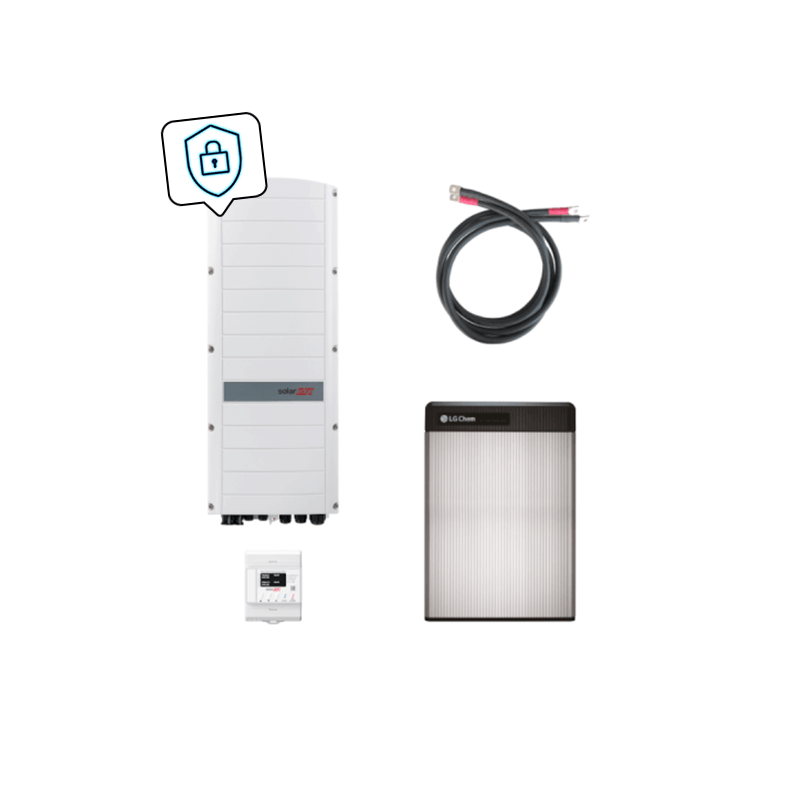

Scope of delivery:
- SolarEdge StorEdge SE7K 3-phase inverter
- SolarEdge inline energy meter
- LG RESU 12
- Battery connection set
SolarEdge StorEdge three-phase inverters can be configured as DC but also as AC systems. This means that even larger systems can be equipped with a three-phase storage system.
Downloads
-
Configuring the StorEdge Three Phase Inverter with SetAppThe YouTube video has been blocked due to the cookie settings.
-
Installing StorEdge Three Phase InverterThe YouTube video has been blocked due to the cookie settings.
-
