SolarEdge StorEdge Paket with SE7K-RWS and 18.4 kWh
| Art. Nr.: | 8745 |
|---|---|
| Accessoires: | Energiezähler, Verkabelung |
| Battery type: | 48 volt lithium-iron-phosphate |
| Inverter: | SolarEdge StorEdge Dreiphasen-Wechselrichter SE7K-RWS48BEN4 |
| Net capacity: | 18.4 kWh |
| Package type: | 3-phase, 48 V battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | SolarEdge Home Batterie-Niedervolt 18,4 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8745
Description

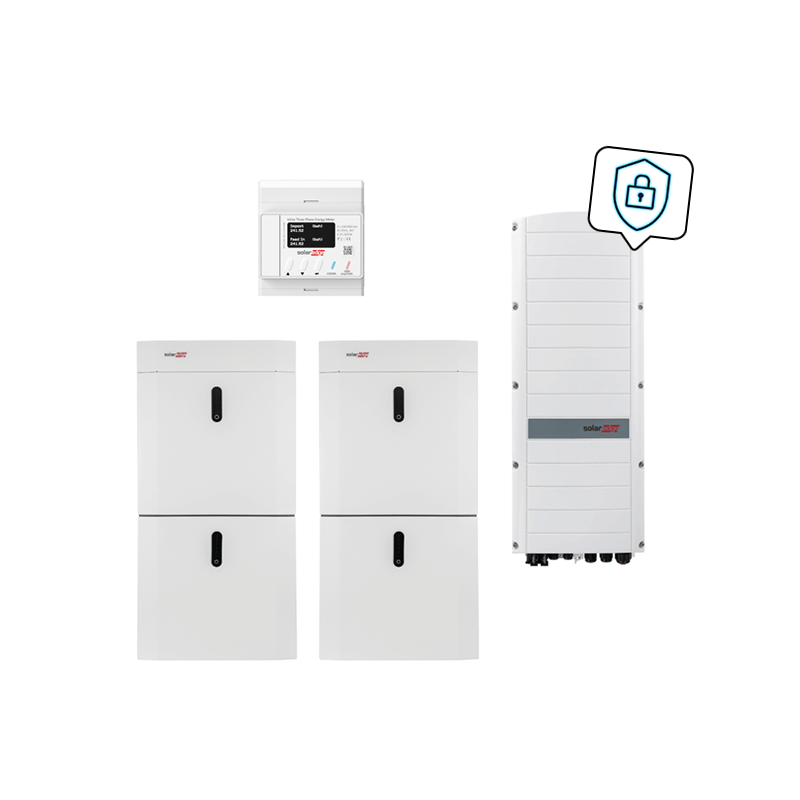

SolarEdge Home low-voltage battery 18.4 kWh with SolarEdge StorEdge three-phase inverter SE7K-RWS48BEN4
The new low-voltage storage system from SolarEdge is the first three-phase storage system/inverter combination to come from a single manufacturer.
The advantages of a storage system plus inverter from a single company are clearly the maximum output, maximum efficiency and a knowledgeable contact partner for questions and problems.
The SolarEdge Home low-voltage battery can be varied between one and five battery modules. This means that the net capacity can be selected between 4.6 – 23 kWh.
Online certification training is required to install the Home Battery Low Voltage! → Click here to go to the SolarEdge Academy
Product advantages:
- Customized capacity
- Simple plug & play installation with automatic SetApp configuration
- Scalable between 4.6 & 23 kWh
- Complete set
Product features SolarEdge Home low-voltage battery:
- Weight per battery module: 54.7 kg
- Communication: RS485 between the modules, CAN bus to inverter
- Floor mounting
- IP65
- Cell chemistry: Lithium ions (lithium iron phosphate)
- Dimensions (W x H x D): 540 x 500 x 240 mm per module
Product features SolarEdge Home Hub three-phase hybrid inverter SE7K:
- AC rated power: 7 kVA, 3-phase
- Maximum battery charging/discharging power: 5 kW
- DC or AC system with SolarEdge inverter
- PV input: 2 pairs of MC4 inputs
- Battery connection: 1 pair of M8 cable lugs
- Communication: Ethernet RJ45, optional additional plug-in for the SolarEdge Home network
- Protection category: IP 65
- Standard warranty: 12 Jahre
- Dimensions: 853 x 317 x 193 mm (H x W x D)
- Weight: gross 35 kg / net 32 kg
- Optional: Wi-Fi, ZigBee Gateway or GSM
Package components:
- SolarEdge Home energy meter item no.: 7066
- SolarEdge Home low voltage battery 18.4 kWh item no.: 7511 including all required cables and accessories
- SolarEdge StorEdge three-phase inverter SE5K 7kVA item no.: 4355
- 1x connecting cable battery inverter item no.: 8091
