SolarEdge StorEdge 3-phase SE10K inverter
| Manufacturer Art. No.: | SE10K-RWS48BEN4 |
|---|---|
| Art. Nr.: | 4357 |
| Pieces per package unit: |
|
| AC power: | 10 kW |
| Communication: | 2 x RS485, Ethernet |
| Inverter type: | Hybrid inverter |
| Phases: | 3 |
| Warranty: | 12 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
4357
Description
SolarEdge StorEdge 3-phase SE10K inverter for 48 V batteries
SolarEdge inverters do not have any MPP tracker but have two inputs for the SolarEdge power optimizers. Thanks to the fixed voltage technology, the SolarEdge inverter always works in the optimum input voltage range, regardless of the number of modules and strings. Data on the performance is transmitted from each individual power optimizer to the SolarEdge inverter via the string line and can be visualized online on the SolarEdge monitoring portal.
The new inverters do not come with a display. Inverter start-up takes place quick and easy by using the SolarEdge app available on your smartphone.
The integrated 48V battery connection leaves nothing to be desired! BYD LV or LG Chem batteries are compatible with this system.
When combining this inverter with the SolarEdge Low Voltage Home Battery, the item 8091 is required!
Warranty extensions can be purchased here: https://www.solaredge.com/aus/warranty
Advantages of SolarEdge StorEdge 3-phase inverter
- Hybrid inverter for SolarEdge optimizer and 48 V batteries
- DC nominal voltage: 750 Vdc
- European efficiency: 97.6%
- Short installation time due to integrated StorEdge interface
- Broad selection of batteries due to 48 V battery voltage
- Lower total cost due to 48 V battery technology
Product features
- AC nominal power: 10 kVA, 3-phase
- Maximum battery charge/discharge capacity: 5 kW
- 5 kW Battery connection 48 V
- DC or also AC system with SolarEdge inverter
- PV input: 2 sets of MC4 inputs
- Battery connection: 1 pair M8 cable lug
- Communication: Ethernet RJ45
- Protection class: IP 65
- Standard warranty: 12 years
- Dimensions: 853 x 316 x 193 mm (H x W x D)
- Weight: Gross 35 kg / Net 32 kg
- Optional: WiFi, ZigBee gateway or GSM
The SolarEdge StorEdge three-phase inverter can be configured as a DC but also as an AC system. This means that even larger systems can be configured with a three-phase storage system.
Videos
Videos
-
Configuring the StorEdge Three Phase Inverter with SetAppThe YouTube video has been blocked due to the cookie settings.
-
Installing SorEdge Three Phase InverterThe YouTube video has been blocked due to the cookie settings.
-
Matching accessories
-
- Example image

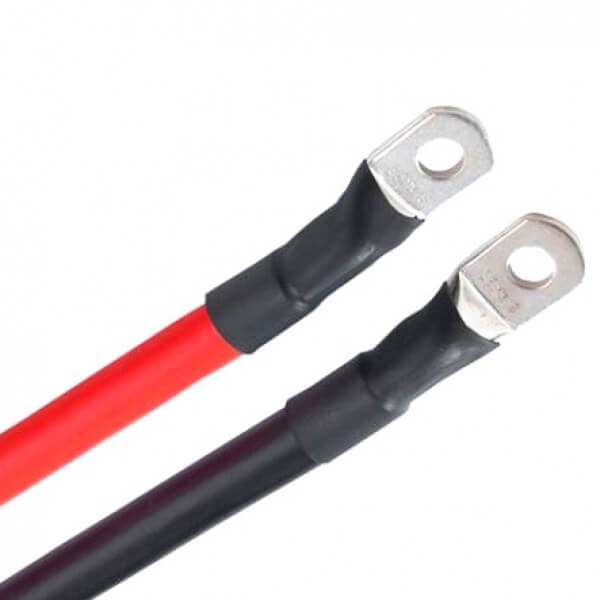

SolarEdge home low voltage battery cable set BAT to RWS inverter- Type of manufacturer: IAC-RBAT-5KCINV-02
