SolarEdge SE90K single DC input
| Art. Nr.: | 11360 |
|---|---|
| AC power: | 90 kW |
| Communication: | 2 x RS485, Ethernet |
| Inverter type: | PV inverter, Project inverter |
| MPP voltage range: | 200 - 750 Volt |
| Phases: | 3 |
| Warranty: | 12 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11360
Description

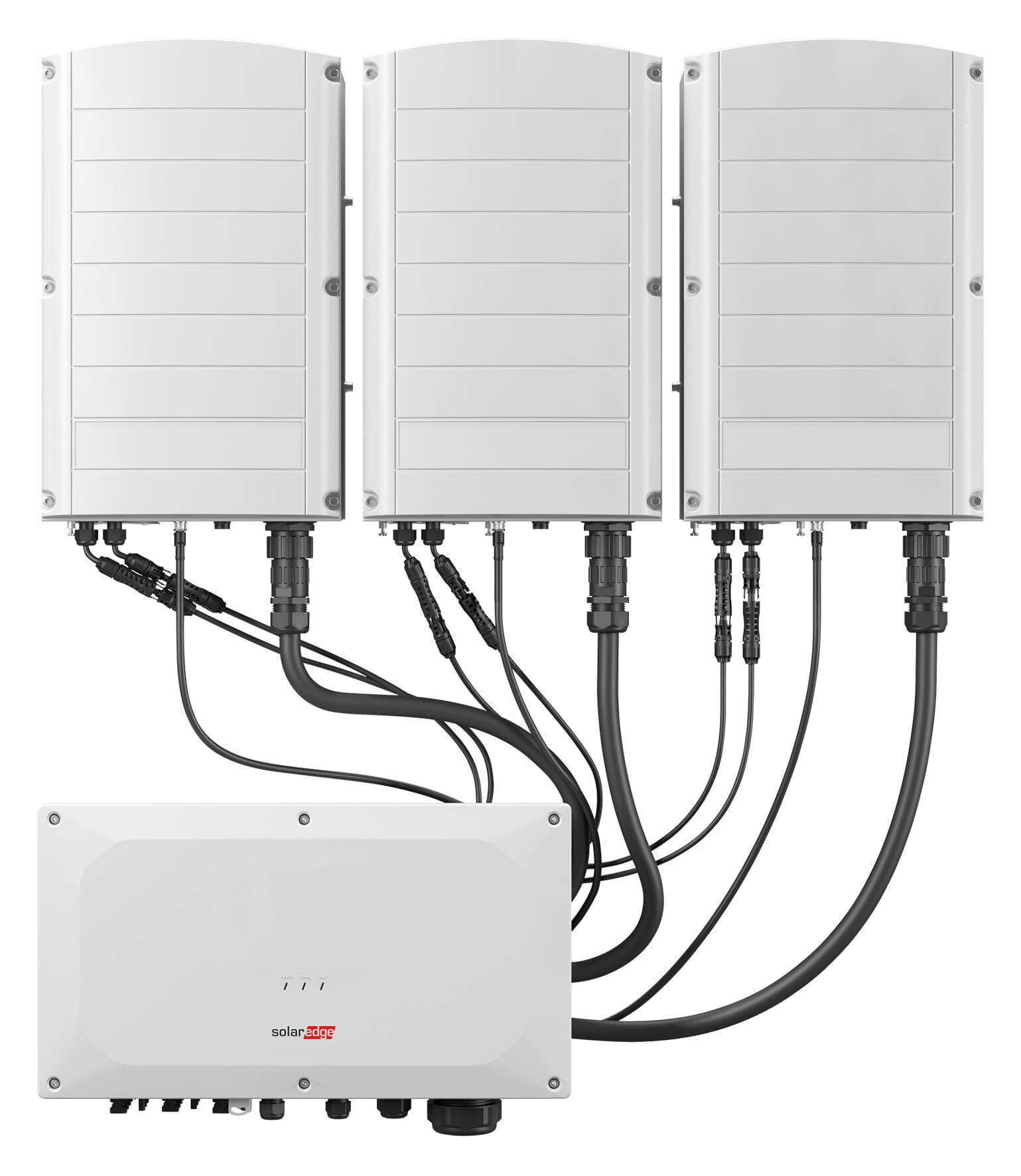

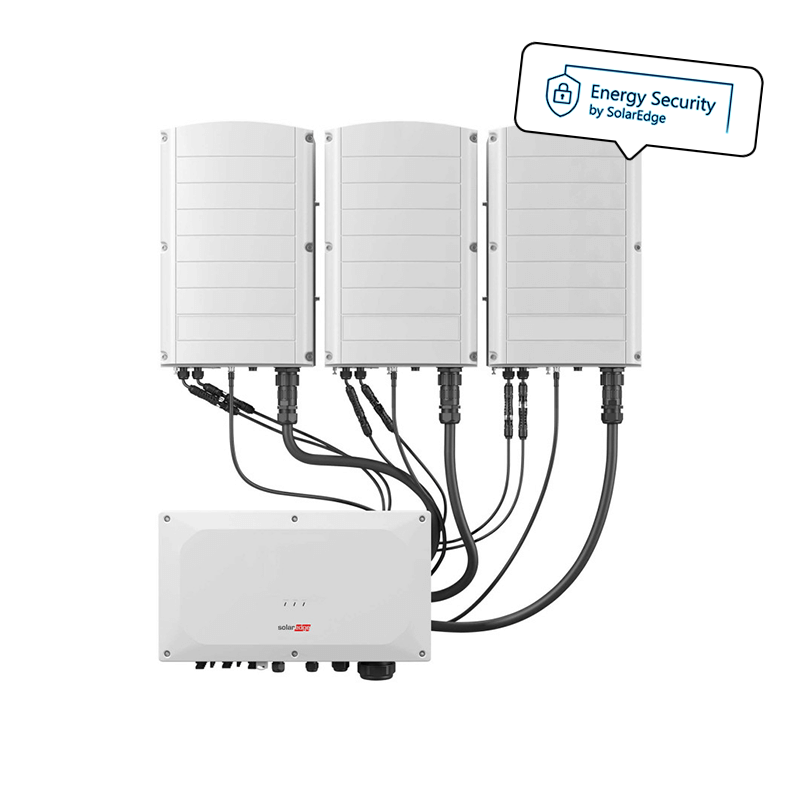

The SolarEdge SE90K with innovative pre-commissioning, single DC input version
Three-phase SolarEdge inverter with synergy technology with up to 100 kW output and connection to the low-voltage grid. The inverter concept is based on small and easy-to-install primary and secondary devices. These can be mounted on the wall with minimal space requirements. Only 2 people are required for the installation. The new series of synergy devices also offers the option of pre-commissioning. This makes it even easier for EPCs in particular to approve individual construction phases.
Warranty extensions can be purchased at https://www.solaredge.com/us/warranty.
Product advantages
- Low assembly and installation costs
- Lower BoS costs
- 12-year standard warranty on inverters
- Integrated SafeDC and arc detection
- European weighted efficiency: 98 %
- Connections for ripple control receivers
- Optional: Wi-Fi or cellular connection
Product features SolarEdge SE90K
- AC rated power: 90 kVA
- Max. DC output: 135 kWp (at STC)
- AC voltage level: Low-voltage grid
- Overvoltage protection: Type II integrated
- DC connection inverter/ synergy unit: 1 DC connection unit
- Protection category: IP65
- 12-year standard warranty
- Synergy unit dimensions: 558 x 328 x 273 mm
- Weight synergy units: 32 kg
- Number of synergy units: 3
- Manager unit dimensions: 360 x 560 x 295 mm
- Weight manager units: 18 kg
- Number of manager units: 1
Videos
Videos
-
Installation Video Part 1 - Mounting the Synergy InverterThe YouTube video has been blocked due to the cookie settings.
-
Installation Video Part 2 - Wiring the Synergy InverterThe YouTube video has been blocked due to the cookie settings.
-
Installation Video Part 3 - Pre-commissioning the Synergy InverterThe YouTube video has been blocked due to the cookie settings.
-
