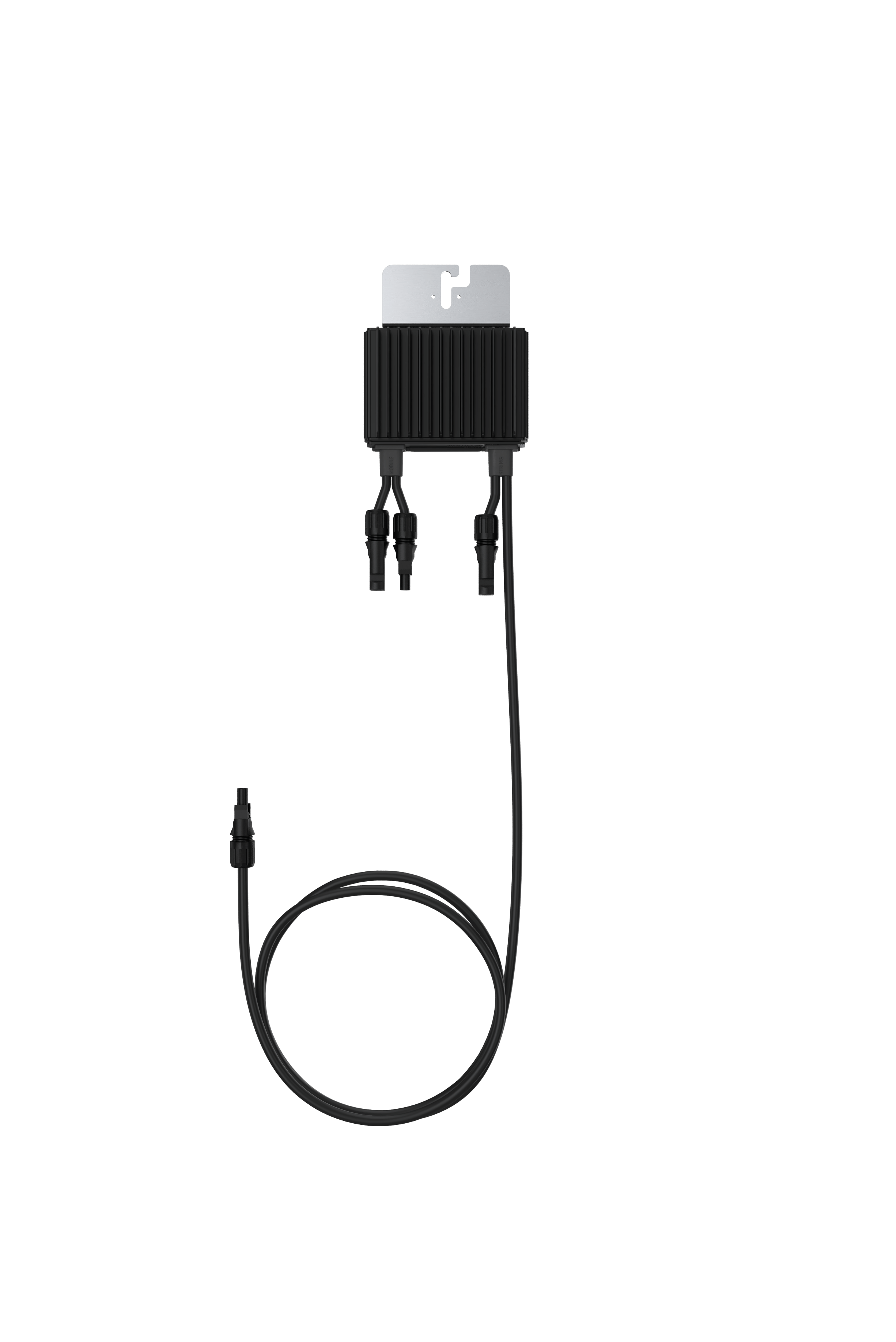

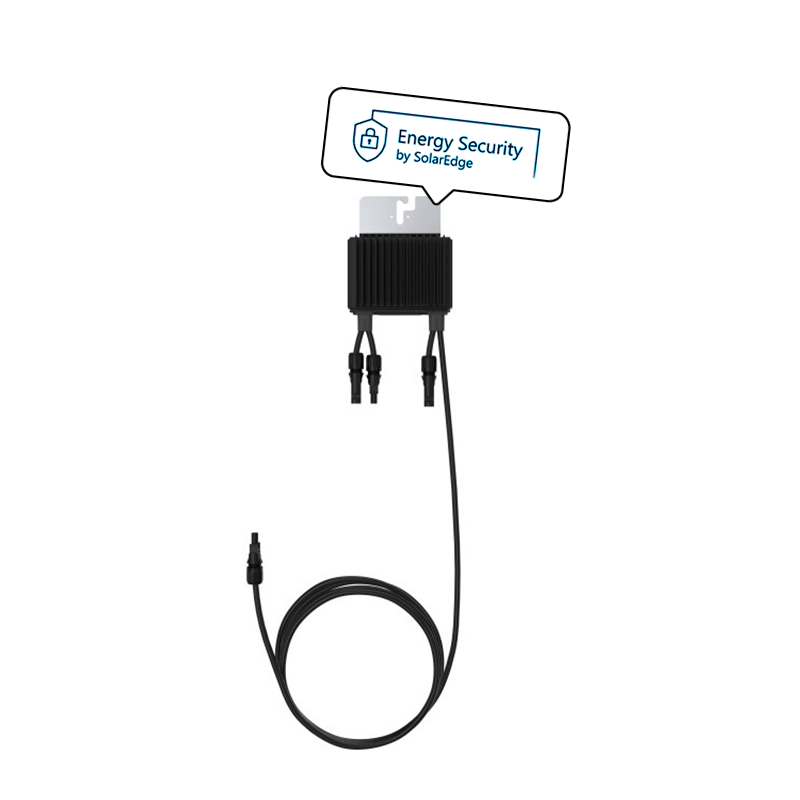

SolarEdge optimizer S650B-1GM4MBM

SolarEdge S650B power optimizer for solar modules up to 650 watts with high voltages and/or shorter strings

The next generation of SolarEdge optimizers.

SolarEdge's power optimisers allow you to get the most out of any PV system. The P850 optimizer is perfect for module size up to 880 Wp. The S650B optimizer is perfect for modules up to 650 Wp and high voltages and/or shorter strings.

Product advantages:

• Maximum power at module level
• Not the entire string is affected by shading
• Continuous MPP tracking
• Monitoring on module basis possible
• More performance with shading and different orientations
• Modules of various power classes can be combined without losses
• Detects abnormal behavior of PV plugs,
  prevents potential safety problems.

Product features S650B optimizer

• Max. nominal input power: 650 W
• MPPT operating range 12.5 – 85 V
• Max. short circuit current: 15 A
• Easy installation thanks to MC4 connection
• 0.1 m input cable
• 2.3 m output cable
• SafeDC function automatically reduces the voltage to 1 volt per module in the event of a fault

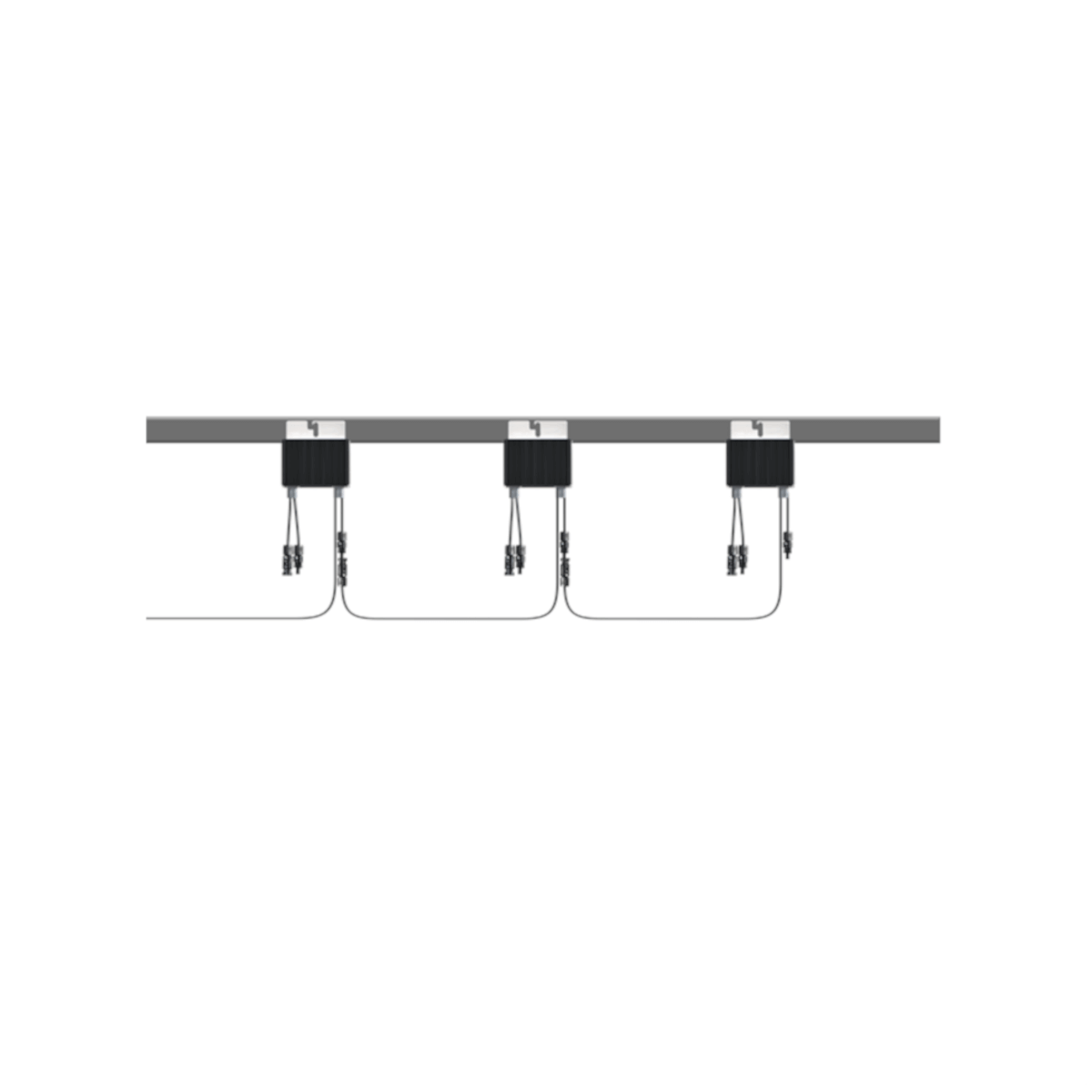

• Simple installation on substructure with hammer-head screw
  compatible with all SolarEdge inverters
• min. 6 optimizers per string for 1-phase inverters
• min. 14 optimizers per string for 3-phase inverters
• min. 14 optimizers per string for 3-phase inverters and 277/480 V grid

Power losses for an entire string due to shading or different orientations are a thing of the past with SolarEdge power optimizers. Thanks to MPP tracking at module level, each module is controlled individually and the string can therefore deliver the maximum available power. Simple installation and maximum yield is easy to achieve with the S650B optimizers.
