SolarEdge optimizer S650A-1DM4MBM
| Manufacturer Art. No.: | S650A-1DM4MBM |
|---|---|
| Art. Nr.: | 12934 |
| Pieces per package unit: |
|
| Communication: | Powerline, Kabel: 0.1 m/(+) 2.3, (-) 0.10 m |
| Inverter type: | Optimizer |
| MPP voltage range: | 12,5 - 85 Volt |
| Warranty: | 25 years |
| WEEE-Number: |
|
- New

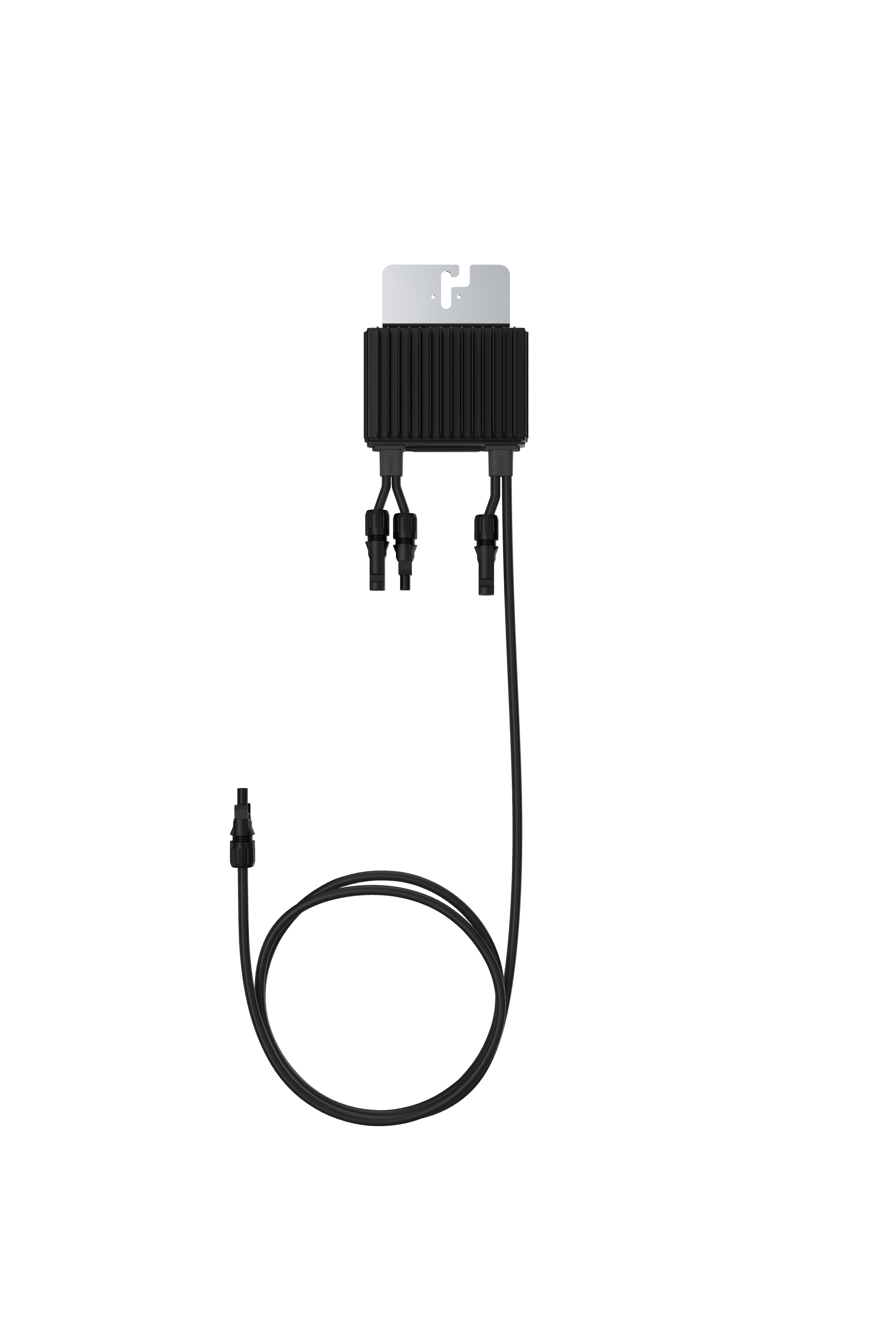

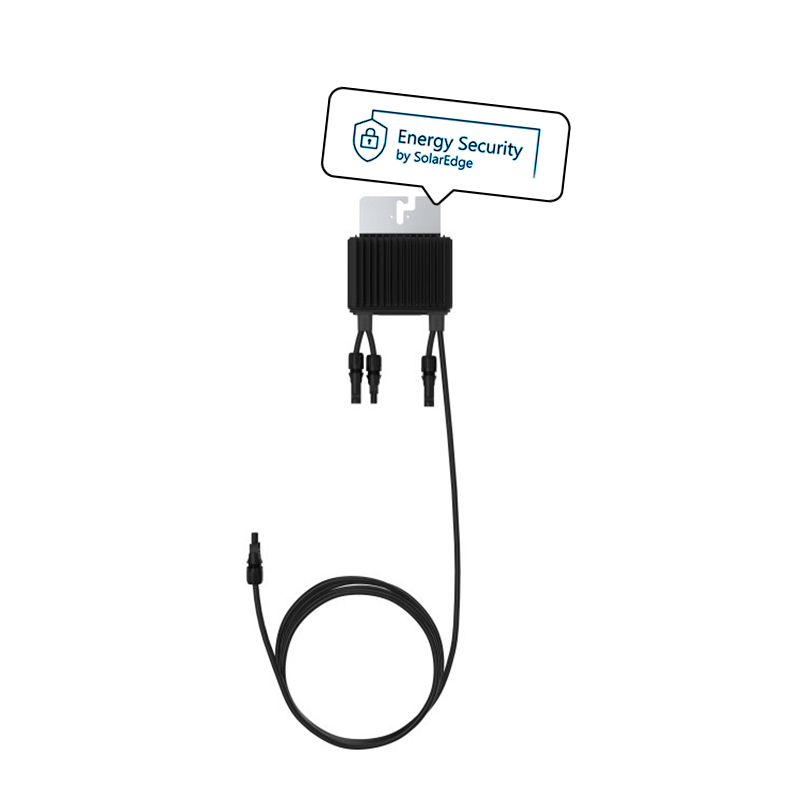

SolarEdge S650A power optimizer for solar modules up to 650 watts with high voltages and/or shorter strings
The next generation of SolarEdge optimizers.
With SolarEdge power optimizers, you can get the maximum performance out of any PV system. The SolarEdge S650A Power Optimizer has been designed for
diverse and small rooftops and reduces the number of power optimizers required per string for SolarEdge Home Hub/Wave inverters - three-phase, supporting 10 modules (instead of 14 as with other power optimizers)*.
*It is not allowed to mix S650A Power Optimizer with other Power Optimizers on the same inverter.
S650A is only compatible with:
• SolarEdge Home Hub inverters – three-phase (SExxK-RWB48BFN4) from firmware version 4.22.XX and higher.
• SolarEdge Home Wave inverters – three-phase (SExxK-RW0TEBxN4 or SExxK-BE0TEBxN4) from firmware version 4.22.XX and higher, for inverters produced after WW42/2020. The production date can be found in the serial number.
Advantages of SolarEdge optimizers:
- Maximum output at module level
- Not the entire string affected by shading
- Continuous MPP tracking
- Monitoring possible at module level
- More power with shading and different orientations
- Modules of different power classes can be combined without losses
- Detects abnormal behavior of PV connectors, prevents potential safety problems.
Features of S650A optimizers:
- MPPT operating range 12.5 - 85 V
- Maximum output voltage 110V
- Modules up to 650 W
- 15 A max. short-circuit current
- Easy installation thanks to MC4 connection
- 0.1 m input cable
- 2.3 m output cable
- SafeDC function automatically reduces the voltage to 1 V per module in the event of a fault

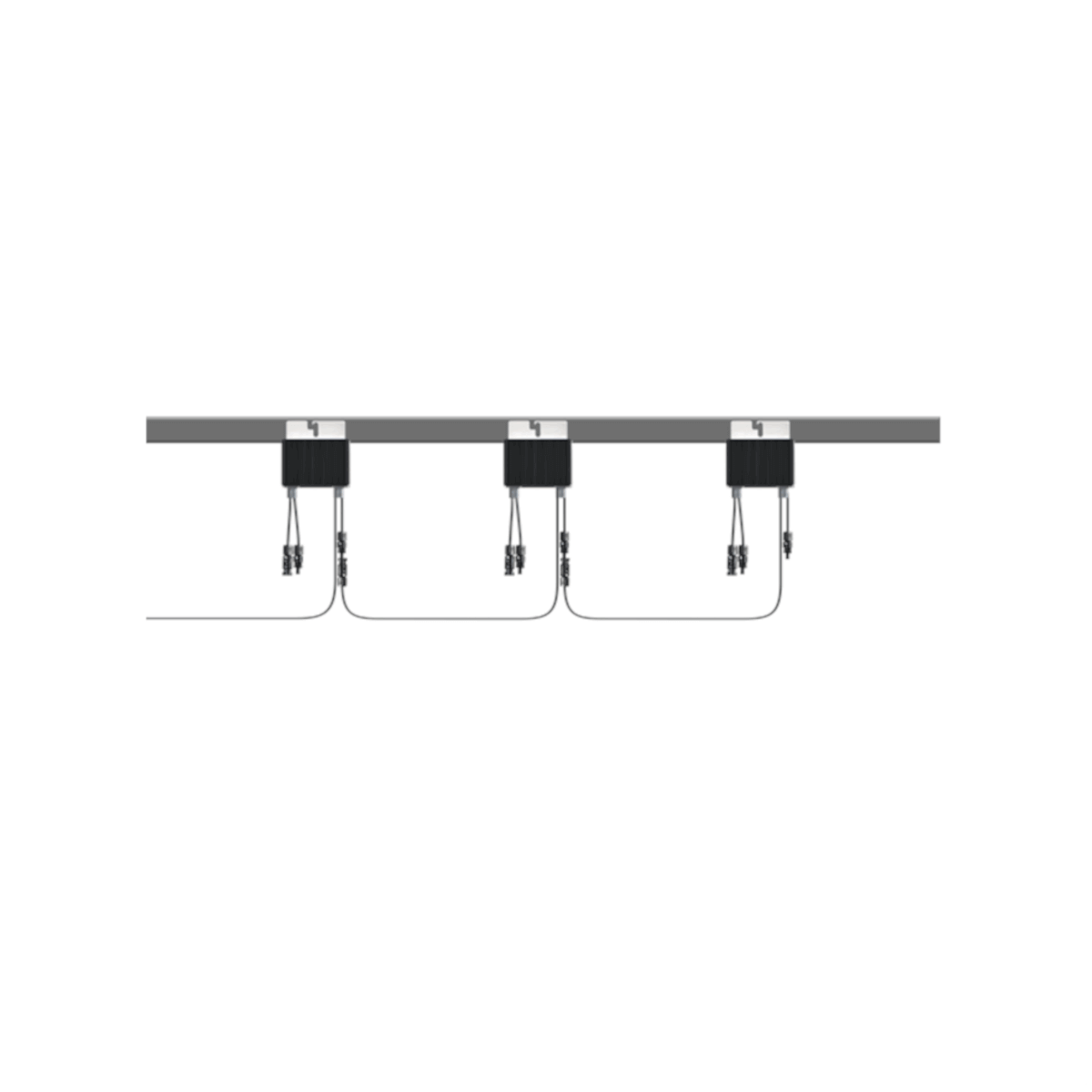

- Simple installation on substructure with hammer-head screw
- Min. 10 optimizers per string for 3-phase inverters
- Min. 10 optimizers per string with 3-phase inverters and 277/480 V grid
Power losses for an entire string due to shading or different orientations are a thing of the past with SolarEdge power optimizers. Thanks to MPP tracking at module level, each module is controlled individually and the string can therefore deliver the maximum available power. Simple installation and maximum yield is easy to achieve with the S650A optimizers.
-
