SolarEdge optimizer S440-1GM4MRM
| Manufacturer Art. No.: | S440-1GM4MRM |
|---|---|
| Art. Nr.: | 6814 |
| Pieces per package unit: |
|
| Communication: | Powerline, Kabel: 0.1 m/(+) 2.3, (-) 0.10 m |
| Inverter type: | Optimizer |
| MPP voltage range: | 8-60 Volt |
| Warranty: | 25 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- TIP
Available from stock
Product number:
6814
Description

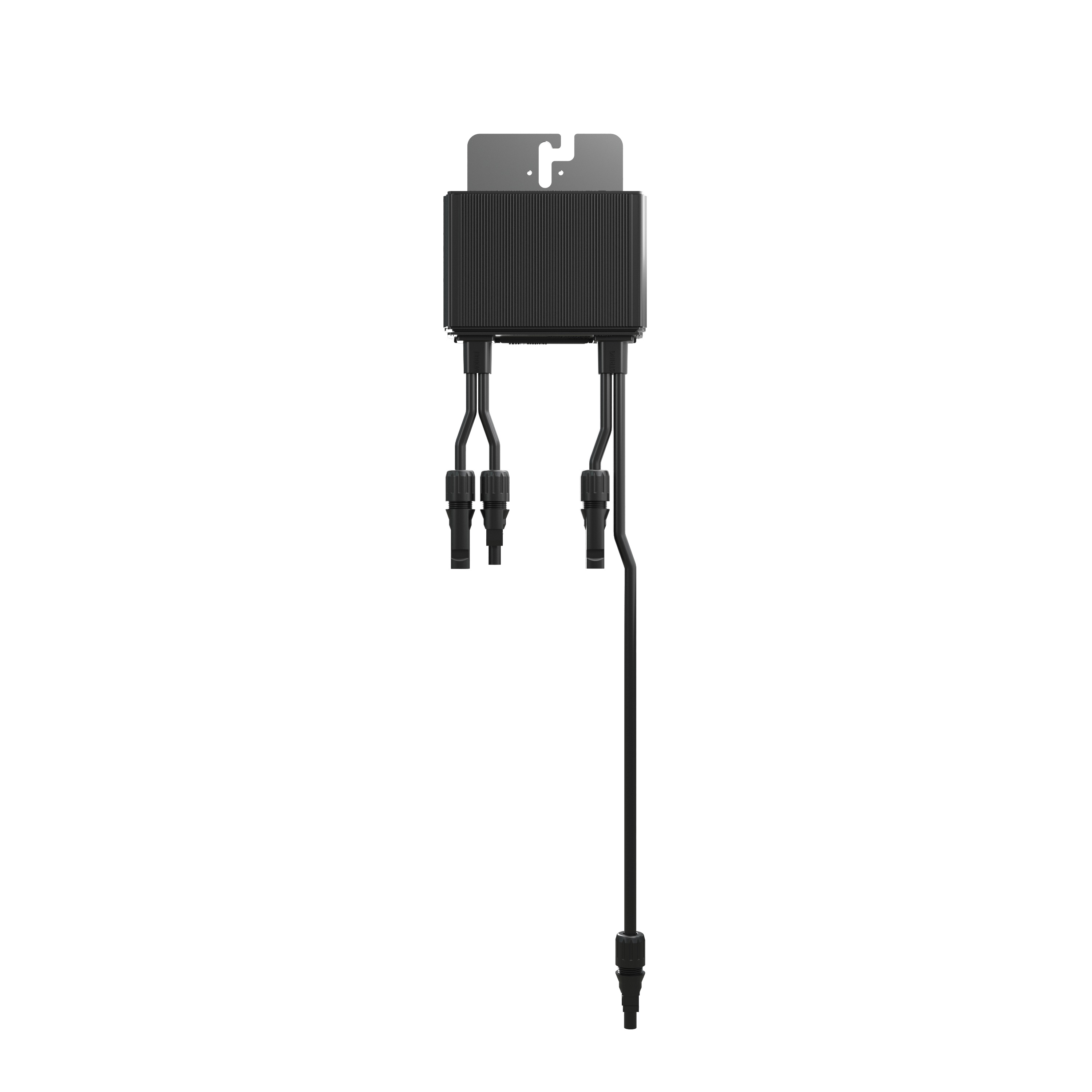

SolarEdge S440 optimizer for solar modules up to 440 Watt
The next generation of SolarEdge optimizers.
With SolarEdge power optimizers, you can get the maximum power out of any PV system. The S440 optimizer is perfect for modules up to 440 Wp.
Advantages of the SolarEdge optimizer:
- Maximum power at module level
- Not the whole string affected by shadowing
- Continuous MPP tracking
- Monitoring possible on a module basis
- More power available in case of shadowing and different orientations
- Modules of different power classes can be combined without losses
- Detects abnormal behaviour of PV connectors,
prevents potential safety problems.
Product features S440 optimizer:
- MPPT operating range 8 - 60 V
- Modules up to 440 watts
- 14.5 A max. short-circuit current
- Easy installation thanks to MC4 connection

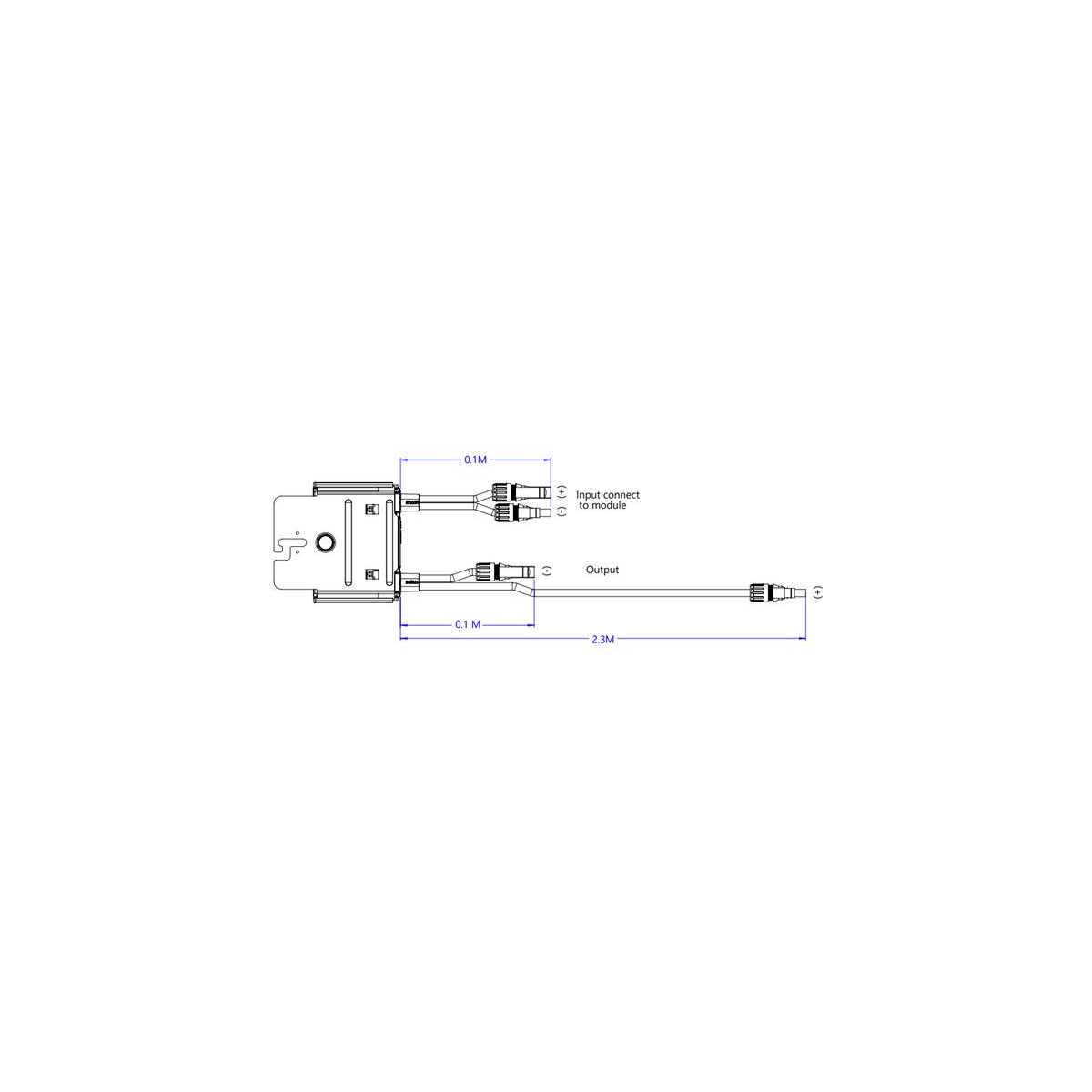

- 0.1 m input cable
- 2.3 m output cable
- SafeDC function automatically reduces the voltage to 1 volt per module in the event of a fault
- Simple installation on substructure with hammerhead screw
- Compatible with all SolarEdge inverters
- min. 8 optimisers per string for 1-phase inverters
- min. 16 optimisers per string for 3-phase inverters
- min. 18 optimisers per string for 3-phase inverters and 277/480 V grid
Power losses affecting an entire string due to shading or different orientations are now a matter of the past with the SolarEdge power optimizers! Thanks to the MPP tracking at module level, each module is controlled individually, allowing the string to deliver the maximum available power. Easy installation and maximum yield are easy to achieve with the S440 optimisers.
-
Matching accessories
-

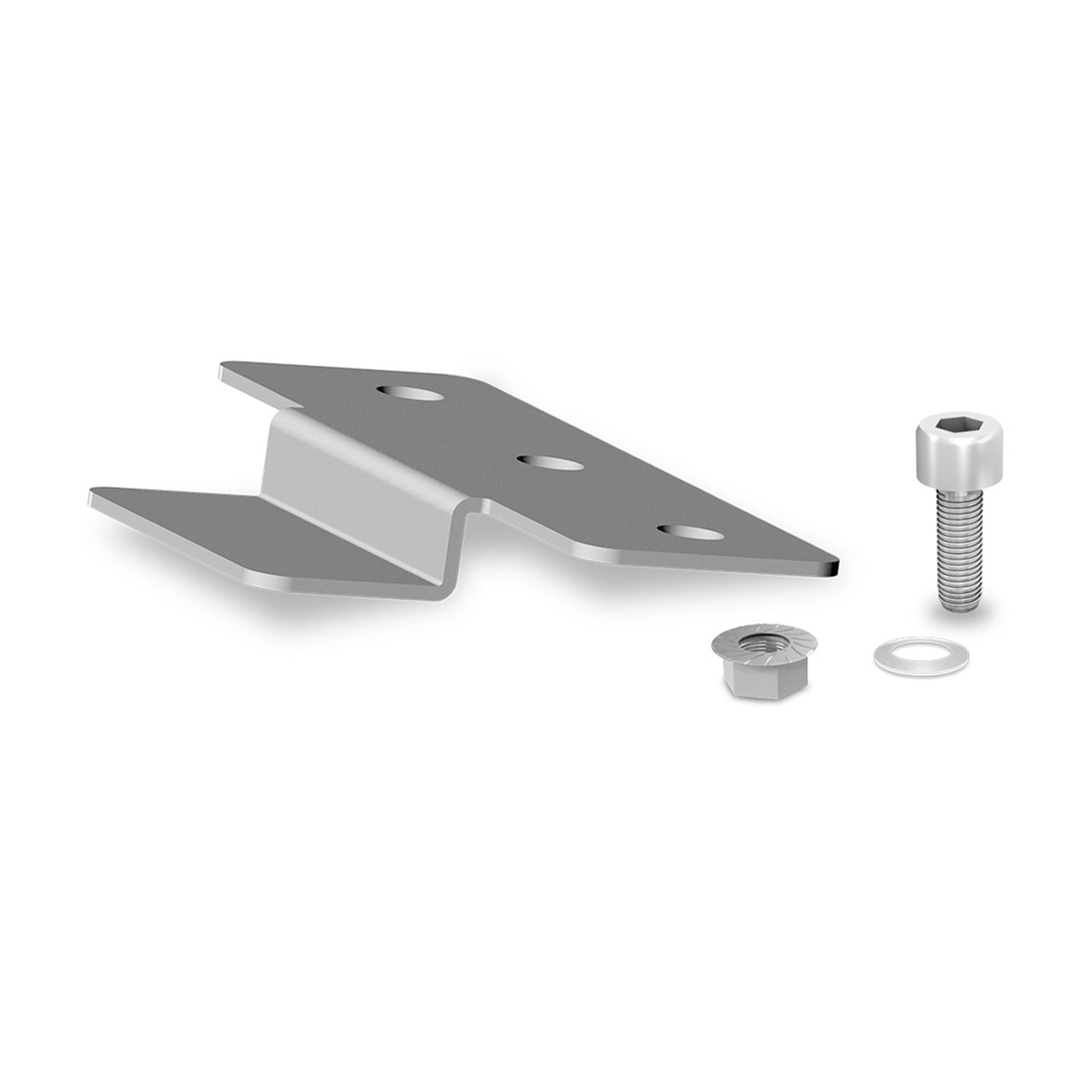

K2 StairPlate Set- Type of manufacturer: 2004057
- Art. Nr.: 6505
Available from stock{ "id": "2d8d87a28a0953779a5ee2df8303fd97", "item_brand": "", "item_name": "K2 StairPlate Set", "item_id": "6505", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "25", "shopware_id": "2d8d87a28a0953779a5ee2df8303fd97" } } -

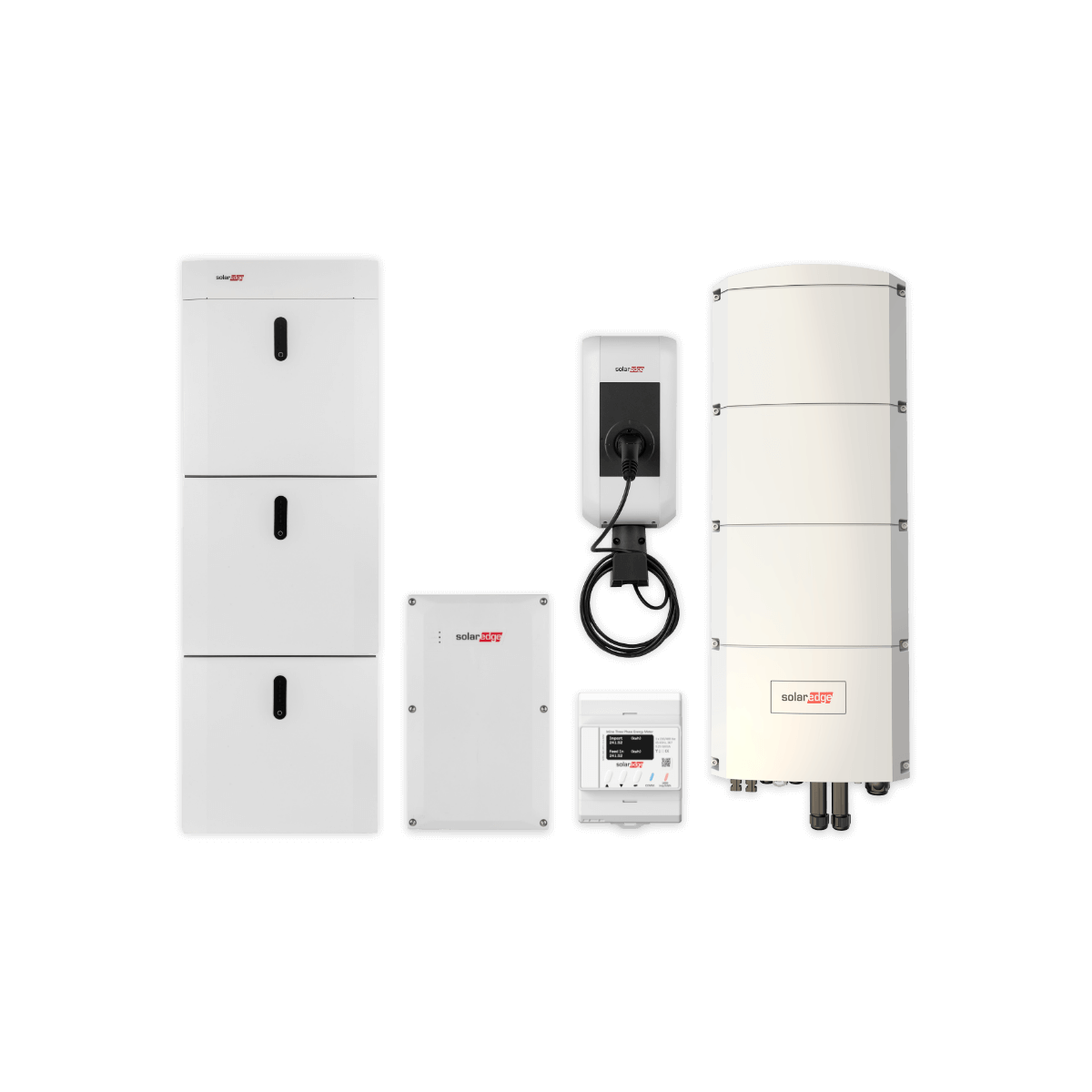

Combi package SolarEdge Home backup power with charging station, SE810K-RWB48 and 13.8 kWh- Art. Nr.: 10810
Available from stock{ "id": "40fb737d0fc654bcbfaf7d3ec9dce498", "item_brand": "", "item_name": "Combi package SolarEdge Home backup power with charging station, SE810K-RWB48 and 13.8 kWh", "item_id": "10810", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "40fb737d0fc654bcbfaf7d3ec9dce498" } } -
- Remaining quantity
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black- Type of manufacturer: 713531
- Art. Nr.: 5752
Available from stock{ "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb" } } -

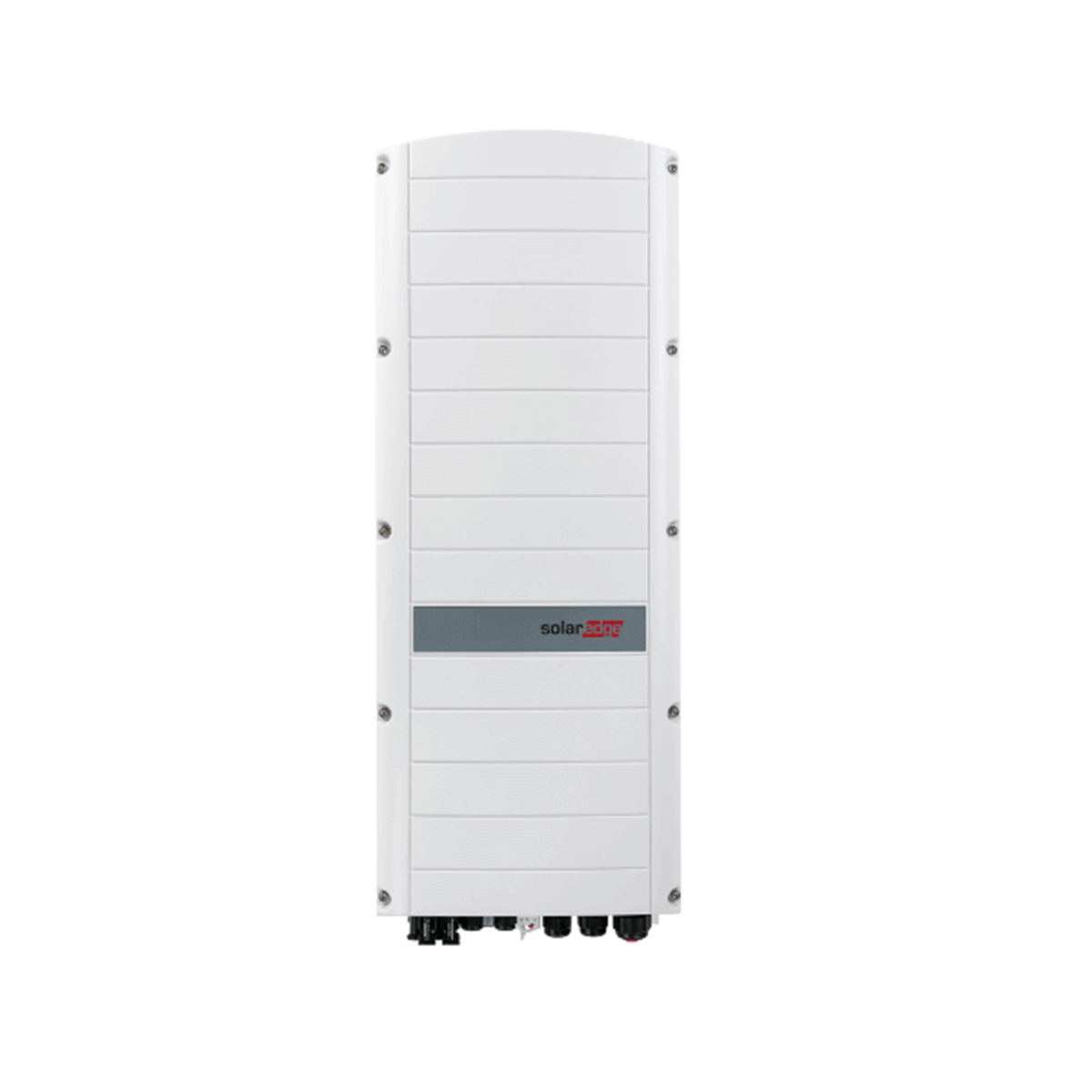

SolarEdge StorEdge 3-phase SE10K inverter- Type of manufacturer: SE10K-RWS48BEN4
