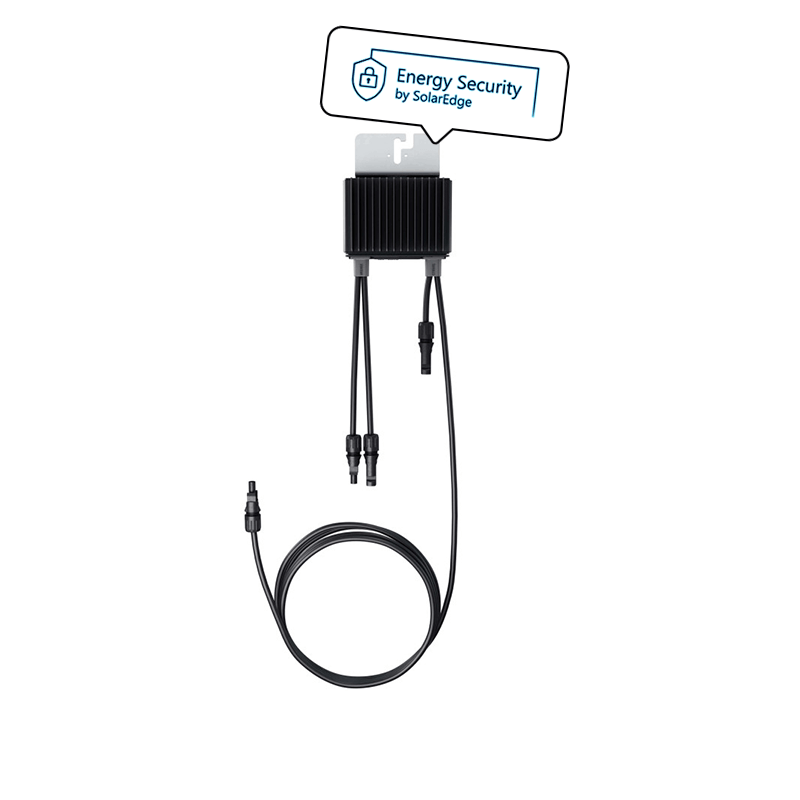

SolarEdge optimizer S1400-1GMZMBWD
| Manufacturer Art. No.: | S1400-1GMZMBWD |
|---|---|
| Art. Nr.: | 11670 |
| Pieces per package unit: |
|
| Communication: | Powerline, Kabel: 1,8 m/(+) 5,7 m (-) 0,1 m |
| Inverter type: | Optimizer |
| MPP voltage range: | 12,5 - 105 Volt |
| Warranty: | 25 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11670
-
-
{ "id": "b3e39800862a5c2780956998b6188916", "item_brand": "", "item_name": "SolarEdge SE90K MC4", "item_id": "6453", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b3e39800862a5c2780956998b6188916", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "9ed56738c58a5cc091c6ea767352919a", "item_brand": "", "item_name": "SolarEdge SE100K MC4", "item_id": "6454", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9ed56738c58a5cc091c6ea767352919a", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "d28bcfa73e4d52e3bd338fae17614186", "item_brand": "", "item_name": "SolarEdge SE66.6K MC4", "item_id": "6452", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d28bcfa73e4d52e3bd338fae17614186", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
Perfect for commercial systems! The SolarEdge optimizer S1400-1GMZMBWD for two PV modules.
The S1400 optimizer is designed for two modules, so the number of optimizers required for large PV systems is halved. The S-optimizers come with "sense connect" technology for even more safety. It monitors the temperatures in cables and connectors and warns of abnormal behavior before an arc occurs. The S1400 enables the use of modules with up to 700 W.
Product advantages:
- "Sense connect" technology
- For up two 700 W modules
- Arc detection
- Original MC4 plug
Product features:
- Weight: 1087 g
- Dimensions: 129 x 165 x 52 mm
- Cable length: input cable 1.8 m / output cable (+) 5.7 m (-) 0.10 m
- Kurzschlussstrom:
- MPPT voltage: 12.5 – 105 Vdc
- Maximum short-circuit current (Isc) 20 Adc
- Maximum output 1400 W (modules with a power tolerance of up to +5% are permitted)
