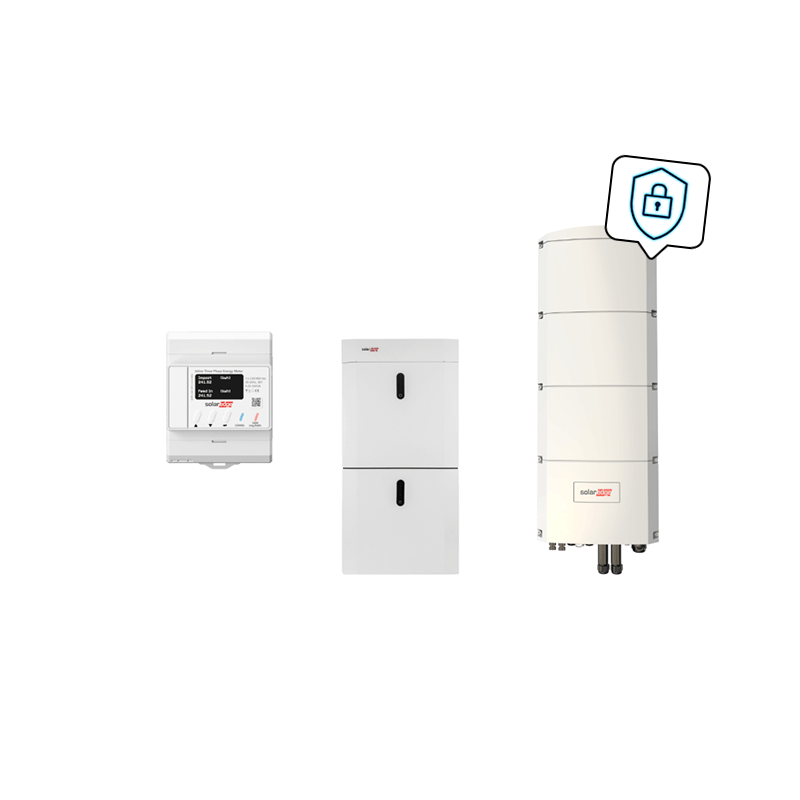

SolarEdge Home Package with SE8K-RWB48 and 9.2 kWh
| Art. Nr.: | 7498 |
|---|---|
| Accessoires: | Energiezähler, Verkabelung |
| Battery type: | 48 volt lithium-iron-phosphate |
| Inverter: | SolareEdge Home Hub-Wechselrichter SE8K-RWB48 |
| Net capacity: | 9.2 kWh |
| Package type: | 3-phase, 48 V battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | SolarEdge Home Batterie-Niedervolt 9,2 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
7498
-
-
{ "id": "ae5bf43946db564bb0450b52acbf58b6", "item_brand": "", "item_name": "SolarEdge low voltage home battery base plate", "item_id": "7422", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ae5bf43946db564bb0450b52acbf58b6", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
SolarEdge Home Battery Low Voltage 9.2 kWh with SolareEdge Home Hub Inverter SE8K-RWB48
The new low-voltage storage system from SolarEdge is the first 3-phase storage-inverter combination from a single manufacturer.
The advantages of a storage unit plus inverter from a single supplier are definitely maximum performance, maximum efficiency and a qualified contact person for questions and problems.
The SolarEdge Home Battery Low Voltage can be varied between one and five battery modules. This allows the net capacity to be selected between 4.6 kWh up to 23 kWh.
For the installation of the Home Battery Low Voltage an online certification training is required! → Click here to go to the SolarEdge Academy
Product advantages:
- Individual capacity
- Simple plug & play installation with automatic SetApp configuration
- Scalable between 4.6 & 23 kWh
- Complete set
Product Features SolarEdge Home Battery Low Voltage:
- Weight per battery module: 54.7 kg
- Communications: RS485 between the modules, CAN bus to inverter
- Floor installation
- IP65
- Cell chemistry: Lithium ions (lithium iron phosphate)
- Dimensions (W x H x D): 540 x 500 x 240 mm per module
Product Features SolarEdge Home Hub 3-phase hybrid inverter SE8K:
- AC rated power: 8 kVA, 3-phase
- Maximum battery charging/discharging power: 5 kW
- DC or also AC system with SolarEdge inverter
- PV input: 2 pairs of MC4 inputs
- Battery connection: 1 pair M8 cable lug
- Communications: Ethernet RJ45
- Protection category: IP 65
- Standard warranty: 12 years
- Dimensions: 907 x 317 x 192 mm (H x W x D)
- Weight: Gross 40 kg / Net 37 kg
- Integrated SolarEdge Home Network
Package components:
- SolarEdge Home Energy Meter Art. No.: 7066
- SolarEdge Home Battery Low Voltage 9.2 kWh, item no.: 7495 including all required cables and accessories
- SolarEdge Home Hub Inverter 8 kVA item no.: 7409
- 1x connection cable battery inverter item no.: 7419
Downloads
Downloads
Videos
Videos
-
SolarEdge Home Battery Low Voltage - WiringThe YouTube video has been blocked due to the cookie settings.
-
SolarEdge Home Battery Low Voltage - Unpacking and MountingThe YouTube video has been blocked due to the cookie settings.
-
SolarEdge Home Hub Inverter - Three Phase: Unpacking and MountingThe YouTube video has been blocked due to the cookie settings.
-
Matching accessories
-
- New
SolarEdge optimizer S440-1GM4MRM- Type of manufacturer: S440-1GM4MRM
- Art. Nr.: 6814
Available from stock{ "id": "9921700dad9750109f47217aba676ec4", "item_brand": "", "item_name": "SolarEdge optimizer S440-1GM4MRM", "item_id": "6814", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9921700dad9750109f47217aba676ec4", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
- % Clean Deals
SolarEdge Home Backup Interface BI-EU3P- Type of manufacturer: BI-NEUNU-3P-01
- Art. Nr.: 7412
Available from stock{ "id": "f227637fb6f259599995969e4aabdb4f", "item_brand": "", "item_name": "SolarEdge Home Backup Interface BI-EU3P", "item_id": "7412", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f227637fb6f259599995969e4aabdb4f", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

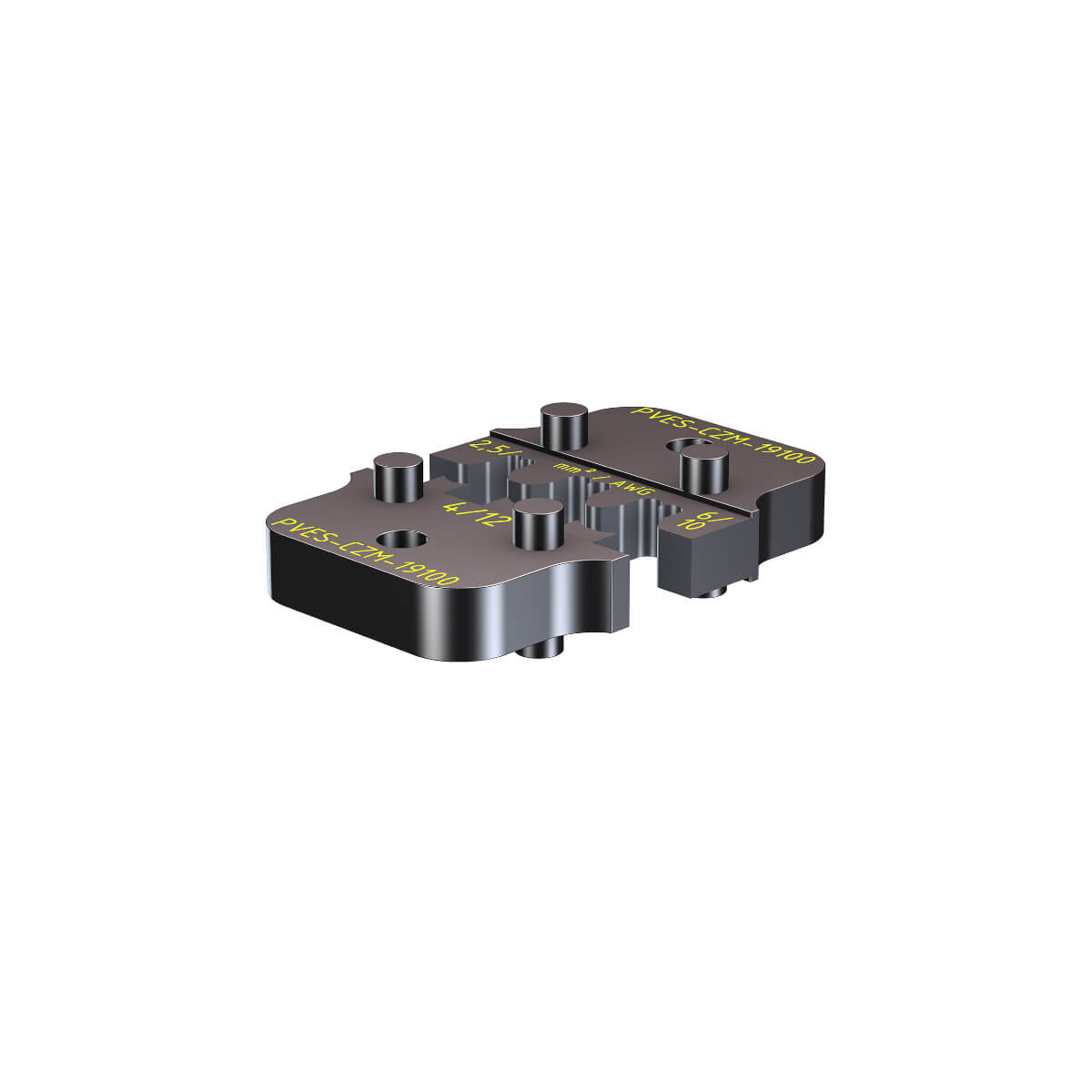

Crimp insert MC4, 2.5/4/6 mm²- Type of manufacturer: PV-ES-CZM-19100
