SolarEdge Home Package with SE10K-RWB48 and 13.8 kWh
| Art. Nr.: | 7497 |
|---|---|
| Accessoires: | Energiezähler, Verkabelung |
| Battery type: | 48 volt lithium-iron-phosphate |
| Inverter: | SolareEdge Home Hub-Wechselrichter SE10K-RWB48 |
| Net capacity: | 13.8 kWh |
| Package type: | 3-phase, 48 V battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | SolarEdge Home Batterie-Niedervolt 13,8 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
7497
-
-
{ "id": "ae5bf43946db564bb0450b52acbf58b6", "item_brand": "", "item_name": "SolarEdge low voltage home battery base plate", "item_id": "7422", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ae5bf43946db564bb0450b52acbf58b6", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
SolarEdge Home Battery Low Voltage 13.8 kWh with SolareEdge Home Hub Inverter SE10K-RWB48
Eligibility requirements: The Clean Deals offer is only valid for orders with a goods issue date no later than December 15, 2023
The new low-voltage storage system from SolarEdge is the first 3-phase storage-inverter combination from a single manufacturer.
The advantages of a storage unit plus inverter from a single supplier are definitely maximum performance, maximum efficiency and a qualified contact person for questions and problems.
The SolarEdge Home Battery Low Voltage can be varied between one and five battery modules. This allows the net capacity to be selected between 4.6 kWh up to 23 kWh.
For the installation of the Home Battery Low Voltage an online certification training is required! → Click here to go to the SolarEdge Academy
Product advantages:
- Individual capacity
- Simple plug & play installation with automatic SetApp configuration
- Scalable between 4.6 & 23 kWh
- Complete set
Product Features SolarEdge Home Battery Low Voltage:
- Weight per battery module: 54.7 kg
- Communications: RS485 between the modules, CAN bus to inverter
- Floor installation
- IP65
- Dimensions (W x H x D): 540 x 500 x 240 mm per module
Product Features SolarEdge Home Hub 3-phase hybrid inverter SE10K:
- AC rated power: 10 kVA, 3-phase
- Maximum battery charging/discharging power: 5 kW
- DC or also AC system with SolarEdge inverter
- PV input: 2 pairs of MC4 inputs
- Battery connection: 1 pair M8 cable lug
- Communications: Ethernet RJ45
- Protection category: IP 65
- Standard warranty: 12 years
- Dimensions: 907 x 317 x 192 mm (H x W x D)
- Weight: Gross 40 kg / Net 37 kg
- Integrated SolarEdge Home Network

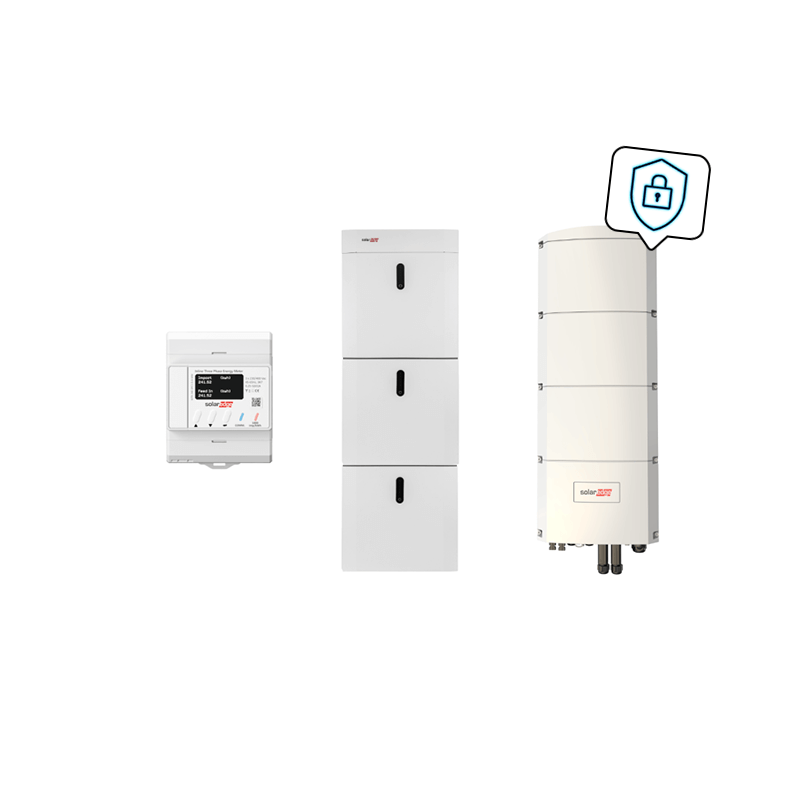

Package components:
- SolarEdge Home Energy Meter Art. No.: 7066
- SolarEdge Home Battery Low Voltage 13.8 kWh, item no.: 7496 including all required cables and accessories
- SolarEdge Home Hub Inverter 10 kVA item no.: 7410
- 1x connection cable battery inverter item no.: 7419
