SolarEdge Home Hub Inverter SE10K-RWB48
| Manufacturer Art. No.: | SE10K-RWB48BFN4 |
|---|---|
| Art. Nr.: | 7410 |
| Pieces per package unit: |
|
| AC power: | 10.0 kW |
| Communication: | 2 x RS485, Ethernet, SolarEdge Home Netzwerk |
| Inverter type: | Asymmetric inverters, Hybrid inverter |
| Phases: | 3 |
| Warranty: | 12 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- % Clean Deals
Available from stock
Product number:
7410
-
-
{ "id": "0e2a0a45cd4052cdb31fe60e26700a98", "item_brand": "", "item_name": "SolarEdge Home Energy Meter", "item_id": "7066", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0e2a0a45cd4052cdb31fe60e26700a98", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "f227637fb6f259599995969e4aabdb4f", "item_brand": "", "item_name": "SolarEdge Home Backup Interface BI-EU3P", "item_id": "7412", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f227637fb6f259599995969e4aabdb4f", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "06691b947bab57a0a4fc579980e7475d", "item_brand": "", "item_name": "SolarEdge Home Battery low-voltage 13.8 kWh", "item_id": "7496", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "06691b947bab57a0a4fc579980e7475d", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
SolarEdge Home Hub Three Phase Hybrid Inverter SE10K-RWB48 for SolarEdge Home Low Voltage Battery
SolarEdge inverters do not have an MPP tracker, but have two inputs for the SolarEdge Module optimizers. With fixed voltage technology, the SolarEdge inverter always operates in the optimal input voltage range, regardless of the number of modules and strings. The performance data from each individual PV module optimizer is transmitted to the SolarEdge inverter via the string line and can be visualised via the internet in the SolarEdge Monitoring Portal.
Start up of the inverter occurs quickly and easily with the SolarEdge App via smartphone.
With the integrated 48 V battery connection, no wishes remain unfulfilled! The Low Voltage Home Battery is the ideal solution for the Home Hub hybrid inverter.
Attention, provisional technical specifications, changes may still occur!
Product benefits:
- Hybrid inverter for SolarEdge optimizer and SolarEdge low voltage battery
- Rated DC voltage 750 Vdc
- European efficiency: 97.6 %
- Fast installation time due to integrated StorEdge interface
- Cheaper overall costs due to 48 V battery technology

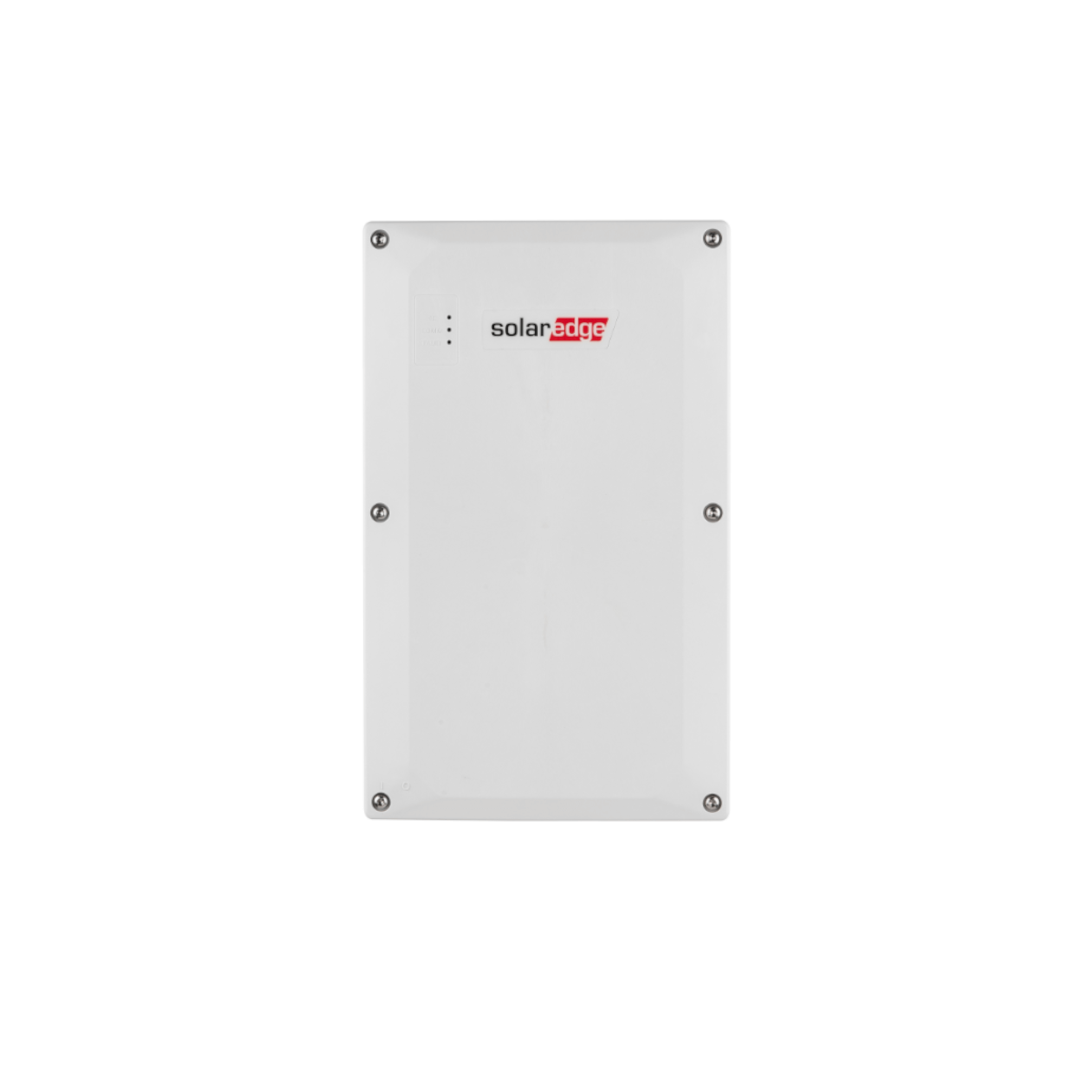

- Backup power capability in combination with SolarEdge Home Backup Interface BI-EU3P
Product Features SolarEdge Home Hub Three Phase Hybrid Inverter SE10K:
- AC nominal power: 10 kVA, 3-phase
- Maximum battery charge/discharge capacity: 5 kW
- DC or also AC system with SolarEdge inverter
- PV input: 2 pairs of MC4 inputs
- Battery connection: 1 pair M8 cable lug
- Communication: Ethernet RJ45
- Protection class: IP 65
- Standard warranty: 12 years
- Dimensions: 907 x 317 x 192 mm (H x W x D)
- Weight: Gross 40 kg / Net 37 kg
- Integrated Energy Home network
The SolarEdge Home Hub inverter can be configured as a DC, but also as an AC system. This means that even larger installations can be provided with a three-phase storage system.
-
