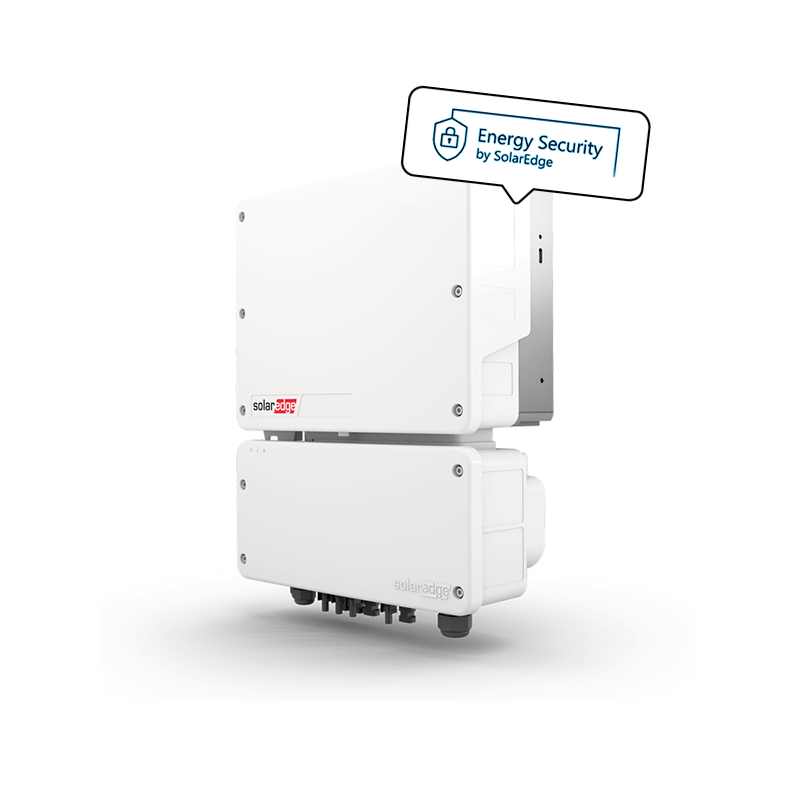

SolarEdge Home Hub 1-phase Inverter SE3680H-RWBMNBF54 – Backup
| Type of manufacturer: | SE3680H-RWBMNBF54 |
|---|---|
| Manufacturer Art. No.: | SE3680H-RWBMNBF54 |
| Art. Nr.: | 9945 |
| Pieces per package unit: |
|
| AC power: | 3.680 kW |
| Communication: | Ethernet, RS485, WLAN (optional), SolarEdge Home Network |
| Inverter type: | Hybrid inverter |
| Phases: | 1 |
| Warranty: | 12 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
9945
-
-
{ "id": "079388995411565a8b51483de5477721", "item_brand": "", "item_name": "SolarEdge Home High Voltage Battery 9.7 kWh", "item_id": "6598", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "079388995411565a8b51483de5477721", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
SolarEdge Home Hub 1-phase Inverter SE3680H-RWBMNBF54 – Backup
With SolarEdge's new Home Hub solution, you're not left in the dark, even when the power grid fails.
SolarEdge inverters do not have an MPP tracker, but instead have inputs for the SolarEdge module optimizers. With fixed voltage technology, the SolarEdge inverter always operates in the optimal input voltage range, regardless of the number of modules and strings. Performance data from each PV module optimizer is transmitted to the SolarEdge inverter via the string and can be visualized via the Internet in the SolarEdge Monitoring Portal.
The new inverters do not have a display. Commissioning the inverter is quick and easy with the SolarEdge App via smartphone.
With the integrated StorEdge interface you can work even faster! The cabling between inverter and StorEdge is completely eliminated here.
The backup interface, 1-phase or 3-phase, must be selected according to the respective house connection and not according to the inverter!
Product advantages:
- Hybrid Inverter for SolarEdge Optimizer and SolarEdge Home Battery (high voltage)
- DC nominal voltage 380 Vdc
- Very high efficiency of up to 98.8%
- Fast installation time thanks to integrated StorEdge interface
- Backup power capable in combination with the SolarEdge Home Backup Interface BI-EU3P (black start capable)
Product features SolarEdge Home Hub 1-phase SE3680H-RWBMNBF54 – Backup
- 3.680 kVA power 1-phase
- 7.360 kW battery connection high voltage
- DC or also AC system with SolarEdge inverter
- PV input: 2 sets of MC4 inputs
- Battery input: 1 set of MC4 inputs
- Ethernet RJ45
- Wi-Fi hotspot for SetAPP
- Home network communication
- Protection category: IP65
- Standard warranty: 12 years
- Dimensions: 450 x 370 x 174 mm (H x W x D)
- Weight: 12 kg
- Optional: Wi-Fi
Backup applications are subject to local regulations and require the SolarEdge Home Hub inverter, SolarEdge Home Battery, and SolarEdge Home Backup Interface.
SolarEdge Home Hub Solution 1-phase inverter can be configured as a DC but also as an AC system.
-
