SolarEdge Home combined package with charging station, SE8K-RWB48 and 9.2 kWh
| Art. Nr.: | 10798 |
|---|---|
| Accessoires: | Energiezähler, Verkabelung, Ladestation |
| Battery type: | 48 volt lithium-iron-phosphate |
| Inverter: | SolareEdge Home Hub-Wechselrichter SE8K-RWB48 |
| Net capacity: | 9.2 kWh |
| Package type: | 3-phase, 48 V battery, KfW 442 Pakete, Solar battery packages |
| Phases: | 3 |
| Solar battery: | SolarEdge Home Batterie-Niedervolt 9,2 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
10798
Description

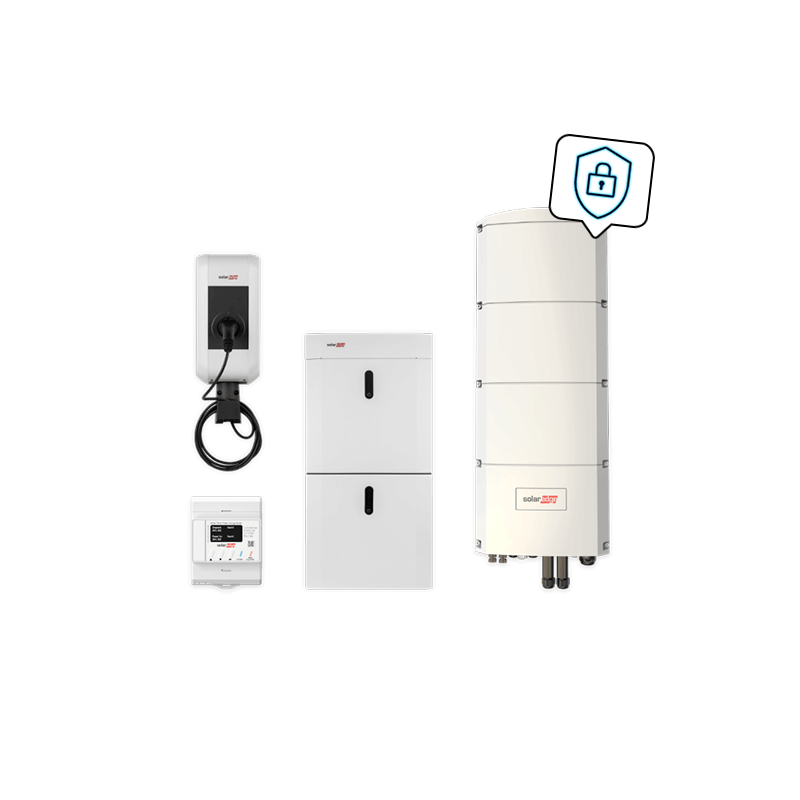

SolarEdge Home low-voltage battery 9.2 kWh with SolarEdge Home Hub inverter SE8K-RWB48 and SolarEdge charging station
Eligibility requirements: The Clean Deals offer is only valid for orders with a goods issue date no later than December 15, 2023
The new low-voltage storage system from SolarEdge is the first three-phase storage system/inverter combination to come from a single manufacturer.
The advantages of a storage system plus inverter from a single company are clearly the maximum output, maximum efficiency and a knowledgeable contact partner for questions and problems.
The SolarEdge Home low-voltage battery can be varied between one and five battery modules. This means that the net capacity can be selected between 4.6 kWh and 23 kWh.
The SolarEdge charging station is included in the set for successful sector coupling.
Online certification training is required to install the Home Battery Low Voltage! → Click here to go to the SolarEdge Academy
Product advantages:
- Customized capacity
- Simple plug & play installation with automatic SetApp configuration
- Scalable between 4.6 & 23 kWh
- Complete set
Product features SolarEdge Home low-voltage battery:
- Weight per battery module: 54.7 kg
- Communication: RS485 between the modules, CAN bus to inverter
- Ground installation
- IP65
- Dimensions (W x H x D): 540 x 500 x 240 mm per module
Product features SolarEdge Home Hub three-phase hybrid inverter SE8K:
- AC rated power: 8 kVA, 3-phase
- Maximum battery charging/discharging power: 5 kW
- DC or AC system with SolarEdge inverter
- PV input: 2 pairs of MC4 inputs
- Battery connection: 1 pair of M8 cable lugs
- Communication: Ethernet RJ45
- Protection category: IP 65
- Standard warranty: 12 years
- Dimensions: 907 x 317 x 192 mm (H x W x D)
- Weight: Gross 40 kg / Net 37 kg
- Integrated SolarEdge Home network
Product features SolarEdge charging station 22 kW, RFID, MID
- 11 kW charging power preset (setting via DIP switch during installation up to 22 kW possible)
- Wi-Fi
- MID meter
- Fixed charging cable – 6 meters (type 2)
- Compact dimensions: 240 x 142 x 643 mm (W x D x H)
- Weight: 7.80 kg
- Housing color: white
- CE certified IP54, IK08
- 1x RFID card included in scope of delivery
- Integrated RFID reader
- Cable holder included
Package components:
- SolarEdge Home energy meter item no.: 7066
- SolarEdge Home low-voltage battery 9.2 kWh item no.: 7495 including all required cables and accessories
- SolarEdge Home Hub inverter 8 kVA item no.: 7409
- 1x connecting cable battery inverter item no.: 7419
- SolarEdge charging station 22 kW, RFID, MID item no: 6899
