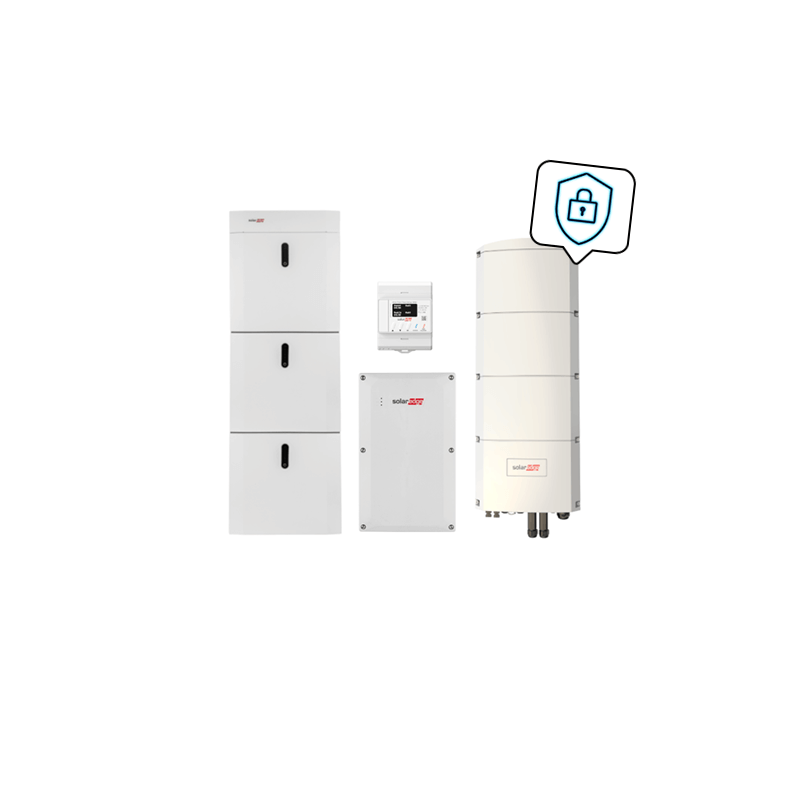

SolarEdge Home Backup Power Package with SE8K-RWB48 and 13.8 kWh
| Art. Nr.: | 7576 |
|---|---|
| Accessoires: | Backup-Interface inkl. Energiezähler, Verkabelung |
| Battery type: | 48 volt lithium-iron-phosphate |
| Inverter: | SolareEdge Home Hub-Wechselrichter SE8K-RWB48 |
| Net capacity: | 13.8 kWh |
| Package type: | 3-phase, 48 V battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | SolarEdge Home Batterie-Niedervolt 13,8 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
7576
-
-
{ "id": "82cd24431425568db25faefa8e897926", "item_brand": "", "item_name": "SolarEdge charging station 22 kW, RFID, MID", "item_id": "6899", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "82cd24431425568db25faefa8e897926", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -
{ "id": "ae5bf43946db564bb0450b52acbf58b6", "item_brand": "", "item_name": "SolarEdge low voltage home battery base plate", "item_id": "7422", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ae5bf43946db564bb0450b52acbf58b6", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
SolarEdge Home Low Voltage Battery 13.8 kWh with SolareEdge Home Hub Inverter SE10K-RWB48 and Backup Interface for Backup Power
Eligibility requirements: The Clean Deals offer is only valid for orders with a goods issue date no later than December 15, 2023
The new SolarEdge low-voltage storage system is the first three-phase storage/inverter combination with backup power functionality made from a single manufacturer.
The advantages of a storage system plus inverter produced by the same company are a maximum performance, a maximum efficiency and a single competent contact person who can help in case of questions or problems.
The SolarEdge Home Low Voltage Battery can operate with one and five battery modules. This means that the net capacity can be selected from 4.6 kWh to max. 23 kWh.
Online certification training is required to install the Home Battery Low Voltage! → Click here to go to the SolarEdge Academy
Product advantages:
- Individual capacity
- Easy Plug & Play installation with automatic SetApp configuration
- Scalable between 4.6 & 23 kWh
- Complete set with backup power function
Product features SolarEdge Home Low Voltage Battery:
- Weight per battery module: 54.7 kg
- Communication: RS485 between modules, CAN bus to inverter
- Floor installation with wall support (not just a wall mount!)
- Cell composition: lithium iron phosphate
- IP65
- Dimensions: 540 x 500 x 240 mm (W x H x D)
- 10 years warranty
Product features SolarEdge Home Hub three-phase hybrid inverter SE8K:
- AC nominal power: 8 kVA, 3-phase
- Maximum battery charge/discharge capacity: 5 kW
- DC or also AC system with SolarEdge inverter
- PV input: 2 pairs of MC4 inputs
- Battery connection: 1 pair M8 cable lug
- Communication: Ethernet RJ45
- Protection class: IP 65
- Standard warranty: 12 years
- Dimensions: 907 x 317 x 192 mm (H x W x D)
- Weight: Gross 40 kg / Net 37 kg
- Integrated SolarEdge Home Network
Product features Backup interface:
- automatic switchover < 3 seconds
- Backup power for the whole domestic system or with selected loads
- Full three-phase backup power solution
- Integrated SolarEdge Home network
- Integrated SolarEdge Home energy meter (export / import)
- 230 V
- Three-phase current and phase shift load up to 3 kVA
- Black-start capable
- Dimensions (H x W x D): 390 x 238 x 147 mm
- Communication RS485 or home network
- Weight: 5 kg
- Outdoor-ready IP65
- Controls the disconnection of house loads from the grid to backup mode
Package components:
- SolarEdge Home Backup Interface Art. No.: 7412 with integrated SolarEdge Home Energy Meter Art. No.: 7066
- SolarEdge Home Low Voltage Battery 13.8 kWh Art. No.: 7496 with all required cables
- SolarEdge Home Hub Inverter 10 kVA Art. No.: 7409
1 x Connecting cable battery inverter Art. No.: 7419
Downloads
Downloads
Videos
Videos
-
SolarEdge Home Battery Low Voltage - WiringThe YouTube video has been blocked due to the cookie settings.
-
SolarEdge Home Battery Low Voltage - Unpacking and MountingThe YouTube video has been blocked due to the cookie settings.
-
SolarEdge Home Hub Inverter - Three Phase: Unpacking and MountingThe YouTube video has been blocked due to the cookie settings.
-
Matching accessories
-

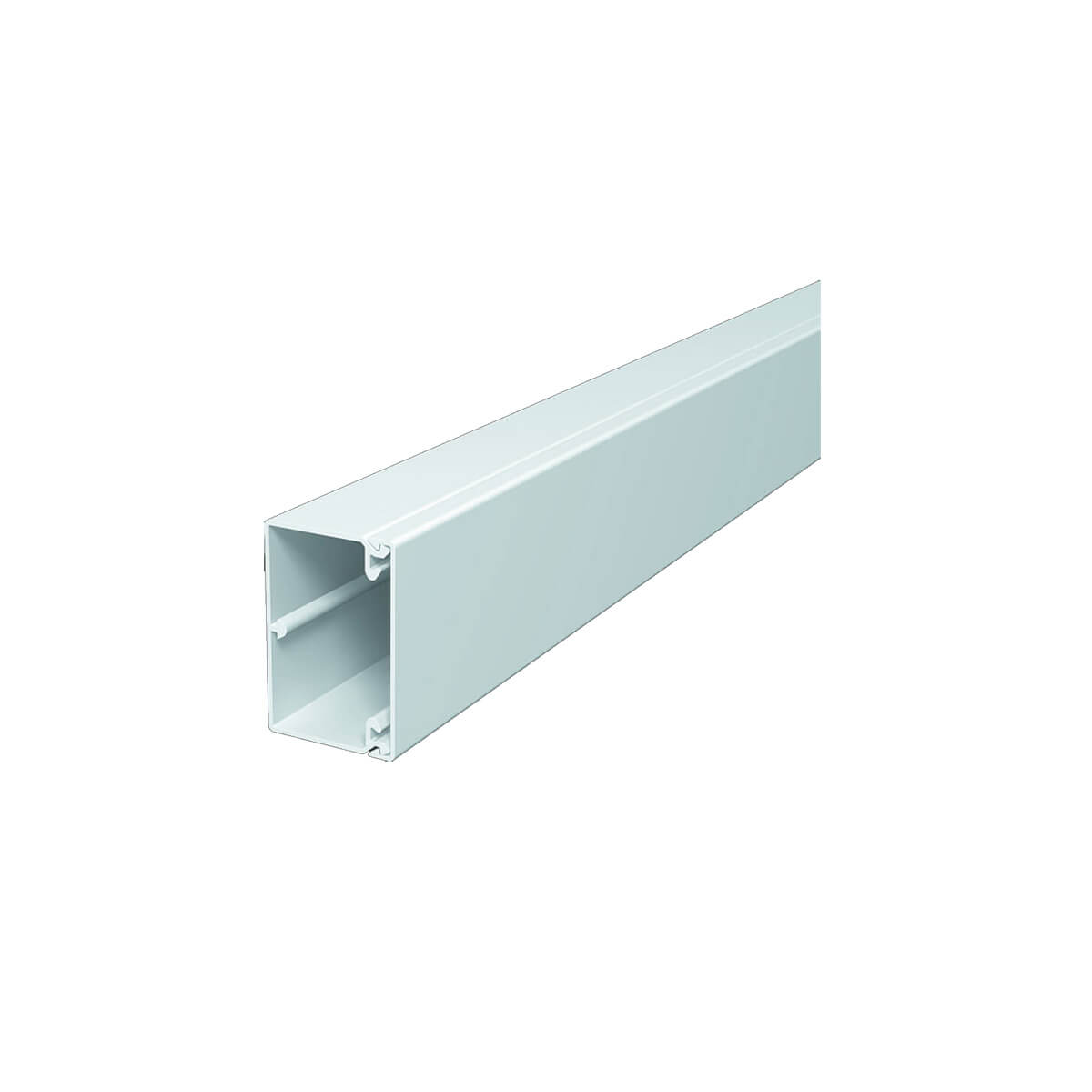

OBO Kabelkanal 40x60 mm, reinweiß, VPE 32,0 m- Type of manufacturer: WDK40060RW
