Solar cable HELUKABEL Solarflex H1Z2Z2-K 4.0 mm² 100m red
| Manufacturer Art. No.: | 713545 |
|---|---|
| Art. Nr.: | 5775 |
| Accessory type: | DC solar cable |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Remaining quantity
Available from stock
Product number:
5775
Description
Solar cable Helukabel SOLARFLEX H1Z2Z2-K 4.0 mm2 100m red
Tested and TÜV-certified solar cable according to EN 50618. The standard-compliant solar cable may be used outdoors, indoors and also be laid underground in free and fixed installation as well as freely suspended. Its sturdy material composition and high-quality workmanship despite the long-term environmental influences offers maximum quality and safety.
Product features of Helukabel SOLARFLEX H1Z2Z2-K 4.0 mm2 100m red:
- Cable for PV systems according to EN 50618
- Stranded copper wire galvanised, flexible according to DIN VDE 0295 cl.5 / IEC 60228 cl.5
- Weather/UV resistance according to EN 50618 Annex E
- Ozone resistant according to EN 50396 section 8.1.3 method B
- Flame retardant according to IEC 60332-1-2
- Smoke density according to IEC 61034
- Halogen-free according to DIN VDE 0285-525-1 /DIN EN 50525.1 Annex B /DIN EN 60754-1 / IEC 60754-1
- Suitable for direct underground installation. Recommendation: installation in the pipe.
- The product is compliant with the Low Voltage Directive 2014/35/EU
Specifications of Helukabel SOLARFLEX H1Z2Z2-K 4.0 mm2 100m black:
- Cross-section: 1x 4 mm²
- Length: 100 m
- Sheath colour: red
- Temperature range from -40°C to +90°C
- Permissible operating temperature at the conductor +120°C
- Nominal voltage:
-AC 1.0/1.0 kV
-DC 1.5/1.5 kV - Maximum DC voltage allowed: 1.8 kV
- Test voltage: AC 6.5 kV
- Minimum bending radius: not moved 5x outer Ø
-
Matching accessories
-

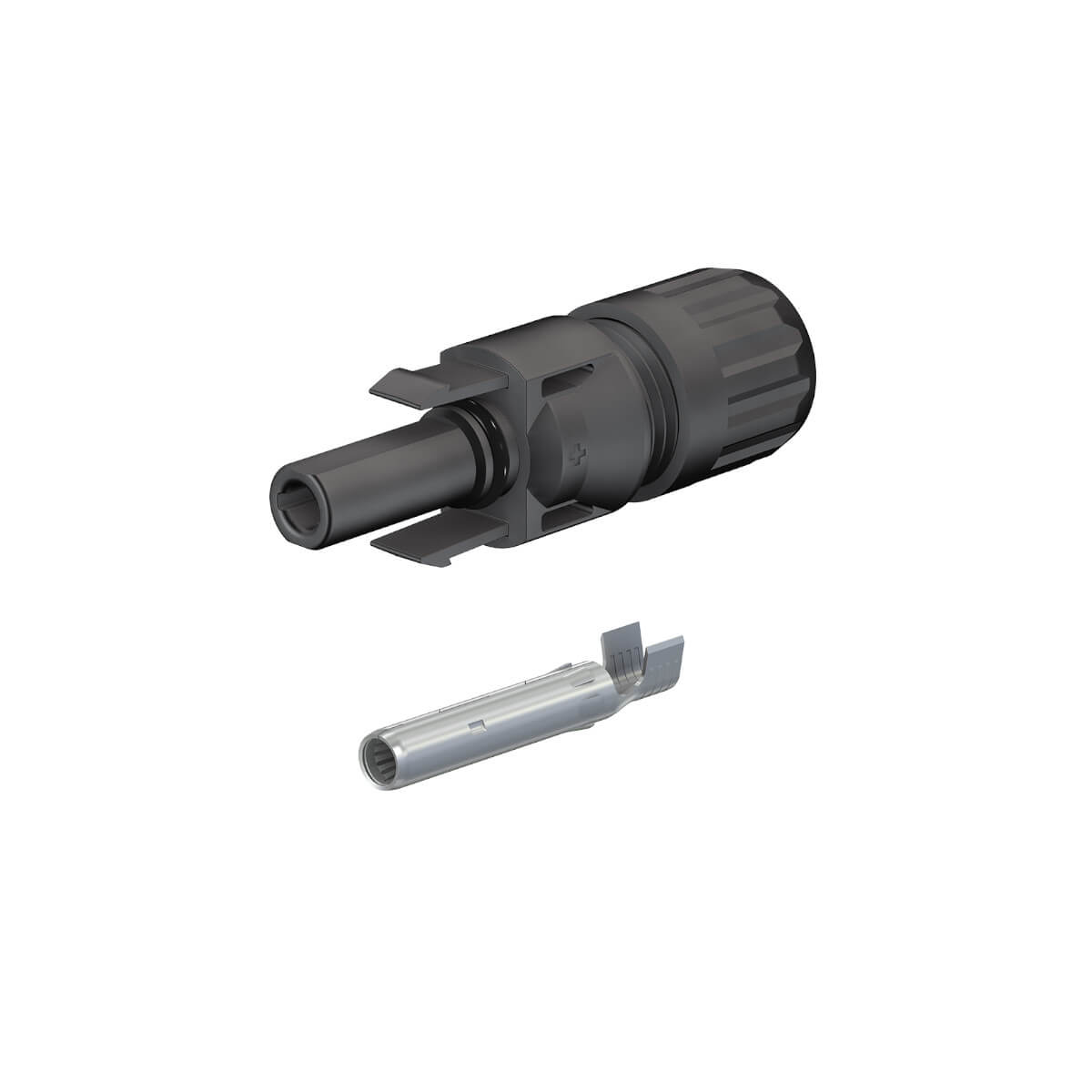

Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm- Type of manufacturer: PV-KST4/6I-UR
- Art. Nr.: 338
Available from stock{ "id": "0dae6ec5fad8591a9f118659ff2184db", "item_brand": "", "item_name": "Stäubli MC4 plug, 4-6 mm² I, diameter 5-6 mm", "item_id": "338", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0dae6ec5fad8591a9f118659ff2184db", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } } -

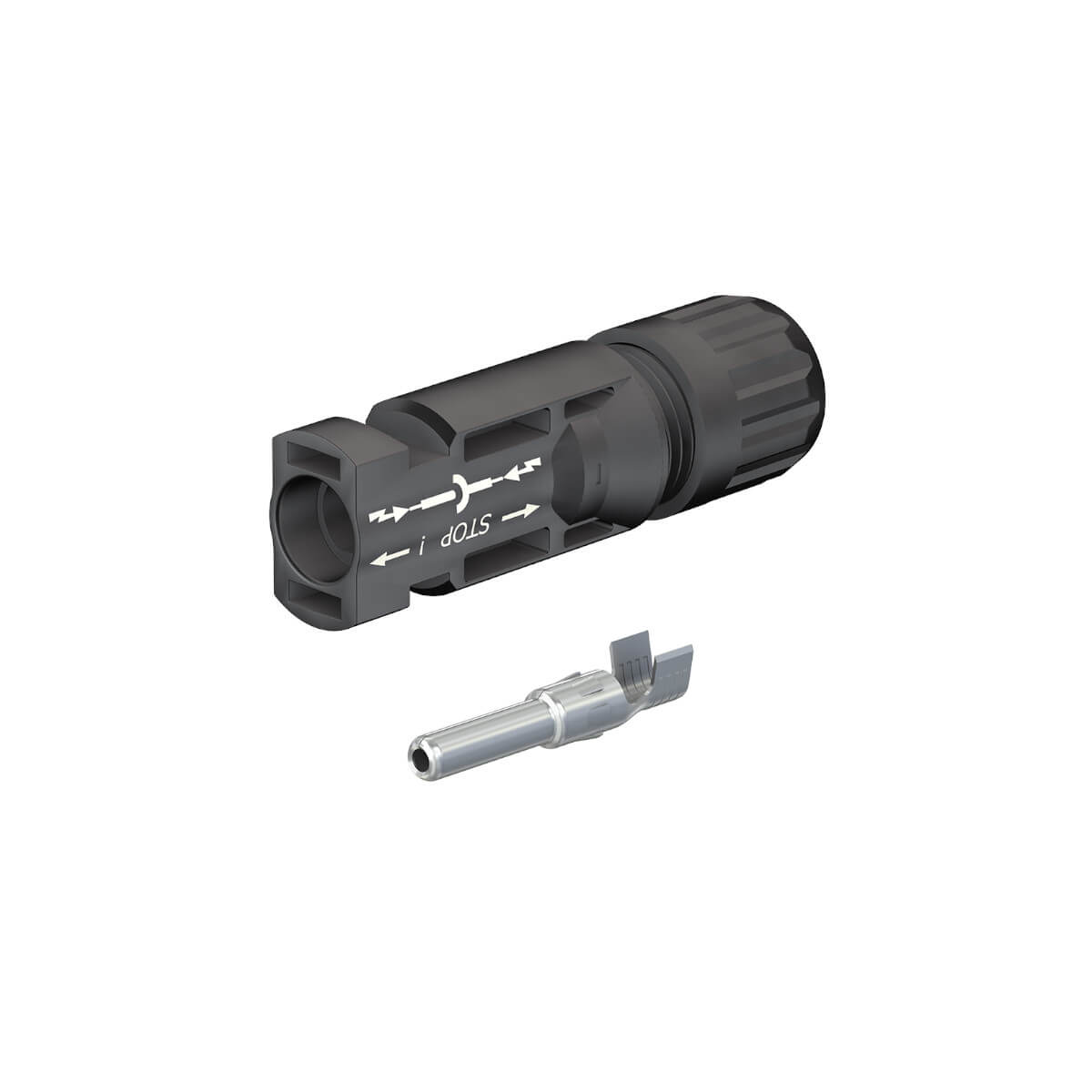

Stäubli MC4 socket, 4-6 mm² I, diameter 5-6 mm- Type of manufacturer: PV-KBT4/6I-UR
