SMA Sunny Highpower PEAK3 SHP 150-21
| Type of manufacturer: | SHP 150-21 |
|---|---|
| Manufacturer Art. No.: | 3-150-1500-1-21 |
| Art. Nr.: | 8978 |
| Pieces per package unit: |
|
| AC power: | 150 kW |
| Communication: | Speedwire / Webconnect |
| Inverter type: | PV inverter, Project inverter |
| MPP-Tracker: | 1 |
| MPP voltage range: | 880 - 1450 Volt |
| Phases: | 3 |
| Warranty: | 5 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from 02.01.2025
Product number:
8978
Description

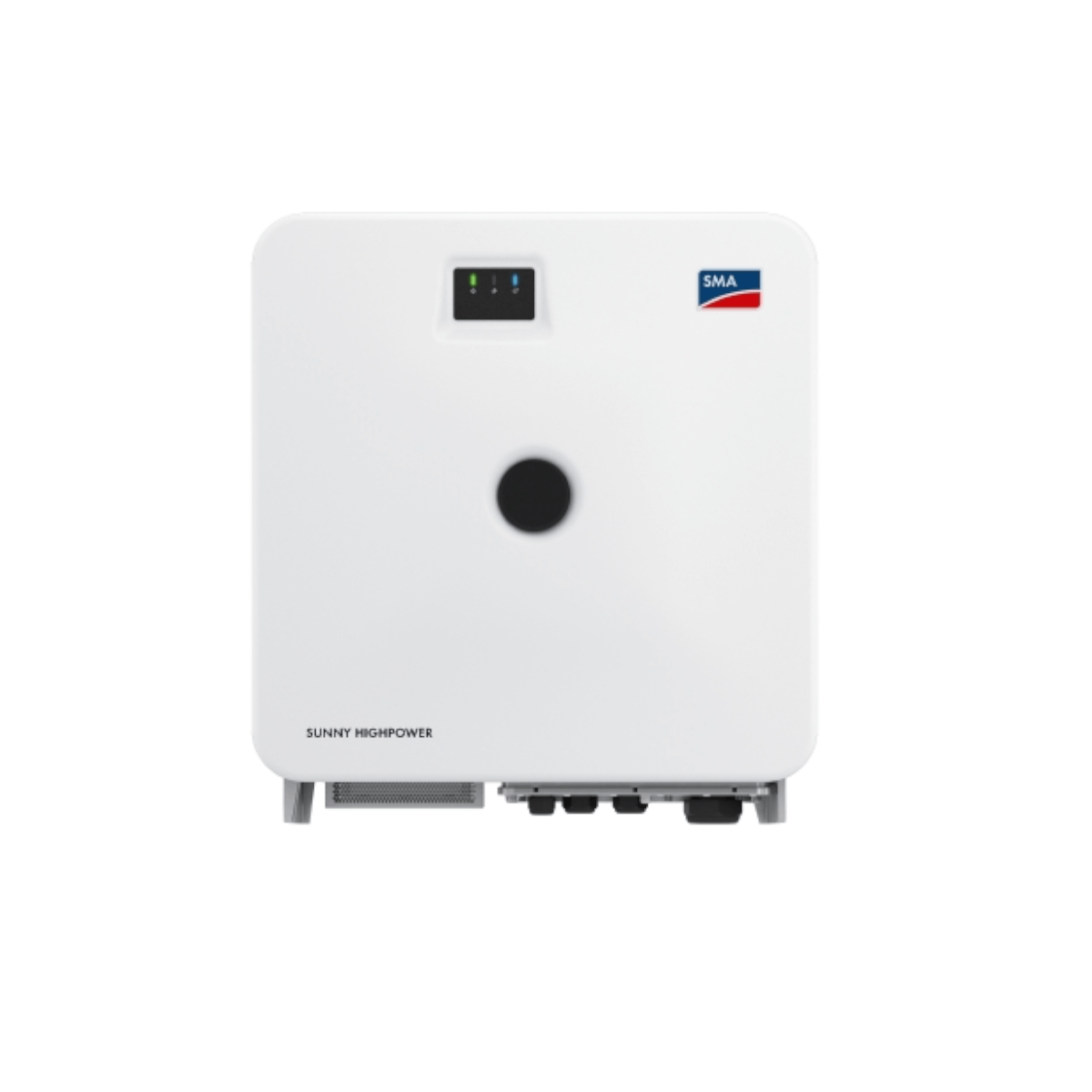

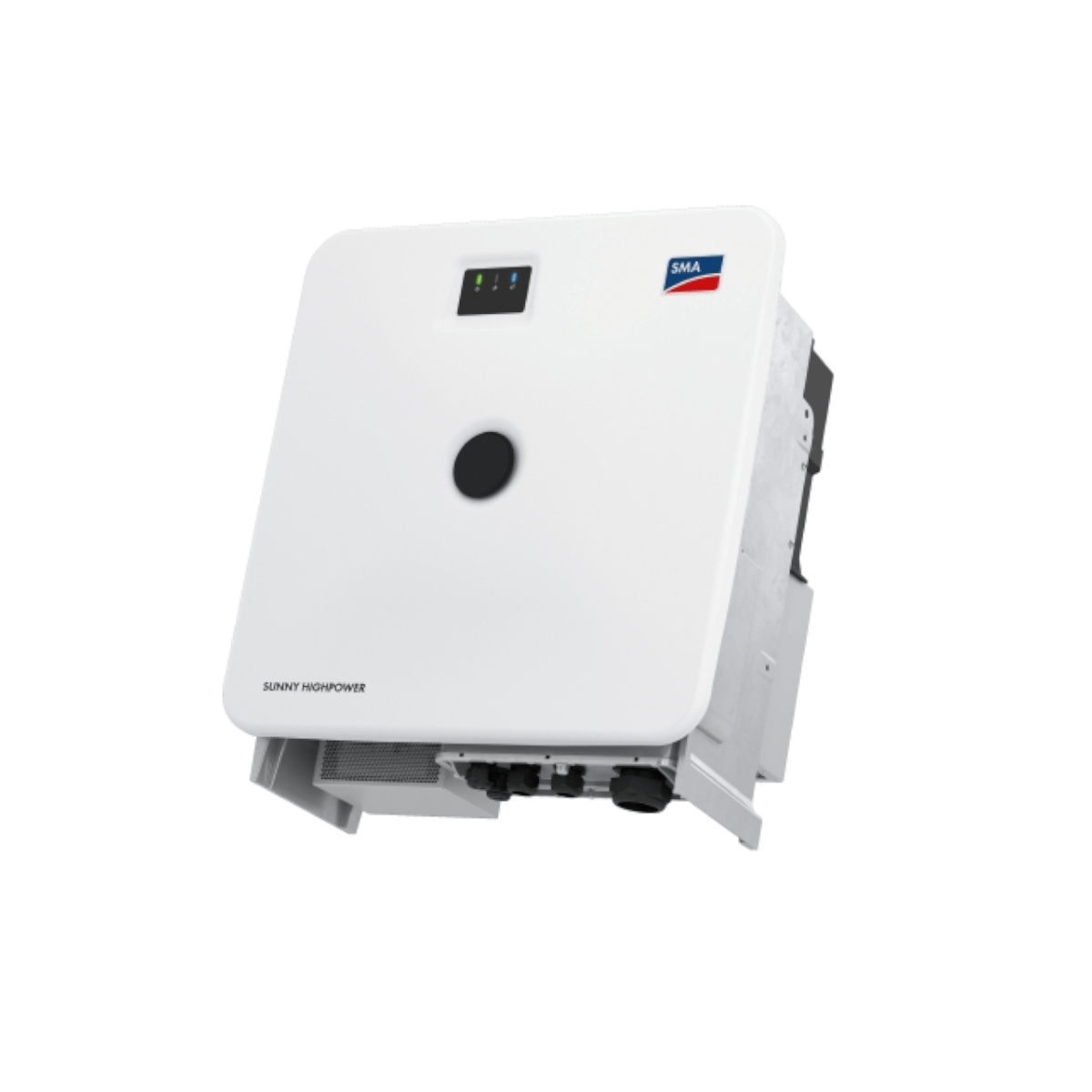

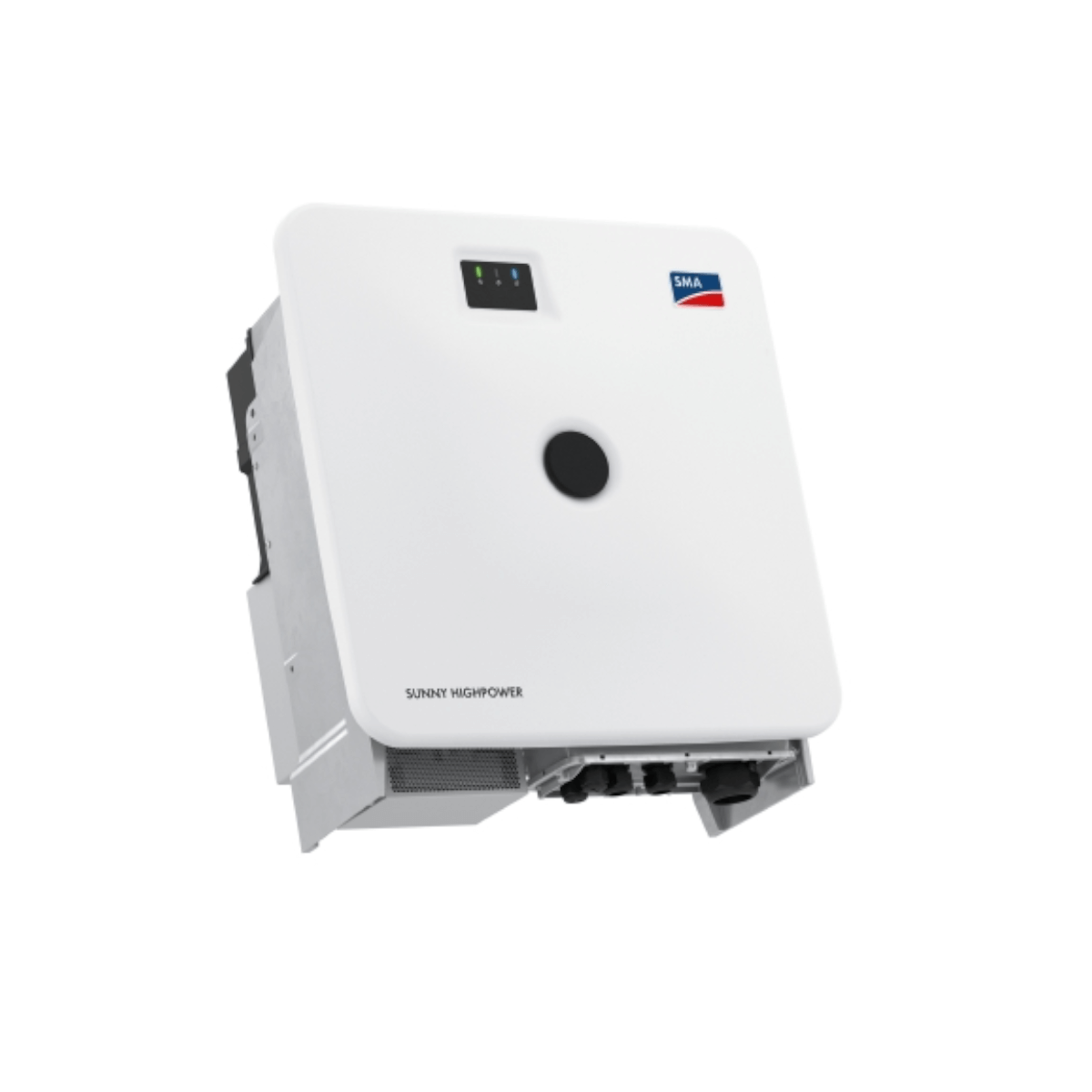

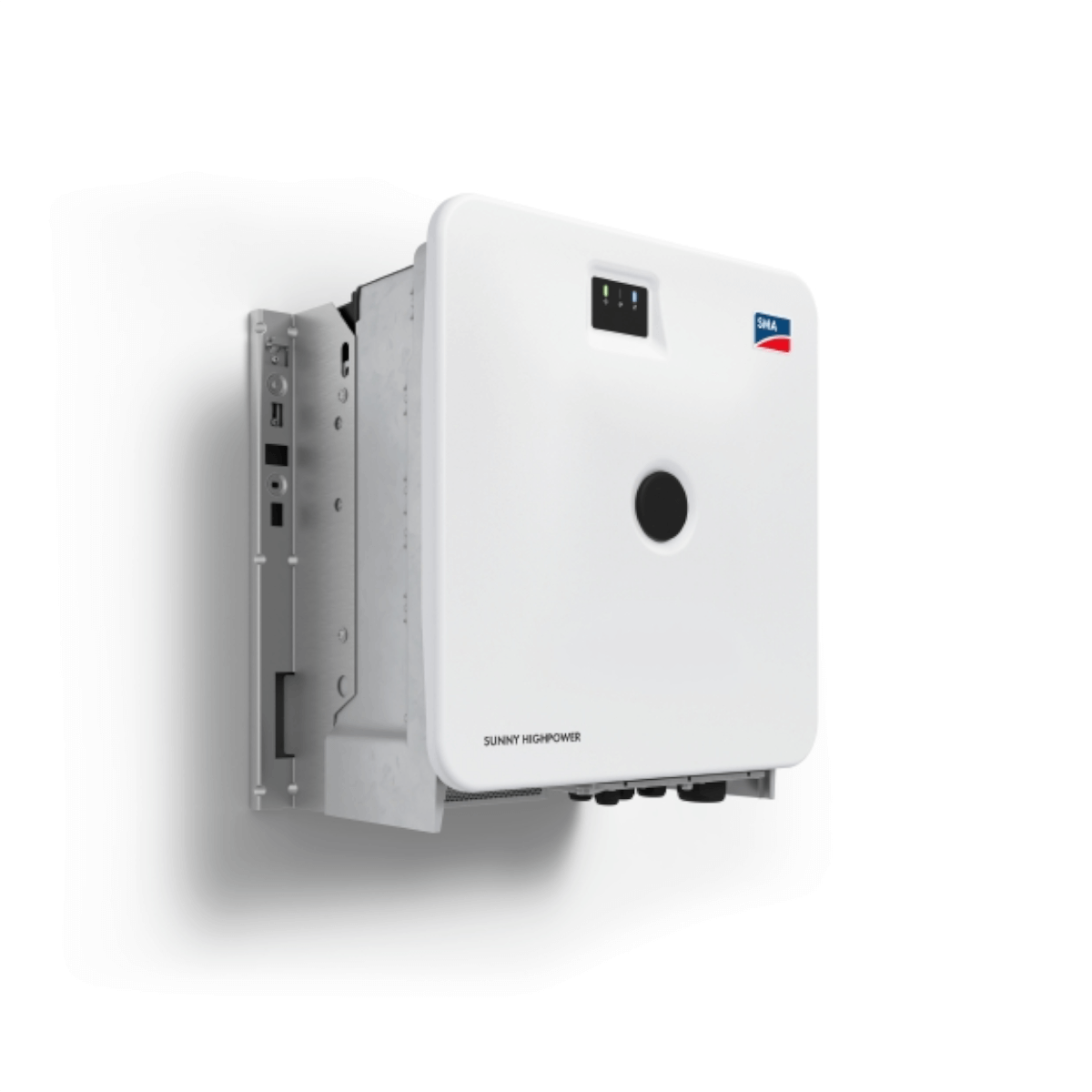

SMA Sunny Highpower Peak3 SHP 150-21
No approval for VDE-AR-N 4105, only for VDE-AR-N 4110/4120
A warranty extension is only possible directly via SMA. You can find the link to register here.
The Sunny Highpower PEAK3 is perfect for large PV systems that require an MPP tracker and feed in at medium or high voltage level. With the help of a project-specific DC combiner box, it is possible to oversize the PV system by up to 200 %. The inverter can also withstand temperatures of up to 50 °C without derating. The PEAK3 comes with the proven SMA platform with integrated web server and offers high reliability in addition to a flexible, decentralized system design. In combination with the SMA Data Manager, the PEAK3 is fully compatible with the ennexOS energy management platform.
Product advantages
- Fast commissioning
- Flexible use of combiner boxes
- Oversizing of up to 200%
- Integrated overvoltage protection DC (type 2) and AC (type 3)
Product features SMA Sunny Highpower PEAK3 SHP 150-21
- Mains connection: 3-phase
- AC rated power: 150 KVA
- MPP tracker: 1
- MPP voltage range: 880 – 1450 V
- Max. input current DC: 180 A
- Max. short circuit current: 325 A
- communication: 2 pcs. Ethernet RJ45
- Protection category: IP65
- dimensions: 830 x 770 x 462 mm (H x W x D)
- Weight: 99 kg
