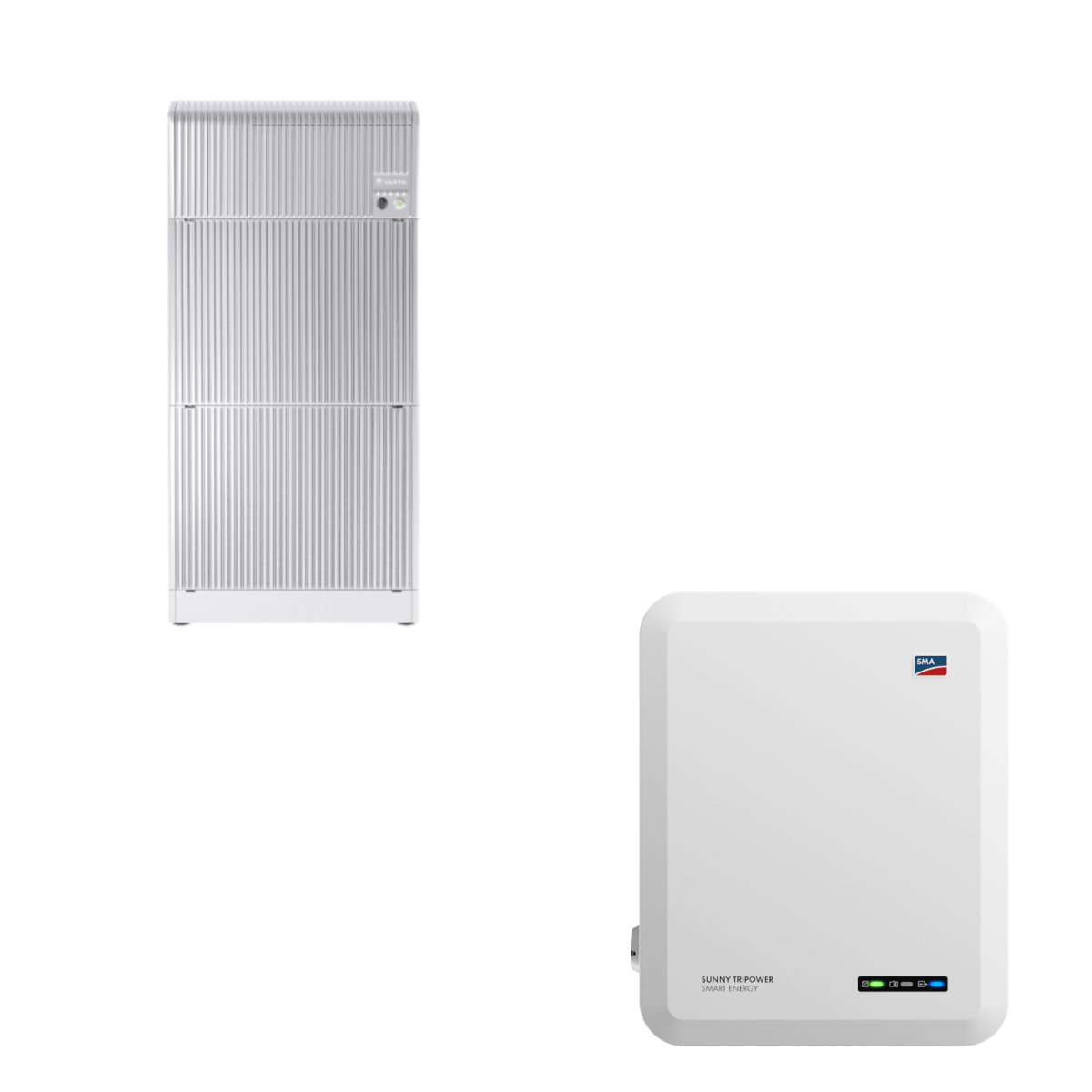

SMA Hybrid Sunny Tripower 6.0 Smart Energy and VARTA.wall 10 kWh

SMA Hybrid Sunny Tripower 6.0 Smart Energy and VARTA.wall 10 kWh

The perfect pair for efficient and intelligent energy use!

The SMA Sunny Tripower Smart Energy is a modern hybrid inverter that integrates seamlessly into the SMA energy management system. With a Sunny Home Manager 2.0, heat pumps and e-charging stations can be integrated in addition to the battery. With forecast-based charging, you increase the efficiency of the overall system and charge the battery during the middle of the day.

The VARTA.wall is an innovative, modular DC high-voltage storage system of the latest generation. With an installation depth of just 10 cm, it is one of the slimmest battery storage systems on the market. Thanks to the modular design, you can choose from three power classes: 10, 15 or 20 kWh – perfectly tailored to your individual energy needs.

This energy storage package offers you maximum flexibility, high efficiency and a future-proof solution for your energy management.

Product benefits SMA Hybrid STP 6.0 SE

• Compatible with SMA Sunny Home Manager 2.0
• Integrated switching device for backup power
• Compatible with SMA Energy App, 360° App and Sunny Portal
• Also stores the energy from other PV inverters or a CHP
• AC and DC overvoltage protection type 2 integrated

Product features SMA Hybrid STP 6.0 SE

• Mains connection: 3-phase
• AC rating: 6 kVA
• Max. power in emergency power mode: 10 kVA (max. 10 s)
• MPP tracker: 2
• String connections via MPPT: 1
• Communication: Wi-Fi, Ethernet, CAN
• Incl. 3 m battery cable with MC4 connectors
• Typical noise emissions: 30 dB (A)
• Protection category: IP 65
• Dimensions: 598 x 500 x 173 mm (H x W x D)
• Weight: 30.0 kg
• Warranty: 5 years (free extension to 10 years upon registering online)

Product features VARTA.wall 10 kWh

• Usable capacity per module: 5 kWh
• Stackable
• Cell chemistry: Lithium-ion
• Cell type: 21700 round cell
• Protection category: IP55
• Operating temperature: -10°C – 50°C
• Interfaces: CAN / RS485 / Ethernet / Wi-Fi
• Warranty: 10 years
• Compatible inverters: SMA, Kostal


Scope of delivery

• 1 x SMA Sunny Tripower 6.0 Smart Energy
• 2 x VARTA.wall battery module 5.0 kWh
• 1 x VARTA.wall set of master / base unit
