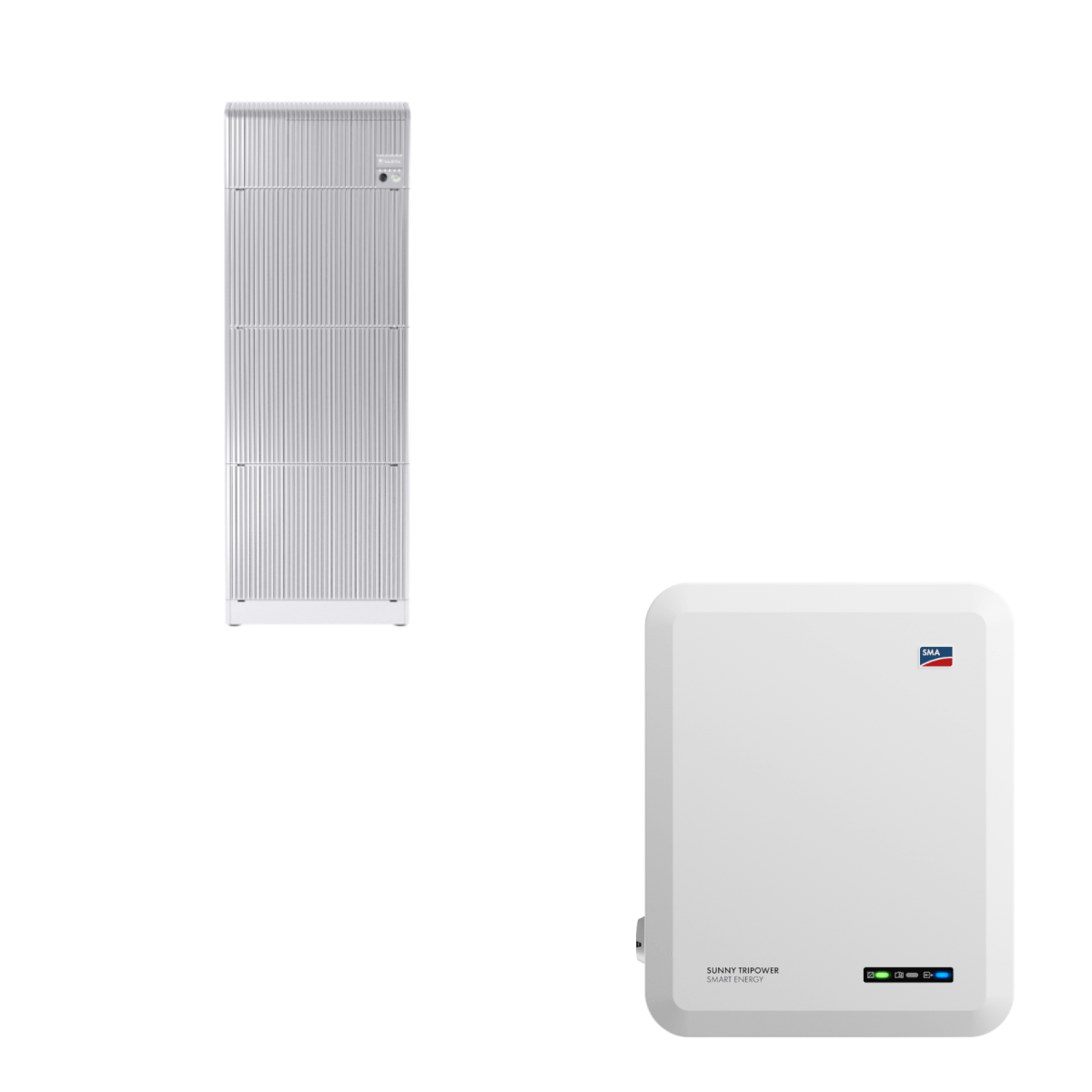

SMA Hybrid Sunny Tripower 10.0 Smart Energy and VARTA.wall 15 kWh
| Type of manufacturer: | STP10.0-3SE-40 + VARTA.wall 15 kWh |
|---|---|
| Manufacturer Art. No.: | 124613-00.01 + 2732709001 + 2733709004 |
| Art. Nr.: | 12909 |
| Battery type: | High volt lithium |
| Inverter: | SMA Hybrid Sunny Tripower 10.0 Smart Energy |
| Package type: | 3-phase, High voltage battery |
| Phases: | 3 |
| Solar battery: | VARTA.wall 15 kWh |
| WEEE-Number: |
|
- New
SMA Hybrid Sunny Tripower 10.0 Smart Energy and VARTA.wall 15 kWh
The SMA Sunny Tripower Smart Energy is a modern hybrid inverter that integrates seamlessly into the SMA energy management system. With a Sunny Home Manager 2.0, heat pumps and e-charging stations can be integrated in addition to the battery. With forecast-based charging, you increase the efficiency of the overall system and charge the battery during the middle of the day.
The VARTA.wall is an innovative, modular DC high-voltage storage system of the latest generation. With an installation depth of just 10 cm, it is one of the slimmest battery storage systems on the market. Thanks to the modular design, you can choose from three power classes: 10, 15 or 20 kWh - perfectly tailored to your individual energy needs.
This energy storage package offers you maximum flexibility, high efficiency and a future-proof solution for your energy management.
Product benefits SMA Hybrid STP 10.0 SE
- Compatible with SMA Sunny Home Manager 2.0
- Integrated switching device for backup power
- Compatible with SMA Energy App, 360° App and Sunny Portal
- Also stores the energy from other PV inverters or a CHP
- AC and DC overvoltage protection type 2 integrated
Product features SMA Hybrid STP 10.0 SE
- Mains connection: 3-phase
- AC rating: 10 kVA
- Max. power in emergency power mode: 12 kVA (max. 10 s)
- MPP tracker: 2
- String connections per MPPT: 1/2
- Communication: Wi-Fi, Ethernet, CAN
- Incl. 3 m battery cable with MC4 connectors
- Typical noise emissions: 30 dB (A)
- Protection category: IP 65
- Dimensions: 598 x 500 x 173 mm (H x W x D)
- Weight: 30.0 kg
- Warranty: 5 years (free extension to 10 years upon registering online)
Product features VARTA.wall 15 kWh
- Usable capacity per module: 5 kWh
- Stackable
- Cell chemistry: Lithium-ion
- Cell type: 21700 round cell
- Protection category: IP55
- Operating temperature: -10°C – 50°C
- Interfaces: CAN / RS485 / Ethernet / Wi-Fi
- Warranty: 10 years
- Compatible inverters: SMA, Kostal
Scope of delivery
- 1 x SMA Sunny Tripower 10.0 Smart Energy
- 3 x VARTA.wall battery module 5.0 kWh
- 1 x VARTA.wall set of master / base unit
-
