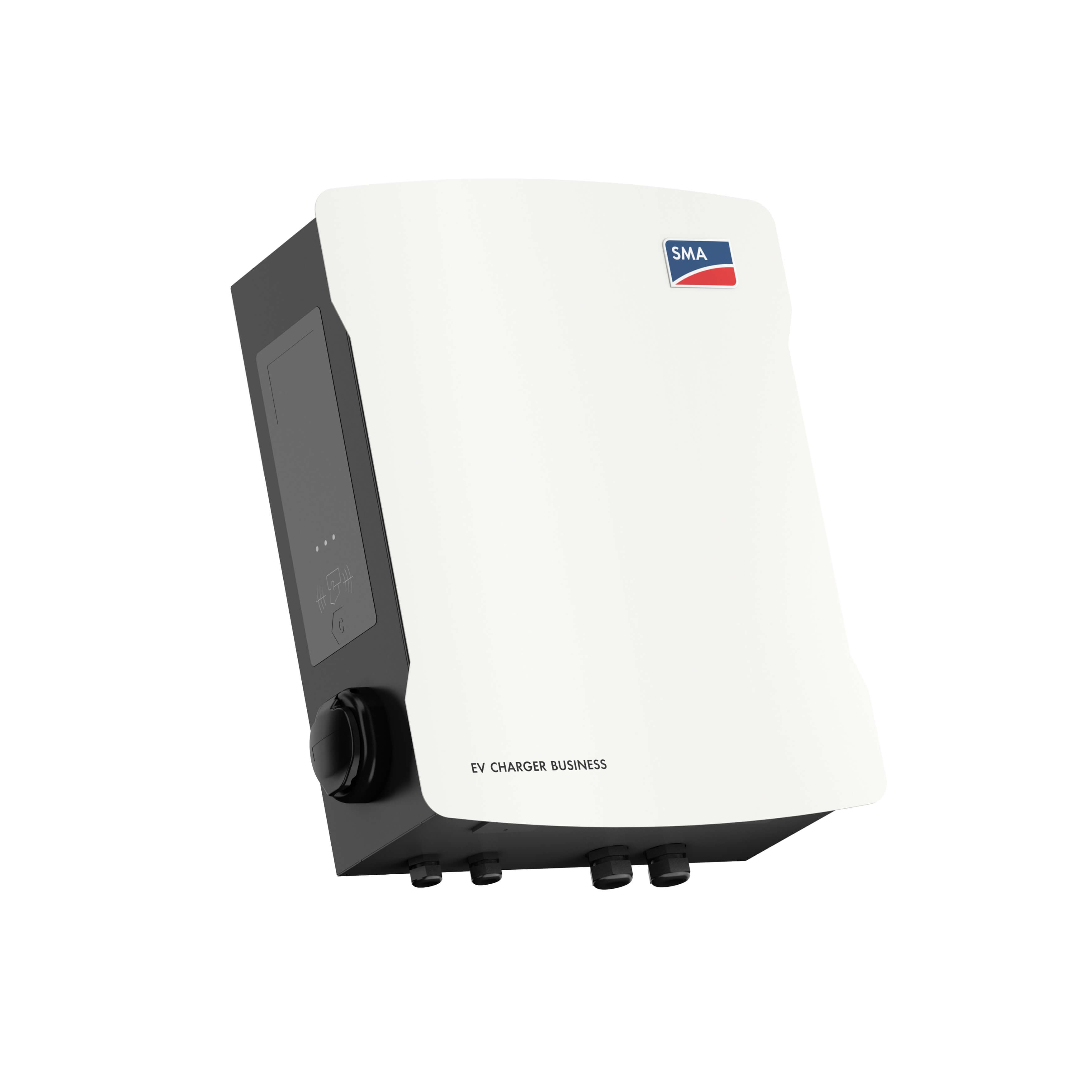

SMA EV Charger Business incl. ME meter, socket
| Type of manufacturer: | EVCB-LB-3AC-ECC-10 |
|---|---|
| Manufacturer Art. No.: | 204842-00.01 |
| Art. Nr.: | 11050 |
| Pieces per package unit: |
|
| AC phases: | 3 |
| Access control: | RFID |
| BMVI förderfähig: | No |
| Charging port: | Socket |
| Electric charging system: | Charging station, Commercial (semi-public), Public, Wallbox |
| Energy meter: | Meter compliant with the German calibration law |
| KfW (441) förderfähig: | No |
| Number of charging points: | 2 |
| Power: | 22 kilowatt |
| Surplus charging: | Yes |
| WEEE-Number: |
|
- KfW (442) förderfähig
SMA's charging solution for the commercial sector with the EV Charger Business, compliant with calibration regulations
With the SMA EV Charger Business, compliant with calibration regulations, SMA offers another component of the SMA Energy System Business. The EV Charger Business offers two charging points, allowing charging parks to be quickly implemented. Thanks to RFID and OCPP, the device can be flexibly integrated into various systems and is therefore suitable for both new and existing photovoltaic systems.
The SMA EV Charger Business, compliant with calibration regulations, enables the charging process to be recorded and processed in accordance with the requirements of the German Measurement and Calibration Act. Conformity with calibration regulations is required in Germany where
- charging electricity is to be billed to third parties (e.g. employees),
- charging points are operated with public access or
- roaming (billing via charging cards, in conjunction with the SMA eMobility Portal) is to be offered.
Product advantages
- Energy meter compliant with calibration regulations
- 2 x 22 kW charging power
- Dynamic load management with up to 250 charging points
- SMA Ecosystem and Service
- Integrated DC fault detection
- eMobility Portal interface
Features SMA EV Charger Business
- Charging power up to 2 x 22 kW
- 2 x type 2 charging socket
- Integrated RFID card reader
- Communications
- Ethernet RF-45
- OCPP 1.6 JSON
- EEBUS
- Integrated 4G Modem
- LED display
- 6 mA DC Residual current protection
- Protected against external influences by IP54 / IK08
- Dimensions (W x H x D): 40.9 x 49.0 x 17.6 cm
- Weight: 13.5 kg
- System compatibility
- SMA eMobility Portal
- SMA Data Manager M
About SMA
SMA is a global provider of photovoltaic system technology with headquarters in Germany. For over 35 years, SMA has been setting technical standards and promoting the development of renewable energies.
-
