SMA Data Manager M
| Manufacturer Art. No.: | EDMM-20 |
|---|---|
| Art. Nr.: | 12484 |
| Pieces per package unit: |
|
| Accessory type: | Data-logger |
| WEEE-Number: |
|
- New
-
-
{ "id": "83d6b26555505c27a0690d5e0d4b206c", "item_brand": "", "item_name": "SMA power supply 24V for Cluster Controller / Datamanager", "item_id": "2804", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "83d6b26555505c27a0690d5e0d4b206c" } }
-

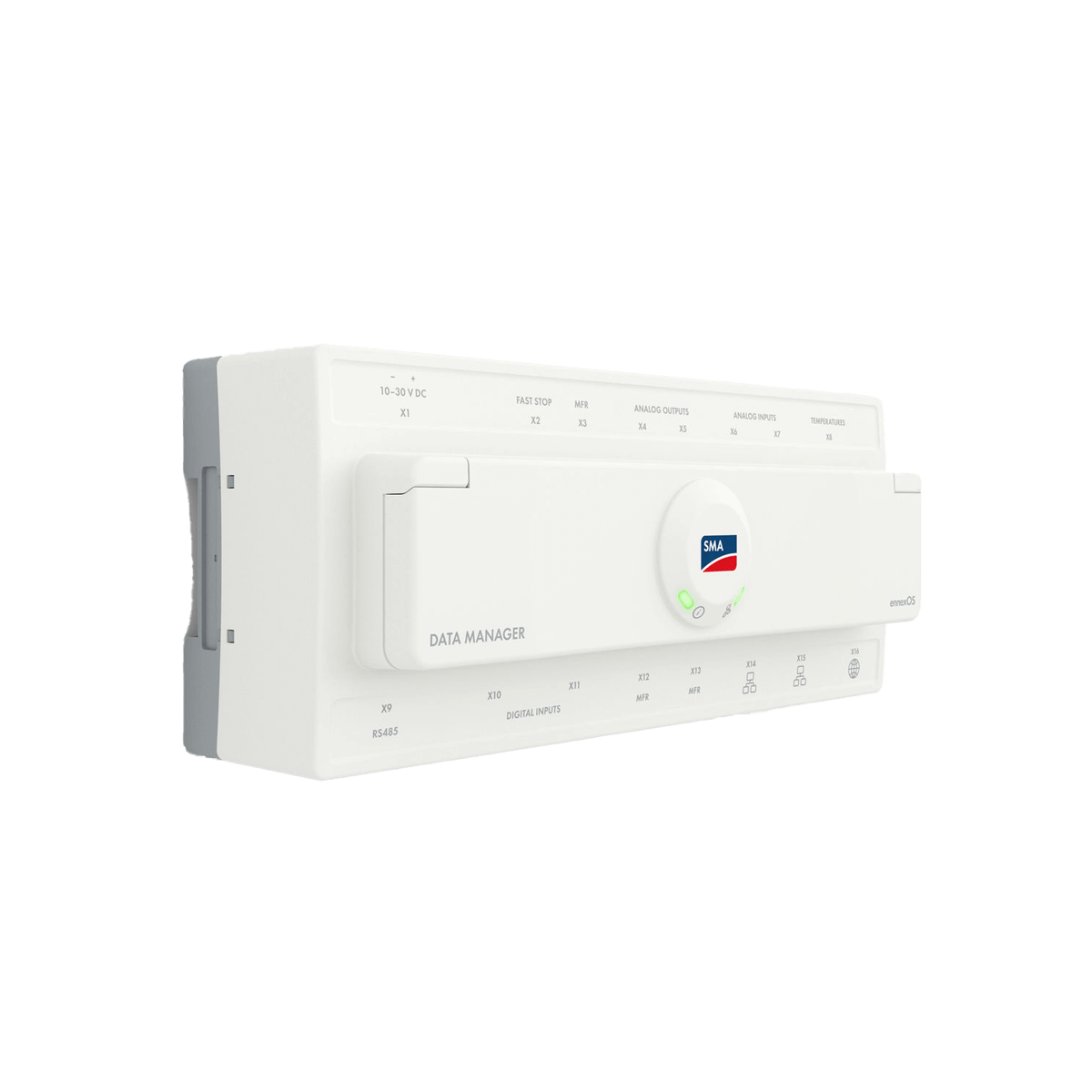

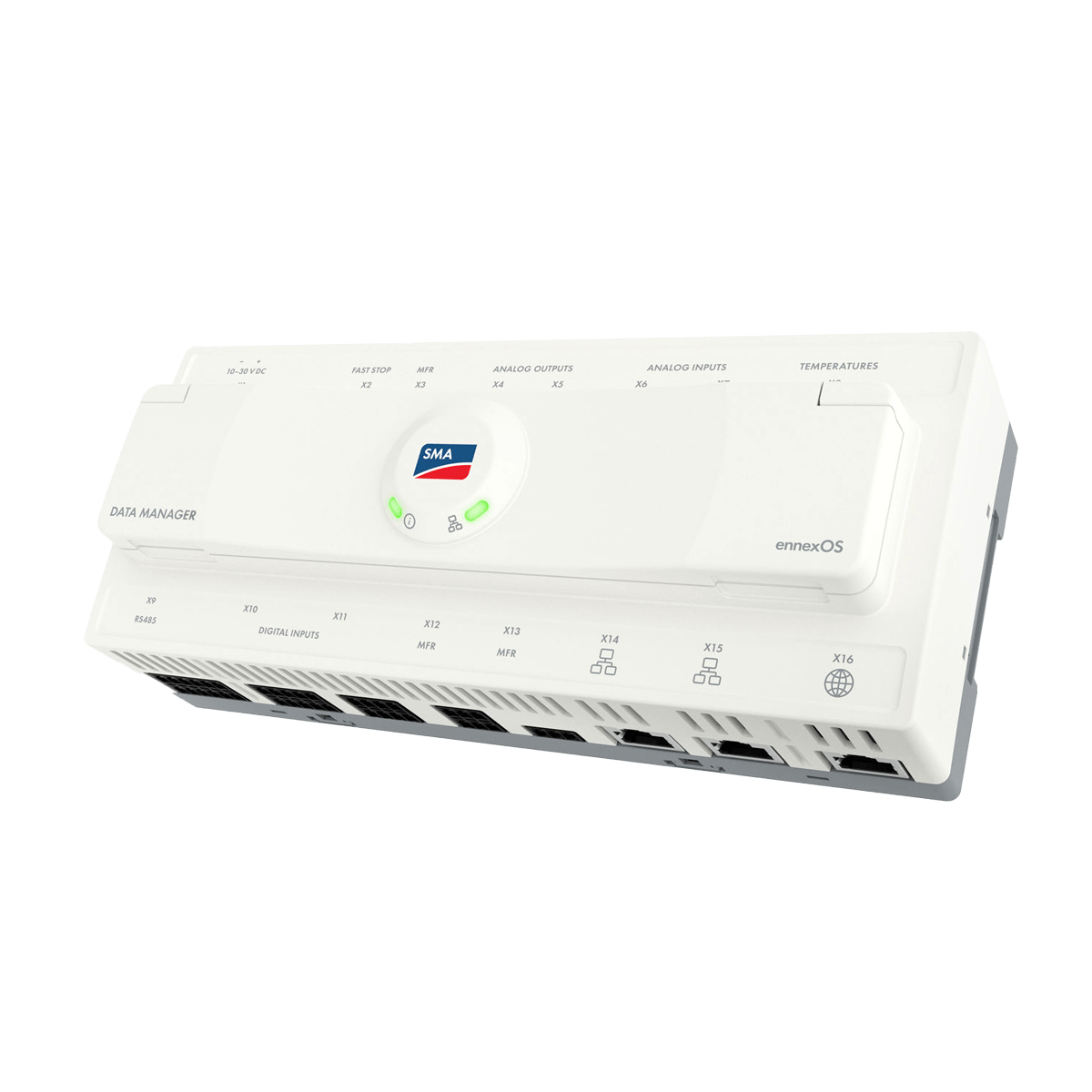

The New SMA Data Manager M
The successor to the successful first-generation Data Manager M stands out with its numerous additional interfaces, offering exceptional flexibility. Powered by a new processor, it delivers enhanced CPU power. With a capacity of 2.5 MVA in regular operation and 7.5 MVA in control or pure monitoring mode, the new Data Manager M continues to optimize the monitoring and management of up to 50 SMA devices, including PV and battery inverters, energy meters and EV charging points. It is the ideal professional system interface for electric utility companies, direct seller, service technicians and system operators. Coordinated user interfaces and intuitive assistance functions simplify operation, parametrization and commissioning.
Product advantages of the SMA Data Manager M
- More CPU power thanks to new processor
- Fast and intuitive commissioning of all local components and Sunny Portal
- Enhanced cybersecurity
- Integrated inputs and outputs for digital and analogue signals, no additional hardware required
- Complies with national and international grid-integration requirements
- Detailed analytics, error messages and reports
- Convenient and secure remote monitoring and parameterization of all connected components
- Flexible expandability to adapt to new requirements and evolving customer needs
- Access to the Dynamic Energy Market of the Future via the IoT Platform ennexOS
- Sunny Portal powered by ennexOS with Enhanced Features for the New Energy World
- Implementation of P(U) and Q(U) control as well as zero feed-in according to VDE-AR-N 4105
Product features of the SMA Data Manager M
- Connection option of up to 50 SMA devices

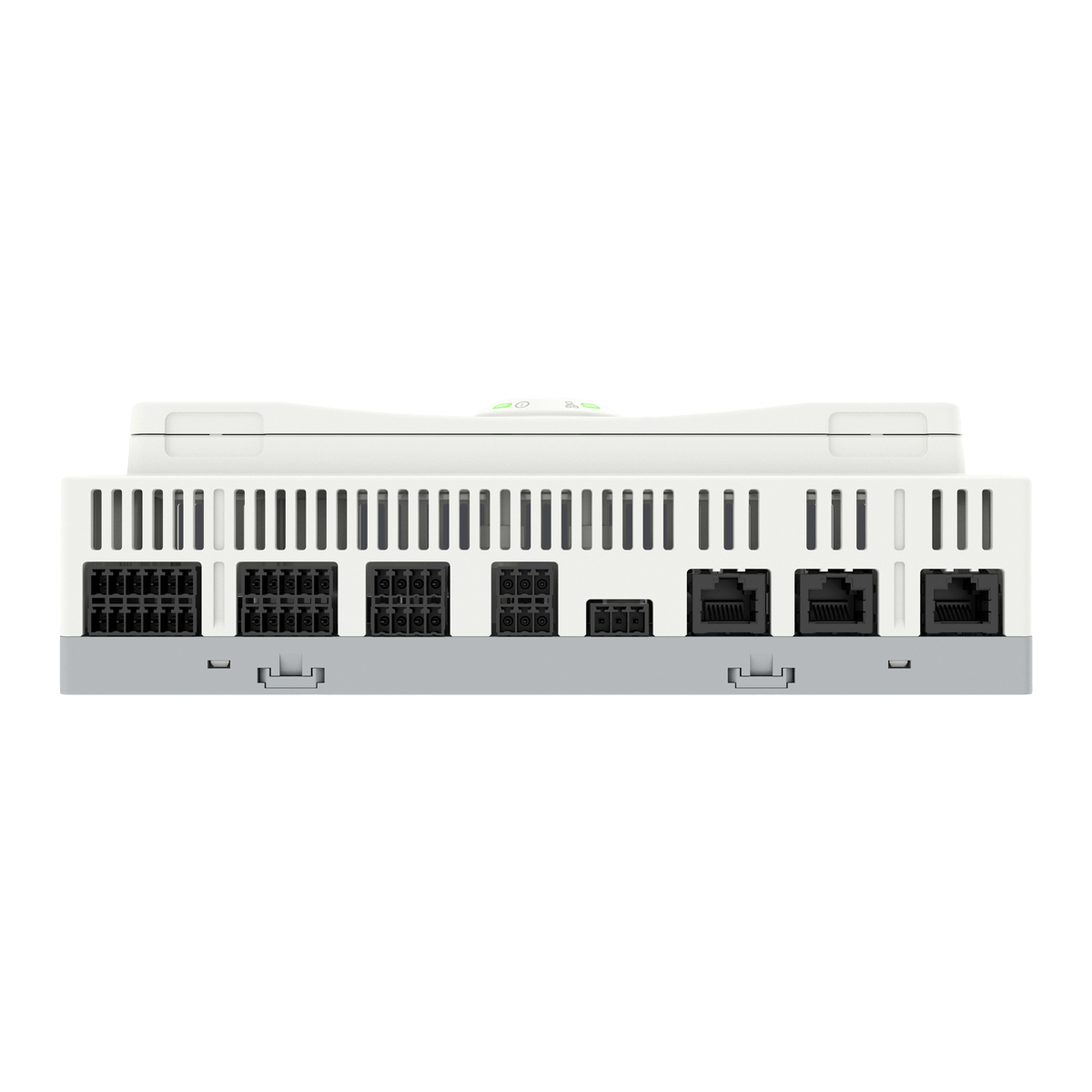

- 3x Ethernet (10/100 Mbit/s; 1 x Internet, 2 x system network), 2 x RS485, Wi-Fi for commissioning, Modbus
- 10 x Digital In, 1 x Fast Stop, 5 x multifunction relays, 4 x Analogue In (0 mA to 20 mA), 4 x Analogue Out (0 mA to 20 mA), 2 x Temperature (PT100), 1 x Reset button
- 10-30 V operating voltage (power supply unit required!)
- Compatible with I/O system E1214 from MOXA
- Indoor installation only, suitable for top-hat rail or wall installation
- Dimensions: 216 x 90 x 68 mm
- Warranty: 2 years
In combination with the new Data Manager M and based on the new IoT platform ennexOS, the new Sunny Portal powered by ennexOS offers an innovative user interface and optimized functions to meet evolving customer needs. System monitoring and communication are thus fit for the requirements of the digital energy and communication world of the future.
-
