Schletter module support profile Pro 35 mm/3.55 m (ProLine)
| Type of manufacturer: | 120020-03550 |
|---|---|
| Manufacturer Art. No.: | 120022-03550 |
| Art. Nr.: | 11943 |
| Pieces per package unit: |
|
| Type of roof: | Beaver-tail, Corrugated fiber cement, Corrugated iron, Folded metal sheet, Open space, Pan tile, Sandwich trapeziodal sheet, Slate, Trapezoidal sheet |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11943
Description

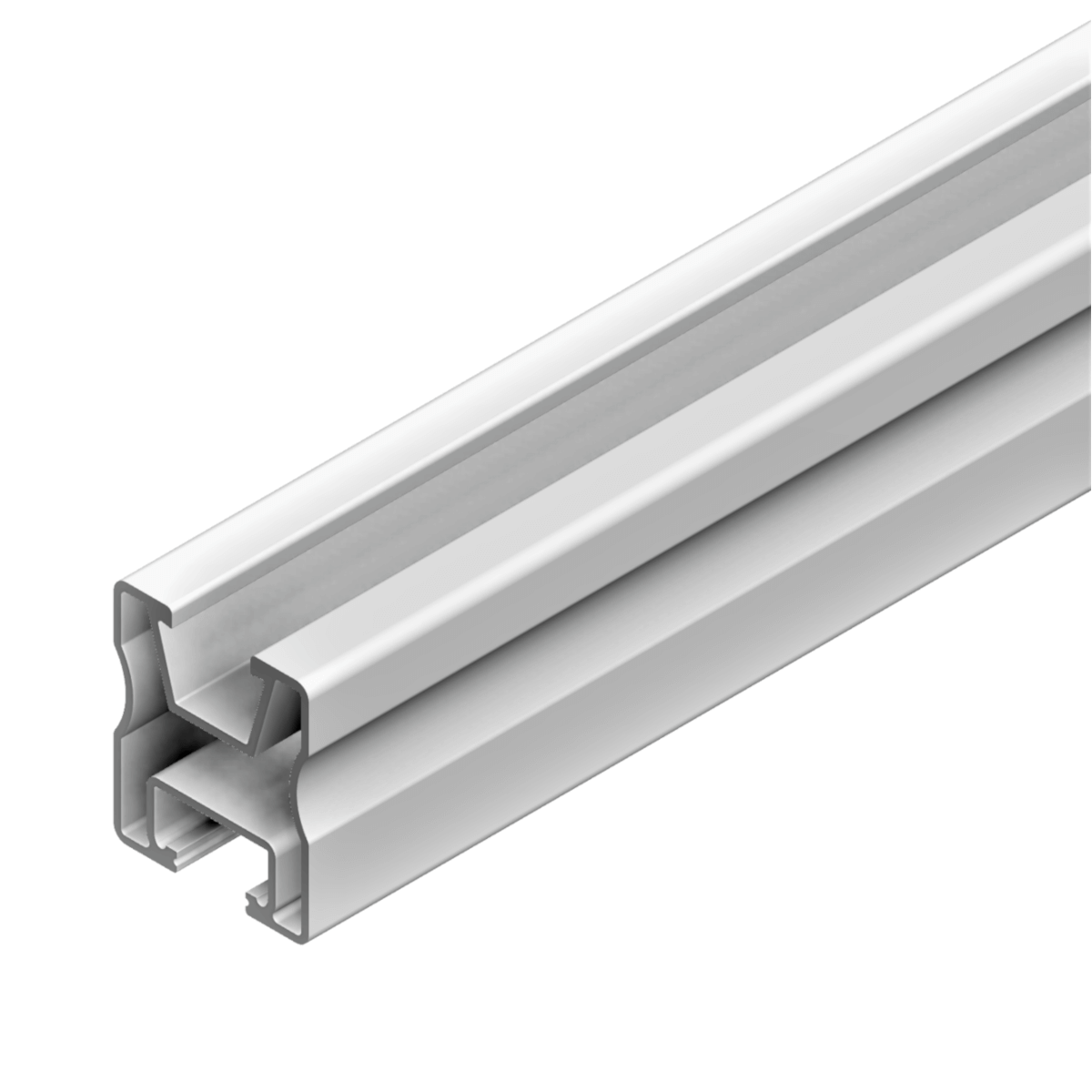

Module support profile Pro 35 mm/3.55 m (ProLine)
Pro profile series for the new and innovative mounting system made by Schletter. With this ProLine profile, installation has been significantly simplified and the number of individual components required has been reduced. The profiles are designed with a simple click groove at the top and an M10 screw channel at the bottom. With a very minimal weight of 0.62 kg/m, the rail is ideal for applications with a low load-bearing capacity.
Product advantages:
- Compatible with ProLine System
- 25-year product guarantee
Product features:
- Material: Aluminium
- Width: 30 mm
- Height: 35 mm
- Length: 3.55 m
- Weight: 0.62 kg/m
