Raycap ProTec T2C-EV
| Type of manufacturer: | ProTec T2C-EV |
|---|---|
| Manufacturer Art. No.: | IZ515753000 |
| Art. Nr.: | 9122 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
- Remaining quantity

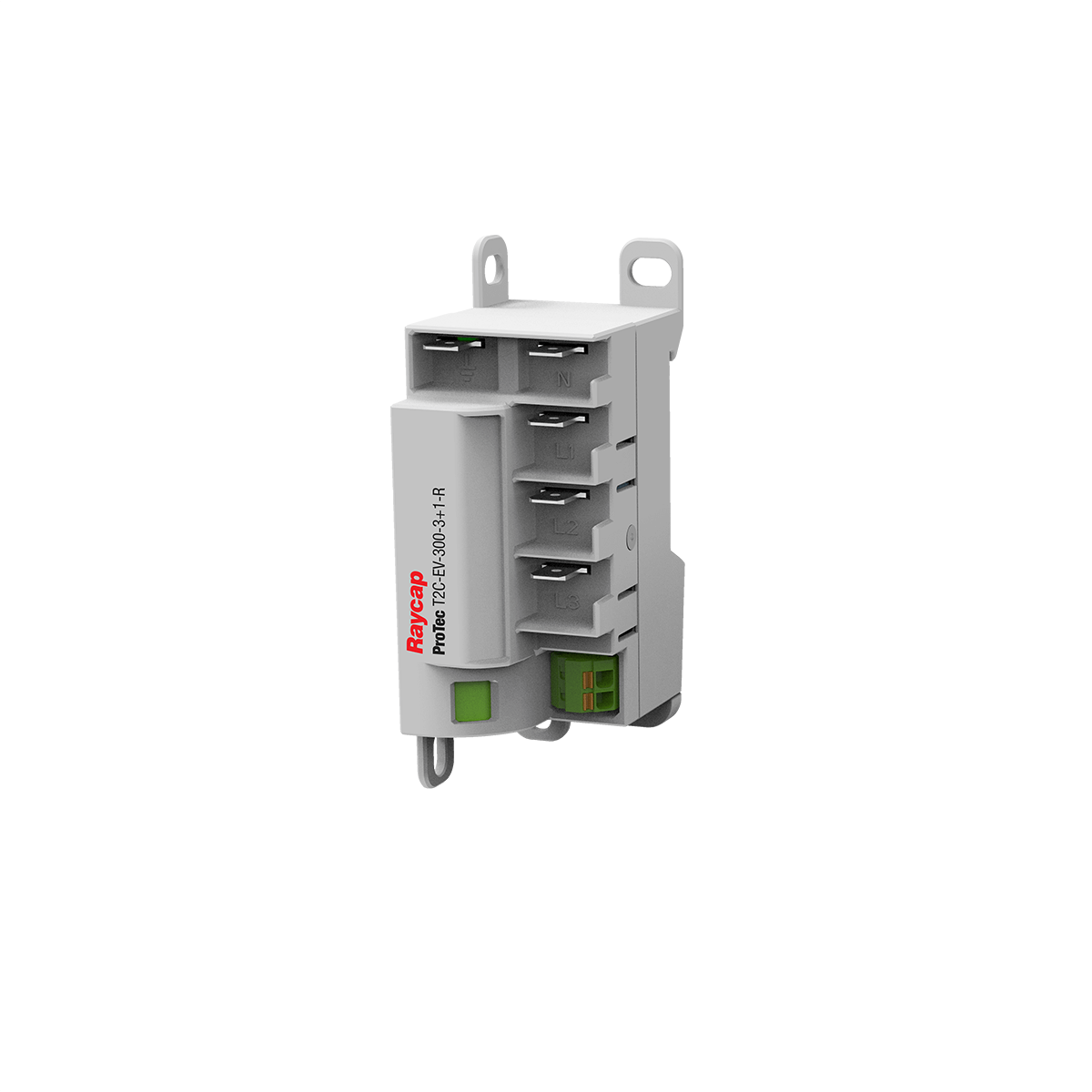

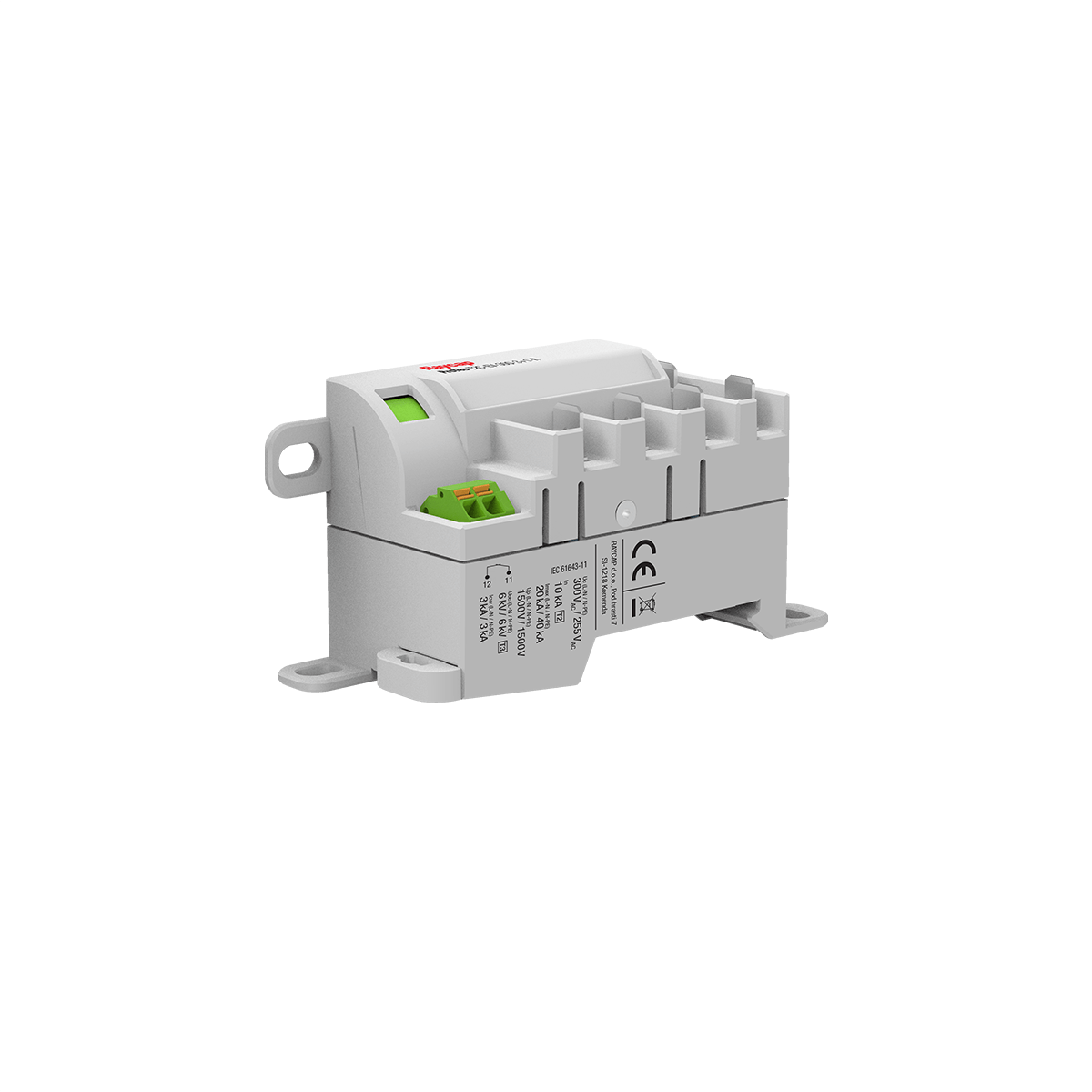

Raycap ProTec T2C-EV, the surge protection for the EV-Charger
Raycap's new ProTec T2C-EV surge protector makes it easy to protect charging equipment from overvoltage. Due to IEC 60364-7-722 (DIN VDE 0100-722:2019-06), the use of a surge protector is required in all publicly accessible charging stations. The surge protector components of the ProTec T2C-EV type have been especially developed for the protection of AC charging stations and is therefore also very uncomplicated to install. Due to the line connections with Fastion connectors, the wiring is also kept as simple and fast as possible. Due to the compact design, the surge protector is also suitable for the smallest AC-EV charging stations.
The ready-made cables are not included in the delivery! These must be purchased separately and are linked in the optional accessories.
Product advantages
- Compact design with 35mm width. Thus also suitable for small AC wall boxes
- Can be mounted on DIN rail or directly on the rear panel
- IEC 61643-11:2011, EN 61643-11:2012+A1:2014 compliant
- Simple wiring, thanks to the pre-assembled connection cables
Product features Raycap ProTec T2C-EV
- Rated voltage AC 50/60 Hz: 240V
- Highest continuous voltage: L-N/N-PE 300V/255V
- Rated leakage current (8/20µs): 10kA
- Temperature range: -40 ºC bis +85 ºC
- Conductor cross section (max): 6mm2
- Mounting type: 35mm DIN Rail, EN 60715 / base plate screw connection
- Protection category: IP 20 (integrated)
-
