Raycap overvoltage protection DC type I + II 3 MPPT, MC4
| Type of manufacturer: | ProTec Box T1-1100PV-7Y-2MC4 |
|---|---|
| Manufacturer Art. No.: | IZ515.850 |
| Art. Nr.: | 12892 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from 27.01.2025
Product number:
12892
Description

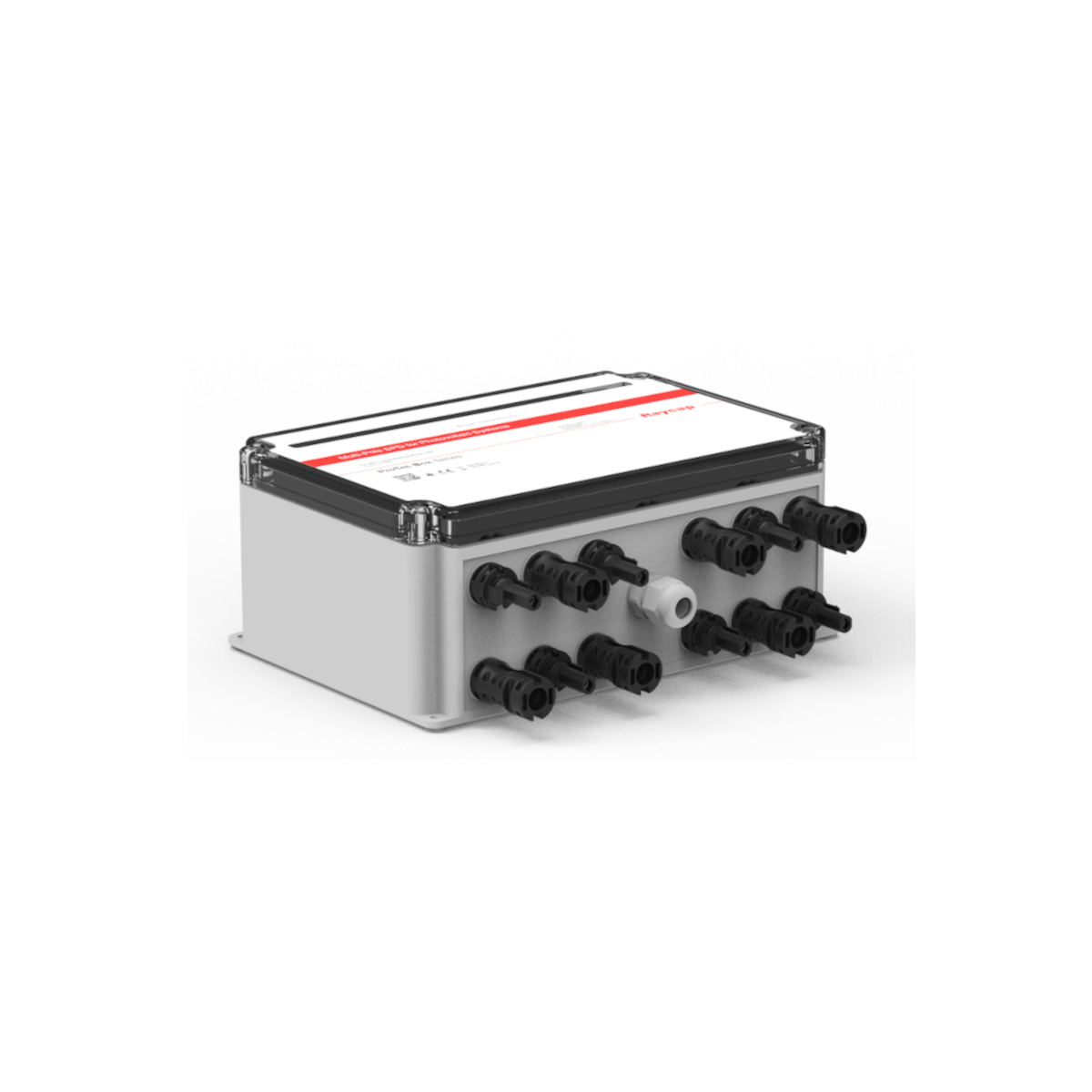

Raycap overvoltage protection DC type I + II 3 MPPT, MC4
Use: in accordance with VDE 0100-443 and 0100-534, buildings with and without external lightning protection. This connection box is intended for use in case of non-compliance with the separation distance and integration into the lightning protection system.
Compact and pre-assembled box with type I+II surge arresters for the DC side. Suitable for inverters with up to 3 MPP up to 1100 V DC voltage. The MC4 connections are used for quick installation with V wiring.
Product features:
- Highest continuous voltage: 1100 V
- Rated current: 45 A
- Protection category: IP 67
- Number of MPP trackers: 3
- Number of strings: 3
Product advantages:
- Reliable protection of PV inverters against overvoltages on the DC side
- Easy installation with enclosed drilling template
- Tool-free connections with MC4 connector
- Compact, UV-resistant housing with high degree of protection
- Conformity with relevant international standards
Special features:
- Comes with Stäubli MC4 connector and release tool
- Quick surface-mounted installation of the DC protection
- Transparent cover makes it easy to identify the failure status of the arrester
