Raycap overvoltage protection DC type I + II 1 MPPT, MC4
| Type of manufacturer: | ProTec T1-1100PV-3Y-2MC-BOX |
|---|---|
| Manufacturer Art. No.: | IZ515 657 |
| Art. Nr.: | 7072 |
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
7072
Description
Raycap overvoltage protection DC, type I + II for 1 MPPT and one string
This option has one MC4 pair per connector. Y-adapters are NOT required.
Area of application: Buildings with and without external lightning protection according to VDE 0100-443 and 0100-534.

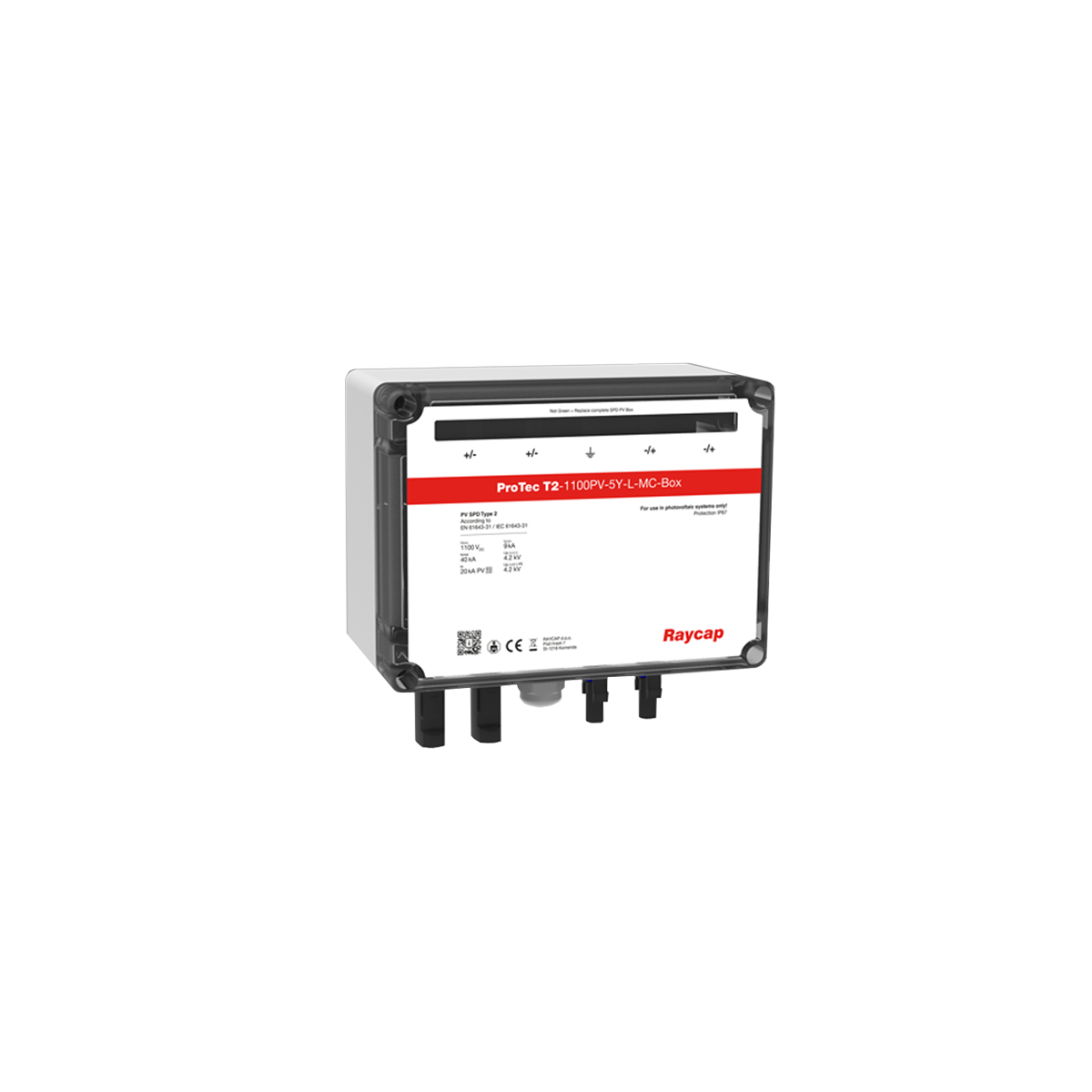

Compact and pre-assembled box with type I + II overvoltage arrester for DC end. Suitable for inverters with one MPP tracker up to 1000 V DC voltage. This surge box has one connector with MC4 plug per MPP tracker.
Product features:
- Highest continuous voltage: 1100 V
- Rated current: 35 A
- Protection category: IP 65
- Number of MPP trackers: 1
- Number of strings: 1 (one for each MPP tracker)
- Conductor cross-section PE: up to 16 mm²
- Conductor cross-section PV strings: up to 6 mm²
- Connection PV strings with MC4 connector (Weidmüller)
