Raycap cable set for ProTec T2C-EV
| Manufacturer Art. No.: | IZ515792000 |
|---|---|
| Art. Nr.: | 9125 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- Remaining quantity
Available from stock
Product number:
9125
Description

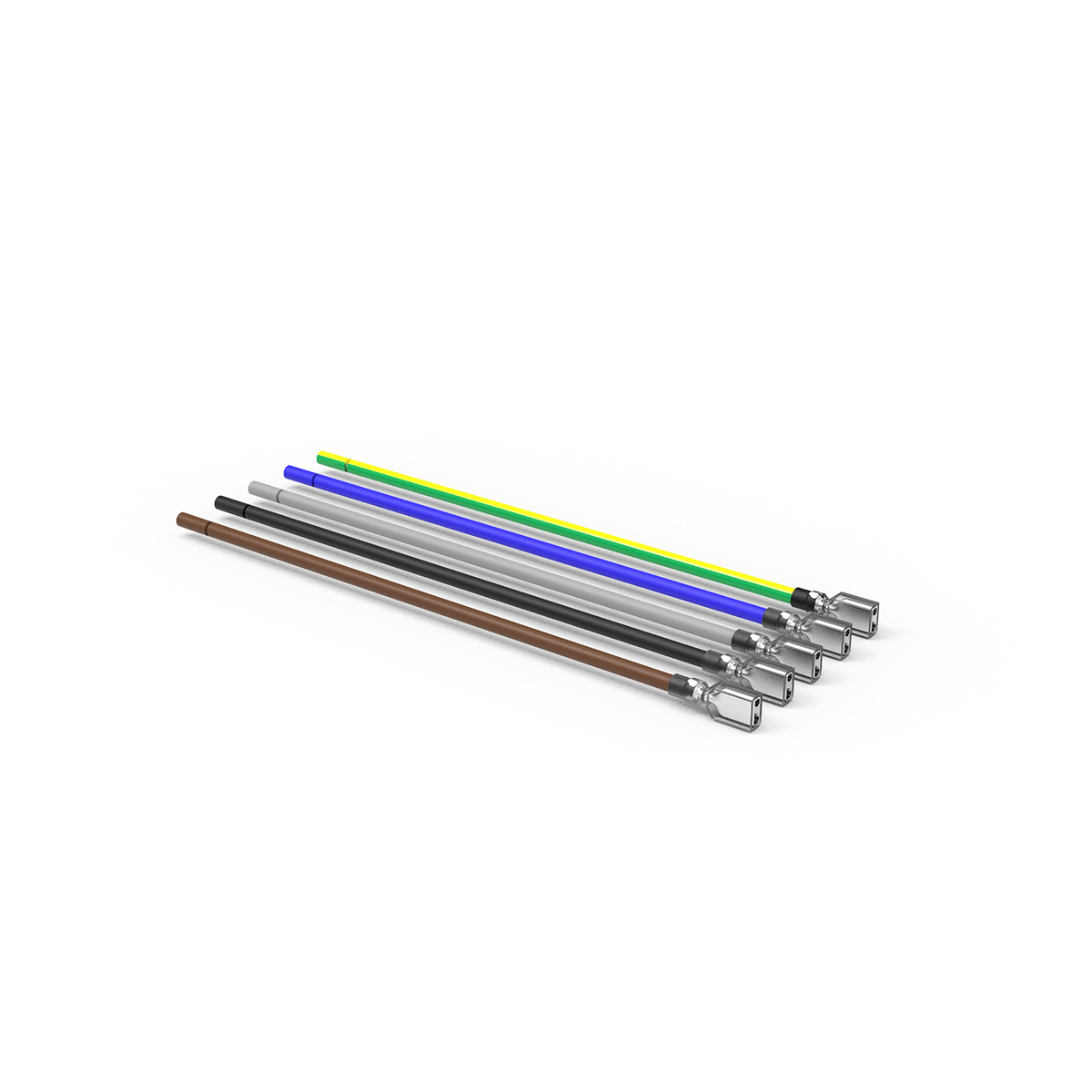

Raycap cable set for ProTec T2C-EV
Raycap's new ProTec T2C-EV surge protector makes it easy to protect charging equipment from overvoltage. Due to IEC 60364-7-722 (DIN VDE 0100-722:2019-06), the use of a surge protector is required in all publicly accessible charging stations. The surge protector components of the type ProTec T2C-EV were developed especially for the protection of AC charging stations and is therefore also very straightforward to install. Due to the line connections with Fastion connectors, the wiring is also kept as simple and fast as possible. Due to the compact design, the surge protector is also suitable for the smallest AC-EV charging stations.
Product advantages
- IEC 61643-11:2011, EN 61643-11:2012+A1:2014 compliant
- Simple wiring, thanks to the pre-assembled connection cables
Product features cable set for ProTec T2C-EV
- Line connections with Faston connector
- Length: 20 cm
- Conductor cross section: 6mm2
- Fast-On type: 6.3x0.8
- Insulation material of the sleeve: TE 1-170823-6
- Test voltage of the cable: 1500 V
- Cable type: fine stranded
