Pylontech Force H2 10.65 kWh with GoodWe ET Plus – GW10KN-ET
| Art. Nr.: | 11282 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | GW10KN-ET |
| Net capacity: | 9.59 kWh |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
| Phases: | 3 |
| Solar battery: | Pylontech Force H2 10.65 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from 09.12.2024
Product number:
11282
Description

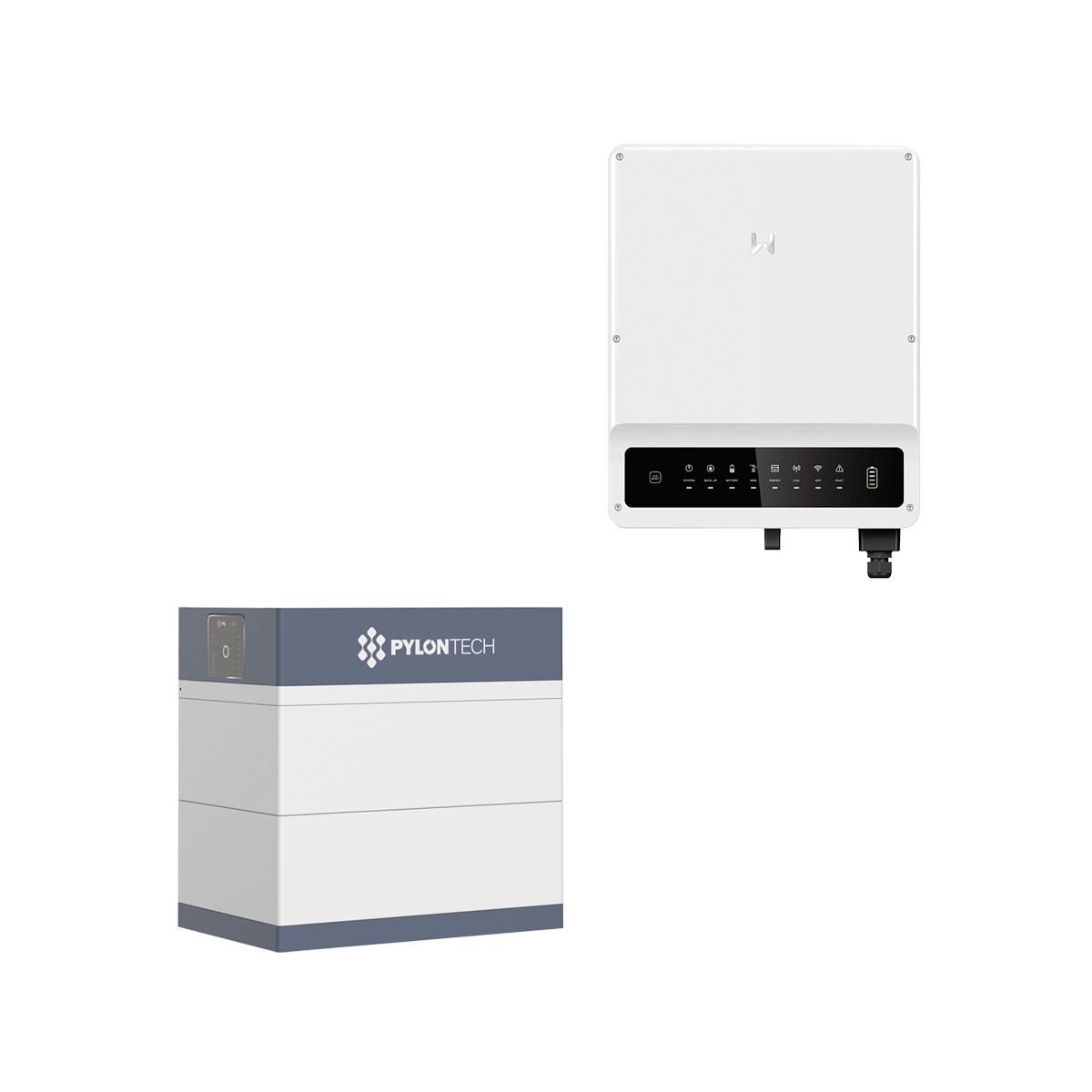

The Pylontech Force H2 10.65 kWh with GoodWe ET Plus – GW10KN-ET in a storage package
Pylontech offers the Force H2 stable high-voltage battery. The battery storage system is available with 2 – 4 battery modules and a usable storage capacity of 6.4 – 12.9 kWh. In combination with the GoodWe hybrid inverter ET Plus 16A, self-consumption can be increased. Together, they can continue to supply selected consumers with electricity in the event of a power failure. Other consumers such as wallboxes and heat pumps can also be integrated via the potential-free contact in the hybrid inverter.
Package advantages
- 3-phase smart meter already included in the ET Plus 16A series
- Emergency power capability
- High battery safety standard VDE 2510-50
- Integration into the SEMS portal
Product features Pylontech Force H2 10.65 kWh
- Usable battery capacity: 9.59 kWh
- Rated voltage: 288 V
- Nominal charging/discharging current: 18.5 A
- Communications: CAN bus/ Modbus RTU
- Operating temperature: 0°C – 50 °C
- Battery module retrofit possible
- Dimensions: 1118 x 450 x 296 mm (H x W x D)
- Weight: 117 kg
- Protection category: IP 55
- Warranty: 10 years
Product features GW10KN-ET
- Mains connection: 3-phase
- AC power: 10 kVA
- 10.0 kW emergency power via separate output
- MPP trackers: 2
- String connections per MPPT: 1
- Max. input current per MPPT: 16 A
- Max. short circuit current per MPPT: 21.2 A
- RS485, Wi-Fi (LAN optional)
- Potential-free contact available (programmable via SolarGo app) (SG-Ready)
- Push-in terminals for communication interfaces simplify installation
- Wi-Fi module included
- Dimensions: 516 x 415 x 180 mm (H x W x D)
- Protection class: IP66
- Weight: 24.0 kg
Scope of delivery
- Pylontech Force H2 10.65 kWh consisting of 1 BMS and 3 battery modules
- GoodWe ET Plus – GW10KN-ET including 3-phase smart meter
