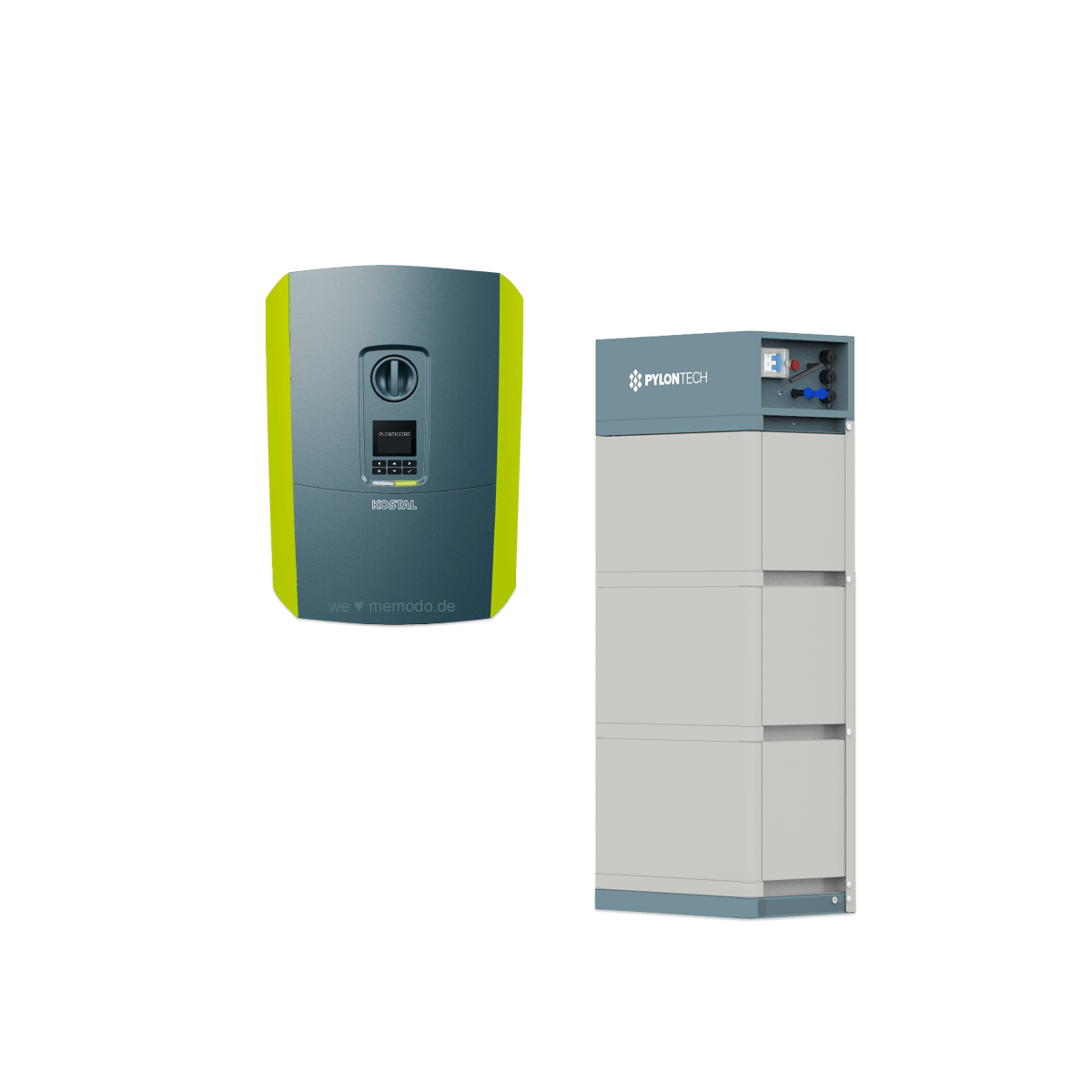

Pylontech Force H2 10.65 kWh + Kostal Plenticore plus 8.5 G2
| Art. Nr.: | 11323 |
|---|---|
| Battery type: | High volt lithium-iron-phosphate |
| Inverter: | Kostal Plenticore plus 8.5 G2 |
| Net capacity: | 9.59 kWh |
| Package type: | High voltage battery, Solar battery packages |
| Solar battery: | Pylontech Force H2 10,65 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from 09.12.2024
Product number:
11323
-
-
{ "id": "ab2cf80857d859adb0ca8444d783f149", "item_brand": "", "item_name": " Kostal Smart Energy Meter G2", "item_id": "7613", "currency": "EUR", "item_variant": "", "price": "", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ab2cf80857d859adb0ca8444d783f149", "realPrice": "", "item_startPrice": "", "item_hasGraduatedPrice": "", "taxRate": "19", "cheapest": "" } }
-
Description
Pylontech Force H2 10.65 kWh + Kostal Plenticore plus 8.5 G2
The Pylontech Force H2 battery is the latest version of the high-voltage storage system from Pylon. The newly designed system makes it easy to connect the battery modules together and saves installers valuable time. The stacking system offers versatile configurations from 192 V to 384 V and capacities from 7.10 kWh to 85.20 kWh via parallel connection. Thanks to its broad compatibility with well-known inverter manufacturers, the Pylontech storage system can be installed in various combinations. In particular, the high system efficiency in combination with the Kostal Plenticore G2 inverter was recently distinguished by the HTW storage inspection.
Product advantages Pylontech Force H2 10.65 kWh
- Flexible module design
- 95% DOD
- 10 years of warranty
- Broad inverter compatibility
Product features Pylontech Force H2 10.65 kWh
- Net capacity: 9.59 kWh
- Rated voltage: 288 V
- Charging/discharging current: 18.5 A
- Max. charging/discharging current: 40 A
- Cell chemistry: LFP
- Protection category IP55
- Weight: 117 kg
- Dimensions: 1118 x 450 x 296 (HxWxD)
- Communications: CAN/RS485
Product advantages Kostal Plenticore plus 8.5
- Simple connection of a high-voltage battery possible
- Modern and functional design
- Complete communication package as standard
- Dynamic power control is easy to implement
- Intelligent shade management and self-learning battery control
- Temperature-controlled active cooling
- Can also be used without an Internet connection thanks to the integrated web server
Product features Kostal Plenticore plus 8.5 G2
- Mains connection: 3-phase
- AC power: 8.5 kW
- Transformerless concept
- 2 +1 MPP tracker
- DC disconnector integrated in the front of the device
- Interfaces: Wi-Fi, Ethernet, USB, CAN, RS485, Modbus RTU, FRE
- Switching contact for self-consumption control (e.g. heat pump)
- Dimensions: 563 x 405 x 233 mm (H x W x D)
- Weight: 21.6 kg
- Protection category: IP 65
- 10-year warranty (after registration with Kostal)
Included in the package
- 1x FC0500M-40S-V2 Force-H2 BMU control unit
- 3x FH9637M Force-H2 battery module
- 1x Kostal Plenticore plus 8.5 G2
-
