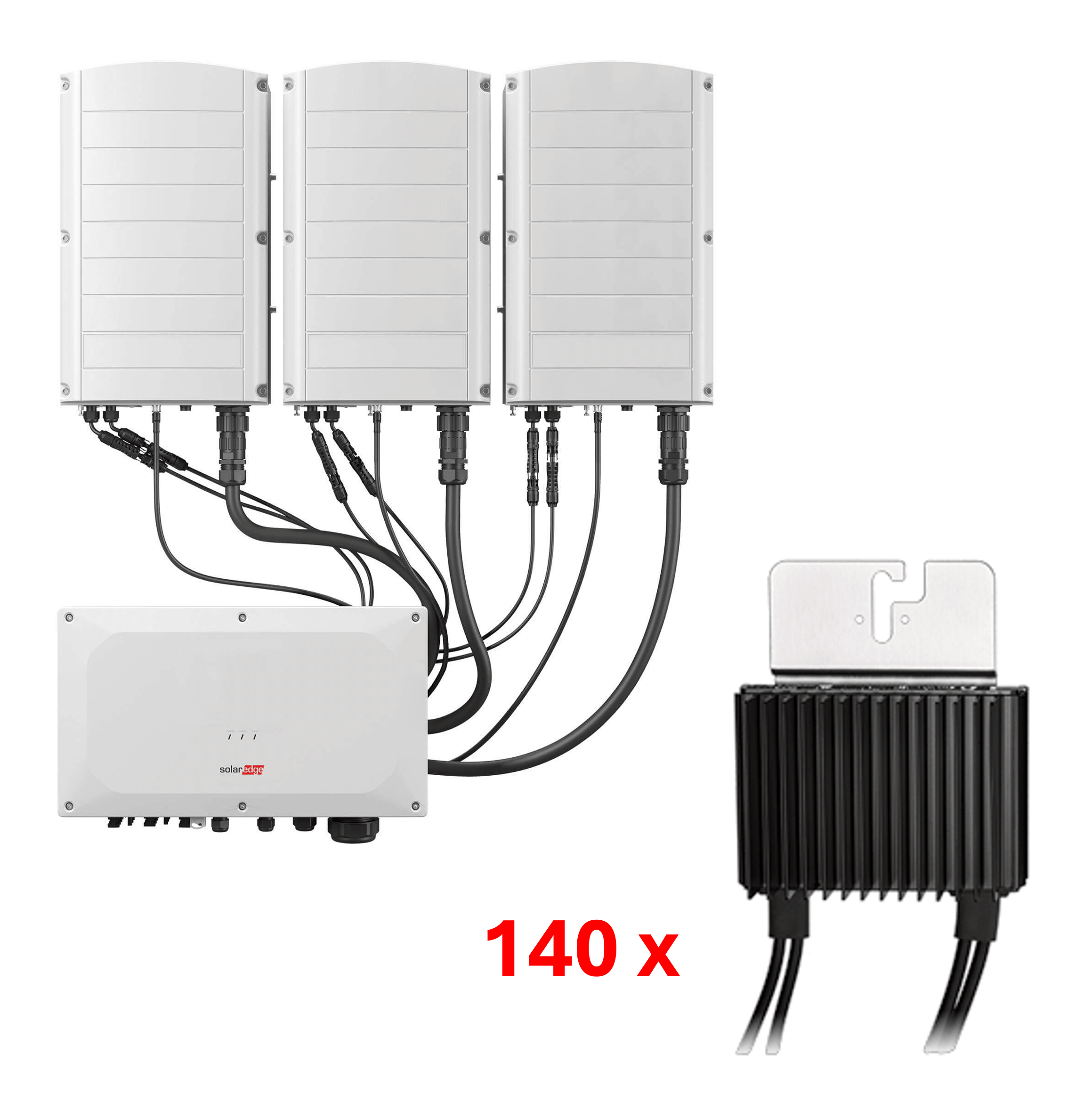

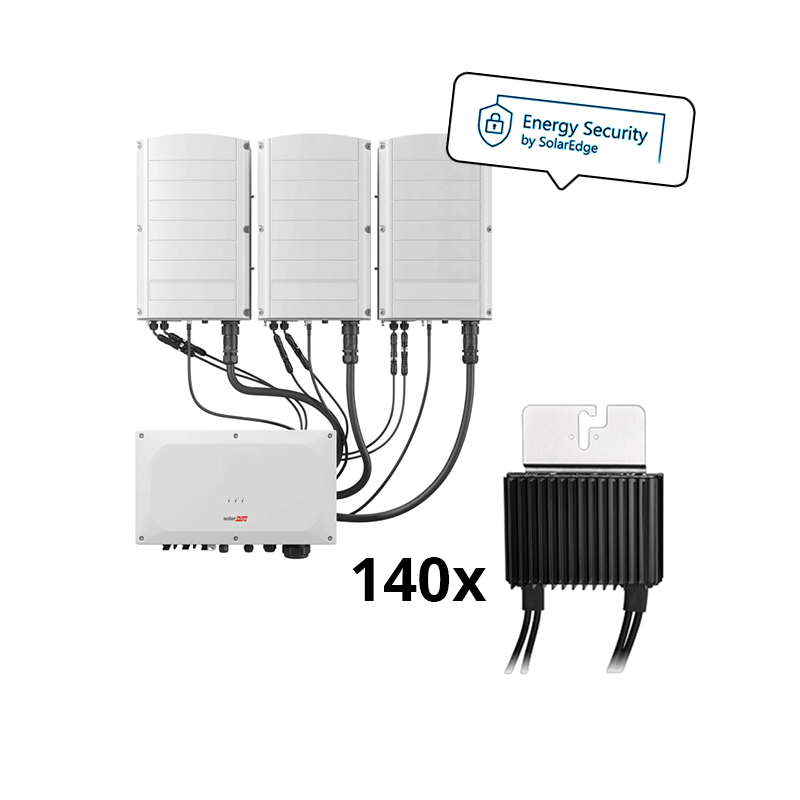

Project item SolarEdge SE100K with 140 x P850 optimizer
| Art. Nr.: | 11803 |
|---|---|
| AC power: | 100 kW |
| Communication: | 2 x RS485, Ethernet |
| Inverter type: | PV inverter, Project inverter |
| MPP voltage range: | 200 - 750 Volt |
| Phases: | 3 |
| Warranty: | 12 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- TIP
Available from stock
Product number:
11803
-
-
{ "id": "e58a7f7ad9cb5d62bf034d80ccdf0eda", "item_brand": "", "item_name": "SolarEdge energy meter with Modbus port", "item_id": "4945", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e58a7f7ad9cb5d62bf034d80ccdf0eda" } } -
{ "id": "f945c6cfcb5a5dbd8191249bd7d1e211", "item_brand": "", "item_name": "SolarEdge firefighter SE1000-CCG-F", "item_id": "562", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "f945c6cfcb5a5dbd8191249bd7d1e211" } } -
{ "id": "9853aa24fb5a5a46a4b7e44ca600167e", "item_brand": "", "item_name": "SolarEdge irradiation sensor SE1000-SEN-IRR-S1", "item_id": "860", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9853aa24fb5a5a46a4b7e44ca600167e" } }
-
Description
SolarEdge SE100K with innovative pre-commissioning in a package with 140 x P850 optimizers at a killer price
Three-phase SolarEdge inverter with synergy technology with up to 100 kW output and connection to the low-voltage grid. The inverter concept is based on small and easy-to-install primary and secondary devices. These can be mounted on the wall with minimal space requirements. Only 2 people are required for installation. The new series of synergy devices also offers the option of pre-commissioning. This makes it even easier for EPCs in particular to approve individual construction phases.
Warranty extensions can be purchased at https://www.solaredge.com/de/warranty.
Product advantages
- Low assembly and installation costs
- Lower BoS costs
- 12-year standard warranty on inverters
- Integrated SafeDC and arc detection
- European weighted efficiency: 98 %
- Connections for ripple control receiver
- Optional: Wi-Fi or cellular network
Product features SolarEdge SE100K
- AC rated power: 100 kVA
- Max. DC power: 150 kWp (with STC)
- AC voltage level: Low-voltage grid
- Overvoltage protection: Type II integrated
- DC connection inverter/ synergy unit: 12/4 MC4 pairs
- Protection category: IP65
- Standard warranty of 12 years
- Synergy unit dimensions: 558 x 328 x 273 mm
- Weight of synergy units: 32 kg
- Number of synergy units: 3
- Manager unit dimensions: 360 x 560 x 295 mm
- Weight of manager units: 18 kg
- Number of manager units: 1
- This version comes without DC switch
Product features SolarEdge optimizers P850-4RM4MBY:
- Max. rated input power: 880 W
- MPPT operating range 12.5 – 105 V
- Max. short circuit current: 14.5 A
- Min. 14 optimizers per string for 3-phase inverters
- Easy installation thanks to MC4 connection
- Input cable: 0.16 m
- Output cable: 2.2 m
- SafeDC function automatically reduces the voltage to 1 volt per module in the event of a fault
- Simple installation on substructure with hammer-head screw
Package components:
- Synergy unit SE100K-RW00IBNM4 (item no.: 6361)
- 3x SESUK-RW00INNN4 (item no.: 6358)
- 140x P850 optimizer (item no.: 4479)
Videos
Videos
-
Installation Video Part 1 - Mounting the Synergy InverterThe YouTube video has been blocked due to the cookie settings.
-
Installation Video Part 2 - Wiring the Synergy InverterThe YouTube video has been blocked due to the cookie settings.
-
Installation Video Part 3 - Pre-commissioning the Synergy InverterThe YouTube video has been blocked due to the cookie settings.
-
